Before operating any metalworking equipment, focus on mastering the base, headstock, and carriage–these form the core structure that dictates precision. The spindle housing, often overlooked, determines workpiece stability; ensure it’s rigidly aligned to prevent vibration during high-speed cuts. A misaligned spindle leads to poor surface finish and accelerated tool wear, costing both time and material.
The toolpost assembly requires attention to detail–secure clamps and proper tool height adjustment eliminate deflection, a common cause of taper errors. For repetitive tasks, a quick-change toolpost saves hours; verify compatibility with your setup before investing. Tailstock alignment is frequently neglected but critical for drilling and tapping; a dial indicator checks runout, reducing rework.
Feed mechanisms demand calibration–set the gear train for the correct thread pitch or feed rate before engaging the apron controls. A poorly adjusted feed results in inconsistent cuts, especially in long workpieces. Lubrication points, though small, are non-negotiable; dry bearings accelerate wear in the lead screw and cross-slide, leading to costly repairs. Prioritize synthetic oils rated for high-pressure applications to extend component life.
Safety shields and chip guards aren’t optional–position them to block debris without obstructing visibility. For CNC variants, verify limit switches and emergency stop functionality before each use; a malfunction here risks catastrophic failure. Store tooling properly–dull inserts cause excessive force, straining the drive system. Sharpen or replace blades at the first sign of chatter.

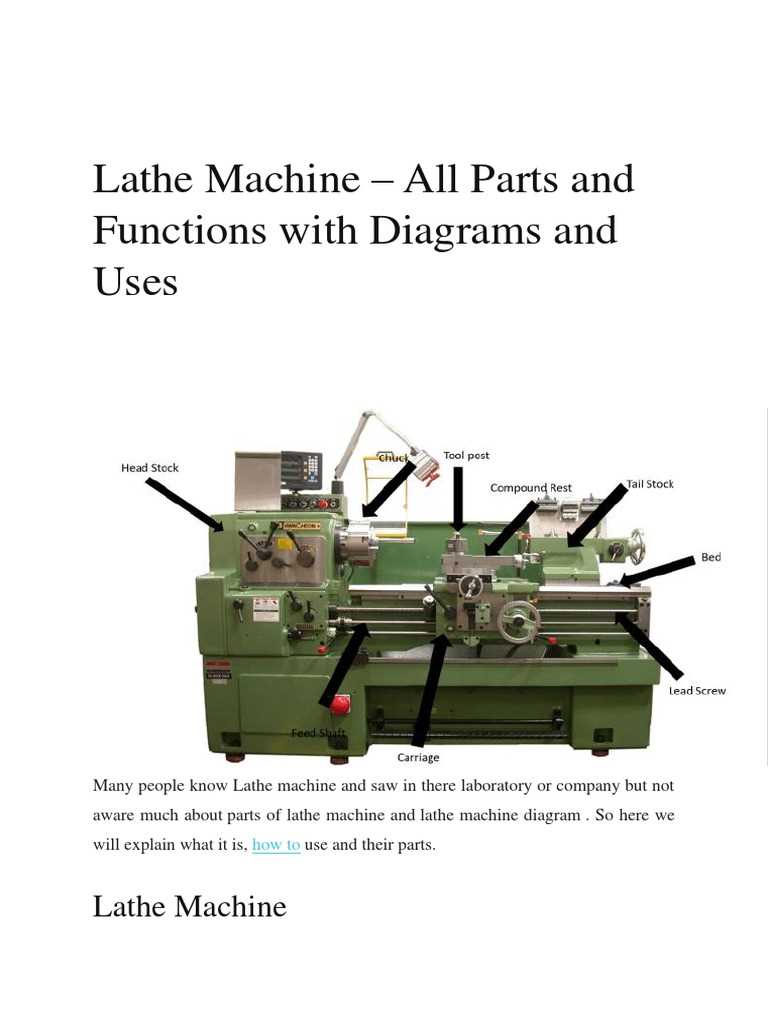

Key Components of a Turning Machine Schematic
Begin by locating the headstock–positioned at the left end of the bed–where the spindle, drive system, and speed controls reside. Adjust spindle speed using the gear levers or digital readout, ensuring the selected RPM matches the workpiece material; for steel, aim between 200–300 RPM, while aluminum requires 500–1,200 RPM. Verify the spindle runs true by checking runout with a dial indicator–excessive deviation (above 0.001 inches) may indicate worn bearings or misalignment, necessitating maintenance before operation.
The tailstock, mounted opposite the headstock, must slide freely along the bed’s ways without lateral play. Secure it with the locking lever when supporting long workpieces, and adjust the quill depth using the handwheel–acceptable travel typically ranges from 3 to 6 inches. Use a live or dead center here, ensuring proper lubrication (high-pressure grease for steel, light oil for non-ferrous metals) to prevent seizing during prolonged cuts. For precision work, align the tailstock with the spindle axis: clamp a test bar, measure deviation at both ends, and adjust the tailstock’s set screws until runout is under 0.002 inches.
Examine the carriage assembly–comprising saddle, cross-slide, and compound rest–critical for tool movement. Lubricate the ways weekly with way oil to prevent scoring; visible grooves on the bed indicate neglect. Set the feed rate via the apron’s gearbox: for roughing, use 0.01–0.03 inches per revolution; for finishing, reduce to 0.002–0.005 inches. The compound rest’s swivel base should rotate smoothly–tighten the clamp evenly to avoid binding. When facing, retract the cross-slide after each pass to measure depth with calipers, ensuring uniform cuts.
Toolpost selection dictates precision–opt for a quick-change type to reduce setup time. Mount cutting tools at center height (verified with a gauge) and secure them with minimal overhang (under 2 inches for carbide, 1.5 inches for HSS). For threads, engage the lead screw and adjust the half-nut lever at the start of each pass; confirm pitch accuracy with a thread gauge before final cuts. Excessive chatter? Decrease depth of cut, slow the feed, or switch to a sharper insert. Keep chip evacuation clear–use compressed air to prevent buildup near the cutting zone, particularly when machining ductile materials like brass.

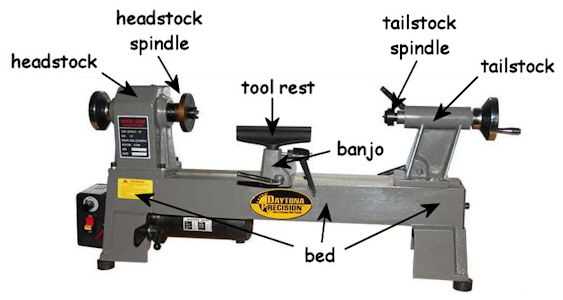

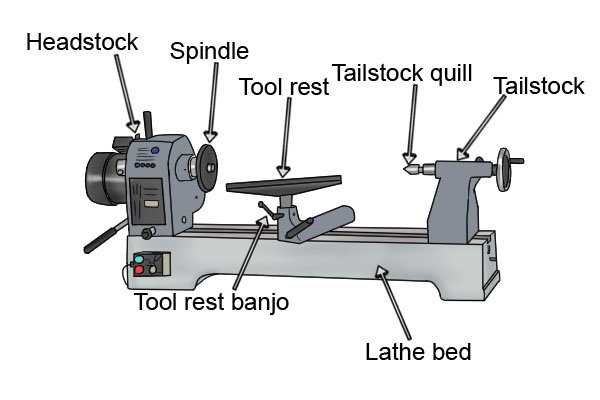

Key Components and Their Locations on a Turning Center
Begin by identifying the spindle at the machine’s headstock–this is the primary rotating axis where workpieces clamp via chucks or collets. Positioned on the left side, it dictates cutting speed; verify its alignment with the tailstock before operations to avoid runout exceeding 0.001 inches. Check spindle bearings for wear if vibrations occur during heavy cuts.
Critical Assemblies for Precision Work
The carriage slides along the bedways, carrying the cross-slide and tool post. Ensure bedway surfaces are free of debris to prevent uneven tool movement–clean with a brass scraper weekly. The compound rest, mounted on the cross-slide, allows angular cuts; calibrate its dial to 0.0005-inch graduations for threading accuracy. Use a dial indicator to confirm repeatability after adjustments.
Locate the lead screw beneath the bed, driving the carriage for thread cutting. Lubricate it monthly with ISO 68 oil to reduce friction; worn threads cause pitch errors–replace if backlash exceeds 0.003 inches. The tailstock quill, extending from the right end, secures drills or centers; retract it fully before startup to avoid collisions with the spindle.
Check coolant nozzles daily–clogged outlets lead to overheated tools. Position them 0.2 inches from the cutting edge for optimal chip evacuation. For CNC variants, verify the control panel’s emergency stop button functionality before each cycle; test by simulating a fault during rapid traversal.
How to Identify the Headstock and Its Sub-Assemblies
Locate the leftmost section of the machining tool–this is the headstock. It anchors the spindle and houses critical components driving rotational motion. Check for a robust casting with mounting holes aligned to the frame; this distinguishes it from auxiliary units. Look for a nameplate or engravings near the pulley cover for model-specific identification codes.
Key Sub-Assemblies and Their Locations
| Component | Position | Visual Clues |
|---|---|---|
| Spindle | Central axis, extending through the housing | Precision-ground taper or threaded nose, often with internal bore |
| Gearbox | Rear of the headstock casting | Access cover with fasteners, sometimes finned for heat dissipation |
| Chuck Mount | Front face, threaded or tapered interface | Cam-lock studs or flange patterns matching workpiece holders |
| Motor Coupling | Between gearbox and motor, if not integrated | Flexible disc pack or splined shaft with safety guard |
| Bearing Housing | Inside headstock, surrounding spindle | Press-fit assembly, often featuring grease fittings or labyrinth seals |
Trace power transmission routes to confirm sub-assemblies. Direct-drive systems position the motor adjacent to the spindle housing, while belt-driven units extend a pulley cover toward the rear. Listen for a faint whir during operation–the motor’s hum localizes to the headstock’s lower or rear sections. For geared models, manual rotation of the spindle by hand (with power disconnected) reveals resistance spikes at gear engagement points.
Examine material finishes and machining marks. The headstock casting typically features fine-ground surfaces at bearing seats and gear interfaces, contrasting with rougher tooling marks elsewhere. Look for witness lines or painted alignment dots–these indicate factory preload adjustments on tapered roller bearings. On older machines, brass or bronze thrust washers may appear between gear faces, identifiable by their dull metallic sheen.
Troubleshooting Mismatches
If components don’t align with typical layouts: measure pulley diameters–odd ratios suggest custom retrofits. Check for non-standard fasteners (e.g., metric vs. imperial), signaling aftermarket modifications. Compare spindle nose dimensions against OEM specs; non-compliant tapers or thread pitches indicate incompatible workholding setups. For variable-speed drives, verify that control knobs correspond to calibrated speed ranges printed on escutcheons.
Bed, Ways, and Carriage: Core Components and Precision Guide
Inspect the horizontal foundation of the machine before operation–measure straightness of its cast-iron frame with a dial indicator; deviations exceeding 0.001 inch per foot compromise cutting accuracy. Apply a thin coat of way oil (ISO VG 68) weekly to prevent scoring, focusing on the V-shaped and flat guide rails that support longitudinal movement. Label the left and right rails as “front” and “rear” respectively in schematics to avoid misalignment during reassembly.
- Bed: Rigid base aligning all moving elements; verify flatness annually with a granite straightedge.
- Ways: Hardened surfaces (Rockwell C 55-60) guiding the saddle; check for wear using feeler gauges–clearance should not exceed 0.002 inch.
- Carriage: Houses the tool post and cross-slide; tighten gib screws to a torque of 12-15 ft-lbs to prevent lateral play without binding.
Maintenance Labeling Protocol
Mark critical adjustment points with engraving or color-coded tags:
- Red stripe: Tailstock locking bolt (M16×2)
- Blue dot: Cross-slide feed screw (1/2″ ACME thread)
- Yellow arrow: Lead screw engagement lever
Store schematics adjacent to the machine with these labels clearly referenced–include metric/imperial conversions for international operators.
Replace bronze bearings on the carriage’s feed nut every 2,000 hours of use; use only phosphor bronze (SAE 660) to match the lead screw’s hardness. For CNC retrofits, recalibrate servo motors when saddle travel exhibits hesitation–check encoder couplings for backlash, which should remain under 0.0005 inch.
