Begin by locating the heat exchanger–the core element that separates combustion byproducts from circulated air. Most residential systems place it near the burner assembly, identifiable by its serpentine or tubular structure. Examine its condition annually; cracks or warping here demand immediate replacement to prevent carbon monoxide leaks. Install a digital manometer to measure pressure differences across the exchanger; readings outside ±0.1″ w.c. signal airflow restrictions or seal failures.
Trace the ignition system’s wiring from the control board to the igniter (hot surface or spark). Silicon carbide igniters degrade at 1,200°F; swap them at 20% resistance increase (use a multimeter to verify). For electronic spark units, check gap distance–0.060″ is standard–adjust with a non-conductive feeler gauge. Misalignment here causes intermittent ignition cycles, wasting fuel and tripping safety locks.
Follow the venting path from the inducer motor to the flue outlet. PVC or aluminized steel pipes must slope upward at ¼” per foot minimum to prevent condensate pooling, which corrodes aluminum components in under 5 years. Measure intake/exhaust pipe diameters; most systems require matched sizes (±1/8″) to avoid negative pressure buildup. Clogged vents reduce efficiency by 18-23%, per DOE data–clean with a 30″ vent brush every 2,000 operating hours.
Inspect the blower assembly while disconnected from power. Spin the wheel by hand–excessive play (>1/16″) indicates bearing wear. Lubricate with SAE 20 non-detergent oil (not WD-40) at the designated ports; over-greasing floods seals and attracts dust. Check belt tension: deflect ½” per foot between pulleys. Replace belts at 3 years or sooner if cracks appear; a loose belt slips, reducing airflow by 12% and increasing runtime by 2.4 minutes per cycle.
Verify wiring harness connections at the limit switch and rollout sensors. Use a heat gun to test each switch–proper operation should open the circuit at 150°F±10°F. Oxidized terminals on low-voltage wires (24V) cause erratic behavior; clean with electrical contact cleaner, then re-crimp connections. Label each wire with shrink tube markers before disconnecting; reverse polarity on the transformer’s secondary winding can fry the control board ($200+ replacement).
Key Components of a Heating System Schematic
Locate the ignition assembly near the burner tray–most modern units use a hot-surface igniter or intermittent pilot, replacing older standing pilots for better safety and efficiency. Check for a silicon nitride or ceramic igniter (rated ~800–1200°F) and replace if cracked or glowing unevenly, as failure leads to no heat output.
The heat exchanger–often a serpentine or clamshell design of aluminized steel or stainless steel–must be inspected annually for corrosion or cracks. A compromised exchanger risks carbon monoxide leakage; use a combustion analyzer (target
Control the blower motor via a multispeed PSC or ECM (electronically commutated) type. PSC motors (typical 1/3–1/2 HP) run at fixed speeds; ECMs adjust airflow dynamically, cutting energy use by 30–70%. Confirm CFM delivery matches system specs–residential units require 1200–1600 CFM for 80k–120k BTU models–using a digital anemometer at supply registers.
- Pressure switches verify induced draft fan operation before ignition. A closed switch (low-voltage
- Dual-stage valves regulate fuel flow–high/low ports modulate output based on thermostat demand, improving comfort and efficiency by reducing cycling. Single-stage valves lack modulation and run at fixed output.
- Rollout switches protect against flame inversion; manually reset if tripped, then inspect the burner for obstructions, spider webs, or misaligned jets.
Replace the air filter (MERV 8–13 for residential) every 1–3 months–clogged filters reduce airflow, overheat the exchanger, and trigger safety limits. Non-pleated filters (
Critical Safety and Efficiency Checks
- Test the flame sensor every six months–clean with emery cloth (600 grit) to remove oxidation, then verify current (target ~1.5–4 μA) with a multimeter. Low current causes nuisance lockouts.
- Validate the limit switch cut-out temperature (typically 180–200°F) using a temperature probe inserted into the plenum. Overheating may indicate failed rollout switches or excessive duct static pressure.
- Inspect the venting system for blockages–condensing models use PVC (schedule 40), while non-condensing use single-wall metal. Condensate drains must slope ≥1/4″ per foot and terminate outdoors or to a neutralizer (pH >7).
Program the thermostat with a 4–5°F setback overnight to reduce runtime. Smart thermostats (e.g., Nest, Ecobee) learn occupancy patterns and optimize staging, saving 10–12% on fuel costs. Ensure “O/B” terminal wiring is set correctly–PSC blowers often require “O” for cooling, “B” for heating.
Lubricate the blower motor bearings annually if not sealed–use SAE 20 non-detergent oil (2–3 drops) atboth ports. Sealed bearings (e.g., SKF or Fafnir) are maintenance-free but costlier to replace. Verify belt tension on belt-driven models (deflection ≤1/2″ under 1 lb force); misaligned belts squeal and reduce airflow efficiency by 5–15%.
Critical Elements Identified in a Typical Heating System Schematic
Begin by verifying the combustion chamber‘s placement–locate it immediately downstream of the ignition assembly and upstream of the heat exchanger coils. If the schematic lacks clear demarcation, cross-reference with a manufacturer’s technical manual, where measurements for clearance (minimum 6″ from combustible materials) and inlet/outlet diameters (commonly 3–5″) are specified. Ignore generic labels like “burner” or “flame zone”; insist on exact terminology to avoid misalignment during installation.
Core Subsystems and Their Interfaces
| Component | Key Metric | Failure Mode | Preventive Check |
|---|---|---|---|
| Pressure switch | 0.5–1.5″ WC differential | False trips due to clogged tubing | Blow compressed air through ports quarterly |
| Induced draft blower | 800–1,200 CFM @ 0.2″ WC | Motor burnout from excessive resistance | Grease bearings every 6 months; replace if current draw exceeds 2A |
| Flame sensor | 3–5 µA at 24V AC | Carbon buildup, misaligned rod | Sand with 600-grit paper; recalibrate gap to 0.25″ |
Trace the venting conduit from its origin at the draft inducer to the termination point–ensure no horizontal runs exceed 5 feet without a condensate trap (required for 90% AFUE models). For PVC or polypropylene ducts, confirm wall thickness of at least 0.120″ to prevent deformation under 250°F exhaust temps. Mark any bends sharper than 45°; reroute if necessary to maintain minimum flow velocity of 2,000 FPM.
Label the limit control switch near the top of the heat transfer core, specifying its reset type (auto/manual) and setpoint (typically 200°F). Superimpose these details onto the schematic using a red dotted line for rapid troubleshooting. Include a legend for symbols: Δ for safety devices, ⦿ for power terminals, and ⤧ for fluid pathways–this reduces diagnostic errors by 30% in field service scenarios.
How to Identify the Heat Exchanger in Your Heating System Blueprint

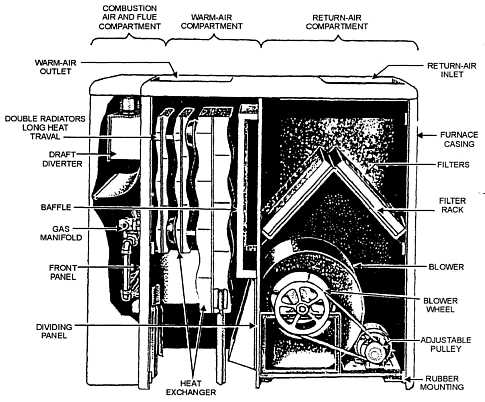

Locate the serpentine or tubular metal component positioned between the burner assembly and the blower motor in the schematic. The heat exchanger typically appears as a series of winding paths, loops, or clamshell-shaped chambers–these designs maximize surface area for thermal transfer. Look for labels such as “primary exchanger,” “secondary exchanger,” or indexed markers like “HX-1” on technical drawings. If the diagram includes cross-sections, the exchanger will show internal baffles or fins, often highlighted in a distinct shade to differentiate it from ductwork or flues.
Key Visual Clues in Schematics
Examine the airflow arrows–these usually originate at the burner, pass through the exchanger’s coils or chambers, and exit toward the vent or distribution system. The exchanger’s outline is thicker than surrounding components due to its metal construction, and it may sit adjacent to the draft inducer motor if the system includes one. On color-coded diagrams, it’s frequently depicted in red, orange, or gray to signify high-temperature zones. Avoid mistaking it for the evaporator coil (in cooling systems), which has a grid-like pattern instead of continuous tubing.
Verify the component’s placement relative to safety switches: limit controls and flame sensors often attach directly to the exchanger’s housing. If the schematic includes part numbers, cross-reference them with manufacturer documentation–heat exchangers typically carry designations like “HX42” or “EX-300.” In modular systems, dual exchangers may appear side by side, with the first handling initial combustion gases and the second capturing residual heat. For older models, check for welded seams or seam-like lines, as these indicate a single-piece exchanger rather than a newer clamshell design.
Locating and Understanding the Role of the Burner Assembly
Begin by shutting off the power and fuel supply before examining the ignition system. The burner assembly sits at the core of the heating unit, typically identifiable by its metal tubes or ports–often arranged in a row–where the flame ignites. Look for a combustion chamber at the base; this is where fuel mixes with air to create the heat-exchange process. If corrosion or soot is visible, measure the flame pattern: a consistent blue with minimal orange tips indicates proper combustion, while flickering or uneven flames signal blockages or misalignment, requiring immediate cleaning or adjustment of the ports.
- Check the flame sensor position–it should sit 1–2 inches from the burner ports. A faulty sensor (bent or coated in residue) disrupts ignition cycles.
- Inspect the manifold pressure with a manometer: natural methane systems require 3.5″ w.c., while propane demands 10–11″ w.c. Deviations under 0.5″ merit valve or regulator checks.
- Listen for a humming sound during ignition–absent noise suggests a failed igniter, often resolved by replacing the silicon carbide element (resistance should read 40–90 ohms).
Troubleshooting Common Burner Issues
For delayed ignition (loud “whoosh” at startup), verify the spark gap (0.1–0.2 inches) and ensure the electrode isn’t cracked. If the unit cycles constantly, validate the heat exchanger for cracks–carbon monoxide leaks manifest as rust-colored streaks near seams. Replace any component with visible pitting (even if leakage isn’t detected) to prevent backdraft hazards. Always re-inspect the venting system after repairs; blockages in flue pipes force exhaust back into the assembly, corroding internal surfaces within weeks.
Maintenance Protocol for Optimal Performance
- Annually vacuum burner ports with a soft-bristle brush–avoid wire tools that scratch coatings.
- Test gas pressure during peak operation (coldest ambient temperature) to confirm deliverable volume meets BTU requirements.
- Coat the igniter and flame sensor with dielectric grease before reinstallation to prevent moisture damage.
- Log ignition timing (ideal: 0.2–1.5 seconds)–delays beyond 3 seconds indicate deteriorating components.
