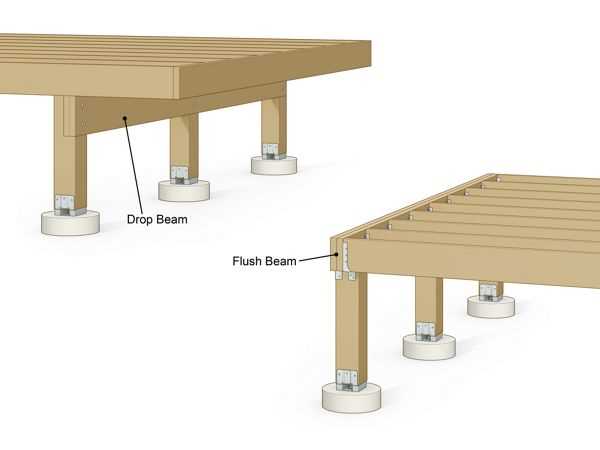

Begin by identifying the primary framework supporting the entire assembly: joists and beams. These horizontal load-bearing components distribute weight evenly, preventing sagging or structural failure. Standard joist spacing measures 16 inches on-center for residential builds, though heavier materials may require 12-inch intervals. Use pressure-treated lumber rated for ground contact (minimum .40 retention) to resist moisture and insect damage. Secure beams to posts with galvanized steel connectors, ensuring a 1/2-inch gap between wood and concrete for drainage.
Select decking boards with a minimum 5/4-inch thickness for pedestrian traffic, opting for composites if maintenance reduction is a priority–though initial costs rise by 30-50%. Leave a 1/8-inch expansion gap between planks for natural wood; composite materials demand precise manufacturer-specified spacing (often 3/16 inch). Fasten boards with corrosion-resistant screws, countersinking heads 1/16 inch below the surface to avoid splinter risks. For hidden fastening systems, confirm panel clip spacing aligns with joist layout to prevent warping.

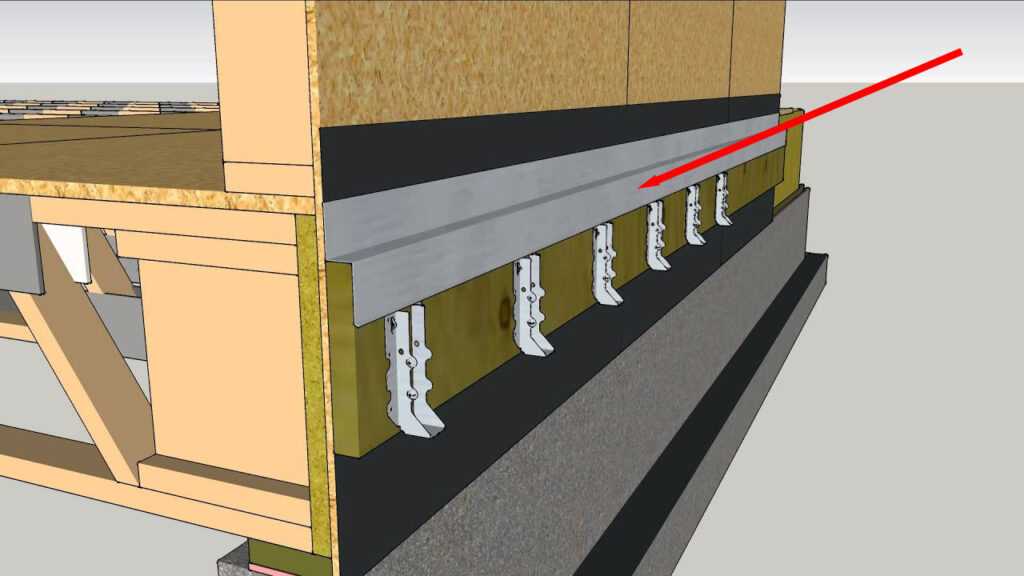

The ledger board anchors the structure to the adjacent building, bearing 60% of the live load. Attach it directly to rim joists or masonry with lag screws or through-bolts–inadequate fastening risks catastrophic detachment. When anchoring to concrete, use epoxy-set anchors rated for shear loads exceeding 1,000 lbs. Install flashing above the ledger to divert water runoff; omit this step results in rot within 3-5 years in temperate climates.
Balusters demand strict adherence to local regulations–most jurisdictions mandate 4-inch maximum gap spacing to prevent child entrapment. Pressure-treated pine balusters cost 70% less than aluminum alternatives but require biennial sealing. Railing posts must withstand 200 lbs of lateral force; embed them 24 inches into concrete footings or secure with shear-rated hardware if surface-mounted. For stair assemblies, maintain consistent rise (max 7-3/4 inches) and run (min 10 inches) to comply with building code while optimizing ergonomics.
Include a perimeter drainage system in designs with enclosed areas, sloping the surface 1/8 inch per foot away from the building. Gravel-filled trenches with perforated piping extend substructure lifespan by 40-50%. For elevated platforms, install cross-bracing between posts to counteract lateral forces–diagonal 2x4s at 45-degree angles resist wind loads up to 90 mph when properly secured. Seal all cut edges of treated lumber with an end-grain preservative to prevent moisture ingress, which accelerates decay.
Key Components of a Vessel Blueprint Layout
Label the bow section first–this area includes the anchor, stem, and forecastle. Use 2-3mm thick lines for structural elements like bulkheads and 0.5mm dashed lines for non-load-bearing partitions. Assign unique alphanumeric codes (e.g., B-01 for bow thruster compartment) to avoid confusion during assembly. A 3D perspective helps visualize forward collisions, but a flat elevation view ensures precise measurements for steel cutting.
Structural Zones and Their Markings
| Zone | Common Elements | Recommended Annotation | Critical Spacing |
|---|---|---|---|
| Midship | Main deck, cargo hatches, winches | Serial numbering (M-01–M-12) |
Hatch coamings: 20mm from edge |
| Hull Bottom | Keel, ballast tanks, bilge pumps | Color-coded arrows (blue = water flow) | Keel plate: 5% taper at edges |
| Superstructure | Bridge, lifeboats, radar mast | Symbology (+ for lifeboats, △ for antennas) | Radar clearance: 1.5× mast height |
Separate the stern segment into propulsion and auxiliary systems. Engine rooms require ISO 1219-1 symbols for piping (e.g., red circles for fuel lines) and thermal insulation labels. The rudder post should intersect the centerline at a 90° angle–deviations above 1° cause drag. For twin-screw vessels, maintain propellers at least 1.2× hull beam apart to prevent cavitation interference.
Key Structural Elements to Spot in Wooden Platform Schematics
Begin by locating the beam layout–horizontal supports running beneath joists–marked with double lines or dashed outlines in blueprints. Check for spacing annotations: 12″, 16″, or 24″ on-center measurements dictate load capacity. beams anchored to posts must show ledger board connections, typically a solid line with “LBR” notation.
Critical Substructure Details
- Posts: Circle or square symbols at intersections with beams; verify diameter (4×4″ minimum) and footing depth (below frost line).
- Joists: Parallel lines perpendicular to beams; look for hanger hardware symbols (e.g., triangular icons) at connections.
- Bridging: Diagonal lines between joists indicate cross-bracing; confirm material types (wood vs. metal) from legend.
Examine the framing plan for cantilevered sections–these require doubled joists at supporting edges, often highlighted with bold outlines. For multi-level structures, search for stairwell cutouts: rectangular voids with detailed rise/run dimensions (e.g., “7.5” rise, 10″ run”). Rail post locations appear as filled circles or squares along perimeter lines, spaced ≤6′ apart for residential codes.
Flush-mounted hardware should be indicated with specific symbols: through-bolts (x-marks), lag screws (plus signs), or hidden fasteners (dot clusters). Verify these against manufacturer specs–improper spacing (e.g., screws >8″ apart) compromises stability. Diagonal bracing for lateral support shows as thin lines at 45° angles; absent symbols suggest potential omission that inspections will flag.
Surface Layer Annotations
- Planking: Directly labeled strips (e.g., “5/4×6 T&G”) with expansion gaps noted (1/8″ typical).
- Stair treads: Numbered rectangles with nosing overhangs (1″ standard).
- Skirt boards: Single solid lines along edges; check for scupper notches if drainage is required.
Hidden elements demand closer review: ledger flashing appears as overlapping arrow patterns; confirm lap measurements (≥4″). For composite materials, watch for manufacturer-required gapping symbols (often diamonds or hexagons). Missing these leads to moisture damage or thermal expansion failures detectable only after construction.
How to Mark Horizontal Planks and Support Beams on Construction Schematics
Begin by assigning unique identifiers to each surface plank using a consistent alphanumeric system. Place labels along the centerline of the board, ensuring they’re parallel to its length. For standard 6-inch-wide planks, use 1/4-inch lettering with a vertical spacing of 1/8 inch between lines if multiple identifiers are needed. Group related planks under the same prefix–for example, P-1, P-2, P-3 for primary decking and T-1, T-2 for trim boards. Avoid placing labels near knots, cracks, or edges where they may interfere with installation or become obscured.
Key Labeling Rules for Structural Framing
- Support beams should be labeled on their top edge, perpendicular to the beam’s span, with text facing the direction of primary inspection (typically the side visible during framing).
- Use a contrasting color for framing labels–black on yellow or white on red–to distinguish them from surface planks. Reserve bright colors for load-bearing members only.
- For doubled or tripled beams, append
-A, -B, -Cto the base identifier (e.g.,B-5-Afor the first of three sistered joists). - Include spacing measurements directly beneath the beam label in parentheses:
B-7 (16" OC). Omit units if the schematics use imperial or metric exclusively. - Mark ledger boards with an
Lprefix and a suffix indicating attachment method:L-1 (Lag)orL-2 (Hanger).
Where beams intersect or change direction, label the junction once, prioritizing the primary span. For diagonal bracing, use dashed underline text to indicate temporary or secondary elements: BR-1
Integrating Safety Features into Elevated Outdoor Structures

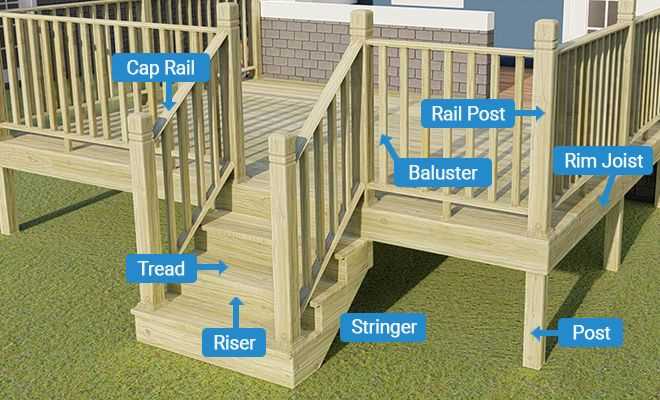

Set baluster spacing at no more than 4 inches center-to-center. This gap prevents children and pets from slipping through while maintaining airflow and visibility. Use pre-assembled panels to ensure consistency across the entire perimeter.
Position railings along all open sides of platforms exceeding 30 inches in height. Local codes often mandate minimum heights between 36 and 42 inches–check specifications for your jurisdiction. Aluminum systems offer corrosion resistance; wood requires annual sealing.
Construct stairs with a uniform rise of 7–8 inches per step for ergonomic climbing. Tread depth should measure at least 10 inches to accommodate adult foot size. Incorporate non-slip strips on each tread surface, replacing them every two years.
Space support posts no farther than 6 feet apart for ground-level installations and no more than 4 feet for elevated platforms. Use galvanized steel brackets attached to framing with ½-inch lag screws. Bury posts 12 inches below frost line in cold climates.
Design stair railings to extend 12 inches beyond the top and bottom steps to provide a continuous handhold. Include return ends on horizontal railings to eliminate clothing snags. For curved sections, select flexible composite materials or steam-bent wood.
Install lighting along stairs and railings if nighttime use is anticipated. Solar-powered LEDs require no wiring but have limited brightness; hardwired fixtures deliver consistent output. Position lights on inner balusters rather than top rails to avoid glare.
Consider load-bearing requirements when selecting materials. Guardrails must support 200 pounds of force applied horizontally. Ipe and cumaru hardwoods resist rot but demand pre-drilled holes to prevent splitting; pressure-treated lumber remains the most budget-friendly option.
