Begin by identifying the load-bearing segments before assessing decorative or secondary elements. The primary vertical supports–spaced at intervals of 30 to 100 meters depending on span requirements–dictate stability. Engineers typically specify reinforced concrete or steel for these pillars, with corrosion-resistant coatings extending service life beyond 75 years under optimal conditions.
Examine the horizontal span next. Pre-stressed concrete girders offer cost efficiency for shorter crossings (under 50 meters), while steel trusses dominate longer spans due to their weight-to-strength ratio. Note that composite designs–combining materials–can reduce dead load by up to 20% without sacrificing durability. Bridge deck thickness, often 200–300 mm for standard vehicular use, must increase for heavy rail or freight.
Focus on connection points between spans and supports. Expansion joints must accommodate thermal shifts (typically 1 mm per meter of span) and seismic activity. Neoprene pads or modular systems like finger joints prevent cracking; improper placement accelerates lateral movement failures. Drainage slopes of at least 2% along the deck prevent water pooling, which degrades concrete at a rate of 1.5% annual strength loss in untreated environments.
Inspect secondary but critical elements: parapets, bearings, and utility conduits. Parapets should meet impact-absorption standards (e.g., EN 1317) to redirect errant vehicles. Bearings, often elastomeric or pot types, must be inspected every 5 years for degradation; replacement costs escalate by 300% if deferred. Utility conduits–typically embedded in the deck–require corrosion protection sleeves if carrying electrical lines to prevent conductivity risks.
Key Structural Elements of a Span Illustration
To accurately depict a span’s load-bearing framework, segment the illustration into primary zones: substructure, superstructure, and connecting interfaces. Begin with foundation components–abutments and piers–labeling their vertical alignment tolerances (±3 mm for reinforced concrete, ±1.5 mm for steel). Specify material grades (e.g., C35/45 for concrete, S355 for steel) directly on the schematic to prevent misinterpretation during construction.
For the deck assembly, separate horizontal layers: wearing surface (50–100 mm asphalt), waterproofing membrane (≤2 mm), and structural slab thickness (varies 180–350 mm). Include expansion joints at 20–30 m intervals with preset gap widths (20–40 mm) based on temperature fluctuations (±40°C). Note corrosion protection requirements–zinc-rich primer (75–100 µm DFT) or cathodic systems for marine environments.
| Component | Material Specification | Critical Dimension (mm) | Tolerance (±mm) |
|---|---|---|---|
| Abutment footing | C30/37 | Depth: 1200–1500 | 5 |
| Steel girder | S355J2+N | Web thickness: 12–16 | 0.5 |
| Bearing pad | Neoprene | Compression: 7–10 | 1 |
Highlight support bearings–elastomeric or mechanical–by isolating them in callouts with load capacity (kN) and permissible rotation (0.02–0.05 rad). For cable-stayed designs, detail anchorage zones with pre-stressing force vectors (e.g., 1860 MPa low-relaxation strands) and deviator geometry (minimum radius 2.5 m). Cross-reference with wind load data (Eurocode 1-4) in a separate legend.
Include drainage integration points–scuppers or underdeck drains–positioned at 1% longitudinal slope. Specify gradient changes at midspan and supports to avoid ponding. For seismic regions, add fuse elements (yield strength 250 kN) and dampers (velocity exponent 0.3–0.5) with anchor bolt torques (50–70 Nm).
Mark utility conduits–electrical, water, or fiber–within dedicated ducts beneath the deck, ensuring minimum 100 mm clearance from rebar. For composite decks, distinguish shear stud layouts (ø22 mm, 150 mm spacing) and welded connection details (fillet size ≥6 mm). Add inspection access points–manholes or removable plates–with dimensions ≥600×800 mm for confined space compliance.
Validate the schematic against 3D modeling outputs (e.g., Tekla, Revit) focusing on clash detection thresholds (
Key Structural Elements in Typical Span Cross-Section Visuals
Start by identifying the deck slab at the top–its thickness directly impacts load distribution. For reinforced concrete spans, minimum slab depths range from 175 to 250 mm depending on traffic class (AASHTO LRFD guidelines). Precast decks may reduce this to 160 mm but require precise shear key detailing to prevent differential movement between segments.
Load-Bearing Members Below the Roadway
Locate the girders–their spacing and shape dictate span capacity. Steel I-girders typically follow 2.0–2.5 m spacing for composite designs, while concrete girders often use wider spacing (2.8–3.5 m) to optimize material use. Note stirrup arrangement in cross-section cuts: closed stirrups at 150–200 mm intervals resist shear forces, while diagonal cracks indicate underestimated span-to-depth ratios.
Inspect the bearing pads where girders meet substructure–elastomeric pads should show compression no greater than 1.5 MPa under service loads. Neoprene bearings with internal steel plates increase longevity but demand exact alignment; misalignment accelerates wear and may shift girder axes by 5 mm laterally, reducing fatigue life by 20–30%.

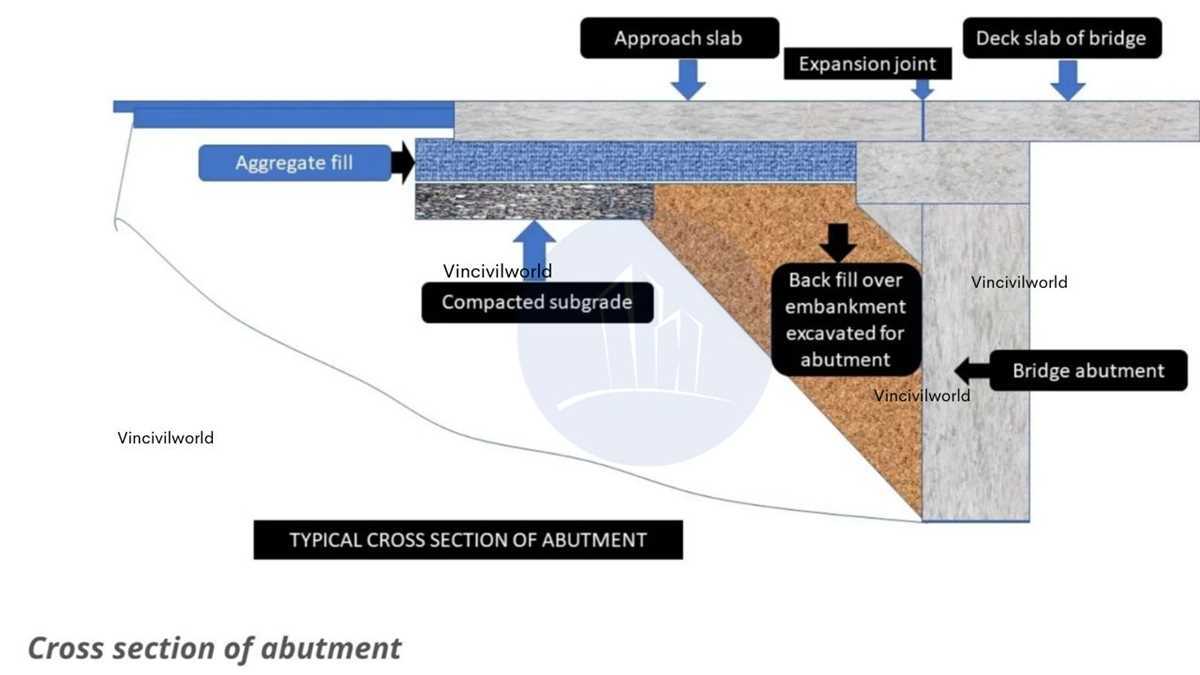

Examine the abutment backwall thickness–minimum 300 mm for integral designs, while semi-integral spans often use 400 mm to handle earth pressure and thermal expansion. Wingwalls angled at 45° optimize soil retention; steeper angles increase active pressure by up to 30%, requiring geotechnical verification for cohesionless backfill.
How to Identify Load-Bearing Elements in Structural Drawings
Examine the thickness of lines in engineering schematics–load-bearing members typically use bold or double-weight lines, while non-structural elements appear as thinner, single-weight outlines. Industry standards (e.g., ISO 128-24) mandate this distinction, though custom project conventions may vary.
Locate annotations like “LB” (load-bearing), “STR” (structural), or “COL” (column) adjacent to components. Reinforcement symbols–stirrups (□), ties (○), or rebar notation (e.g., #8 @ 12″)–indicate critical stress transfer zones. Cross-reference these marks with:
- Material callouts: “W14x90” (steel), “C25/30” (concrete), or “GL24h” (glued laminated timber)
- Connection detailing: welded plates (♦), bolt patterns (⚫⚫⚫), or grouted joints
- Section cut labels: “Sect A-A” pointing to composite assemblies

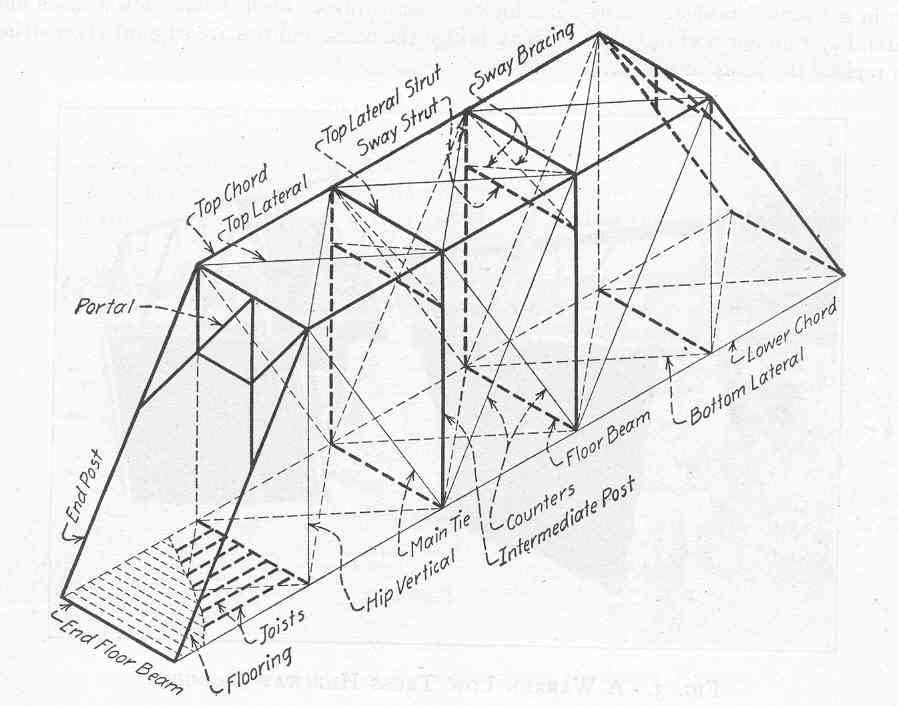

Trace force vectors in shear/moment diagrams–peaks exceeding 60% of material yield strength (e.g., 250 MPa for A36 steel) reveal primary load paths. Compare these with deflection limits (typically L/360 for beams) to verify integrity. For trusses, identify chord members (top/bottom horizontals) vs. web diagonals; the latter often resist shear but may not bear axial loads.
Assess foundation-to-superstructure continuity–isolated footings (square pads) support columns, while strip foundations (rectangular) span continuously under walls. Look for expansion joint symbols (⏤⏤) or elastomeric bearings, indicating designed movement zones where load transfer halts. Misalignment here risks stress concentration.
Verify with load tables–unfactored dead/live loads exceeding 1.5 kN/m² for slabs or 50 kN for point loads merit scrutiny. Cross-check with building code requirements (e.g., Eurocode EN 1991-1-1 or ASCE 7-16) for occupancy class multipliers. Hidden elements often include:
- Hold-down anchors: embedded plates with tension ratings (e.g., “ETA-9” seismic resist)
- Shear walls: solid fills with dashed boundary lines
- Transfer beams: thickened sections marked “TB [depth]x[width]”

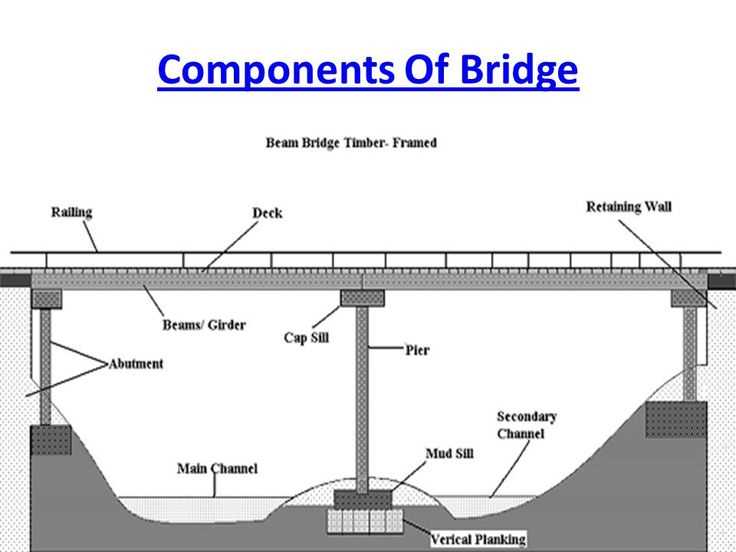

Key Differences Between Deck, Superstructure, and Substructure in Engineering Illustrations
Label the deck as the horizontal surface in schemes–it bears pedestrians, vehicles, or loads directly. Use cross-hatching or solid shading in sectional views to distinguish it from supporting layers beneath. Thickness in sketches should reflect material: timber planks appear thinner (50–100 mm) than reinforced concrete (150–300 mm). Include expansion joints at 10–30 m intervals to show how it accommodates thermal stress without failing.
Superstructure components–girders, trusses, or beams–require precise spacing notations. Steel I-beams typically span 12–24 m with depths of L/15 to L/20 (L = span length); note this ratio in drawings. Concrete box girders, often used for spans exceeding 50 m, need internal voids sketched to illustrate weight reduction while maintaining strength. Arrows should indicate load transfer paths from deck to supports, emphasizing how forces disperse through these elements.
Substructure elements–piers, abutments, and foundations–anchor the entire system. Piers in waterways must include scour protection details: riprap or sheet piling extending 1.5–2 m below riverbed level. Abutments should show wing walls at 30–45° angles to retain soil; skew angles exceeding 30° demand additional reinforcement in diagrams. Label pile depths for driven piles (20–40 m) versus drilled shafts (10–25 m), as these affect settlement calculations.
Material Representation in Technical Drawings
Concrete appears as speckled textures with rebar indicated via dashed lines (spacing typically 150–300 mm). Steel sections use bold outlines with weld symbols at joints–fillet welds (5–10 mm) for plate connections, full-penetration for critical load paths. Timber, less common in modern schemes, requires grain direction arrows and bolt patterns (diameters 12–24 mm, spacing 3–5 × bolt diameter). Corrosion protection layers (zinc coatings, epoxies) should be depicted as thin boundaries around metal elements.
Connections between superstructure and substructure must detail bearing types. Elastomeric bearings (neoprene pads, 10–50 mm thick) accommodate rotation, while pot bearings handle heavier loads via steel cylinders and rubber discs–show these cross-sections explicitly. Fixed bearings prevent movement; mark them with anchor bolts (M20–M36) in plans. Thermal expansion gaps (20–40 mm) should separate abutments from superstructure to avoid restraint stresses.
Load Path Visualization
Illustrate dead loads (self-weight) with downward arrows along main girders, live loads (vehicles) as distributed loads over deck spans. Impact factors (1.15–1.30) should multiply live load values in stress diagrams. For seismic zones, add lateral forces (0.1–0.3 × dead load) acting horizontally at mass centers–depict these in elevation views with dashed vectors. Soil pressures beneath abutments must show active/passive zones via triangular distributions (Rankine theory); label maximum pressures (50–200 kPa) at foundation edges.
Fatigue-prone details–welded joints, shear connectors–need highlight colors in maintenance diagrams. Steel fatigue categories (A–E) correspond to stress ranges (35–165 MPa); note these in legends. Concrete crack control requires mesh spacing (100–300 mm) or prestressing strands (12–15 mm diameter) shown in layers, with stressing sequences (0 → 70% → 105%) annotated. Inspection access points (manholes, ladders) should appear in 3D models for clarity.
Drainage layers require perforated pipes (75–150 mm diameter) beneath decks, sloped at 1–2% toward outlets. Waterproofing membranes (asphalt, PVC, 1–3 mm thick) must cover deck surfaces entirely; sketch overlaps (100 mm) and sealing tapes. For floating schemes, buoyancy chambers (volume = 1.2 × displacement) should be outlined, with stability calculations showing metacentric height (GM ≥ 0.5 m). Overload scenarios in illustrations must mark failure mechanisms–plastic hinges in steel, crushing in concrete–with red highlights.
