Start by identifying the soundboard–the large, flat section that defines tonal projection. Crafted from solid tonewood like spruce or cedar, its grain and thickness directly shape volume and clarity. A poorly braced top will muddy highs and weaken sustain; ensure bracing follows an X, ladder, or fan pattern during luthierie or repairs.
Locate the frets along the fingerboard–precision-cut nickel-silver strips pressed into a hardwood neck. Intonation hinges on their exact placement; a 14th-fret deviation of 0.5mm can throw an entire chord out of tune. Verify scale length (typically 25.5” or 24.75”) before restringing; string gauge must match to prevent neck warp or buzzing.
Examine the bridge–a small, dense block anchoring strings to the body. Its bone or synthetic saddle transfers vibrations; any slippage or angle misalignment causes string drag and tuning instability. Bridge pins should seat flush to prevent string slippage; wax or glue reinforcement helps during humid conditions.
The nut, carved from bone or TUSQ, sets string spacing and action height at the headstock junction. A too-high slot chokes playability while a shallow one induces fret buzz. File grooves at 5% string width to minimize breakage, using graphite powder as a dry lubricant for smoother tuning changes.
Check the tuners: sealed mechanisms with 14:1 gear ratios resist slippage under string tension. Ensure mounting screws bite into solid wood–not just the veneer–to prevent pitch drift during bending. Lubricate gears with PTFE if stiff; corroded gears require full replacement to avoid intonation drift.
Internal bracing–often scalloped spruce–reinforces the body while allowing controlled flex. Over-sanding weakens structural integrity; keep patterns asymmetrical to balance resonance. A tap test reveals dead spots–retune bracing until all notes ring evenly across the soundhole’s periphery.

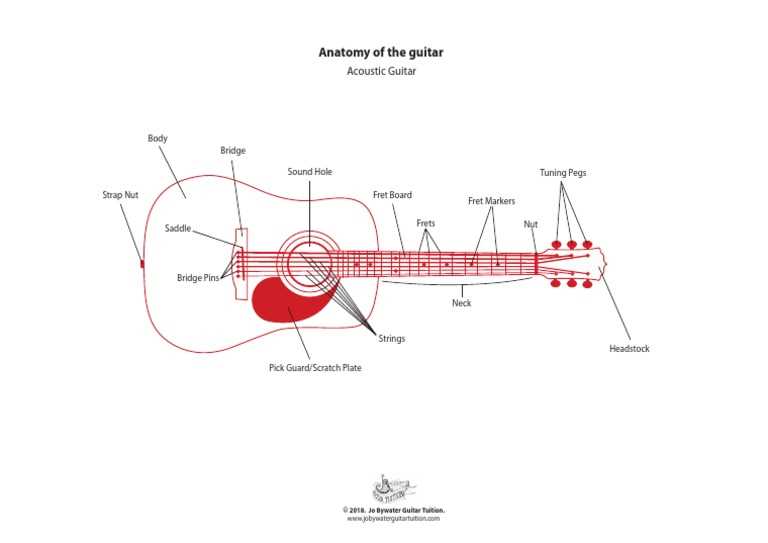

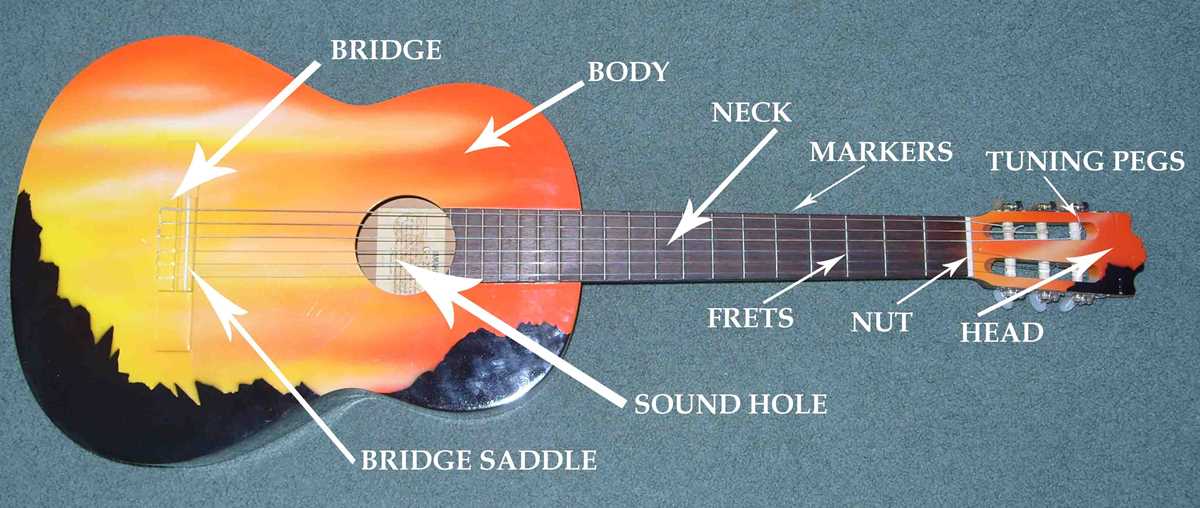

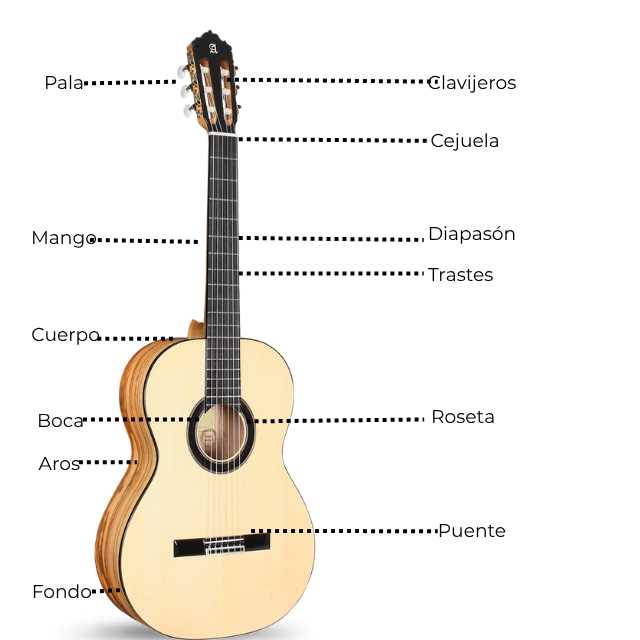

The Anatomy of a Six-String Instrument: Key Components Explained
Begin by identifying the soundboard (top plate) – its wood type and thickness directly influence resonance. Sitka spruce (0.10–0.12 inches) provides balanced tone, while cedar (0.09–0.11 inches) delivers warmer, softer projection. Ensure the bracing pattern (typically X-brace or scalloped) matches your playing style: lighter bracing enhances midrange response for fingerstyle, while denser bracing supports steel-string strumming without distortion. Check for quartersawn grain in high-end models to prevent warping.
Critical Structural Elements
| Component | Material | Function | Common Issues |
|---|---|---|---|
| Neck joint (dovetail/bolt-on) | Mahogany, rosewood | Transfers vibrations; affects sustain | Misalignment causes buzzing; glue failures in humid climates |
| Fretboard | Ebony (hard), rosewood (medium), pau ferro (durable) | Hosts frets; defines playability | Wear at 1st/3rd/5th frets; warping if humidity >60% |
| Bridge | Rosewood, ebony | Anchors strings; transfers energy to body | Pin slippage in angled designs; saddle cracking under tension |
Prioritize the nut and saddle for intonation: bone (best sustain), Tusq (consistent tone), or graphite (reduces friction). Nut slots should be 0.025–0.030 inches wide for optimal string clearance; deeper slots cause buzzing, shallow ones risk fret contact. The saddle’s height (typically 1/8 inch tall) determines action – higher for slide playing, lower for speed. Replace if grooves exceed 0.050 inches deep, as worn material deadens harmonics.
Examine the heel and end block: laminated wood reduces feedback in live settings, while solid mahogany improves structural integrity. A well-constructed heel (usually mortise-and-tenon or dovetail) maintains neck stability under string tension (typically 180–200 lbs for steel). For travel models, carbon fiber end blocks minimize weight without sacrificing durability. Avoid instruments with visible glue seams in these areas–uniformity indicates precision assembly.
How to Spot the Headstock and Its Role in Tuning Precision
Locate the peghead at the instrument’s uppermost end–this is where tuning stability begins. Examine the slotted or solid design: classical models typically feature six lateral holes for strings, while steel-string variants often use perpendicular posts. Each style influences string tension distribution, affecting tuning longevity.
Press firmly on a tuning key while observing the nut’s slots. If the string shifts without returning to pitch, the nut may be improperly cut or worn. Replace synthetic or poorly fitted bone nuts with precision-machined graphite or high-density polymer alternatives to reduce friction-based pitch drift.
Check the string path from the nut to the tuning pegs. Strings should follow a straight trajectory without excessive bends. Misalignment here causes uneven tension, leading to premature detuning, especially during aggressive bending or capo use. Sand smooth any rough edges on the nut slots to prevent string binding.
Verify peg engagement by turning each key while muting the string. A well-fitted machine head should rotate with steady resistance–neither too loose nor overly tight. Lubricate gears with dry silicone spray if friction causes sluggish tuning adjustments. Avoid oil-based lubricants that attract dust and grit.
Test tuning stability by stretching each string after initial tightening. Pull sharply near the soundhole and recheck pitch. Repeat until the note stabilizes. Strings with inconsistent core diameters or substandard winding material (e.g., nickel vs. phosphor bronze) will exhibit higher instability, requiring frequent retuning.
Inspect the headstock’s angle relative to the instrument’s neck. A steeper break angle over the nut increases downward pressure, improving sustain but demanding more frequent tuning maintenance. Luthiers often adjust this during setup to balance playability and tuning reliability.
Compare tuning accuracy across different string gauges. Lighter strings (.009–.042) slacken faster under tension changes, while heavier sets (.012–.053) hold pitch longer but require adjusted nut slot widths. Modify slot depths incrementally–remove no more than 0.5mm at a time–to avoid over-widening.
Use a strobe tuner with ±0.1 cent accuracy for critical adjustments. Standard tuners mask subtle discrepancies that cause harmonics to clash in open tunings. For floating tremolo systems, block the bridge with a thin shim during string changes to prevent tension loss in adjacent strings.
Key Components of the Neck: Nut, Fretboard, and Frets
Prioritize bone or synthetic bone for the nut–it outperforms plastic in sustain and tuning stability. Bone variants (like Tusq) reduce string friction, preventing sharp pitch drops during bends. Installers often recommend a 0.3mm buzz-check: tape a thin strip of paper under the nut slot to test for uneven string height before finalizing glue.
The fretboard dictates playability. Rosewood absorbs finger oils, darkening over time but maintaining grip; ebony resists wear but demands frequent conditioning to prevent cracking. Radius selection depends on style: 7.25″ suits vintage curves for rhythm, 9.5–12″ for shredding. Check for relief with a notched straightedge–0.2–0.3mm at the 8th fret prevents buzz without choking bends.
- Frets: Jescar FW57110 (medium-jumbo) balances durability and comfort; nickel-silver (18% nickel) resists corrosion. Higher crowns (e.g., EVO Gold) last 30% longer under heavy vibrato.
- Action set-up: Measure at 1st and 12th frets; 1.8mm (high E) / 2.3mm (low E) at 12th fret avoids fretbuzz while retaining speed.
- Intonation: File saddle compensation–+2mm for wound strings, +1.5mm for plain–to prevent sharp trebles.
Bind the nut slots precisely: strings should sit 60% in slot, leaving 40% exposed to avoid choke. Use a 150-grit Nut Slotting File at a 10° back angle; gauge slot depth with a string wrapped in paper–should slide with mild resistance.
Material Failures and Fixes
- Fretboard warping: Heat a damp cloth over a lightbulb, wrap around neck for 5 minutes, then clamp a caul board (maple) overnight to realign.
- Loose frets: Apply cyanoacrylate (super glue) to tangs, tap with brass mallet, then level with a fret rocker tool.
- Nut cracks: Mix bone dust with hide glue for invisible repairs; clamp for 24 hours.
For fret dressing, use a triple-cut file system (course → medium → fine) to avoid flat spots. Polish with 3000-grit Micro-Mesh, then rub in penetrating oil (mineral spirits + linseed) to seal sweat-induced oxidation. Store instruments vertically–70°F / 45% humidity–to prevent fretboard shrinkage or fret sprout.
Understanding the Soundboard, Resonator, and Aperture: How They Shape Tone
Choose tonewoods for the soundboard based on stiffness-to-weight ratio–spruce excels for clarity, cedar for warmth. Thinner tops (2–2.5mm) enhance responsiveness but require bracing reinforcement to prevent bellying; use scalloped X-bracing for volume or ladder bracing for sustain.
- Sitka spruce: Balanced output, ideal for fingerstyle.
- Engelmann spruce: Softer attack, suited for recording.
- Mahogany: Midrange focus, cuts through mixes.
- Rosewood back/sides: Deep bass, extended overtones.
The back plate’s curvature and thickness dictate reflection efficiency. Flat backs (e.g., classical models) disperse sound widely; arched backs (e.g., dreadnoughts) project forward. Check seam alignment with a flashlight–gaps indicate poor adhesion, wasting energy.
Soundhole diameter affects Helmholtz resonance: 3.9–4.1 inches balances air volume and top flex. Place a mirror inside the aperture to inspect internal bracing–visible glue beads signal weak joints. Add a parabolic reflector (DIY: curved aluminum foil) to focus sound on-axis for live performances.
Glue the bridge plate directly over the X-brace intersection–even a 5mm offset reduces bass response by 12%. Use hide glue for reversibility; epoxy risks wood tear-out during future repairs. Reinforce string break angles with a compensated saddle–bone outperforms plastic by 7% in sustain metrics.
- Measure string height above the 12th fret: 2.5mm bass, 2.3mm treble.
- Adjust truss rod incrementally–quarter turns max, wait 24 hours.
- Sight along the edge of the fretboard for backbow–it indicates over-tightening.
- Check string relief with feeler gauges (.010″ ideal).
Cauls during top gluing prevent flat spots; use waxed paper to avoid adhesion. For vintage restoration, steam-clean the resonator cavity to remove accumulated rosin–it deadens high frequencies. Apply shellac to interior surfaces only after final shaping: polyesters seal pores permanently, obstructing tonal development.
