Begin by securing a schematic from the manufacturer of your rifle’s upper and lower receivers–Brownells, Daniel Defense, and Aero Precision provide high-resolution exploded views. Verify the model number stamped on the receiver (e.g., Colt 6920, BCM 1151) before referencing any visual layout, as mismatches waste time and risk improper reassembly. Download the original documentation directly from the maker’s site to avoid outdated third-party diagrams.
Focus on the fire control group first–trigger, hammer, disconnector, and safety selector. These pieces interact under spring tension; incorrect orientation (e.g., reversed hammer) will jam the action. Use a magnetic tray to prevent small detents (1/16″ diameter) from rolling into crevices. Digital calipers ensure measurements within 0.005″ tolerance, especially for gasped lengths on mil-spec vs. aftermarket designs.
Barrel nut torquing demands a wrench calibrated to 30–80 ft-lbs–exceeding this strips threads on aluminum receivers. Apply 242 Loctite sparingly to avoid seizing the gas tube. The handguard typically clamps with either a delta ring or free-float mounting system; Magpul M-LOK slots align precisely with rail segments at 45° intervals, requiring a hex key for secure indexing.
Bolt carrier group disassembly requires a vise with protective jaws–clamp the carrier not the bolt. Extract the cam pin by rotating counterclockwise until flush with the bolt tail; attempting removal prematurely bends the pin. Lubricate the gas rings with CLP (Cleaner, Lubricant, Protectant) applied only to the ring gaps, never the exterior surfaces where carbon buildup occurs.
Check buffer tube compatibility–carbine-length (7 5/8″) vs. rifle (9 3/4″). H1 or H2 buffers alter recoil impulse; weigh yours with a gram scale for consistency (e.g., 3.0–5.0 oz). Stock spacers (0.75″, 0.95″) fine-tune length of pull but alter cheek weld; verify with a mirror to confirm sight alignment before finalizing torque.
Understanding the AR-15 Assembly Breakdown
Begin by referencing a detailed schematic showing upper and lower receiver groups separately–this simplifies troubleshooting and upgrades. Identify key sections like the bolt carrier assembly, charging handle, and buffer tube early to avoid confusion during disassembly.
Label each component in the visual reference with its formal designation: the “fire control group” (trigger, hammer, disconnector) resides in the lower, while the “gas system” (gas block, tube, piston) mounts atop the barrel. Mark critical torque specs–buffer tube screws (40-50 ft-lbs), barrel nut (30-80 ft-lbs)–to prevent damage or misalignment.
Trace the firing sequence: magazine feeds rounds into the chamber, the bolt strips and locks, gas diverts via the port to cycle the carrier. Highlight wear-prone areas–the extractor claw, ejector spring, and feed ramps–for periodic inspection.
Cross-reference the breakdown with a compatibility chart: AR-15 variants (Mil-Spec, LR-308, pistol builds) differ in buffer weights, barrel threads, and handguard mounts. Note which parts are interchangeable (lower internals) versus proprietary (upper assemblies).
Store a laminated copy of the guide adjacent to your workbench with emphasis on safety checks: ensure the firing pin protrusion (.035-.045″) and chamber dimensions (.223/5.56) match before live-fire testing.

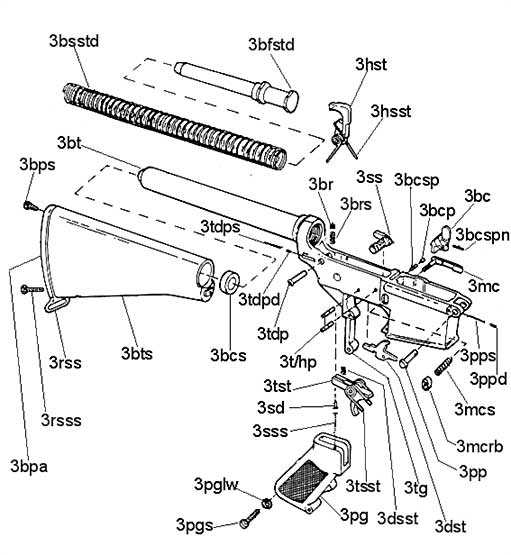

Identifying Core Components in an AR-15 Exploded View
Locate the upper and lower receiver assemblies first–these form the structural foundation of the rifle. The upper houses the bolt carrier group (BCG), charging handle, and barrel, while the lower contains the trigger mechanism, pistol grip, and buffer tube. Check for markings on both halves: Mil-spec receivers typically bear ” forge” stamps (e.g., “MP” for Colt or “FK” for FN), while aftermarket variants may lack them. Use a reference chart to cross-verify these markings with the manufacturer’s specifications, as mismatched pairs can cause cycling issues.
- Barrel: Measure the twist rate (e.g., 1:7, 1:8) stamped near the chamber–this dictates compatible ammunition. A 1:7 twist stabilizes heavier 77-grain projectiles, while 1:9 suits 55–62 grains.
- Bolt Carrier Group (BCG): Inspect the gas key–it must be staked tightly to prevent loosening under recoil. Look for a phosphate or nitride finish; melonite-treated BCGs resist corrosion better than chrome-lined alternatives.
- Trigger Assembly: Note the trigger pull weight (e.g., 3.5–5.5 lbs for GI single-stage, 1.5–3 lbs for match triggers). Disassemble the group to check for coated surfaces or polishing marks, which indicate aftermarket modifications.
Prioritize the fire control group when troubleshooting malfunctions–this includes the hammer, disconnector, and safety selector. Examine the hammer hooks for wear; uneven surfaces can cause light strikes. Compare the buffer weight (e.g., “H” for standard carbine, “H2” for heavier loads) against the gas system length (carbine, mid-length, rifle) to prevent over-gassing. For suppressed setups, ensure a properly staked muzzle device and an adjustable gas block to regulate backpressure.
Step-by-Step Disassembly for Accessing AR-15 Upper and Lower Components
Ensure the firearm is unloaded before proceeding. Visually and physically verify the chamber is clear by pulling the charging handle back and inspecting the bore. Remove the magazine if present. Lay the rifle on a clean, well-lit workspace with sufficient room to organize removed pieces.
Depress the rear takedown pin, located at the rear of the lower assembly near the stock, by pushing it outward with a punch or fingertip. Rotate the upper away from the lower until the pin clears the hinge. Separate the upper from the lower by lifting it straight up. Set the lower aside on a soft surface to prevent scratches or damage to the finish.
For upper assembly access, pull the charging handle fully rearward. While holding it back, depress the bolt catch lever on the left side of the upper. Slide the bolt carrier group (BCG) out through the rear of the upper. Rotate the bolt assembly counterclockwise to release it from the carrier, then remove the firing pin retaining pin and withdraw the firing pin.
To disassemble the bolt, use the following sequence:
| Step | Action | Tool Required |
|---|---|---|
| 1 | Remove cotter pin from cam pin | Small flathead screwdriver or punch |
| 2 | Rotate cam pin 90 degrees and lift out | None |
| 3 | Extract bolt from carrier | None |
| 4 | Remove gas rings if necessary | Tweezers or needle-nose pliers |
For lower assembly disassembly, start by removing the buffer and action spring. Press the buffer detent retaining pin from the rear of the receiver extension tube, then withdraw the buffer and spring. Use a drift pin to push out the rear takedown pin if not already removed, allowing the grip to be unscrewed and separated from the lower.
The trigger group requires careful attention. Remove the pivot pin connecting the trigger and hammer. Slide both components forward slightly to disengage the hooks from the lower receiver’s interior. Take note of the orientation of the disconnector and springs during removal to simplify reassembly. A magnetic tray is recommended to prevent losing small springs or pins.
Barrel removal from the upper involves securing the upper in a padded vise. Unscrew the barrel nut using an armorer’s wrench, rotating counterclockwise. Slide the barrel forward out of the upper receiver after removing the gas tube by pressing inward on the front sight base detent and pulling the tube rearward. Track the position of the gas tube and handguard for accurate reinstallation.
Clean all components using a cleaning rod, bore brushes, and solvent appropriate for copper fouling, carbon buildup, and powder residue. Lubricate moving surfaces with a lightweight, corrosion-resistant grease or oil, focusing on the bolt, carrier rails, and trigger mechanisms. Reassembly follows the reverse order, ensuring each piece is correctly aligned and secured. Perform a function check before returning the rifle to service.

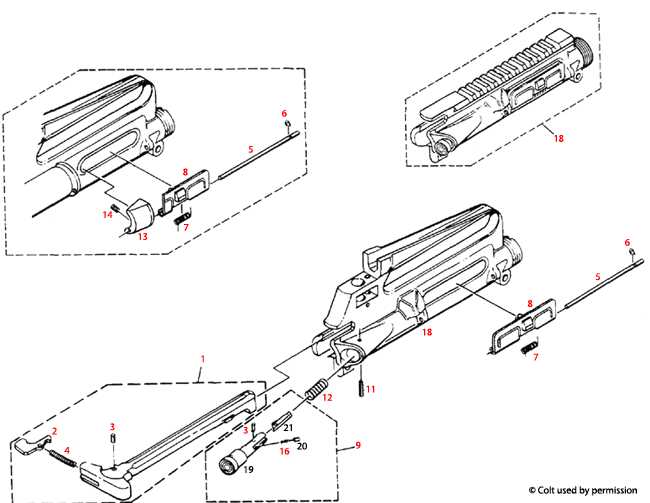

Matching Schematic Labels to AR-15 Internal Components
Start by isolating the bolt carrier group (BCG) from the upper receiver. Lay it flat on a clean workspace with the gas key facing upward. Align the cam pin (often labeled “7” on illustrations) vertically–its position determines the firing pin’s movement. Compare its orientation to the schematic: if the pin sits horizontally in the diagram, rotate the BCG 90 degrees to match. Check for the firing pin retaining pin (“9”) above the bolt’s extractor; its 3mm diameter distinguishes it from the smaller ejector pin (“11”). Misidentifying these risks improper reassembly.
Locate the extractor (“14”) by pressing its spring-loaded plunger. The schematic typically marks it opposite the bolt face’s ejection port side. Examine its claw–earlier models (extractor spring (“15”) and black rubber O-ring (“16”): these are often omitted in simplified schematics but critical for tension. Replace the O-ring if compressed beyond 1.5mm thickness.
- Identify the gas rings (“33”) on the bolt tail by counting three evenly spaced grooves. All three must rotate independently; fused rings necessitate replacement. Schematics sometimes depict only one ring–verify the quantity before proceeding.
- Trace the carrier key (“6”) downward to confirm the gas tube’s alignment hole. Mismatched schematics may label it “gas block connection”; ensure the key’s screws are torqued to 15 in-lbs.
- Distinguish the buffer detent (“50”) from the takedown pin detent (“45″) by diameter: 0.093″ vs. 0.125”. Use calipers if labels are ambiguous.
Move to the lower receiver’s trigger assembly. The disconnector (“38”) typically sits behind the hammer (“39”) with a 0.7mm gap in semi-auto configurations. Adjust this clearance using a feeler gauge–schematics often exaggerate the separation for clarity. Verify the trigger spring (“36”) polarity: the longer coil must face forward to prevent trigger slap. Compare the pivot pins (“24” and “27”)–the rear pin (“pistol grip pin”) has a thicker 0.170″ diameter; mixing them damages the receiver.
Inspect the charging handle (“20”). Remove the latch roll pin (“22″) using a 1/16” punch to access the latch spring (“23”). Diagrams rarely show the spring’s clockwise coil orientation–install backward, and the handle won’t lock. Reassemble with Loctite 243 on the roll pin threads. Cross-check the horseshoe-shaped latch: its beveled edge must interface with the BCG’s gas key slot; improper seating causes bolt bounce.
For the pistol grip (“41”), ignore generic “screw” labels. The rear takedown pin lever (“46″) requires a 3/32” hex key; schematics often default to Phillips. Torque to 35 in-lbs–over-tightening warps the aluminum threads. Confirm the buffer tube (“48”) has five concentric rings; count them on the tube’s base if the illustration lacks detail. Use a magwell block to prevent receiver flex during this step. Finally, validate the front pivot pin (“24”): its serialized side faces upward for tool-free removal.
