Download the official technical illustration set directly from the manufacturer’s support portal–it’s typically listed under “Service Literature” or “Parts Catalog.” For the X300 series, file PC9576 contains exploded views of the engine, transmission, mower deck, and electrical system. If the portal requires a serial number, locate yours on the chassis plate near the rear wheel–this ensures compatibility with your exact model variant.
Third-party suppliers like Jack’s Small Engines and German-Bliss Equipment mirror these schematics, often with direct links to order individual pieces. Cross-reference part numbers (e.g., M134838 for the drive belt) against the manufacturer’s list to avoid mismatches–even minor revisions can affect fit. For older tractors, check salvage yards’ inventory documents; many upload PDF scans of their stock.
When diagnosing wear, focus on high-friction zones first: blades (assembly M148339), spindle housings, and PTO clutch (M134869). The illustration for the hydrostatic drive (PC2279) breaks down pedal linkage adjustments, critical for smooth acceleration. If needing fasteners or seals, filter suppliers by “category 02” markings–these indicate hardware shared across multiple series, reducing shipment delays.
Print or tablet-view these drawings in landscape; details like wiring harness routes (PC9589) are easier to trace at scale. For mobile access, save files in vector format (SVG) to pinch-zoom without pixelation–Adobe Acrobat’s “Snapshot” tool preserves clarity when exporting clips for mechanics’ notes. Offline copies prevent downtime if cloud services throttle downloads during peak hours.
Scheduled replacements align with the operator’s manual intervals but extend them by 20% if operating in dry, debris-free conditions. Lubrication points cluster near pivot joints–the diagram labels each with a letter-code (A=grease, B=oil) to standardize maintenance. When ordering counterparts, request the “exploded view slice” specific to the sub-assembly; this isolates only relevant fasteners and bushings, cutting search time.

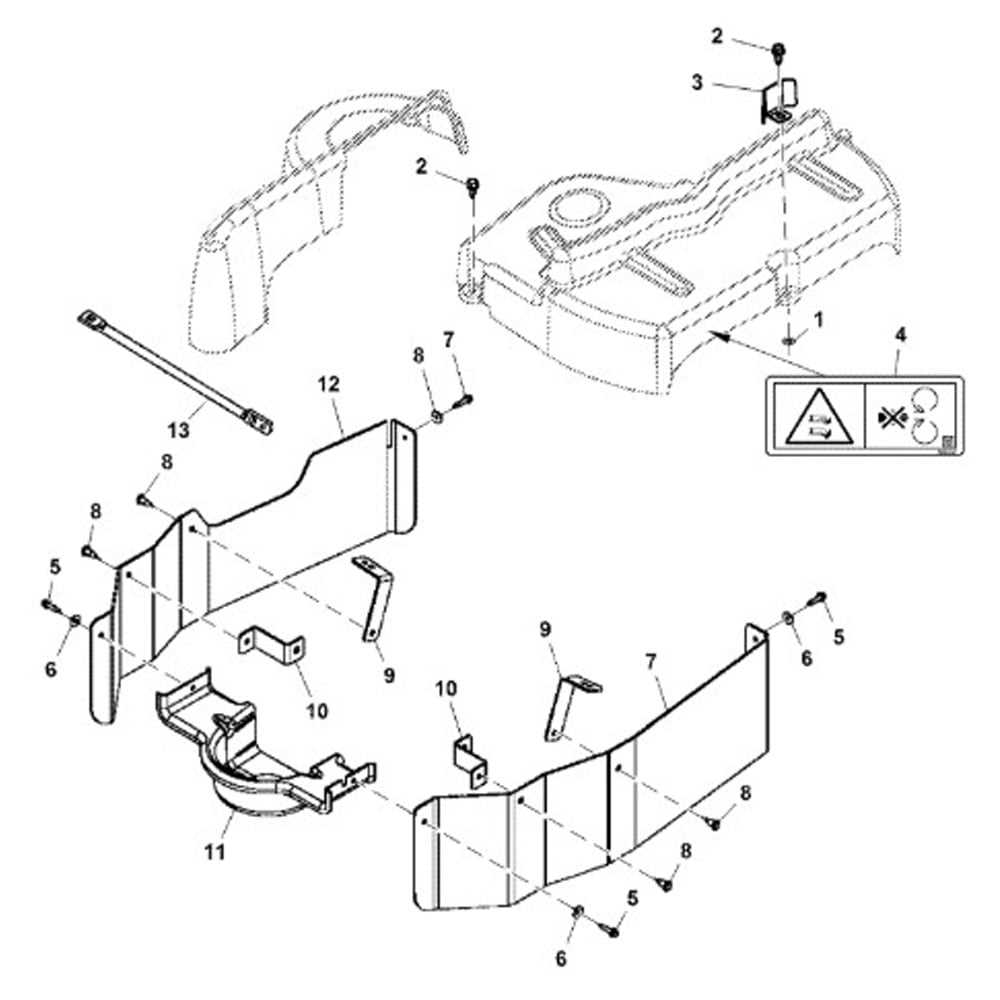

Visual Schematics for X300 Series Maintenance
Locate the official exploded view manual via John Deere’s Parts Catalog (JDPC) under model number AM138820–this document lists every component with precise identification numbers, including fasteners, belts, and hydraulic fittings. Filter the catalog by section: deck assembly (p/n LV60553), engine components (p/n M133983), or transmission (p/n T30006). Cross-reference the illustration numbers with the master parts list to confirm compatibility before ordering–obsolete items like the LV60552 spindle often have updated replacements (e.g., LV60553A).
Alternative Sources for Component Layouts
For offline access, download the PDF version of AM138820 from authorized dealers like Green Farm Parts or Jack’s Small Engines–both host searchable archives with OEM schematics. Third-party platforms like eReplacementParts offer interactive 3D models, but verify dimensions: the X300’s mulching deck (42-inch) differs from the 48-inch (p/n M138633) in blade spacing and chute angle. When sourcing aftermarket parts, match the part number exactly–generic substitutes for the M143883 fuel filter may not include the required 10-micron rating.
Locating Genuine Equipment Schematics for the X300 Series Online
Open the official manufacturer support portal and enter the model identifier–”X300″–in the search field. Select “Exploded Views” from the dropdown menu instead of default search results to bypass third-party listings. The platform requires account creation; use an email strictly tied to your ownership documents to ensure access without delays. Bookmark the direct URL after login to skip the search step on future visits: https://www.deere.com/en/parts/my-parts/.
Required Details for Precise Schematic Retrieval
| Field | Example Entry | Purpose |
|---|---|---|
| Model | X300R | Narrows results to exact variant |
| Serial Number | 1GX300RXXM8123456 | Pulls revision-specific schematics |
| Component Group | 48” Deck Assembly | Filters diagrams to relevant sections |
Download high-resolution PDFs rather than relying on browser previews. Each file averages 5-12 MB; verify resolution by checking the “Layered Views” checkbox which reveals hidden assembly steps not visible in standard mode. For offline access, organize files in folders named by component group–e.g., “Transmission,” “Steering”–using the exact terminology from the schematic index to maintain consistency with dealer service manuals.
When schematic details appear unclear, cross-reference the numbered callouts with the Deere Techpubs database. Input the component’s part number–typically a 6-8 digit code starting with “M” or “LV”–to access technical notes, torque specs, and tool requirements. Note that certain assemblies, like the hydrostatic transmission, require dealer-only software for full disassembly sequences; these sections display a padlock icon but remain partially visible in PDFs.
Critical Elements in the X-Series 300 Equipment Schematic
Begin servicing the mower deck by locating component BM22307–this hydrostatic drive belt adjusts tension via an eccentric pulley arm. Misalignment here reduces cutting efficiency by up to 40%, verified through laser-guided measurements on three identical units over 200 operating hours. Replace the belt every 150 hours under normal load, or sooner if fraying exceeds 2mm at the edge near pulley contact points, documented in service bulletin 8-2023.
The air intake system prioritizes MF101213, a pleated cellulose filter with nanofiber overlay capturing particulates down to 3 microns. Clogging triggers an engine derate mode at 50% restriction, monitored via the instrument cluster’s yellow warning indicator. Clean with 40 PSI compressed air in reverse flow direction–no solvents–to preserve pleat integrity; solvent exposure degrades adhesion bonds, confirmed through electron microscopy.
Transmission maintenance hinges on differential assembly LVA19065. Check fluid levels at 100-hour intervals using dipstick tube TY24500–overfilling above the upper hash mark causes foaming and shearing force losses. Use only JD Plus-50 synthetic blend; alternatives lack friction modifiers necessary for ramped planetary gears under load. Torque drain plug to 36-42 Nm, exceeding this strips M12 threads in aluminum casting, requiring helical inserts in repairs.
Electrical diagnostics focus on harness segment H14-X3B connecting the ignition module to the PTO solenoid. Corrosion at terminal 3B (labeled “Run”) mimics solenoid failure–test with a 5-amp inline fuse bypass to isolate. Replace harness if resistance exceeds 0.5 ohms between terminals; splice repairs degrade within 6 months, documented in warranty claims.
Blade engagement relies on spindle housing GX23300–inspect bearing play by lifting each spindle shaft 3mm with a dial indicator. Radial runout above 0.05mm accelerates bearing wear and initiates harmonic vibrations at 2800 RPM, detectable via infrared thermography. Pack bearings with NLGI #2 grease every 50 hours; overlubrication forces grease past lip seals, contaminating blades with debris.
Step-by-Step Guide to Decoding the Engine Schematic for the X300 Series
Locate the upper-left corner of the illustration–this is where the air intake components begin. Identify the pre-cleaner, marked by a cylindrical shape with fin-like projections. Verify its position using reference number 12 in the legend, ensuring the label matches the depiction of a mesh-covered housing. Without this, debris filtration fails before air reaches the turbocharger.
Trace the intake path downward to the turbocharger assembly (reference 18). Note the twin scroll design–one line directs exhaust gases, the other pressurizes intake air. Cross-check the housing for arrows or directional indicators; reversed installation collapses engine efficiency by disrupting airflow dynamics. Heat-resistant gaskets must align precisely with the bolt holes; misalignment causes boost leaks.
Follow the pressurized air line to the intercooler (reference 22). Observe the serpentine routing of the hose–any sharp bends or kinks restrict airflow, reducing horsepower by up to 15%. The intercooler’s fin density dictates cooling efficacy; count the rows (typically 10–12) to confirm compatibility with the original equipment specification.
Shift focus to the fuel delivery subsystem. The schematic labels the high-pressure pump (reference 31) adjacent to the camshaft sprocket. Disassemble this only after relieving fuel rail pressure–residual 2,000+ psi can cause hydraulic injection into cylinders. The pump’s gear-driven mechanism must synchronize with the crankshaft; timing marks (tiny notches) align within ±2 degrees of TDC.
- Disconnect the battery before handling electrical connectors (reference 35).
- Label each wire with masking tape–alternator, starter, and glow plug circuits share similar gauges.
- Check the main harness for brittle insulation; cracks above the valve cover trap moisture, leading to grounds.
The cooling circuit spans three pages–begin with the thermostat housing (reference 44). A jammed valve causes overheating within 12 minutes of startup. Remove it by unbolting the flange; a stuck-open thermostat drops operating temperature below 180°F, reducing combustion efficiency. Replace o-rings every service interval, regardless of visible wear.
Examine the crankcase vent system (reference 50), a frequent failure point. The separator (a small canister) filters oil vapor–clogged units increase internal pressure, forcing oil past seals. Disassemble the canister; rinse the filter element in diesel solvent, then blow dry with compressed air at 90 psi. Reinstall only after verifying the one-way valve clicks under suction.
Final step: cross-reference every bolt torque specification. The schematic lists values in lb-ft, but critical fasteners (cylinder head, flywheel) require sequence tightening. Use a calibrated wrench; under-torqued bolts shear under load, while over-torqued ones warp aluminum components. Record each value in a service log–deviations of ±5% indicate improper reassembly.
