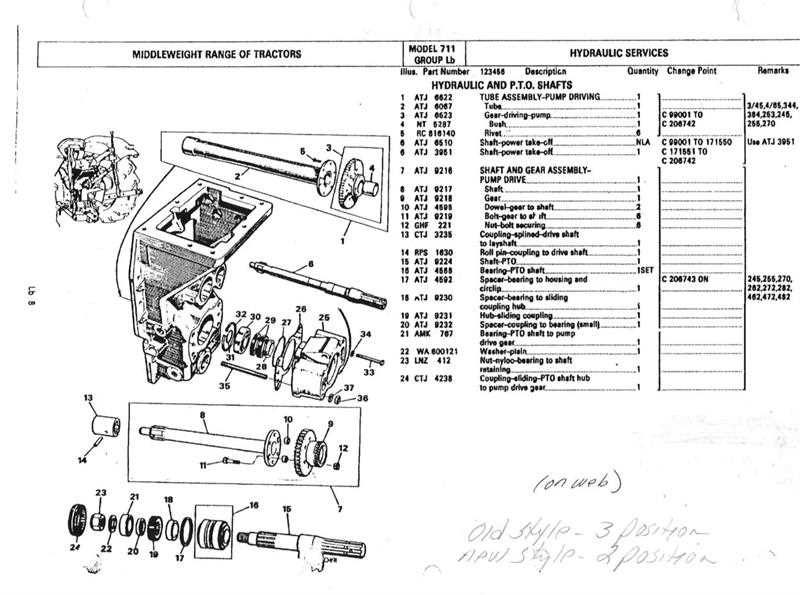

Start by locating the universal joint at the connection point between the tractor’s output and the implement’s input. This critical component transfers rotational force while accommodating angular misalignment–typically up to 25° under load. If wear exceeds 0.5mm on the bearing surfaces, replace the entire joint rather than attempting repairs; precision here prevents catastrophic failure at high RPM. Use only OEM-specified grease (SAE J6135 or equivalent) for lubrication, applying a thin layer every 50 operating hours. Over-greasing forces contaminants into bearings, accelerating wear.

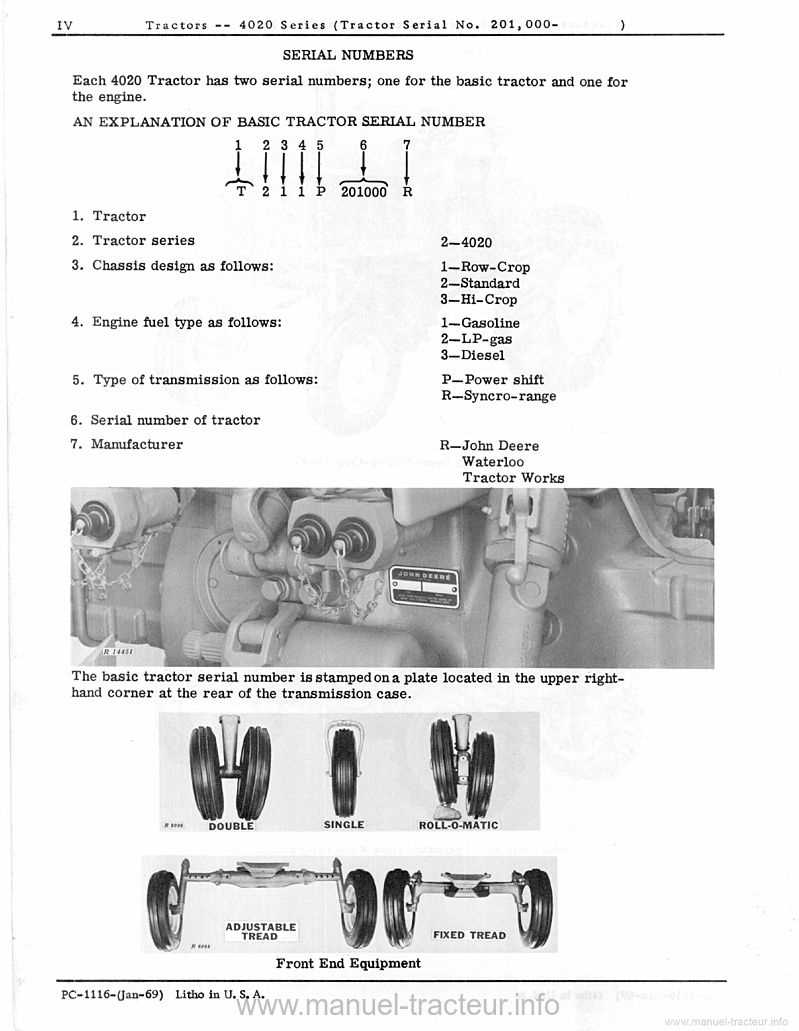

The engine assembly breakdown for the model in question is best sourced from the original operator’s manual supplement, specifically section 3 (mechanical components). If physical copies are unavailable, OEM-sanctioned PDF repositories often archive these documents–check manufacturer-affiliated websites or dedicated tractor restoration forums for direct downloads. Avoid third-party image aggregators; many reproduce outdated or error-prone sketches.

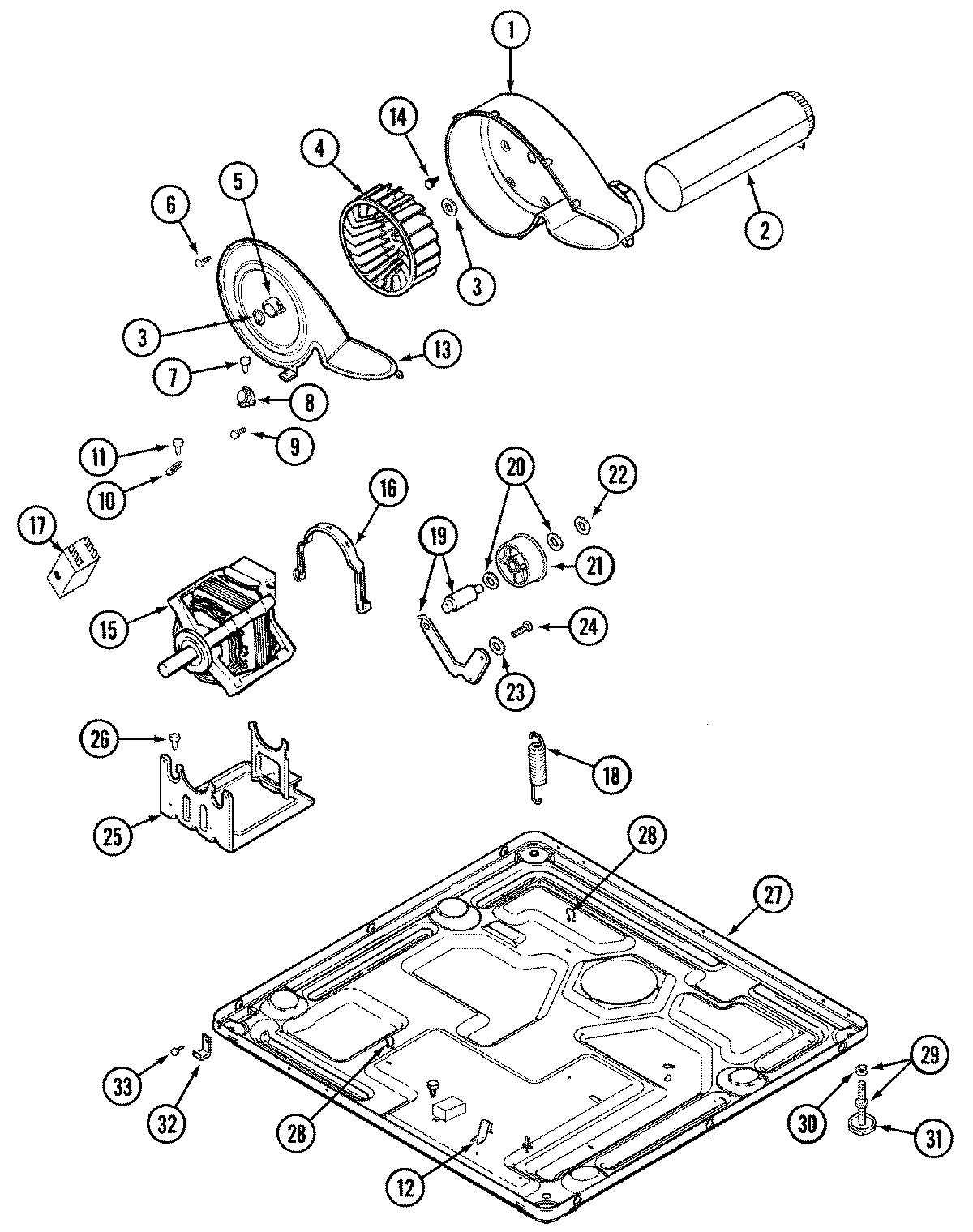

Check the back panel first–most heating elements and thermal fuses sit behind it. If airflow feels weak or cycles cut off mid-run, replace the thermal cutoff; it acts as the primary safety switch. Model-specific schematics label this as either 3390L (Whirlpool/Kenmore) or WP3390 (Maytag). Always verify voltage with a multimeter before handling live circuits–standard resistance should read 0-50 ohms for intact fuses.

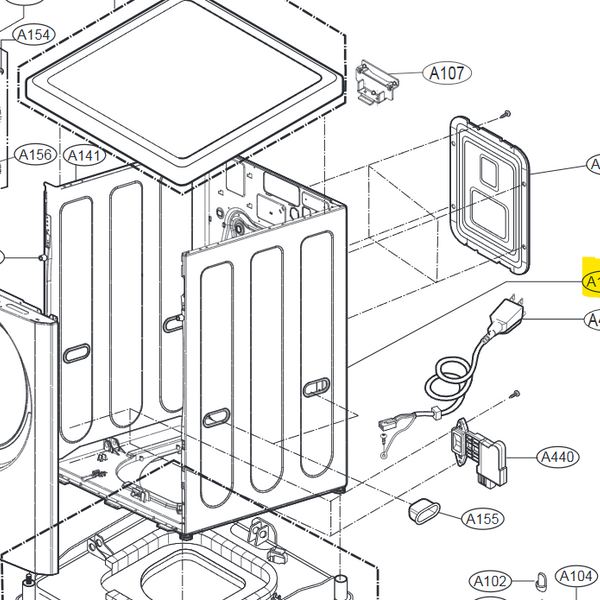

Begin by locating the agitator or impeller–the central mechanism responsible for moving fabrics during cycles. Modern front-loading units typically use an impeller (a low-profile disc), while top-loading models often feature an agitator (a tall, ridged post). Check the manufacturer’s manual for exact specifications: LG models frequently label this as "Direct Drive," while Whirlpool units may refer to it as "1-Piece Agitator."

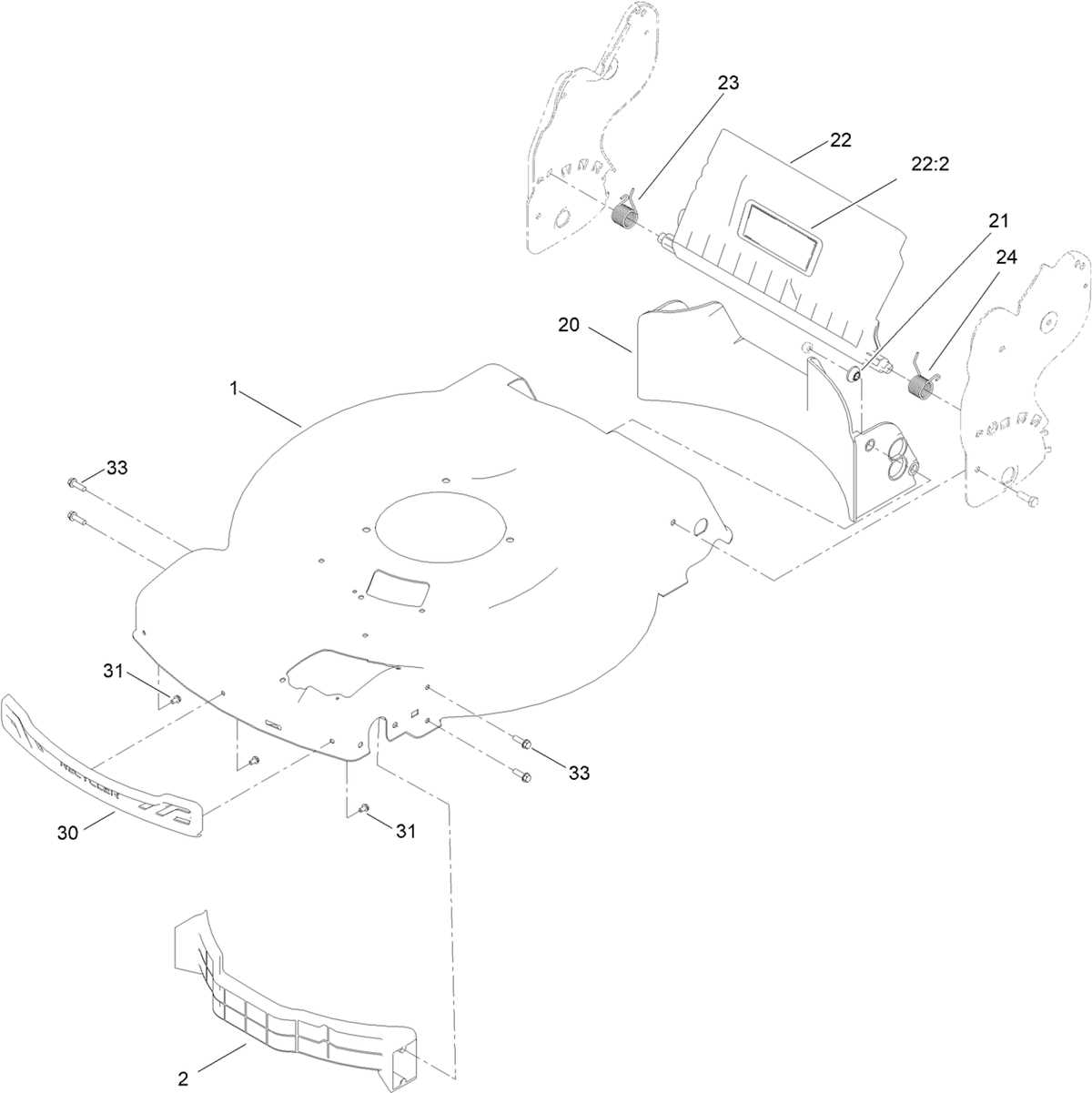

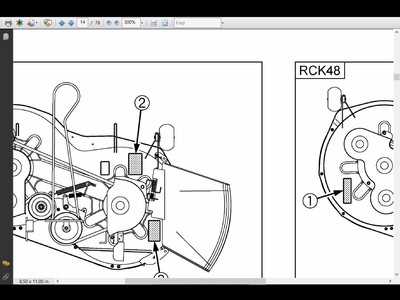

Begin by referencing the exploded view schematic provided in the operator’s manual under section 5B. This document details every major assembly–engine housing, cutting deck, and drive system–with numerical labels corresponding to the manufacturer’s part list. If the original manual is unavailable, download the PDF version from the official equipment portal using serial number CX-7892M; this variant includes updated hydraulic line diagrams absent in earlier editions.

Replace the tilt cylinder first if resistance feels uneven during reclining. Order PN 521-820 for the standard version or PN 521-821 for the adjustable variant. Installation requires a 5mm hex key–rotate counterclockwise to detach the old unit, then align the new cylinder’s splines with the seat mechanism.

Begin by identifying the pump assembly–this is the core of your unit’s hydraulic system. The exploded view typically sections this into the inlet valve, piston heads, and unloader valve. Each plays a distinct role: the inlet allows water entry, the pistons generate force, and the unloader manages excess flow when the wand trigger is released. Misalignment here compromises power output, leading to drops below expected performance. Check sealing surfaces for corrosion; even minor pitting disrupts tight fits.
