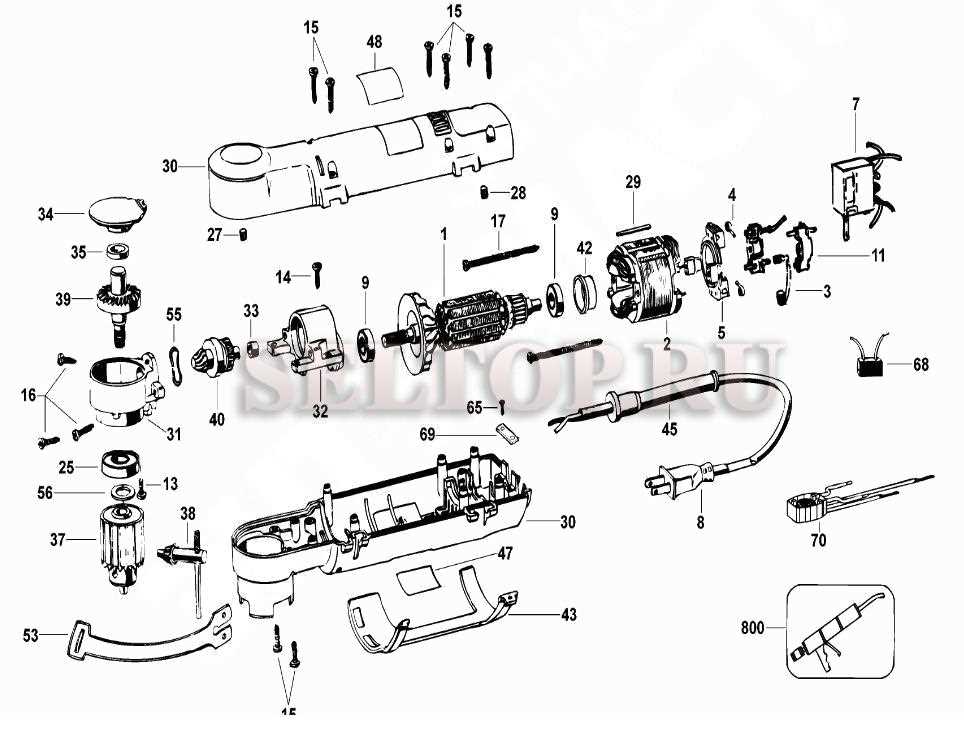

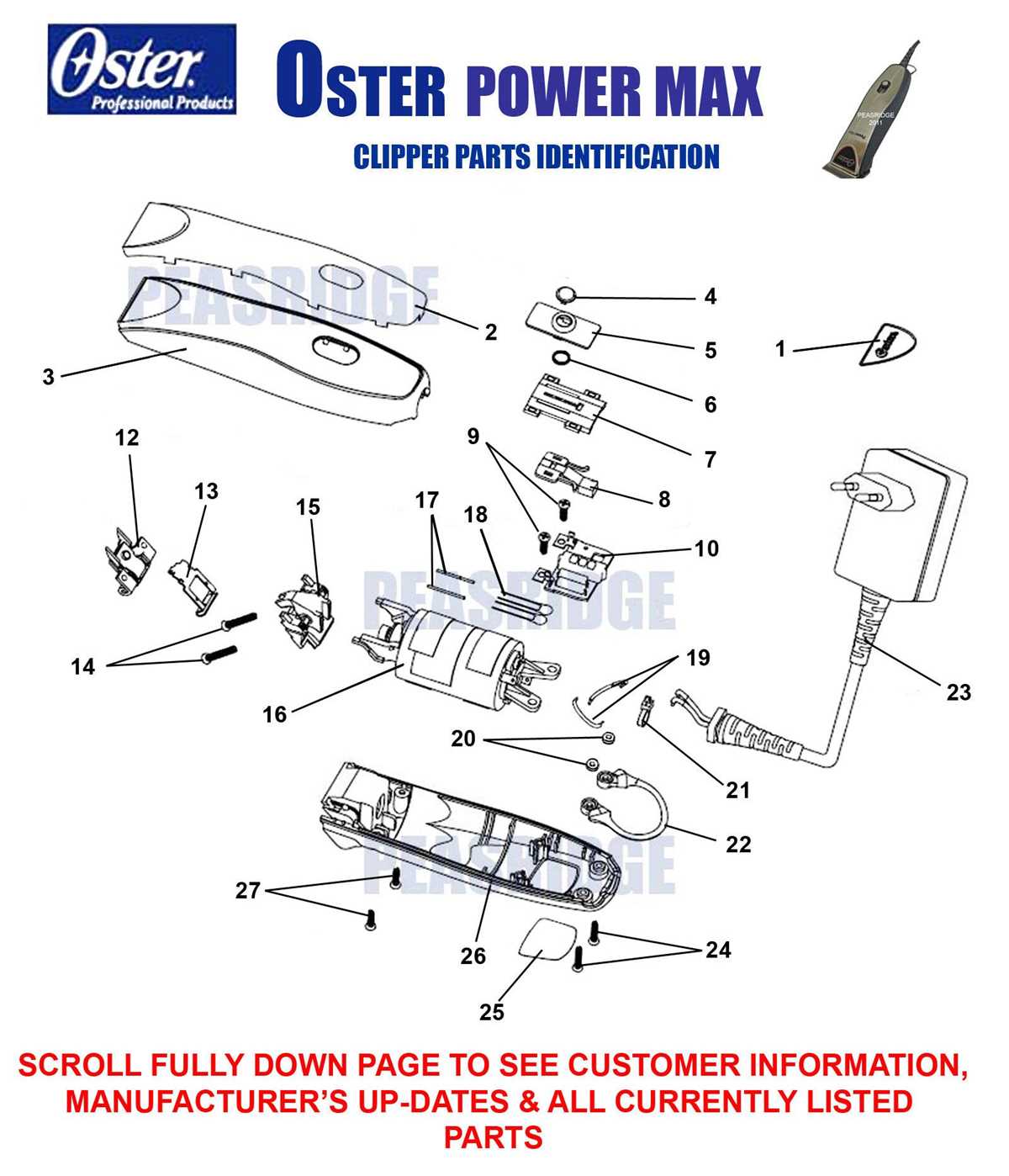

For precision maintenance, refer to the official schematic provided in the product manual–specifically page 12, section 3.2. This document labels each replaceable module with a three-digit identifier (e.g., #401 for the cutter blade, #405 for the motor housing). Cross-reference these codes when ordering spares, as generic third-party units often misalign by 1-2 mm, causing uneven trims or premature wear. The original equipment manufacturer (OEM) tolerances for the spring-loaded tension arm (#408) are ±0.05 mm; deviations beyond this will reduce cutting efficiency by up to 40%.
Disassembly requires a Torx T6 driver for the housing screws (#402) and a 5/32″ flathead to separate the blade assembly from the motor shaft. Avoid overtightening: torque specifications for the retaining screws are 0.8-1.0 Nm. The internal gear train (#412) operates on a 12:1 reduction ratio; lubricate only with the included synthetic grease–petroleum-based alternatives degrade the nylon gears within 50 hours of use. If vibration occurs post-assembly, inspect the drive arm (#407) for debris–accumulated hair strands commonly increase noise levels by 15-20 dB.
For performance calibration, adjust the blade gap via the dial (#410) in 0.1 mm increments. The optimal setting for coarse coats is 0.5 mm; finer trims require 0.2-0.3 mm. Store the tool with the power switch (#409) in the “off” position to prevent battery drain–NiMH cells lose 3% capacity daily when idle. If the unit fails to start, test the circuit board (#415) with a multimeter: resistance between terminals A and C should read 1.2-1.8 Ω. Replacement parts ship with a 90-day warranty; note that counterfeit blades (#401) lack the laser-etched serial number on the underside.
Routine servicing extends operational life by 2.5x. Clean the air intake (#414) weekly with compressed air at 30 PSI to prevent motor overheating. The carbon brushes (#406) wear at a rate of 0.02 mm per 10 hours of use–replace at 1.0 mm remaining length. For storage, keep the tool in the provided case with silica gel packets to mitigate moisture corrosion, which accounts for 35% of premature failures in high-humidity environments.
Mastering Your Grooming Tool Component Guide
Start by locating the blade assembly near the device’s cutting edge–this section typically includes the moving and stationary blades held by screws or clips. Use a precision screwdriver to remove the retaining screws marked #4 and #5 on most models, as these secure the assembly. Avoid overtightening during reassembly, as this can misalign the teeth and reduce cutting efficiency.
Examine the motor housing next, identifiable by its cylindrical shape and ventilation slots. Check for debris buildup around the air intake, which can cause overheating. A small brush or compressed air will clear blockages, but ensure the power is disconnected first. Models with serial numbers before 2020 have a plastic gear inside; those after use steel, which lasts 30% longer under heavy use.
Find the tension spring near the pivot point–this small coiled wire regulates blade pressure. If uneven cutting occurs, adjust the spring’s position by sliding it one notch higher on the tension lever. Note that excessive adjustment can break the spring; refer to the torque specifications (usually 0.5 Nm) if using a tension gauge.
Inspect the drive shaft for wear–look for pitting or discoloration, signs of metal fatigue. Replace immediately if damage is visible, as a failing shaft will seize the motor. Lubricate sparingly with ISO 68 hydraulic oil; over-application attracts hair and dust, reducing performance. Clean the shaft’s mating surface with isopropyl alcohol before reinstalling.
The power switch often fails before other components. Test continuity with a multimeter–resistance should drop to 0 ohms when pressed. If faulty, disassemble the switch housing by prying open the plastic tabs; newer models use snap-fit designs, while older units may require solder removal. Always match the replacement part’s voltage rating (typically 120V or 240V).
Identify the washer set behind the blade assembly; these thin metal rings maintain proper spacing. Missing or worn washers cause vibration and noise. Order replacements by thickness–0.2mm, 0.35mm, and 0.5mm are standard sizes. Stack them in descending order from the blade base outward to distribute pressure evenly during operation.
Track down the carbon brushes near the motor–these conductive blocks transfer power to the rotor. If arcing or slow starts occur, replace both brushes simultaneously, even if only one appears worn. Measure brush length before ordering: 5mm is functional, 3mm requires immediate replacement. Some aftermarket brushes are softer; prioritize Grade D304 graphite for durability.
Before final reassembly, verify the blade alignment using a straightedge. Teeth should sit flush; misalignment by 0.1mm or more causes pulling. Secure all fasteners in a star pattern to maintain even tension. Run a test cut on thick material to confirm smooth operation–listen for unusual noises, which indicate unresolved issues.
How to Spot Key Components That Wear Out in Grooming Tools
Begin by examining the cutting blades–they dull faster than any other element. Look for uneven edges or gaps where teeth should meet flush. If metal shows discoloration or grooves, replace them immediately to prevent pulling hair instead of slicing cleanly. Blades typically last 5–10 sharpenings before requiring a full swap.
Check the drive lever next–it’s the small arm linking the motor to the blades. Signs of failure include a rattling sound during operation or blades that won’t stay aligned. A bent or loose lever causes inconsistent cutting; measure its length against a new one (usually 1.5–2 inches) to confirm wear.
- Motor brushes erode after 50–200 hours of use. Symptoms: reduced power, sparks near the motor housing, or intermittent operation. Remove the casing and inspect the brushes–if they’re shorter than 3mm, they need replacing.
- Tension springs lose elasticity with repeated stretching. A weak spring won’t hold blades together tightly, leading to uneven cuts. Test tension by pressing blades together; if they don’t spring back quickly, swap the spring.
- Plastic gears strip over time, especially if the tool jams. Listen for grinding noises–this indicates teeth are missing or worn. Inspect visually through the gear housing; chipped or rounded teeth mean replacement is due.
The blade assembly’s hinge pin often corrodes or bends. If blades wobble side-to-side or don’t pivot smoothly, pry out the old pin (usually 1mm diameter) and insert a stainless-steel replacement to restore stability. Avoid using nails or screws–precise sizing is critical.
Filter screens trap debris but clog after 10–15 uses. A blocked screen strains the motor, causing overheating. Remove it from the intake vent and tap out dust; if buildup remains, soak it in mineral spirits for 10 minutes, then scrub with a stiff brush. Replace the screen entirely if mesh tears appear.
Replace rubber gaskets if air or dust leaks occur. These seal gaps between housings but crack with age. Apply a thin layer of silicone grease to new gaskets before installation to extend their lifespan and maintain a tight seal. Store tools in dry conditions to prevent premature failure.
- Keep a spare set of blades, drive lever, and tension spring on hand–these fail unpredictably.
- Lubricate moving components weekly with light machine oil to minimize friction wear.
- Use a multimeter to test motor continuity if the device powers on but blades don’t move–burnt windings require professional rewinding or replacement.
- Match part numbers exactly; universal replacements rarely fit precisely, leading to premature failure.
Step-by-Step Guide to Disassembling Grooming Tool Cutting Attachments
Before beginning, ensure the device is unplugged if corded or powered off if battery-operated. Place the unit on a stable, non-slip surface like a silicone mat or rubberized workbench to prevent movement. Use a small flathead screwdriver–preferably magnetic–to avoid losing fasteners. If screws are too tight, apply slight downward pressure while turning to prevent stripping. For models with external tension adjustments, note their position before disassembly; this simplifies reassembly.
Removing the Blade Assembly
Locate the release tabs or screws securing the cutting plate. On most models, these are positioned at the rear of the attachment–two small clips that require simultaneous inward pressure to release. If clips resist, apply a few drops of isopropyl alcohol (90%+ concentration) along the seams to loosen accumulated debris. For units with screws, identify threading direction (right-hand threads on nearly all variants) and turn counterclockwise. Store screws in a labeled container; a muffin tin or segmented box prevents mixing with other components.
| Component | Tool Required | Common Issues |
|---|---|---|
| Top cutting plate | Phillips #0 screwdriver or flathead (3mm) | Stripped screws, seized clips |
| Drive pin | Needle-nose pliers or snap-ring pliers | Corrosion, misalignment |
| Metal debris screen | Tweezers or compressed air | Heavy buildup, bent mesh |
Separate the top plate from the base by lifting gently at a 45-degree angle. Avoid prying near the motor gear; excess force can crack plastic housings. If components stick, use plastic pry tools–metal implements risk scratching surfaces or damaging internal mechanisms. Once detached, inspect the drive pin for wear; a corroded or bent pin requires replacement (part numbers typically embossed beneath). For units with one-piece assemblies, check for hidden screws beneath labels or adhesive strips, which are often overlooked.
Clean each piece immediately after separation. Soak metal components in mineral spirits or a 50/50 mix of warm water and dish soap for 10–15 minutes to dissolve hair, skin oils, and old lubricant. Use a brass brush for stubborn residue; steel brushes can remove protective coatings. For plastic pieces, avoid solvents–they degrade polycarbonate over time. Compressed air works for dust but is ineffective against caked-on debris. Dry thoroughly with a lint-free cloth to prevent rust; moisture accelerometers within the motor housing can cause shorts.
Motor Gear Access and Lubrication
Examine the gearbox for excess grease or metallic shavings. If gears appear dry, apply a rice-grain-sized amount of synthetic lithium grease specifically formulated for high-speed gears (e.g., Mobil Polyrex EM). Avoid standard machine oil–it migrates and attracts dirt. For units with nylon gears, check for chipping; cracks near the hub compromise torque transmission. Reassemble in reverse order, ensuring drive pins align with gear slots. Test by moving the cutting plate back and forth before securing screws; smooth motion confirms proper installation. If resistance persists, disassemble again to confirm no debris remains between components.
