Locate the engine cover screws first–they’re typically recessed near the rear fender, often hidden beneath a protective rubber cap. Remove these with a 10mm socket, noting the exact positioning of any spacers or washers; swapping their order during reassembly can misalign the blade shaft. If corrosion is present, apply penetrating oil 24 hours before attempting disassembly to avoid stripping threads.
Examine the drive belt: models manufactured before 1995 use a ½-inch V-belt, while later iterations switched to a 3/8-inch flat cogged design. Measure the belt span between pulleys–anything outside the 27–30 inch range indicates wear exceeding 1.5mm, necessitating replacement. When sourcing belts, avoid generic aftermarket units; OEM equivalents from the manufacturer’s 9-25201-01 series maintain proper tension under load, reducing slippage under wet conditions.
The blade assembly requires precise torque: 35–40 ft-lbs for standard tines, 45–50 ft-lbs for heavy-duty furrow blades. Over-torquing warps the deck plate, causing uneven soil engagement. For reference, the original factory setting is stamped on the underside of the housing–look for “42 Nm” near the serial number plate. If no marking exists, use a beam-type torque wrench to avoid crushing the aluminum casting.
Inspect the gearbox lubricant level by removing the fill plug on the side casing–not the drain plug on the bottom. Early gearboxes use SAE 90 GL-4 hypoid oil, while later sealed units employ synthetic 75W-140. Never substitute with conventional motor oil; viscosity breakdown occurs at 2,200 RPM operational speeds, leading to bearing failure within 75 hours of runtime. For drain intervals, follow the 150-hour service recommendation, though sandy soil conditions warrant a 50-hour reduction.
Troubleshooting ignition failures starts at the condenser–test for resistance below 0.2 Ohms using a multimeter at the kill switch terminal. Most coil packs degrade at 6,000–8,000 operating hours; verify by checking secondary spark output at the plug wire with an inline spark tester. If output drops below 25kV, replace the entire ignition module rather than the capacitor alone–the integrated circuit fails progressively, causing intermittent misfires.
Vintage Engine-Driven Cultivator Schematic Guide

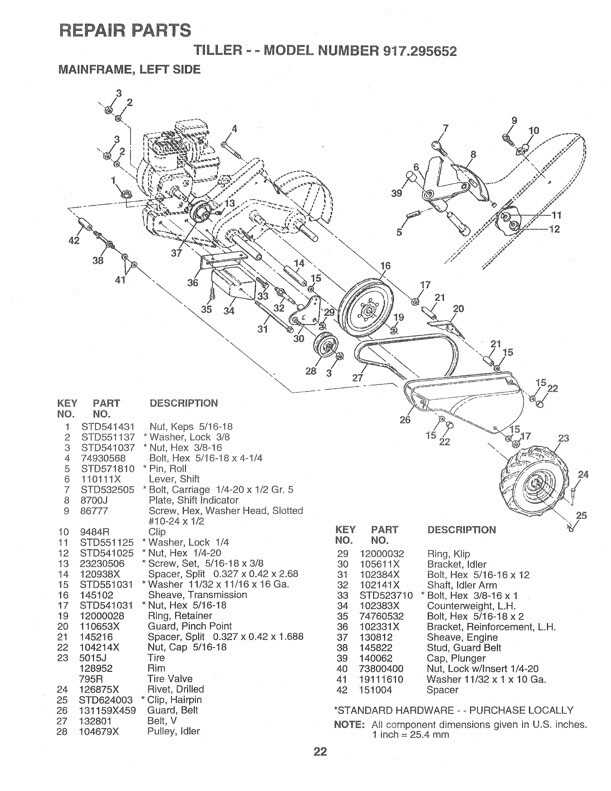

Locate the model number stamped on the engine housing or transmission casing–typically a six-digit alphanumeric code (e.g., 917.370240 or 247.221621). Cross-reference this with the manufacturer’s legacy database or third-party manuals from sites like ManageMyGarden or PartsTree. Avoid generic schematics; specific revisions matter. For example, early 1980s variants (e.g., 580.32950) differ in carburetor linkage and clutch engagement mechanisms from later models.
Critical replacement elements like the drive belt (part #755-04357 for 917-series) and tines (commonly #917-243520 for 16-inch width) degrade at predictable rates. Track wear patterns: a frayed belt or bent tine shaft suggests misalignment, often resolved by adjusting the idler pulley tension (torque spec: 18-22 ft-lbs). The table below outlines high-failure components:
| Component | Common Failure Mode | OEM Part Number | Compatibility Notes |
|---|---|---|---|
| Transmission seal | Oil leakage at input shaft | 714-04105 | Model years 1978–1985 (20–24 HP variants) |
| Ignition coil | Intermittent spark/no start | 799-17501 | Solid-state replacement for points-based systems |
| Wheels (13×5.00-6) | Tread separation or axle bearing wear | 917-243110 | Verify hub dimensions (3/8″ vs. 1/2″ axle) |
For obscure or discontinued assemblies (e.g., the centrifugal clutch on pre-1980 models), salvage working units from parts machines listed on eBay or Facebook Marketplace. Test salvaged clutches with a torque wrench: engagement should occur at 1500–2000 RPM with minimal slippage. If fabricating custom components, use 1018 cold-rolled steel for shafts and 6061-T6 aluminum for pulley housings–avoid cast iron for high-stress areas due to brittleness.
Electrical systems in vintage rotary plows often feature buried ground straps or corroded terminal blocks. Use a multimeter to trace resistance from the battery positive to the starter motor post (acceptable range: 0.1–0.3 ohms). Replace bulkhead connectors with waterproof Deutsch DT series if moisture ingress is detected. Magneto-driven models (e.g., Briggs & Stratton 13H) require gap settings of 0.012–0.016 inches; measure with brass feeler gauges at both flywheel poles.
Rebuild kits for gearboxes (#755-0549) rarely include thrust washers or needle bearings–order these separately (#748-05022 and #748-05501). Reassemble using molybdenum disulfide grease (NLGI #2) on gears and Loctite 242 on fasteners. Note that pre-1975 units used tapered roller bearings (Timken LM11949/LM11910), while later variants standardized on sealed ball bearings (6203-2RS). Store disassembled components in labeled polyethylene bags to prevent surface rust.

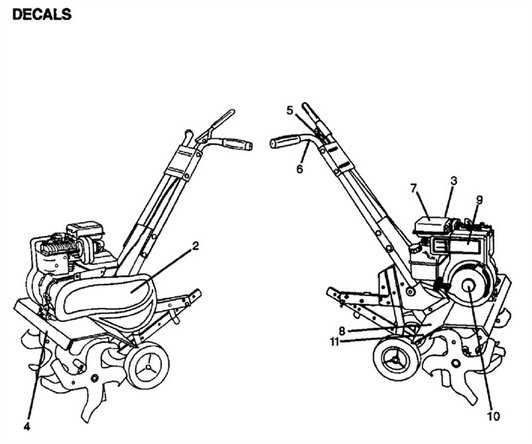

Recognizing Key Components in Rotary Cultivator Blueprints
Locate the drive belt near the engine pulley–its position is critical between the motor and transmission gears. Measure its width and circumference before ordering; belts degrade faster under heavy soil conditions. For example, a ⅜-inch by 42-inch belt suits mid-size models, while compact units often require ¼-inch profiles. Verify groove depth; worn pulleys accelerate belt wear, leading to slippage.
- Check the tine shaft assembly–bent or misaligned shafts cause uneven soil penetration. Look for spiral tines (common in rear-mounted units) versus L-shaped blades (typical in front-driven designs). Replace worn tines if gaps exceed 3mm between blade edges and soil guards.
- Examine the clutch mechanism. Manual-release clutches (lever-operated) differ from automatic tensioners, which rely on spring load. Replace frayed cables if engagement requires excessive force–this indicates internal corrosion or misalignment.
- Inspect piston seals if the engine overheats during operation. A 0.02mm wear on O-rings reduces compression efficiency by 15%. Match replacement seals to the exact grade: nitrile for fuel systems, Viton for high-temperature zones.
Transmission housings often corrode near the input shaft due to moisture accumulation. Drain old lubricant every 50 operating hours; contaminated fluid accelerates bushing wear. A void larger than 0.5mm between the drive shaft and bushings necessitates replacement to prevent gear slippage.
Wheels and axles require periodic inspection. Standard pneumatic wheels tolerate 12 PSI, but solid polyurethane variants (common in heavy-duty models) resist punctures while adding 8% rolling resistance. Replace axles if threads strip–angled bolts (typically 12mm x 1.25 pitch) secure them to the chassis. Loose mounting increases vibration, reducing tilling depth accuracy.
- Verify spark plug gap (0.03 inches for most models) and electrode condition. Fouled plugs often indicate rich fuel mixtures or oil leakage past piston rings.
- Clean air filters monthly; paper elements trap 50% more debris than foam types but clog faster. Replace when airflow restriction exceeds 6 inches of water column.
- Adjust throttle linkages before replacing them–misaligned cables cause inconsistent engine speed. A 2mm deviation at the carburetor arm alters RPM by 300-400.
Step-by-Step Guide to Identifying Engine Elements in the Schematic
First, pinpoint the powerplant housing–typically marked with bold lines or shading in the upper-center of the illustration. The cylinder block should sit directly beneath it, labeled with internal ribs or cooling fins; cross-reference the numbered legend to confirm component IDs like GX200 or Vanguard for exact matches. Locate the crankshaft next, usually depicted as a horizontal shaft extending from the block’s base, connected to the flywheel–a circular element with magnetic or starter teeth. If the schematic includes a side view, trace the piston assembly upward from the crankshaft, identifying the connecting rod and combustion chamber via dashed lines or concealed sections.
Check the carburetor–often drawn as a compact box adjacent to the cylinder, linked by intake piping–and follow the fuel line to the tank, ensuring no kinks or disconnects are overlooked. The ignition system components (spark plug, coil, and wiring) will branch outward from the engine’s core; verify their placement against the color-coded wires in the legend. For air-cooled models, the blower housing encases the flywheel–look for a curved, vented outline around the rotating assembly. If hydraulics or PTO elements exist, track the drive belt path from the crankshaft pulley to auxiliary systems, confirming tensioner locations.
Decoding Transmission and Drive System Identifiers on Component Lists
Locate the alphanumeric codes printed next to each gearbox or pulley listing–they follow a pattern like *TR-45B* or *DRV-22X*. The first two or three letters indicate the subsystem: *TR* for transmission, *DRV* for drive train, *CL* for clutch, and *DT* for differential. The numeric portion reflects the gear ratio or part size; compare these numbers to your manual’s specifications to confirm compatibility before ordering replacement pieces.
Examine suffix letters–*A*, *B*, or *X*–as they denote minor revisions or material differences. For example, *TR-45B* might use bronze bushings, while *TR-45X* could feature sealed bearings. Cross-reference these variations with the exploded view illustrations; the labels often match direct callouts on shaft assemblies or belt tensioners.
Prioritize components marked with an asterisk (*) or bold text on the inventory sheet. These typically signify wear-prone elements–friction plates, idler gears, or U-joints–that demand routine inspection. Measure their dimensions against the originals; even a 1mm discrepancy can disrupt engagement between splines or cause belt slippage under load.
Identify dual-purpose notation like *TR/DRV-12*, which implies shared mounting points between the transmission housing and drivetrain. Verify if your model uses a single bolt pattern or separate flanges by checking the bolt hole spacing on the casing itself; mismatched alignment voids torque specifications and risks seal failure.
Track serial-number prefixes on clutch assemblies if your list includes them. A *CL-8V* designation, for instance, applies to variable-speed variants, whereas *CL-8F* indicates fixed engagement. Installing the wrong type will result in either erratic power delivery or premature bushing wear, detectable by metallic debris in the oil reservoir.
Compare tolerance codes–often embedded in the last segment of a label (e.g., *DRV-18TOL-0.2*). These dictate permissible clearances: *0.2* denotes a 0.2mm gap between meshing teeth. Use a feeler gauge during reassembly; exceeding this tolerance by even 0.05mm accelerates gear chatter or shaft wobble, audible as a rhythmic grinding at high RPMs.
