Locate the throttle body assembly first–it’s typically positioned at the center of any fuel delivery schematic. Follow the primary fuel passages marked in red or bold lines; these indicate the high-pressure routes critical for engine performance. If your model uses a dual-chamber design, trace the secondary jet connections separately–they often intersect with the choke mechanism, which must align precisely to prevent irregular fuel flow at startup.
Identify the float bowl in the lower section. Check the float’s pivot point and needle valve against the manufacturer’s specs; even a 0.5mm deviation can cause flooding or lean conditions. The diagram’s dotted lines usually denote ventilation paths–cross-reference these with vacuum hoses to avoid misrouting, which leads to erratic idle. For older models with adjustable air bleeds, note the calibration screws; turning them clockwise typically leans the mixture, but always consult torque values to avoid thread damage.
Pay attention to the accelerator pump circuit, represented by arrows or shaded areas. The pump’s check valve (often a one-way ball) must face the correct direction–reversing it starves the engine during rapid throttle input. If your schematic includes a power valve, verify its rating matches the engine’s vacuum curve; incorrect settings trigger hesitation under load. For electronic variants, trace the solenoid connectors to their ECU pins–corrosion here mimics mechanical failure symptoms.
Cold-start enrichment systems demand close inspection. The starter jet and bi-metallic spring (if present) should align with ambient temperature ranges; a faulty setup causes hard starts in sub-zero conditions. Finally, cross-check the idle mixture screws against emission labels–tampering without a CO meter risks catalytic converter damage. Use calipers to verify component dimensions against the schematic; aftermarket replacements often deviate by ±0.2mm, enough to disrupt stoichiometric balance.

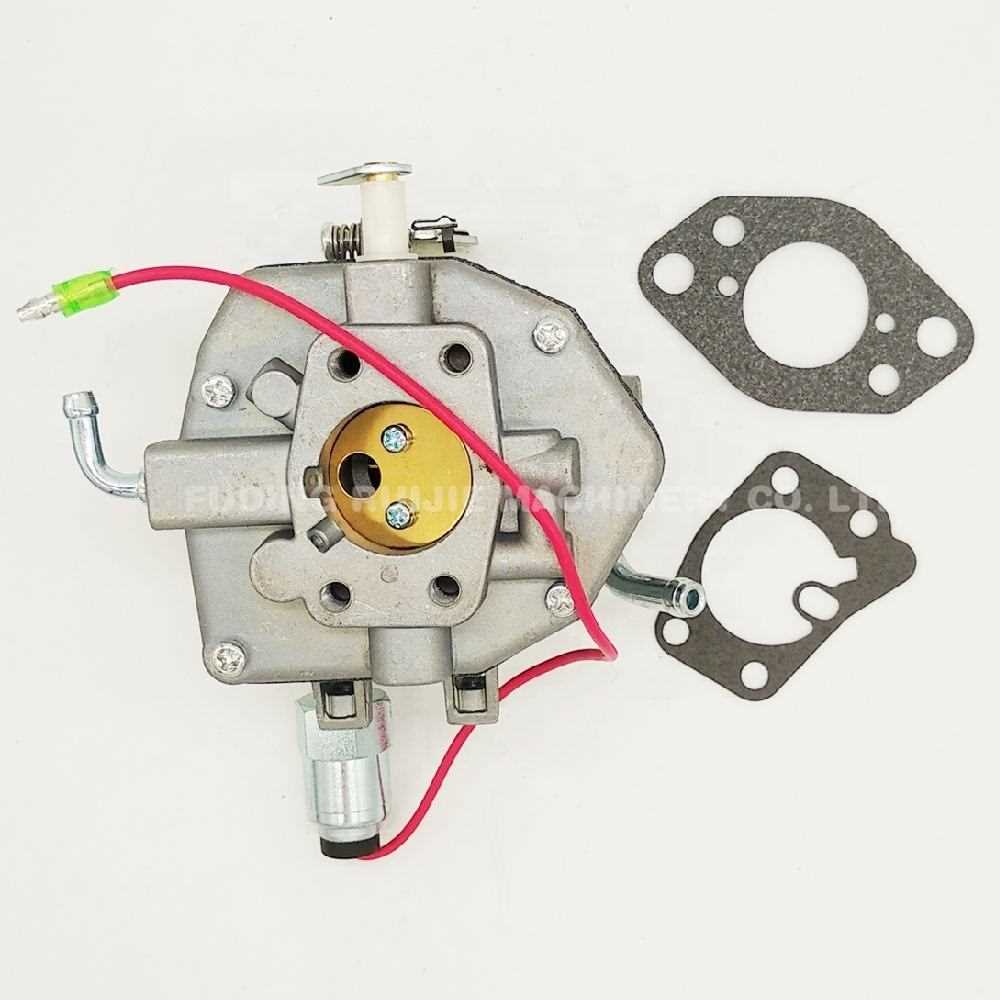

Understanding Your Vehicle’s Fuel System Components
Locate the throttle body first–it’s typically mounted near the intake manifold. Mark each connecting hose with masking tape before disassembly to avoid mixing them up. Factory models often color-code these, but aftermarket replacements may not follow this convention.
Inspect the float bowl gasket for cracks or deformation; even minor warping causes vacuum leaks that disrupt air-fuel ratios. Replace it if the surface isn’t perfectly flat–measure with a straightedge under bright light for accuracy. Standard thickness ranges between 1.2mm and 1.5mm.
Adjust the idle mixture screw incrementally–turn clockwise to lean the mix, counterclockwise to enrich. Start with a quarter-turn from fully seated, then fine-tune in 1/8-turn steps until engine RPM stabilizes. Use a vacuum gauge if available; target 18-22 inHg at idle for most engines.
Clean the main jet with compressed air only–solvents can damage delicate calibration passages. Verify sizing with a pin gauge; common sizes for 1.6L engines are #95 to #110, but always cross-check against service manual specs. Misalignment by even 0.05mm affects performance.
Check the accelerator pump diaphragm for tears–press the linkage by hand and listen for a sharp hiss from the discharge nozzle. If absent or delayed, replace the unit. Typical volume output is 0.5-0.7cc per stroke; measure with a graduated cylinder during bench testing.
Reassemble the choke mechanism last–ensure the fast-idle cam engages properly at full closed throttle. Misalignment here causes hard starting in cold conditions. Verify adjustment by manually operating the choke lever while watching the cam’s position relative to the throttle plate.
Locating Key Elements in a Fuel System Schematic

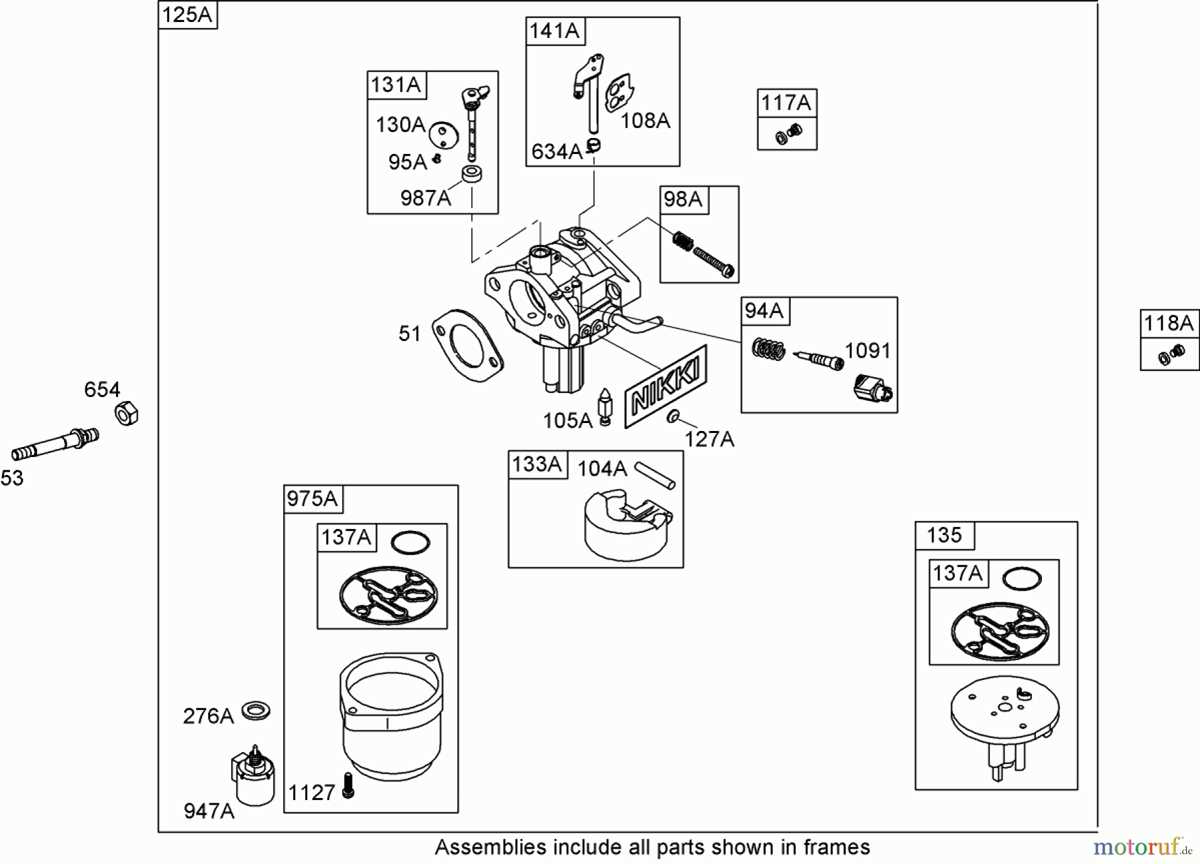

Refer to the numbered overlay on the exploded view–most manufacturers label the float bowl assembly as item 1. Trace the outline: it houses the fuel inlet needle (item 2), seated directly beneath the float lever pivot (item 3). Verify alignment by comparing the pivot point to the gasket seal (item 4); misplacement here disturbs fuel level calibration.
Inspect the throttle body next. Identify the primary venturi bore–typically marked as item 5–and confirm its diameter matches the main jet housing (item 6). A discrepancy smaller than 0.1mm alters airflow ratios; measure twice using calipers before proceeding. The idle mixture screw (item 7) sits adjacent, often hidden behind a tamper-proof plug; pry this with an awl to access adjustment threads.
Follow the fuel delivery path upward. The accelerator pump assembly (item 8) connects via a rubber diaphragm–press it gently; resistance should match spring tension (item 9). A weak return signals diaphragm failure; replace both pump cover (item 10) and linked check ball (item 11) simultaneously to prevent future leaks.
Examine the choke system’s thermal components. The bi-metallic coil (item 12) mounts near the air horn (item 13); detach it only after noting its clockwise winding direction. Ignoring rotation during reassembly reverses choke operation. Adjacent, the choke piston (item 14) slides freely–lubricate with PTFE spray sparingly to avoid sticking.
Cross-reference electrical linkages last. The solenoid valve (item 15), if present, threads into the idle circuit housing. Test continuity with a multimeter–readings below 10 ohms indicate internal corrosion. Disconnect the power lead (item 16) first to avoid short circuits during probing.
- Main jets (item 17) require color-coding verification: yellow for 110cc applications, red for 125cc. Swap only if engine stumbles at mid-RPM.
- Vacuum ports (item 18) must align with intake manifold channels–use a mirror and flashlight to confirm unobstructed pathways.
- Gaskets (items 19–22) deteriorate faster when exposed to ethanol blends; replace every three service intervals regardless of visual condition.
Label every removed component immediately with masking tape and reference the schematic number. Store screws by function–not all are interchangeable: alternator cover fasteners (item 23) differ in thread pitch from baseplate bolts (item 24). Mixing these risks thread stripping during torque application.
Precision Assembly of Fuel System Components Using Visual Guides
Secure the throttle body to a stable work surface with clamps before disassembling any adjoining linkages. Label each connecting rod, spring, and screw with numbered adhesive markers corresponding to positions in the reference illustration–this prevents misalignment of the governor mechanism later. Replace gaskets only if the replacement thickness matches the original specifications within ±0.05 mm; deviations disrupt airflow calibration.
Align the float bowl with the main body using dowel pins included in the rebuild kit. Install the needle valve at a 90-degree angle to the float arm, ensuring the viton tip seats fully–partial seating causes erratic fuel levels. Torque the bowl retaining screws to 4-5 Nm in a cross-pattern sequence to avoid warping the mounting surface.
Inspect the emulsion tubes for debris before inserting; compressed air at 20 psi removes residual carbon without damaging the brass walls. Install jets in ascending size order, verifying each thread engages fully–cross-threading strips the housing. The primary jet should measure 1.20 mm for 1.6L engines, while the secondary requires 1.50 mm; substituting sizes alters stoichiometric ratios.
Attach the accelerator pump diaphragm with the gasket side facing the body cavity. Apply 3-4 drops of fuel-compatible lubricant to the pump rod before securing the retaining clip–this prevents premature wear under vacuum loads. Test pump stroke by depressing the rod manually; resistance should release smoothly without binding.
Reconnect vacuum lines in the sequence specified by the schematic–incorrect routing triggers lean misfires. Set idle speed to 850 RPM (±50 RPM) with the mixture screw turned 1.5 turns out from seated position. Verify operation with a CO meter: readings should stabilize between 0.8-1.2% at optimal load.

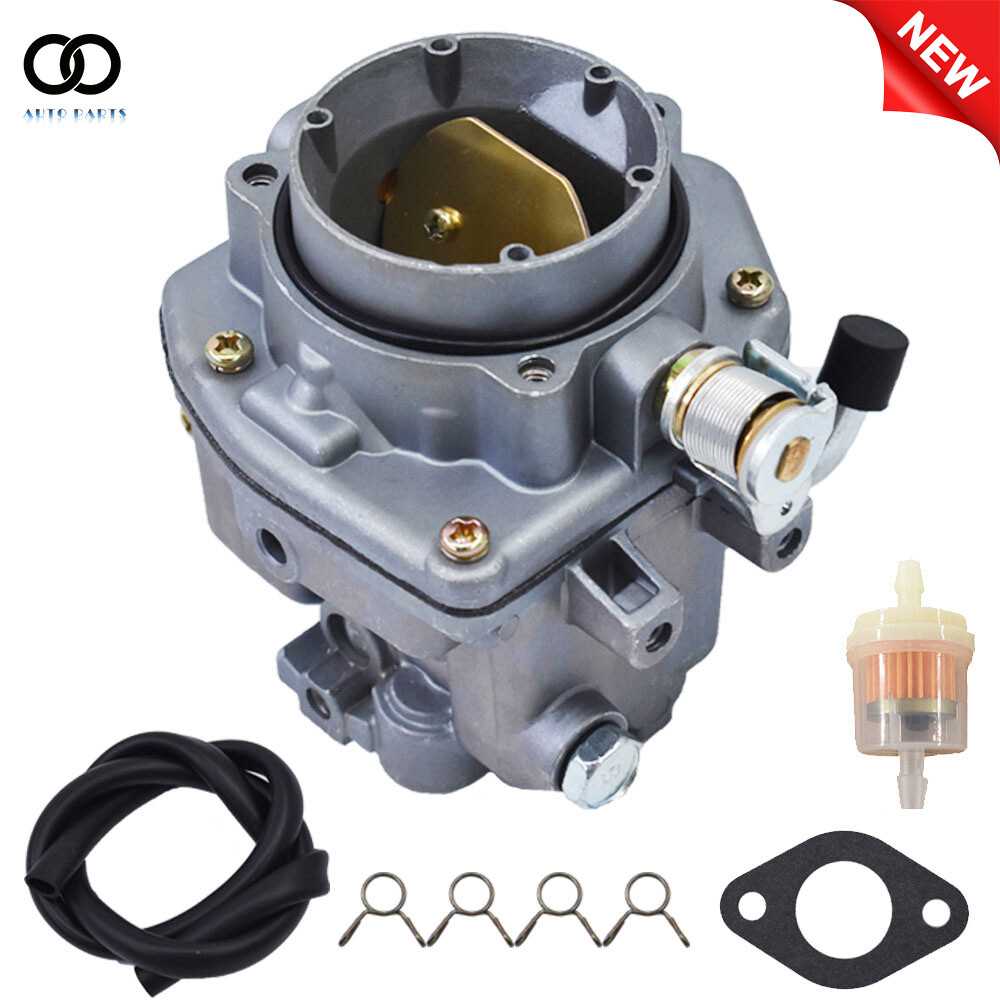

Key Components in Fuel System Repair Kits and Where to Find Them
Start with the float assembly–critical for maintaining proper fuel levels in the mixing chamber. Locate it suspended inside the bowl, typically secured by a hinge pin. Replace worn floats immediately; even minor corrosion disrupts metering, leading to flooding or lean conditions. Pair new floats with fresh needle valves and seats for consistent sealing. O-rings around the seat often harden–swap them during rebuilds to prevent leaks at the bowl junction.
Throttle plates–also called butterflies–wear at pivot points over time, causing hesitation. Inspect shafts for play; if movement exceeds 0.004 inches, replace the entire shaft assembly. Small springs connected to the throttle linkage lose tension; include new springs in every kit. Check bore surfaces for carbon buildup; slight roughness can be smoothed with fine-grit paper, but deep scratches demand machining or replacement.
Venturi Components and Metering Elements
| Component | Location | Failure Signs | Replacement Action |
|---|---|---|---|
| Main jets | Base of primary venturi | Lean stumble at mid-range | Match size to original specs; oversized jets risk rich fouling |
| Pilot jets | Near idle mixture screws | Rough idle or stalling | Clean passages with compressed air; avoid drilling–alter flow dynamics |
| Power valve | Below main discharge nozzle | Flat throttle response | Test with vacuum gauge; replace if diaphragm ruptures |
Accelerator pump diaphragms degrade under fuel exposure, creating a momentary lean spike. Locate the pump cover–often on the side opposite the float bowl–and peel back the old diaphragm. Apply fresh gasket compound to mating surfaces before reassembly. Pump discharge weights corrode; compare existing units to kit weights–any deviation indicates required replacement. Check inlet check balls; roll them across a flat surface–imperfections disrupt flow.
Vacuum pistons in secondary circuits stick when piston seals harden. Remove screws securing the cover plate to access pistons. Lightly lubricate new seals with assembly grease before installation. Ensure linkage rods move freely–bent rods starve secondaries, causing bogging. Filter screens positioned before inlet needles clog with debris; clean or replace screens to avoid fuel starvation. Gasket surfaces must be spotless; residual old material prevents proper sealing, allowing air leaks.
