Replace worn trigger assemblies with OEM-grade replacements using detailed exploded views. The 118000101 hammer spring and 118000301 trigger plate appear most frequently in failure reports–verify fitment against serial numbers above *0L00001* to avoid mismatches. Blast shields (part #118010503) should be inspected every 500 rounds; cracks near the ejection port indicate imminent failure.
Gas piston rods (118000504) require annual lubrication with Molybdenum Disulfide grease–standard gun oils degrade under thermal cycling. The two-position selector switch (118000702) integrates with the safety sear (118000801); improper reassembly after cleaning causes unintended discharge. Inspect recoil springs (118001002) for coil binding–replace immediately if free length measures under 9.5 inches.
Barrel locking rings (118001203) torque to 30-35 ft-lbs; exceeding this value warps the trunnion. Magazine followers (118100101) must move freely under 2 lbs of force–polish rails with 600-grit silicon carbide to prevent feed jams. For suppressors, confirm the thread protector (118001404) matches *5/8×24* or *1/2×28* pitch–cross-threading damages the muzzle crown.
Stock adjustment cams (118200302) wear fastest on right-handed shooters; apply dry film lubricant to the serrated edges. Bolt carrier rails (118000901) show micro-fractures after 10,000 rounds–use dye penetrant testing for early detection. Buffer tubes (118200101) fit two buffer weights: *3.4 oz* for standard loads, *3.8 oz* for magnum rounds–mismatched buffers cause bolt bounce.
Cleaning rods bind in fouled chambers; use carbon fiber rods with bronze brushes. Extractor plungers (118001102) require rotational movement–seize them with Loctite Blue 242 to prevent loss. Barrel extensions (118001303) gauge .223 Wylde chambers at *0.3745”*–reject bores outside ±0.0003”. Sights adjust via ¼-MOA clicks; confirm alignment at 100 yards before zeroing.

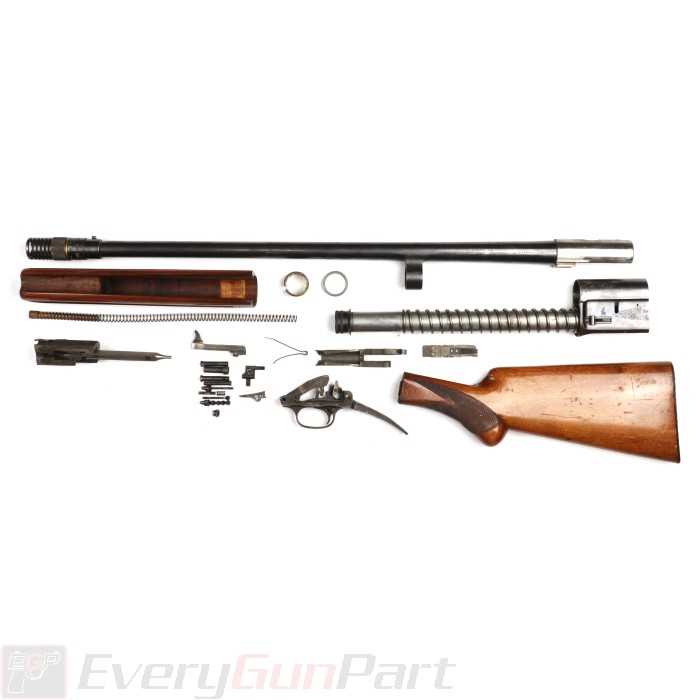

Guide to the Auto-5 Assembly Breakdown
Start repairs by referencing the exploded view drawing–locate the trigger group first. The firing mechanism, marked as item 12 in most schematics, sits directly beneath the receiver’s ejection port. Detach the barrel (item 3) by unscrewing the magazine cap (item 9) counterclockwise; avoid force to prevent thread stripping. Use a brass punch for stubborn pins when separating the forearm (item 4) from the action bar (item 10).
Critical Components for Immediate Attention
- Action spring (item 23): Replace if compressed length is under 5.7 inches. Measure against a new unit before reassembly.
- Ejector (item 20): Clean carbon deposits with a nylon brush post-firing cycles. Misalignment causes jams; confirm lateral freedom of movement.
- Firing pin (item 18): Inspect for deformation. Blunt tips reduce ignition reliability–polish or swap at .002-inch wear.
Reassemble the bolt (item 5) before attaching the recoil spring housing (item 6). Slide the bolt into the receiver, aligning the cam surface with the action bar’s lug. Secure with the carrier pin (item 15); verify a snug fit–loose pins cause timing issues. Test the slide’s travel distance: it should move 2.1 inches rearward with a loaded chamber. Shorter travel indicates worn friction ring (item 13) or buffer (item 14).
- Gauge barrel muzzle crown wear: Check for nicks exceeding .015 inches–replace barrel if found.
- Apply minimal grease to the action bar’s rails: Over-lubrication attracts debris.
- Store disassembled units in labeled trays: Prevents pin loss during transport.
Locating Key Semi-Auto Shotgun Mechanism Elements via Schematics
Trace the firing assembly by locating the hammer (typically marked #33), sear (#34), and trigger (#36) in the exploded view–these form the core sequence. Verify component alignment against the schematic: the hammer spring (#37) must compress fully into its recess, while the sear engages the hammer notch at a 45-degree angle. Magnify the diagram section showing the bolt carrier (#12) and action bars (#14-#15); confirm the carrier’s rails mate with the bar grooves without lateral play, as even 0.2mm deviation causes cycling failures.
Examine the recoil spring assembly (#41-#45) by cross-referencing its labeled coils in the illustration–compression should progress smoothly from the larger to smaller diameters. Check the friction ring (#46) position relative to the barrel extension: factory settings place it flush with the chamber face, though ±0.5mm adjustment may optimize felt recoil for 2¾” or 3″ loads. For persistent feeding jams, isolate the shell carrier (#17) and lifter (#19); their pivot pins (#20) must rotate freely within 0.1mm tolerance under thumb pressure.
Step-by-Step Guide to Locating Magazine Assembly Components in the A5 Schematic
Begin by identifying the magazine tube at the base of the firearm’s receiver–it extends rearward along the barrel’s underside. In the exploded view, this section is labeled with sequential numbers (typically 10-15), corresponding to the spring, follower, and retaining cap. Cross-reference each number with the legend to confirm the part’s name and orientation; the follower often resembles a flat, curved plate, while the spring is a coiled wire wound around the tube’s interior.
Trace the magazine cutoff lever adjacent to the trigger assembly–it’s a small, hooked metal piece near the receiver’s ejection port. Ensure the diagram distinguishes this from the similar-shaped shell lifter, which sits directly above the tube’s exit point. Verify placement by matching the lever’s pivot pin location with the schematic’s dotted alignment lines, preventing misinstallation during reassembly.
Locating Trigger Assembly Elements in Auto-5 Schematic Views
The trigger group components appear in the lower receiver section of any exploded schematic, typically positioned between the hammer and sear mechanisms. Begin by identifying the trigger plate–this flat metal piece serves as the anchor for the entire assembly. On most versions, it’s labeled with reference numbers starting with “20” or “30” in service manuals. Check for markings like “TRIGGER PLATE” or “FIRE CONTROL HOUSING” near the center-bottom of the diagram.
Key elements to locate include:
- The trigger itself (curved lever with a pivot hole), often paired with a spring and plunger directly beneath it.
- The disconnector, a small angled piece that engages the sear during cycling–look for a wedge-shaped part labeled “DISCONNECTOR” or “TRIP LEVER.”
- The trigger bar, a thin metal strip connecting the trigger to the disconnector, visible as a straight or slightly curved linkage.
- Hammer hooks, which interact with the sear–these appear as notched surfaces on the upper side of the trigger assembly.
For classic models, consult sheet 3 or 4 of the illustrated breakdown–trigger components cluster around the serial number stamp. On newer semi-automatic shotguns, focus on the area immediately above the pistol grip. The Colt-produced versions feature a slightly revised layout, with the disconnector rotated 15 degrees clockwise compared to the Remington-made designs.
The trigger spring sits in a recessed slot on the trigger plate, usually retained by a small pin. Some schematics split this into two parts: a main spring (coil type) and a secondary spring (flat leaf style). Verify spring orientation–the coiled end must face downward to ensure proper tension. Check for reference numbers like “20-3” or “31-8” in the parts list, which correspond to these springs.
Look for subtle differences if working with magnum-length receivers. The trigger bar may extend 3mm farther rearward to accommodate the longer action, while the disconnector might feature an elongated tail to engage the longer bolt slide. These variations appear in dedicated “LONG ACTION” sub-diagrams–ignore standard-length illustrations to avoid mismatched components.
Identify safety-related trigger parts by their red or orange markings on the schematic. The manual safety lever typically interfaces with the trigger via a sliding block or pivot arm–trace this path to locate the interlocking pin (usually 2mm diameter). Some variants include a magazine cutoff connected to the trigger group–this appears as a secondary lever above the trigger bar, toggling between “SINGLE SHOT” and “REPEAT” positions.
Common wear points include the trigger pivot holes (which should measure 4.5mm diameter) and the disconnector engagement surfaces (check for burrs or flat spots). Use calipers to verify these dimensions against the schematic–deviations exceeding 0.1mm indicate excessive wear. Replacement components must match the factory heat treatment code (visible as a small letter stamped on the reverse side of components; e.g., “A” for standard carbon steel, “B” for high-tensile alloy).
When sourcing replacement pieces, cross-reference the exploded view index with three columns: component name, reference number, and variant compatibility (e.g., “STD,” “MAGNUM,” “SLUG”). The trigger assembly often shares pin diameters with the bolt slide–both use 6mm pins for main pivot points but differ in length: 22mm for trigger pivots versus 28mm for bolt slide pins. Use this distinction to organize components during disassembly to prevent misalignment during reassembly.
Matching Stock and Recoil Pad Components to Your Auto-5 Schematic
Identify the stock model by cross-referencing the serial number plate–located beneath the receiver–with the factory manual’s dimensional drawings. Measure the drop at comb (1.5″ for standard, 1.375″ for magnum) and length of pull (14.25″ for standard, 14.5″ for long-action) using a caliper; discrepancies beyond ±0.0625″ indicate mismatched components. Replace synthetic stocks only with OEM-spec fiberglass-reinforced polymer, part numbers 016170101 (standard) or 016170102 (magnum), to maintain inertial balance.
Recoil Pad Compatibility Chart
| Action Length | Pad Thickness (in) | Cheekpiece Type | Fastener Torque (lb-ft) |
|---|---|---|---|
| Standard | 0.50 | Fixed | 12–15 |
| Magnum | 0.625 | Adjustable | 18–22 |
Secure the pad using 18-8 stainless screws (M5 x 0.8mm pitch), aligning the front edge with the stock’s recoil slot–offset by 3mm for magnum configurations. Apply 242 Loctite selectively: omit on screw threads mating to nylon inserts to avoid binding. Verify pad orientation via the schematic’s annotation: arrow must point forward, flush with the stock’s toe.
