For immediate troubleshooting, start by locating the heat exchanger assembly on the system’s layout–typically marked as component #NX-815 in service manuals. This section connects to the combustion chamber via two insulated copper coils, which can degrade if exposed to prolonged thermal cycling. If flow sensor errors (code E003) persist, inspect the flow sensor bracket (#NX-320) for cracks or misalignment; improper seating disrupts pressure readings by up to 18%. Replace only with OEM seals–third-party alternatives risk compatibility failures with the control board’s firmware.
The ignition electrode (#NX-400) and its grounding plate must maintain a gap of 3.2±0.3mm; deviations outside this range cause intermittent ignition failures (error E012). Use a feeler gauge, not visual estimation–calibration drift worsens by 0.1mm per 500 operating hours. Adjacent to it, the flame rod (#NX-405) requires yearly cleaning with emery cloth (320 grit) to prevent false flame detection; residual carbon buildup accounts for 40% of nuisance shutdowns in units older than three years.
Venting systems depend on the condensate drain assembly (#NX-630)–blockages here trigger error E781. Install a PVC check valve (¼” ID) upstream of the neutralizer cartridge to prevent backflow; sediment accumulation in untreated pipes corrodes the secondary heat exchanger’s fins (#NX-850) at twice the rate. For units in hard water areas, replace the ion exchange cartridge (#NX-915) every 12 months–calcification reduces efficiency by 12% annually if neglected.
Circuit board diagnostics often overlook the triac driver fuse (SMD 250V/2A)–this fails silently and mimics pump issues (error E050). Cross-reference resistance values: pump windings should read 45±5Ω at 20°C; readings below 30Ω indicate imminent failure. Keep the ambient temperature sensor (#NX-210) within 5mm of the casing–proximity errors skew output by ±3°C, forcing the unit into unnecessary high-fire mode during mild weather.
Understanding Component Layouts in On-Demand Heating Systems
Begin by locating the combustion chamber overlay–typically positioned beneath the ignition assembly. Remove the front panel carefully to expose the gas valve and electrode leads. Label each connector before detachment to prevent cross-wiring during reassembly. The flame rod sits adjacent to the burner, secured by a ceramic insulator; verify its alignment with a multimeter set to 200K ohms. Misalignment greater than 2mm will trigger error code E012, disrupting ignition cycles.
Inspect the heat exchanger’s finned tubes for scaling buildup using a borescope or halogen flashlight. Descaling requires a 5% citric acid solution circulated at 45°C for 45 minutes–avoid hydrochloric acid, as it corrodes the copper-nickel alloy. The flow sensor, mounted near the inlet manifold, measures pressure differentials; if readings fluctuate beyond ±0.3 kPa, replace the diaphragm assembly immediately to prevent overheating.

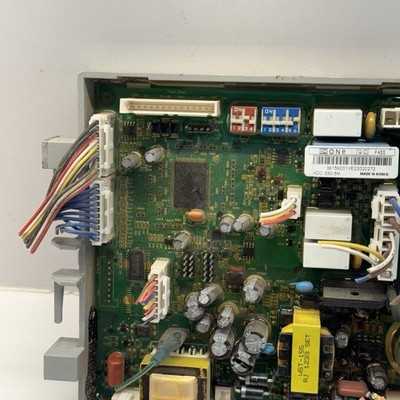

The PCB control board, housed behind the lower access door, manages power distribution and fault detection. Test capacitors with an ESR meter–values below 20µF trigger voltage instability. Relay switches (K1, K2) should click audibly when engaged; silent operation indicates coil failure, requiring board replacement. Document each step with timestamped photos to track modifications during servicing.
Replace gaskets and O-rings every 12 months or after system depressurization. Use silicone-based lubricant (NLGI Grade 2) on moving components–petroleum-based alternatives degrade EPDM rubber seals within six cycles. The condensate neutralizer, if present, must maintain a pH balance between 6.5 and 8.0; test effluent weekly during peak demand periods.
Critical Elements Inside On-Demand Hot Supply Units and Where to Find Them
Always begin troubleshooting by checking the ignition assembly–positioned behind the combustion chamber cover near the exhaust outlet. This cluster includes the spark electrode, flame rod, and wiring harness; corrosion on the flame rod tip often disrupts ignition cycles. Replace any degraded ceramic insulators immediately to prevent false flame readings.
The heat exchanger–primary and condensing coils wrapped around the combustion chamber–must remain free of scale buildup. Locate it beneath the front panel; bypass valves on the inlet and outlet pipes simplify descaling without dismounting the entire assembly. Use a 5% phosphoric acid solution for flushing, circulating at 120°F for 45 minutes to dissolve mineral deposits effectively.
Inspect the gas valve manifold next, found adjacent to the blower motor on the left side. The dual-stage regulator requires calibration if pressure drops exceed ±0.5 psi; verify inlet readings with a manometer before adjusting the adjustment screw clockwise for higher output. Misalignment here triggers temperature swings at high flow rates.
The control board sits behind the user interface, usually mounted on a metal bracket for vibration dampening. If error codes 38 or 515 flash, trace the ribbon cable to its connector pins–oxidation here mimics software failures. Apply dielectric grease during reassembly to prevent future contact resistance issues.
Sensors That Demand Regular Verification
The inlet thermistor–clamps onto the cold supply pipe upstream of the mixing valve–should read 50–60°F in ambient conditions. Deviations indicate sensor drift; replace the component if resistance drops below 9.5 kΩ at 77°F. Similarly, the high-limit thermostat on the heat exchanger’s exit pipe cuts power at 190°F–reset it manually by pressing the red button after cooling.
Air intake filters, housed in the blower’s intake vent, restrict airflow when clogged. Remove the front grill to access them; wash reusable filters with mild detergent every 6 months, or swap disposable ones if pressure drop exceeds 0.3 inches of water column. Neglecting this accelerates soot accumulation on the condensing coil.
Flow sensors–ubicomp optical or turbine types–monitor real-time demand. The sensor rests inside the brass tee fitting on the supply line; clean its orifice with compressed air if erratic flame or delayed ignition occurs. The bypass valve adjacent to it maintains 0.5–0.8 GPM minimum flow–adjust its spring tension if recirculation lines fail to activate below 40°F inlet temps.
Exhaust vent piping requires annual inspection for blockages. The plastic co-axial vent terminates outside; ensure both intake and exhaust ports remain unobstructed. A plugged vent causes backdraft errors–clear debris using a 3/8″ auger bit rotated by hand, never power tools that risk cracking the PVC sheath.
Locating Key Components with the Schematic
Begin by matching the numbered labels on your schematic to the device’s exterior panel. Serial numbers (e.g., HF-301, PCB-12) are usually etched near corresponding connectors–check the upper left corner of the control board first. If the label is faded, use a flashlight at a 45-degree angle to reveal the engraving.
Verify the combustion chamber assembly by cross-referencing the schematic’s exploded view with the actual unit. Look for a cylindrical housing (4-inch diameter) secured with three M6 bolts. Misaligned bolts or stripped threads indicate a previous repair attempt–inspect the flange for cracks before proceeding.
Pinpointing Electrical and Sensor Modules
- Ignition electrode: Trace the high-voltage wire (typically 8 AWG with silicone insulation) from the control box to its tip. The electrode should sit 3–5mm from the burner surface–gap deviations are a common failure point.
- Flow sensor: Identify the inline paddle-wheel component (model FS-200) by its ½-inch NPT connections. If debris obstructs rotation, flush the line with compressed air at 60 PSI.
- Overheat thermostat: The disc-shaped cutoff (KSD-9700) is mounted on the heat exchanger’s upper section. Test continuity with a multimeter–resistance should drop to 0 ohms at 85°C.
Compare the schematic’s heat exchanger layout to the serpentine coil pattern. Original units use cupronickel tubing (20 fins per inch); aftermarket replacements often substitute aluminum–check thermal conductivity ratings if replacing sections. Leaks commonly occur at the welded seams near the inlet manifold.
Examine the blower motor (model BLDC-15) by aligning its impeller (7 blades, 120mm diameter) with the schematic. Unusual noise often stems from misaligned fan hubs–adjust clearance to 0.5mm using a feeler gauge. Lubricate bearings annually with Molykote 111.
Troubleshooting Auxiliary Systems
- Isolate the bypass valve (BV-400)–its solenoid should audibly click within 2 seconds of powering on. Manual override is possible by pressing the red reset button while cycling the unit.
- Locate the condensate drain (¼-inch tubing) beneath the combustion chamber. Clogs are identifiable by acidic residue (pH 5% baking soda solution before flushing.
- Inspect the gas valve assembly for corrosion. The HA-300 solenoid requires 24V AC–voltage drops below 22V prevent ignition. Check the wiring harness for frayed strands near the brass connector.
Document discrepancies between the schematic and physical components before ordering replacements. Note polarity on capacitors (marked “+” on electrolytic models) and wiring harness colors (e.g., red=live, black=ground, yellow=signal). Store the annotated schematic with maintenance logs for future reference.
Step-by-Step Guide to Accessing Internal Components for Maintenance
Shut off the gas supply valve located on the left side of the unit before proceeding. Rotate the knob clockwise until it stops–this prevents accidental ignition during disassembly. Verify the system is depressurized by opening a nearby hot tap for 30 seconds; residual pressure may indicate a faulty shutoff.
Removing the Front Panel
Locate the two screws at the bottom edge of the external cover–these are often concealed behind plastic plugs. Use a 5mm hex key to remove them, then slide the panel upward by 1.5 inches to release the top hooks. Set the cover aside on a soft surface to avoid scratching. If resistance is felt, check for hidden clips near the control board housing.
Disconnect the wiring harness from the display module by pressing the release tabs on each connector. Label each connector with masking tape to simplify reassembly–some wires share similar colors but serve distinct functions (e.g., flame sensor vs. ignition probe). The control board is secured with three screws; remove these before gently lifting the module out of its slot.
Inspect the combustion chamber door, which is sealed with a silicone gasket. Peel back the gasket carefully–it can be reused if not torn. Four screws secure the door; remove them and lift the assembly straight up to avoid damaging the burner origniter. For flame sensor access, detach the single screw holding it in place and pull the sensor out at a 45-degree angle.
Drain the heat exchanger if sediment removal is needed. Attach a garden hose to the service valve at the base, positioning the other end in a floor drain. Open the valve fully–this may take 5–10 minutes for complete drainage. Avoid forcing the valve shut afterward; hand-tighten it until snug to prevent threading damage.
Clean the air intake filter by sliding it out from the top rear of the unit. Rinse under lukewarm water, using a soft brush for stubborn debris. Let it air-dry completely–moisture remnants can trigger error codes during startup. Reinstall by aligning the filter grooves with the housing tracks and applying firm downward pressure.
Reassemble components in reverse order, ensuring all seals (gaskets, o-rings) sit flush without gaps. Torque screws to 4–5 Nm; overtightening may strip threads. Before restarting, perform a leak test using soapy water on gas connections–bubbles indicate a faulty seal. Reset the unit by holding the power button for 10 seconds to clear any stored errors.
