Start repairs by locating the model number on the rear or underside of your machine. Manufacturers like this brand often place a metal plate near the engine or chute assembly–cross-reference this with official manuals before disassembly. Common failure points include the auger drive belt (typically 4L-350 or 610-04130), shear pins (part #738-04124), and impeller blades. Replacements should match OEM specifications to prevent uneven snow discharge or damage to the gearcase.
For cablerouting, reference the numbered sequence in service guides–most models follow a 12-step layout from the control panel to the auger engagement lever. Mistakes here cause delayed or failed engagement. The friction wheel (part #954-04161) requires periodic adjustment; measure clearance at 0.014 inches using a feeler gauge to maintain proper tension.
Use exploded view illustrations from the manufacturer’s portal for complex assemblies like the transmission housing. Mark fastener locations before removal–many bolts differ in thread pitch, especially those securing the scraper bar (often M8 x 1.25). Avoid aftermarket components for critical wear items such as the chute rotation gear (part #738-04040), as substandard alloys can strip within one season under heavy ice loads.
Inspect the electric starter motor brushes annually–pitting or excessive wear indicates impending failure. For carbureted models, clean the bowl with compressed air; residue causes erratic idle. The fuel filter (usually 16 microns) should be replaced every 20 operating hours in sub-zero conditions to prevent gumming.
Verify torque specs when reassembling: flywheel bolts require 45 ft-lbs, while shear pin housings need only 10 ft-lbs to avoid stress fractures. Lubricate pivot points with marine-grade grease (NLGI #2) to prevent freeze-up. Keep a multimeter handy–testing the ignition coil at 20°C should yield 3,000-4,000 ohms resistance; lower readings signal internal shorts.
Exploring Your Winter Equipment Schematic: A Hands-On Reference

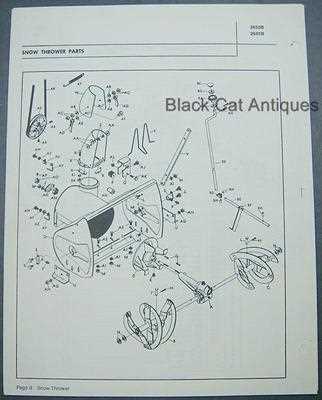

Start by locating the auger housing on the illustration–typically marked near the front of the unit. This section includes the shear pins, scraper blades, and wear plates, which often require periodic inspection. If your machine struggles to clear heavy snow, check these components first; worn plates reduce efficiency by up to 30%. Replace them if gaps exceed 1/8 inch.
Next, trace the drive system components: the friction disc, belt, and wheel assembly. A common issue is belt slippage, which occurs when debris accumulates or the belt stretches beyond 1/2 inch of deflection. Clean the disc with a dry cloth and adjust tension using the idler pulley–refer to the torque specifications (usually 15-20 ft-lbs) to avoid overtightening.
The chute control mechanism–often overlooked–includes the deflector, crank handle, and gear assembly. If the chute fails to rotate smoothly, apply silicone lubricant to the gears and check for stripped teeth. Broken teeth reduce directional control by 40%; replace the gear if missing more than two teeth.
Focus on the engine assembly last. Key elements like the spark plug, air filter, and fuel line directly impact performance. A clogged filter cuts power by 25%; clean or replace it every 25 hours of operation. For fuel issues, examine the line for cracks–even small leaks can introduce air and prevent startup.
When reassembling, align parts precisely as shown. Misalignment of the impeller or auger housing can cause vibration, reducing clearance capacity. Use a torque wrench (settings: 12-15 ft-lbs for housing bolts) to secure components without warping. Keep a multimeter handy–voltage drops below 12.4V indicate battery failure, a frequent culprit in electric start models.
Identifying Critical Components on Your Equipment Schematic
Begin by finding the augur housing at the front of the schematic–it’s typically marked as a curved enclosure with teeth or blades. This assembly often connects directly to the impeller, which should be labeled just behind it. Check for arrows indicating rotational direction; incorrect reassembly will prevent proper operation.
Trace the drive system from the engine output shaft. Look for a belt or chain leading to the transmission, usually depicted as a gearbox or pulley cluster. Most schematics denote the transmission with part numbers–cross-reference these with your user manual to confirm compatibility. If the belt appears loose or cracked in the diagram, note its routing path for replacement.
| Component | Common Schematic Label | Visual Cues |
|---|---|---|
| Augur | AU-200, BL-15 | Sprial or helical shape |
| Impeller | IM-40, FN-9 | Fan-like blades |
| Shear Pins | SP-1, CL-30 | Small cylindrical fasteners |
| Chute Assembly | CH-12, RV-8 | Adjustable angular component |
Locate the chute control mechanism–it’s often shown as a rod or cable linking the handlebars to the discharge chute. Verify its pivot points and check for wear indications in the visual representation. If the diagram includes a deflector, ensure it’s positioned to prevent clogging. Misalignment here reduces throwing distance.
Inspect the skid shoes (if present) on the underside. They’re usually illustrated as flat, replaceable plates attached with bolts. Compare their condition in the schematic to your actual unit–excessive wear will damage the pavement. Finally, identify the electric starter (if equipped) near the engine; look for wiring paths to avoid shorts during maintenance.
For hydrostatic models, the schematic will highlight a fluid reservoir and pump assembly. Follow hydraulic lines to confirm they’re free of kinks or leaks. If your visual guide shows a dipstick or fill cap, use it to check fluid levels before operation. Missing these details risks transmission failure.
How to Locate and Name Components in Your Winter Equipment Auger System
Begin by securing the machine on a flat surface and disconnecting the spark plug to prevent accidental starts. Examine the front housing where the rotating blades reside–this primary unit consists of three core groups: the cutting assembly, support hardware, and drive linkage. The outer edges of the spiral blades often show wear patterns; note any grooves or stripped paint, as these indicate friction points requiring inspection.
Identify the spiral blades by their helical shape paired with teeth or paddles–older models may use rubber paddles, while newer units feature serrated steel edges for better grip. Behind the blades, locate the shear pins (typically brass or steel) securing each side; these break under overload to protect the gearbox. Check for alignment with the auger shaft–misalignment suggests bent frames or missing spacers.
Verifying Support Components
Inspect the housing bearings mounted on either side of the auger shaft–these sealed units prevent debris entry but need greasing via zerk fittings every 20 hours of operation. If removing the auger, mark the position of the spacers between the shaft and spiral blades; reassembly in the wrong order disrupts balance. The gearbox behind the shaft drives the rotation–listen for grinding noises during rotation, which signify worn gears or insufficient lubrication (SAE 80W-90 grade recommended).

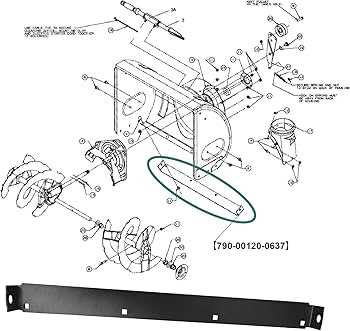

Look beneath the spiral blades for the scraper bar, a flat steel strip bolted directly to the frame–its purpose is to maintain correct spacing with the surface. Bent or loose scraper bars reduce clearing efficiency. Nearby, find the idler pulley for the drive belt; tension should allow ½ inch of deflection when pressed. Rubber dust or frayed threads on the belt indicate slipping or imminent failure.
Final Checks Before Reassembly
Confirm all fasteners match the original specifications–imperial bolts on older units, metric on newer ones. Replace any bolts showing corrosion or stripped threads immediately. Apply thread locker (blue grade) to shear pins and critical frame bolts to prevent loosening during vibration. When reinstalling the auger, rotate it manually before reconnecting the spark plug–any resistance suggests improper seating or debris lodged in the housing. Store disassembled components on a clean surface to avoid mixing left/right hardware.
Leveraging Manufacturer Schematics for Winter Equipment Repairs
Start by locating the model number on your machine’s ID plate–typically near the auger housing or engine shroud. Input this number into the brand’s online repair portal to pull the exact schematic for your unit. Schematics categorize components into assemblies: ignition, drive, auger, and chute mechanisms. Each section uses numbered callouts matching a legend at the bottom, detailing items like shear pins (C-48), belt idlers (B-12), or carburetor gaskets (E-2). Always cross-reference these numbers with spare-part listings before ordering.
- Ignition assembly (magneto, spark plug boot) usually appears under section 3 or “Electrical.” Check wiring harness connections first if the engine cranks but won’t start.
- Auger belts share a dedicated plate in section 6; inspect routing paths if belts slip during engagement.
- Friction discs in the transmission appear under “Drive,” often listed after wheel axles–grease-contact surfaces if grinding occurs.
Dismantle components only after confirming their positions on the schematic. Remove the chute first, then the auger cover to access impeller blades–these rotate opposite the intake direction, visible via directional arrows in the diagram. Reassemble in reverse: torque chute bolts to 18 ft-lbs, shear pins must break cleanly under load; replace with identical OEM pins (0.125″ diameter). Aftermarket alternatives risk shearing improperly, damaging gears.
Common Missteps When Reading Technical Blueprints
- Ignoring micro-exploded views: some schematics include insets for complex assemblies like carburetors–zoom in if callouts overlap.
- Assuming compatibility: even minor model variations alter part numbers–compare assembly dates printed on engine blocks with schematic revision dates.
- Skipping material specs: shear pins require zinc-coated steel; plastic impeller blades demand polycarbonate blends–substitutes void warranties.
