Replace or service your portable propane heating unit by referencing this exact schematic order. The ignition assembly sits at the base–model BH225 uses a piezo starter (left side, below the valve), while BH325 integrates it into the control knob. Verify spark gap clearance: 0.025” (0.64mm) ensures consistent ignition. Faulty spark? Check the ceramic insulator–cracks wider than 0.5mm require replacement.
Fuel delivery starts at the filter screen–locate it inside the fuel inlet (¼” NPT thread). Clean it every 50 hours with compressed air at 30 PSI; oil buildup blocks vaporization. The regulator (external brass fitting) must maintain 0.5–0.8 PSI output for the BH225 and BH325. Low pressure? Tighten the adjustment screw clockwise ¼ turn, then re-test with a digital manifold gauge.
The combustion chamber (stainless steel cylinder, Ø75mm) houses the radiant screen–remove it by unscrewing the three 6mm retaining bolts. Inspect the screen for scale: discoloration above 20% coverage reduces efficiency by 15%. Replace if warping exceeds 1mm. The flame diffuser (aluminum disc) threads onto the burner–reverse threads; turn counterclockwise to detach. Clean it monthly with a wire brush to prevent incomplete combustion (carbon monoxide risk).
Electrical components include the thermocouple (Type K, 1.5m length) and safety valve (normally closed, 24V coil). Test continuity with a multimeter: resistance should read 2–5 ohms at room temperature. High resistance (≥10 ohms) indicates corrosion–replace the entire unit. The oxygen depletion sensor (ODS) triggers the safety valve if ambient oxygen drops below 18.5%. Bypass testing? Jumper the valve leads temporarily (max 5 minutes); prolonged bypass voids UL certification.
Mounting hardware varies by model: BH225 uses four M5 bolts (torque: 4Nm), while BH325 employs two M6 bolts (6Nm). Misalignment (>2°) causes uneven heating–dry-fit before final tightening. For the carry handle, inspect the nylon bushings: wear ≥0.3mm requires replacement to prevent fuel line chafing.
Understanding Your Portable Propane Device Schematic
Always begin by locating the model number on the underside or rear panel of your unit. This alphanumeric code (e.g., MH18B, MH9BX) determines which exploded view drawing applies–generic schematics mislead repairs. Download manufacturer-approved PDFs from mrheater.com/support instead of third-party forums where component numbering often conflicts.
- Igniter assembly: The ceramic plate (part #210047) fractures silently–test with a multimeter set to 20kΩ; resistance below 5kΩ indicates failure.
- Thermocouple: Positioned adjacent to the burner ring, this 6-inch coiled wire (part #210054) must register 25-35mV DC when hot; readings below 20mV require replacement.
- Gas valve solenoid: Common failure point, especially in humidity-prone environments. Part #210032 seals should be smeared with dielectric grease during reinstallation to prevent corrosion.
- Fan motor: Brushless DC variant (part #210029) operates at 3.3W–if startup delays exceed 3 seconds, confirm 12VDC input at the white/red wire junction.
Replace O-rings (kit #210088) whenever disassembling fuel connections. Fluorocarbon seals degrade after 400 hours of cumulative use–precise torque (6-8 ft-lbs) prevents LP gas leaks that standard leak detectors miss. For binding screws, a 5% acetic acid soak dissolves corrosion without damaging threads.
Analyze flame color before adjustments: orange tips signal incomplete combustion (soot on emitter), while steady blue requires no intervention. The upper regulator (part #210027) maintains output at 8-11 inches WC–verify with an analog manometer; digital gauges drift with altitude changes. If pilot light extinguishes during wind gusts, install the optional windscreen (kit #210067), but ensure minimum 6-inch clearance to avoid heat buildup.
Store disassembled units in resealable Mylar bags with 10g silica gel packs to prevent moisture-induced oxidation on brass components. Avoid generic thread sealant tapes–only use TFE tape rated for propane (mil-spec A-A-58092) applied clockwise in three wraps to prevent flange distortion. For recurring electronic failures, solder a 1N4007 diode across the solenoid terminals (black to red) to absorb voltage spikes during shutdown.
- Disconnect fuel source.
- Remove emitter screen (turn counterclockwise).
- Inspect ceramic emitter for hairline cracks under UV light.
- Check thermostat wires for fraying–replace harness (part #210048) if insulation feels brittle.
- Reassemble with new O-rings, applying light pressure to seat seals evenly.

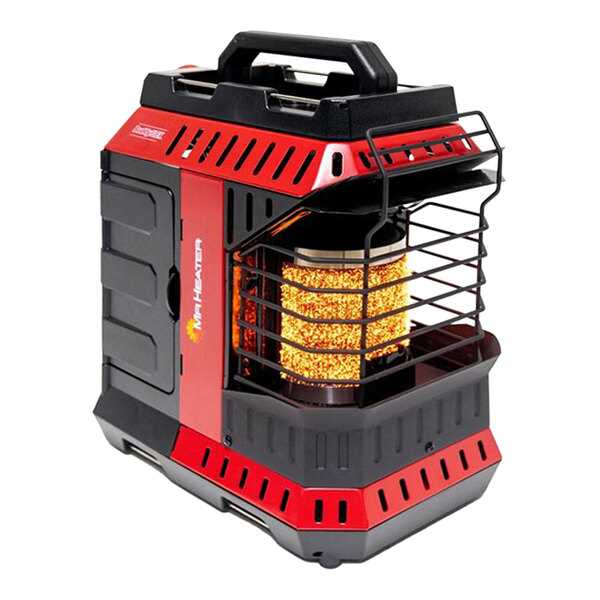

Key Components of Portable Propane Heating Units and Where to Find Them
Locate the ignition assembly by removing the front grill–it sits near the burner, secured with two screws. Check the piezoelectric element for cracks or corrosion, as faulty spark generation is a frequent issue. The fuel valve connects directly to the propane tank adapter; trace the copper tubing to identify leaks or blockages. Examine the regulator housing at the base: any dents or stripped threads risk improper gas flow.

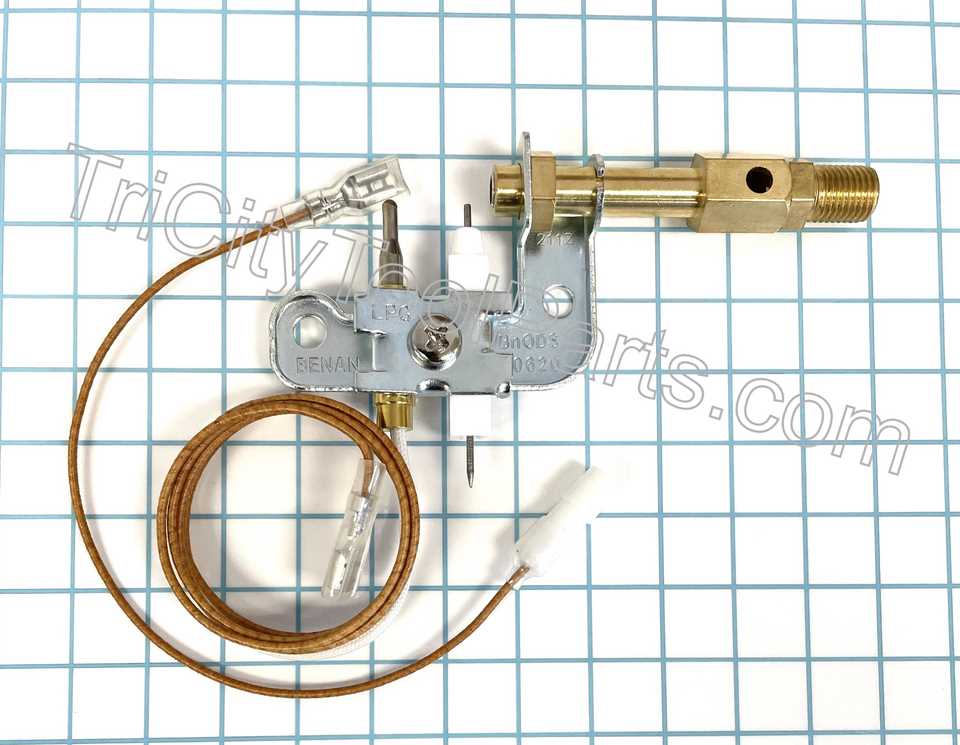

Burner and Oxygen Depletion Sensor (ODS) Inspection
The burner head rests under the protective mesh–clear carbon buildup with a stiff brush to maintain flame efficiency. The ODS probe, mounted adjacent to the burner, detects low oxygen levels; test its response by temporarily covering the exhaust outlet. Replaceable ceramic elements in the ODS degrade over time; verify conductivity with a multimeter (0.5–2 ohms expected). Always reassemble the grill with the original gasket to prevent air gaps.
Step-by-Step Guide to Disassembling Your Portable Gas Appliance for Maintenance
Unplug the fuel source and allow the unit to cool for at least 30 minutes before handling. Remove the top grill by unscrewing the four Phillips-head screws securing it–use a #2 screwdriver to avoid stripping threads. Detach the front panel by releasing the two clips at the bottom; pull outward gently to avoid snapping the plastic tabs. Locate the combustion chamber cover beneath the grill; pry it off with a flathead screwdriver, inserting the tip into the notched edges to avoid bending the metal.
- Disconnect the igniter wire by squeezing the connector’s sides to release the clip–do not tug the wire directly.
- Remove the burner assembly by lifting it straight up; note the O-ring’s position for reassembly.
- Inspect the fuel injectors for debris–use compressed air (max 30 PSI) to clear obstructions, targeting the nozzle openings at a 45-degree angle.
- Check the thermocouple’s tip for discoloration; if blackened, replace it–misalignment can cause failure within 6 months.
- Clean the heat exchanger fins with a nylon brush, removing soot in downward strokes to prevent pushing debris deeper into the channels.
Reassemble components in reverse order, ensuring all gaskets are seated properly and screws are tightened to 8–10 inch-pounds of torque. Test the unit for gas leaks by applying soapy water to connection points; bubbles indicate a leak requiring immediate re-tightening or seal replacement.
Where to Source Authentic Components for Mr. Heater Portable Warmers
Start with Camping World’s official product page for radiant devices. They list filtration screens (part #MH12B-312), piezo spark assemblies (#MH12B-309), and regulator valves (#MH12B-302) with SKU-linked purchase options. Shipping covers all U.S. territories; 3-day delivery guaranteed on in-stock items. Verify compatibility by entering the serial number from the base plate.
Explore MrHeaterDirect.com–an authorized distributor run by Enerco Group. Their search tool filters 1 lb propane canister adapters (#MH12B-301), fan motors (#MH12B-325), and tank brackets (#MH12B-306) by model: Big Maxx, Portable Radiant, or Hunting versions. Bulk pricing applies at 5+ units; VAT included for Canadian buyers.
Secondary Markets with Verified Sellers
eTrailer.com stocks aftermarket upgrades like stainless steel hoses (#HT-21078) and adjustable stands (#HT-21080). Each listing includes installation videos; warranty claims processed via manufacturer portal. Cross-reference part numbers with the exploded view manual available under “Documentation” tab.
Check local farm supply chains: Tractor Supply (in-store only) carries piston assemblies (#MH18B-303) and O-rings (#MH12B-318). Use the Store Locator at tractorsupply.com/locations–most outlets receive weekly shipments. Call ahead for HVAC-certified staff to ensure correct component selection; return policy allows 90-day exchanges without receipt.
Step-by-Step Guide to Swapping Out the Spark Igniter and Fuel Strainer
Disconnect the propane tank first–no exceptions. Release any residual pressure by holding the control knob for 10 seconds. Place the unit on a stable, heat-resistant surface to prevent tipping during disassembly.
Locate the access panel on the side; it’s secured by two 8mm screws. Remove them with a socket wrench, then lift the panel straight up to avoid damaging the attached wiring. The igniter sits behind a white ceramic housing–press the release tab and pull it out gently. If corroded, clean terminals with 400-grit sandpaper before reinserting.
For the strainer, trace the fuel line from the tank inlet. You’ll find a small brass component with two threaded ends; this is the primary filter. Unscrew it using a 12mm wrench, holding the opposite side with pliers to prevent twisting the line. Install the replacement by threading clockwise–torque to 15–18 Nm. Use PTFE tape on male threads if leaks persist.
| Component | Tool Required | Torque/Force |
|---|---|---|
| Igniter housing screws | 8mm socket | 8–10 Nm |
| Fuel filter | 12mm wrench | 15–18 Nm |
| Panel screws | 8mm socket or screwdriver | Hand-tight + 1/4 turn |
Before reassembly, inspect the O-rings on both components. Replace if flattened or cracked–use silicone-based grease to seat them properly. Reattach the wiring harness by aligning the red and black leads; a click confirms engagement. Secure the access panel, ensuring no wires are pinched.
Test ignition in a well-ventilated area. Open the propane valve slowly, then engage the control knob. The spark should occur within 3–5 seconds. If misfires persist, adjust the gap between the igniter tip and burner to 3–4mm. For filter issues, purge air from the line by cycling the knob three times without ignition.
