Start with the official manufacturer’s service manual–original equipment diagrams provide exact measurements, part numbers, and assembly sequences. If the manual is unavailable, third-party repair databases like RepairClinic or PartSelect offer labeled exploded views specific to model numbers. For older machines, check eReplacementParts for archived schematics; filter results by serial number to avoid mismatches.
Critical components include tine assemblies, gearbox housings, and drive belts. On exploded-view documents, focus on callouts matching worn or missing elements–cross-reference these with online parts listings to confirm compatibility. Misidentifying a $12 shear pin as a $80 transmission seal leads to unnecessary replacements.
Local agricultural cooperatives often stock physical copies of technical illustrations–ask for their repair library access. For urgent fixes, download PDF schematics from ManualsLib (filter by engine type: typically Briggs & Stratton, Honda, or Tecumseh). Print diagrams in landscape orientation to preserve label clarity during disassembly.
Identifying Components for Your Cultivator Repair

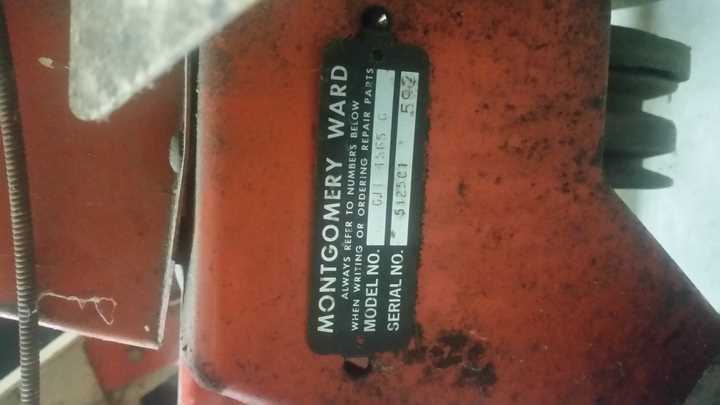

Locate the model number on the side panel or near the engine housing–this alphanumeric code directs you to the exact schematic for your machine. Common series include 300, 400, and 500, each requiring distinct replacement pieces. For example, the 300-series uses a 3/8-inch chain drive, while the 400-series shifts to a heavier 1/2-inch belt system.
Key Replacement Pieces by Assembly
Engine components often need service: spark plugs (NGK BPR4ES or equivalent), air filters (foam pre-cleaner + paper element), and carburetor rebuild kits match specific engine displacements (typically 3.5–5 horsepower). Tines vary by width–8-inch models fit narrow beds, while 12-inch units handle larger plots. Replace bent tines individually (part numbers ending in -RT for right, -LT for left).
Transmission parts include gears, bearings, and seals–critical for rotational force distribution. The input shaft bearing (usually 6203 or 6305) supports 200-300 lbs of load; replace if play exceeds 0.002 inches. Drive belts stretch over time: measure free length (new: 30–31 inches, worn: >33 inches = replacement). Drain plugs and gaskets use standard thread pitches (NPT 1/8 for oil, 1/4 for fuel).
Handle adjustment mechanisms rely on friction washers and pivot bolts–apply thread locker to prevent loosening. Height control levers snap into indexed holes; worn detents require new plastic inserts (color-coded by model). Electrical components (switches, ignition coils) should match voltage ratings: 12V for most, 6V for vintage units. Always verify wire gauge (16–18 AWG) before splicing.
Order from suppliers listing OEM part numbers–aftermarket replacements may require minor modifications. For instance, clutch assemblies might need shims to match original tolerances. Keep a digital caliper handy to measure worn components: shaft diameters shrink ~0.005 inches before failure, while tine thickness should not dip below 0.1875 inches.
Locating Key Rotary Cultivator Models for Component Matching
Begin by noting the engine brand and model number–typically Briggs & Stratton, Tecumseh, or Kohler–stamped on the valve cover or housing. Match this to the original equipment manual’s specification sheet; legacy models like the *GW 5hp*, *GW 8hp*, and *GW 10hp* shares belts, gears, and tines across multiple years, but verify the serial range before ordering. The *GW* prefix identifies garden-series units, while *EW* designates heavier-duty earth movers.
- 1978–1985 GW 5hp: uses 1/2″ x 35″ drive belt, #73175 tine set.
- 1986–1992 GW 8hp: 3/8″ x 42″ belt, #33820 worm gear, 4-blade rotor.
- 1993–1999 EW 10hp: 5/8″ x 48″ belt, #44210 reduction box, heavier shaft.
Check the transmission housing decal for the exact build date–serial numbers formatted *YYMMXXX* reveal the production run, critical when sourcing planetary gears or clutch plates. Older units frequently swap internal assemblies; cross-reference the fuel tank shape (round for pre-’85, rectangular post-’86) and PTO engagement lever position (side-mount vs rear-mount) to narrow the exact variant before consulting exploded views.
Step-by-Step Guide to Locating Key Components in Wiring Schematics
Begin by identifying the power source label–typically marked as “Battery,” “12V,” or “Main Input” near the top or left edge. Trace the thickest line from this point, as it often indicates the primary circuit path. Check for color-coding: red for positive, black or brown for ground. Verify connections by following the lines to their termination points at fuses, switches, or relays, avoiding assumptions about continuity solely based on proximity.
Isolate ground symbols–usually inverted triangles, “GND,” or bare wire icons–first. These nodes cluster near frame mounts or engine blocks in machinery schematics. Cross-reference ground paths with component labels; discrepancies here cause voltage drops or intermittent failures. Use a multimeter in continuity mode to confirm physical connections if corrosion or insulation damage is suspected. Record all ground points in a separate list to avoid overlooking shared returns.
Decoding Switch and Relay Symbols
- Switches appear as breaks in lines with simple mechanical toggles (normals open/closed)
- Relays incorporate coil symbols (zigzag lines) paired with contacts (straight lines)
- Label each switch/relay with its reference designator (e.g., “S1,” “K2”)
- Trace input/output lines–inputs connect to upstream power/controls, outputs feed downstream devices
Mark ambiguous symbols with highlighter; verify actuating conditions (e.g., “ON” vs. “START” positions).
Locate capacitors and resistors by their standardized icons: two parallel lines (capacitors) or zigzag (resistors). Cross-check values against color codes or printed figures–mismatches here disrupt timing circuits or signal filtering. Note polarity for electrolytic capacitors (longer lead = positive) and orientation arrows. Verify placement with test probes in-circuit when possible, observing expected voltage drops/resistance readings per Ohm’s Law calculations.
- Segment the schematic into functional blocks (charging, ignition, solenoid controls)
- Use manufacturer-provided legend tables to match obscure symbols with components
- Check for dashed lines–these indicate shielding, alternator field windings, or optional connections
- Confirm all connections terminate at identifiable endpoints (e.g., motors, solenoids, bulbs)
- Test isolated sub-circuits first before integrating systems
Final Verification Steps
Apply 12V power incrementally, starting from the source through fuses/switches. Measure voltage at each node to detect open circuits. Replace approximation (“ballpark”) readings with precise values–0.5V differences matter at relay triggers or sensor inputs. Document every tested path; revisit unresolved segments armed with new observations, avoiding repetition of unproductive steps.
Where to Locate Authentic Repair Guides for Outdoor Equipment Components
The most reliable source for original schematics is ManualsLib. This database hosts downloadable PDFs of discontinued and current product documentation, including exploded views for cultivator models sold under the brand’s earlier iterations. Search by exact equipment name or serial number to filter irrelevant results–many files include numbered callouts matching replacement items.
For vintage machinery, PartsTree offers a searchable archive of vintage hardware breakdowns. Their interface overlays interactive labels on component illustrations, allowing users to hover over each element to reveal its OEM designation and cross-reference it with aftermarket suppliers. The platform also flags obsolete items still available through third-party vendors.
Specialized Forums and Enthusiast Archives
GardenWeb’s Classic Machines forum maintains threads where collectors upload scanned copies of booklets no longer distributed by manufacturers. Users often attach high-resolution images of assembly instructions, noting discrepancies between printed guides and the actual machinery. Look for sticky posts labeled “Documentation Requests” for direct links to shared files.
OldLawnmowerClub curates a repository of historic service literature, including pre-digital technical bulletins. While focused on rotary cutters, their “Cultivators” section catalogs hand-drawn schematics with part measurements and torque specifications. Registration is required, but downloads are unrestricted.
Alternative Channels for Direct Manufacturer Support
If the original distributor’s support line is defunct, contact companies that acquired defunct labels. For instance, NAPA Auto Parts inherited some product lines and provides over-the-phone assistance to locate compatible replacements. Provide the model’s plate data–they cross-reference it against internal microfiche records unavailable online.
Auction platforms like eBay occasionally list physical guides sold by sellers liquidating repair shop inventories. Filter searches using the equipment’s full nomenclature and add “+book” or “+manual” to exclude unrelated listings. Sellers often include photographs of specific pages–request these before purchasing to confirm relevance.
How to Precisely Identify Compatible Components Using Model Codes
Locate the serial plate on the equipment’s main frame–typically near the engine, transmission housing, or beneath a protective cover. Clean the area thoroughly with a rag to remove dirt, grease, or faded labels that obscure alphanumeric sequences. Use a flashlight or magnifying glass if the numbers are small or worn. Write down every character exactly as it appears, including dashes, spaces, or prefixes (e.g., “SNO-950BX-22”). Even a single digit difference can indicate an incompatible assembly.
Check for multiple serial tags if the primary label is damaged. Older machines often have duplicate markings on internal components like the gearbox, axle housing, or blade assembly. Compare all found sequences–manufacturers sometimes alter specifications mid-production, and secondary tags may reflect later revisions. If discrepancies exist, prioritize the code tied to the largest structural element (e.g., the engine block over the wheel hub).
Consult the original owner’s manual’s appendices for a breakdown of serial number formats. Manufacturers encode production years, model variants, and regional adaptations into these sequences. For example:
| Prefix | Meaning | Example |
|---|---|---|
| SNO- | Standard North American model | SNO-950BX-22 |
| EU- | European emissions compliance | EU-950BX-23 |
| SN- | Pre-2000 production batch | SN-870A-19 |
| AX- | Heavy-duty gearbox variant | AX-950B-21 |
Avoid relying solely on visual similarities when selecting replacements. Components like belts, blades, or carburetors may appear identical but differ in pitch, spline count, or mounting holes. Cross-reference the serial-derived model variation with supplier databases–enter the full code, not just the base number. Filter results by “verified compatibility” or “OEM equivalent” to exclude generic alternatives.
If the exact replacement is discontinued, decode the serial’s engineered features to find substitutes. For instance, a “BX” suffix in “SNO-950BX-22” might indicate a specific gear ratio or reinforced deck design. Request dimensional specifications (e.g., shaft diameter, bolt patterns) from the vendor and compare them to measurements taken from the original part. A caliper and thread gauge ensure precision–tolerances as small as 0.5 mm can prevent proper fitment.
Contact the manufacturer’s support line with the full serial, not just the model number. Provide photos of the component if the label is unreadable. Many companies maintain archives of engineering changes and can confirm whether a retrofit kit exists for newer replacements. Note any aftermarket upgrades (e.g., larger fuel tanks, custom exhausts) that may require modified brackets or wiring harnesses. Keep a digital record of all correspondence, including case numbers and representative names.
Inspect the packaging and labels of delivered components for hidden identifying marks. Some OEMs stamp batch codes or revision levels on plastic housings, metal stampings, or even individual fasteners. Match these to the original unit’s markings–discrepancies often signal counterfeit or salvaged parts that may fail under load. For critical assemblies (e.g., engine blocks, transmissions), verify torque specifications and sealant types against the build sheet associated with the serial.
Test-fit components before final installation. Rotate shafts, engage gears, and check fluid ports for alignment. If resistance occurs, re-examine the serial-derived specifications–misalignment often stems from overlooked production variances. For electrical components (e.g., ignition coils, sensors), use a multimeter to confirm resistance values match the schematic tied to the serial batch. Document any deviations for future reference.
