Before adjusting blade alignment or replacing worn elements, identify the bevel scale on the left side. This graduated marker–typically ranging from 0° to 45° or 50°–indicates the tilt angle for angled cuts. Loosen the bevel lock lever near the base to adjust, then tighten securely to prevent slippage during operation. If cuts drift despite correct settings, inspect the bevel detent plate for debris or damage; a single layer of masking tape over the detent notch can temporarily restore precision until a replacement is sourced.
The sliding fence–paired with its flip-stop mechanism–allows repeatable cuts for identical workpieces. Ensure the fence sits flush against the rear rail; misalignment here compounds errors in miter adjustments. For compound cuts, verify that both the miter lock knob (usually red) and bevel adjustment knob are fully engaged. A loose miter lock often causes unintended drift, especially when working with dense hardwoods like maple or oak.
Blade guards require periodic inspection. The upper guard should retract smoothly–apply silicone spray to the hinge pivot if movement is stiff. The lower blade cover, though stationary, accumulates sawdust; clear obstructions every 20–30 cuts to prevent binding. When replacing blades, confirm compatibility with the arbor diameter (typically 5/8″ or 1″) and check whether the tool requires a washer between the blade and flange for proper tensioning.
For digital models, the laser guide–if present–must align with the actual kerf. Adjust the laser emitter by loosening the two set screws on its mounting bracket and pivoting gently until the beam matches the blade’s cut line. Ensure 120V power input is stable; fluctuations cause inconsistent laser brightness or erratic cutting. If the laser flickers, test the power cable and switch assembly–corrosion on the switch contacts is a frequent failure point.
The dust chute connects via a 1.5″ to 2.5″ port; use rigid tubing with minimal bends to maintain suction efficiency. Attach a secondary vacuum nozzle near the blade entry point for 20–30% improved debris capture. Replace torn dust bags immediately–clogged bags increase motor strain and reduce cutting accuracy by up to 15% over extended use.
Understanding Your Cutting Tool’s Key Components
Start by locating the blade guard–the hinged cover shielding the cutting edge during operation. Inspect its springs for tension; weak resistance indicates wear, requiring adjustment or replacement to prevent kickback. The guard should move freely but snap back into place when released. Check alignment with the blade’s path; misalignment causes binding and uneven cuts.
Examine the fence, the vertical guide against which material rests. Ensure it sits perpendicular to the baseplate–use a machinist’s square for verification. Loose fittings distort cuts; tighten bolts incrementally while testing alignment after each adjustment. For angled cuts, verify the fence’s pivot mechanism locks securely at common angles (15°, 30°, 45°) before trusting measurements.
Critical Moving Elements and Their Functions
- Bevel adjustment knob: Controls the blade’s tilt. Rotate while observing the scale–precision depends on lubricated threads. Apply dry PTFE spray to the mechanism if movement feels gritty. Avoid forcing the knob; strips in the gearing render depth settings unreliable.
- Slide rails: Found on dual-bevel models, these extend cutting capacity but collect sawdust. Clean weekly with compressed air, focusing on the rail grooves where debris accumulates. Silicone-based lubricant prevents seizing, but avoid petroleum products that attract dust.
- Trigger switch: Wired with a safety interlock. Test the lock-out function monthly–press the trigger without engaging the lock; the blade should not spin. If it does, replace the switch immediately; bypassed safety features increase injury risk.
Focus on the arbor assembly–the shaft holding the blade. Check for play by wiggling the blade gently; lateral movement exceeding 0.5mm signals bearing failure. Remove the blade and inspect the arbor flange for burrs; smooth them with a fine file to prevent blade wobble. Always reinstall the outer flange with the orientation mark facing outward to maintain balance.
- Disassemble the dust chute–a frequent bottleneck. Remove the collection bag and vacuum internal ducts with a 6mm hose attachment. Blockages reduce suction by 40%, increasing airborne particles. Seal gaps between the chute and motor housing with heat-resistant silicone to improve efficiency.
- Test the laser guide (if equipped) against a scrap piece. Calibrate by loosening the mounting screws and adjusting until the beam aligns with the blade’s kerf. Battery-powered models require fresh AA cells monthly; solar-charged units degrade in low light.
- Inspect the table inserts–zero-clearance versions prevent tear-out. Replace plywood inserts annually if worn, ensuring the new insert sits flush with the table surface. Chamfer the edges lightly with sandpaper to prevent material hang-ups.
The depth stop governs cut depth for dadoes and grooves. Verify it locks at consistent heights using a dial caliper. Misalignment causes shallow cuts; recalibrate by loosening the set screw, adjusting to the desired depth, then retightening. For plunge cuts, disengage the stop entirely to avoid unintended stops mid-cut.
Document each component’s condition in a maintenance log. Note replacement intervals–blades (carbon steel: 50 hours; carbide: 200 hours), brushes (every 12 months), and belts (if equipped, at 5% stretch). Use only OEM bearings; aftermarket replacements often lack the required ABEC rating, causing premature failure under lateral loads.
Core Elements of a Precision Cutting Tool and Their Positions
Locate the blade guard first–it sits atop the circular cutting edge, retracting automatically during operation. Check its movement by slowly lowering the handle; a stiff guard signals worn bearings or debris buildup near the pivot point. Replace immediately if cracks appear, as a compromised guard risks blade exposure mid-cut.
Motor and Transmission Placement
The motor mounts directly behind the cutting mechanism, connected via a belt or direct drive. For belt-driven models, inspect the rubberized teeth every 50 hours of use–misaligned belts create uneven cuts or burn marks. Tools with direct-drive systems eliminate this issue but demand annual grease replacement at the gearbox to prevent seizing.
The turntable anchors the entire unit, allowing 45-degree bevels in both directions. Ensure its locking pin engages fully; a loose turntable causes inaccurate angles, particularly in compound cuts. Tighten the detent override knob only when necessary–overuse wears the interior grooves, reducing precision over time.
The laser guide module (if equipped) attaches to the underside of the upper guard. Calibrate it by aligning the beam with the blade’s kerf at zero degrees, then verify at 22.5 and 45 degrees. Dust accumulation on the lens distorts the projection; clean monthly with compressed air to maintain accuracy.
Locate the fence on either side of the table–adjustable versions should slide smoothly along the rail without wobbling. Secure it with the locking lever before each cut; even minor movement invalidates measurements. For cuts wider than 6 inches, use an auxiliary support to prevent workpiece sag, which binds the blade and damages both tool and material.
Locating High-Friction Components in Precision Cutting Tools
Examine the blade housing assembly first–look for the blade guard and arbor flange in the schematic. These components endure cyclical stress and should show material thinning or micro-fractures if overused. The guard’s pivot should rotate smoothly; resistance indicates worn bushings or debris buildup. The flange’s mating surface can develop grooves from repeated blade changes; check for uneven wear using calipers to measure tolerance deviations beyond 0.003″.
| Component | Visible Wear Signs | Max Allowable Deviation |
|---|---|---|
| Blade clamp washer | Visible score marks, warping | ±0.001″ |
| Slide rails | Polished surfaces, binds during movement | 0.002″ play |
| Bevel lock knob | Stripped threads, loose engagement | Full 360° rotation without resistance |
| Dust chute seal | Cracks, missing segments | No light penetration |
Inspect the angle scale and detent plate next. The scale’s markings fade from abrasion, but misalignment beyond 0.5° signals a worn detent plate or loose mounting screws. The detent’s notches can become rounded; this reduces cutting accuracy. Apply a straightedge to verify plate flatness–any warp exceeding 0.005″ requires replacement. Lubricated points like the pivot bearings and trunnion should show no dry spots; a darkened grease trail confirms lubricant failure.

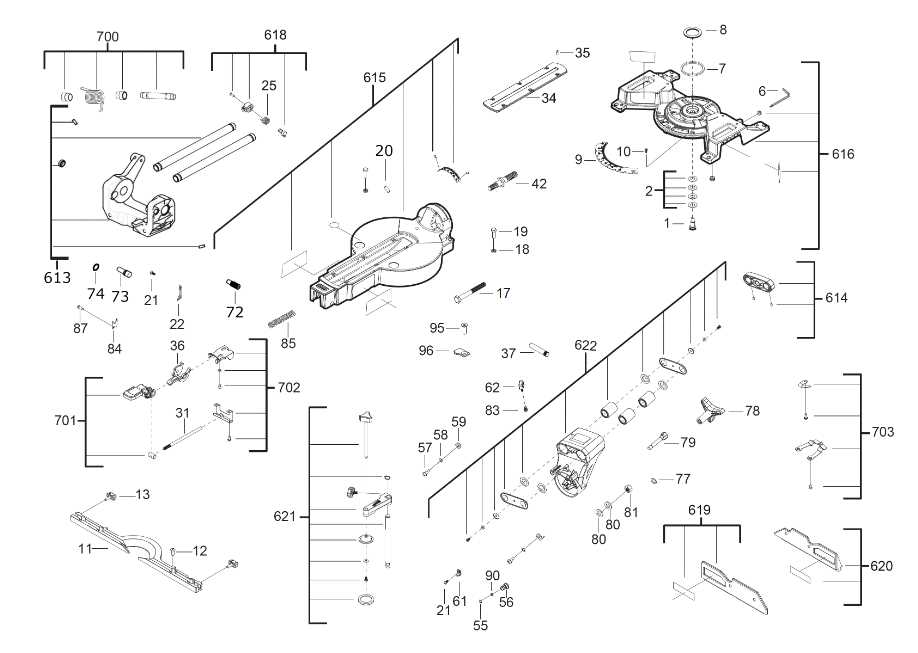

How to Accurately Mark Components in a Precision Cutting Tool Exploded Illustration
Begin with the power source–identify the battery or cord entry point and label it as the primary energy conduit. Use a fine-tip marker to number or letter each segment sequentially, starting from the base structure and moving outward. For precision, cross-reference the manufacturer’s technical schematics to ensure alignment with official nomenclature, as even minor deviations can confuse assembly or repairs.
Detach the blade guard temporarily to expose the inner components, but handle it with care to avoid misplacing screws or washers. Label the guard’s attachment points first, then the pivot mechanism beneath it–these are often overlooked but critical for smooth operation. If the tool has angle adjustment features, mark the locking pin, detents, and scale separately, noting that some models integrate micro-adjusters for ultra-fine tuning.
Focus on the rotating cutting disc’s mounting flange next. Note whether it uses a single nut, dual-locking nuts, or a spindle lock button, as each configuration requires distinct disassembly steps. For compound tools, label the bevel and swivel joints with arrows indicating their range of motion–30°, 45°, or custom stops–since these details are frequently omitted in generic illustrations. Include material specifications (e.g., hardened steel, aluminum) if the exploded view serves technical documentation purposes.
Move to auxiliary systems like dust collection ports, LED guides, or laser alignment modules. Highlight these as optional but functionally significant, especially for professional-grade units. For dust extraction, specify whether the port is universal (4-inch) or proprietary, and mark filter attachments if included. Avoid obscuring small components like O-rings or set screws with oversized labels–use clear, concise annotations instead.
Compile the labeled components into a final illustration with a legend that includes: part identifiers (alphanumeric), brief descriptions, and torque specifications for critical fasteners. Store digital copies in vector format (.SVG) for scalability and separate layers for individual assemblies. Verify the exploded view’s accuracy by physically reassembling the tool once–any misalignment typically reveals unmarked or incorrectly labeled elements.
