Start by locating the control board–typically mounted near the blower assembly or gas valve. On most mid-efficiency models, this unit integrates ignition sequences, flame sensing, and safety locks in a single module. Verify the wiring harness connections match the color-coded labels; loose contacts cause intermittent shutdowns or error codes like E2 or LF. Replace the 16-pin connector if corrosion is visible–oxidized terminals disrupt signal integrity.
Inspect the ignition assembly next. High-voltage igniters degrade after ~30,000 cycles. Measure resistance across the ceramic tips; values below 40Ω indicate failure. For direct spark systems, ensure the electrode gap aligns with manufacturer specs (typically 1.5–2.0 mm). Misalignment leads to delayed ignition or gas buildup. Clean electrodes with 1200-grit sandpaper, avoiding solvents that degrade the ceramic coating.
The pressure switch validates airflow before ignition. Test continuity while simulating draft conditions–blow a measured 0.1–0.3″ WC through the hose port. If resistance exceeds 2 kΩ, replace the switch rather than adjusting the calibration screw; tampering voids safety certifications. Check vacuum tubes for cracks or obstructions; even minor leaks cause false open switch faults.
Examine the blower wheel for debris accumulation. A 1/8″ dust layer reduces airflow efficiency by 18–22%. Secure the wheel to the motor shaft with a torque of 12–15 ft-lbs; overtightening distorts the hub, causing premature bearing wear. Lubricate the sleeve bearings with SAE 20 oil every 12 months; sealed ball bearings require grease compatible with the original NLGI grade (usually #2).
Gas valve troubleshooting begins with voltage testing. Apply 24VAC to the solenoid terminals–absence of an audible click confirms coil failure. Measure port pressure upstream and downstream of the valve; a drop exceeding 0.8″ WC suggests internal blockage. Replace the entire valve if leakage persists–repair kits rarely restore OEM sealing integrity. Always verify inlet pressure (7–10″ WC for natural gas) before reassembly; low supply causes incomplete combustion.
Heat Generator Component Blueprint: Key Elements Explained
Start by locating the combustion chamber assembly–typically positioned at the base of the unit. Verify the gasket seal integrity before disassembly; even minor leaks reduce efficiency by 8-12%. Use a torque wrench to tighten bolts to 15-18 ft-lbs, following the clockwise sequence outlined in the service manual.
The ignition electrode requires annual inspection for corrosion. Clean with 400-grit sandpaper and recalibrate the spark gap to 3.2mm (±0.2mm). Misalignment beyond this range causes delayed ignition cycles, increasing fuel consumption by up to 19%. Replace electrodes if pitting exceeds 0.5mm depth.
Airflow Regulation Components
- Blower motor: Check capacitor values (μF) against the spec sheet–deviations above 5% trigger overheating. Lubricate bearings with high-temperature grease (NLGI #2) every 2,000 hours of operation.
- Draft inducer: Inspect impeller blades for soot buildup; remove accumulations with a nylon brush at 1,500-hour intervals. Replace the inducer if blade erosion exceeds 1mm.
- Pressure switches: Test with a multimeter in continuity mode–resistance should read 0Ω. Clean ports with compressed air (≤30 PSI) to prevent false lockouts.
For the heat exchanger, prioritize crack detection using a dye penetrant kit. Small fractures (≤0.1mm) can be sealed with ceramic adhesive; larger defects mandate full replacement to prevent carbon monoxide leakage. Thermal imaging cameras confirm even heat distribution–hot spots indicate blockages requiring reverse-flush cleaning.
Gas valve calibration follows a strict protocol: measure inlet pressure at 7-7.5″ WC and manifold pressure at 3.2-3.5″ WC. Adjust the regulator screw in ¼-turn increments, verifying with a manometer after each change. Incorrect settings lead to incomplete combustion, producing yellow-tipped flames instead of the required blue cones.
Maintenance Tools and Replacement Cycles
- Thermocouple: Replace every 3 years–output voltage drops below 20mV signal failure. Always test with a load prior to reinstallation.
- Fusible link: Check monthly; it melts at 165°F (±5°F) to trigger shutdown. Ensure the replacement matches the original temperature rating.
- Control board: Clean with isopropyl alcohol (90%+ concentration) to remove oxidation. Update firmware via USB port if error codes persist after reset.
During reassembly, align component labels with the housing orientation markers. A misaligned blower wheel, for example, creates a 2-3% drop in CFM output. Document all adjustments in the service log to track performance trends over time.

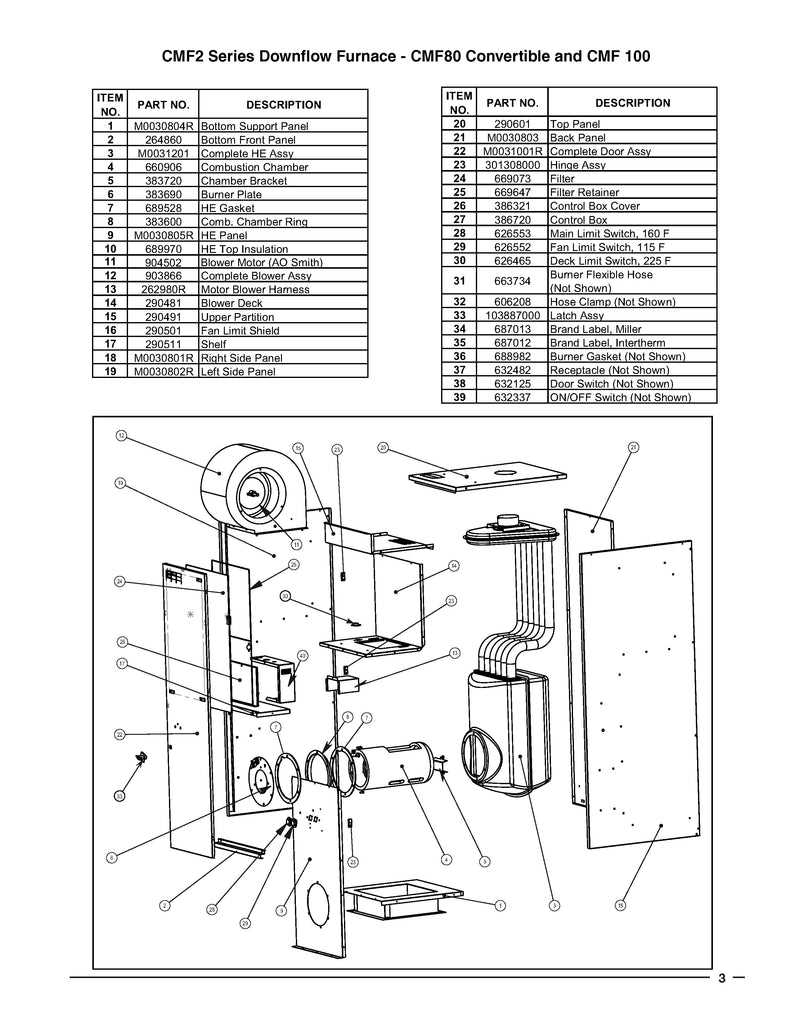

Key Elements in an Industrial Heating Unit Exploded Layout
Begin by locating the combustion chamber assembly–it’s typically centered in the schematic, marked with heat-resistant seals and ceramic insulation. Verify the part number against the service manual’s labeled section, as variations exist between high-efficiency and standard models.
Next, examine the burner nozzle cluster adjoining the ignition electrode. Check for corrosion deposits or misalignment; even a 2mm deviation can reduce thermal output by 15%. Clean with a brass brush and isopropyl alcohol if oxidation is visible.
Gas Valve and Pressure Regulation Components
The dual-solenoid safety valve should sit directly above the fuel inlet port. Test continuity with a multimeter–resistance should read 24-48 ohms. If outside this range, replace the unit to prevent fuel leakage or incomplete combustion cycles.
Identify the blower motor housing on the lower rear quadrant. Remove the intake grille to inspect the impeller for dust buildup; accumulated debris can restrict airflow, causing overheating. Use compressed air at 90 PSI to clear internal fins without dislodging internal wiring.
Thermal Exchange and Control Assemblies
Trace the heat exchanger coils from the manifold to the flue outlet. Cracks or warping indicate thermal fatigue–replace immediately to avoid carbon monoxide risks. Measure wall thickness with calipers; readings below 0.8mm confirm failure.
The igniter rod connects to the control board via a high-voltage cable. Look for fraying or burn marks at the connection point. If arcing is present, isolate the board from power before probing with a non-contact voltage tester.
Check the limit switch lever against the exchanger’s surface. Proper calibration ensures the unit cuts power at 200°F (±5°F). Adjust the lever with a 6mm hex key if it triggers prematurely or fails to engage during operation.
Finally, cross-reference each component’s position with the service schematic’s legend. Missing or inverted parts during reassembly can void safety certifications. Label removed fasteners by size and precise location–mismatched screws may compromise structural integrity under thermal expansion.
Identifying Key Safety Mechanisms in Heating Unit Blueprints
Trace the high-voltage cutoff switch on schematics–typically marked as HSW or HV INT near the power inlet block. This component isolates the ignition circuit during overcurrent events, preventing thermal overload. Verify its position relative to the gas valve; it should sit upstream of all flame-sensing relays to ensure immediate power disengagement. Test continuity with a multimeter: resistance across contacts must drop below 0.5Ω in the closed state; any reading above 2Ω signals degradation.
Control Board Terminal Mapping
| Terminal | Function | Expected Voltage | Failure Indicator |
|---|---|---|---|
| P1 | Flame sensor input | 0–750 mVAC | Open circuit (>2V) |
| P5 | Pressure switch | 24 VAC | Stuck at 0V or 24V constant |
| P9 | Combustion blower relay | 120 VAC | No voltage during pre-purge |
Locate the red EMERGENCY SHUTDOWN button–distinct by its 30mm diameter and red silkscreen outline on legends. This manual reset triggers a secondary relay stack, bypassing the control module to cut fuel supply within 2 seconds of activation. Cross-reference its wiring to the limit switch chain; corrosion at the crimp joints often causes intermittent drops–clean terminals with 220-grit emery cloth and reapply dielectric grease before reseating.
Maintenance Routine: Swapping Out High-Traffic Heating Unit Components
Shut off the gas valve behind the equipment and disconnect the power by flipping the breaker marked for the appliance. Verify no residual voltage remains with a non-contact tester near the control panel before proceeding.
Remove the front access panel by unscrewing four corner screws with a #2 Phillips screwdriver–set screws aside on a magnetic tray. Inside, locate the blower wheel positioned on the right; use needle-nose pliers to pinch and release the two retaining clips securing the wheel to the motor shaft. Slide the wheel forward until it disengages, taking care not to bend the impeller blades.
Handling Ignition Modules
Unclip the ignition sensor wire by squeezing the quick-connect tab; pull the harness straight out to avoid damaging the pins. Unscrew the module mounting bolt with a 5/16-inch nut driver, then lift the assembly free. Inspect the ceramic base for cracks–replace if fractured to prevent faulty ignition cycles.
Install the new control board by aligning the mounting holes and securing with the original bolt. Reattach the wiring harness, pressing firmly until the tab clicks; verify snug fit by gently tugging the connector. Reinstall the blower wheel by sliding it onto the motor shaft, pressing inward until both retaining clips snap into place–rotate the wheel manually to confirm smooth spin.
Combustion Chamber Refresh
Check the flame sensor rod–remove the single 1/4-inch retaining screw with a hex key. Slide the rod out, clean with 600-grit sandpaper, then wipe with denatured alcohol. If corrosion persists, swap in a new unit; align the rod in its original slot and secure the screw finger-tight, followed by an additional 1/8 turn with the key.
Clean the pilot orifice using compressed air at 30 PSI, directing the nozzle at the opening while preventing debris from entering the gas line. Reconnect all components in reverse order, ensuring gaskets and seals sit flush–misalignment risks carbon monoxide leaks. Restore power, then relight the appliance per the manufacturer’s sequence, monitoring for consistent flame pattern and steady ignition timing.
