If you’re working on a vintage two-stroke engine or a compact four-stroke unit, the precision of the fuel mixing mechanism determines performance. Start by locating the primary jet–typically positioned near the bottom of the float bowl. This component dictates the fuel flow rate under load, and incorrect sizing leads to bogging or lean conditions. Measure its diameter in millimeters; a 120-size jet suits moderate climates, while 140+ is necessary for high-altitude operation.
Next, examine the needle valve assembly. The tapered profile controls mid-range fuel delivery, and wear here produces erratic throttle response. Replace the needle if grooves deeper than 0.1mm are visible. Pair it with the correct clip position–slot #3 (from the top) is standard for stock setups, while slot #4 increases richness for modified engines.
The air screw, usually concealed behind a brass plug, fine-tunes idle mixture. Turn it clockwise until the engine stumbles, then back out 1.5 turns as a baseline. For aggressive camshaft profiles, extend this to 2.25 turns. Inspect the rubber tip for hardening; a cracked seal permits unmetered air, causing rough idling.
Finally, verify the float level by inverting the housing while holding the float tang horizontally. A gap of 6–8mm between the float and the gasket surface ensures proper fuel cutoff. Adjust by bending the tang with needle-nose pliers–bend upward to lower the fuel level, downward to raise it. Overlooking this calibration floods the system or starves it under acceleration.
Assemble components in reverse order, using a torque wrench for critical fasteners. The float bowl bolts should be tightened to 3–4 Nm; overtightening warps the aluminum casting. Test by spraying carb cleaner into the intake while cranking–immediate RPM spikes confirm proper sealing.

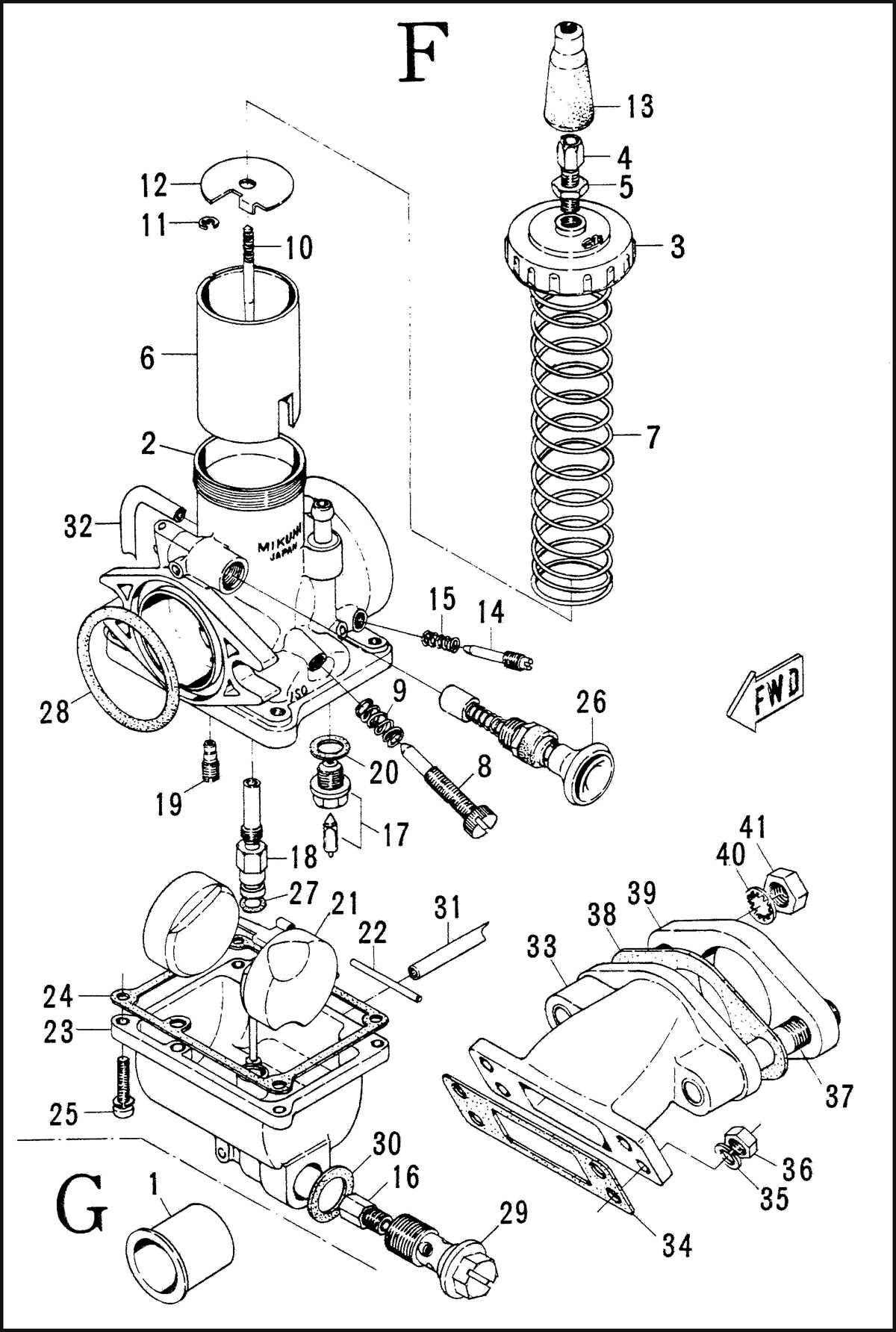

Visual Breakdown of VM Series Fuel Delivery Components
Locate the float bowl assembly at the base–its securing screws must be torqued to 8–10 in-lbs to prevent vacuum leaks while allowing sediment drainage through the lower plug thread. Remove the bowl only after marking fuel line connections with tape; reverse flow during reinstallation disrupts idle circuits.
Examine the jets beneath the emulsion tube. Primary circuits (pilot, main) require brass washers for sealing; aluminum alternatives deform under heat, causing inconsistent mixture. Pilot screws adjust in 1/8-turn increments–clockwise lean, counterclockwise rich–starting from 1.5 turns out as baseline for most 4-stroke engines.
Air Correction and Throttle Linkage
Inspect the air-bleed passages on the side body. Carbon deposits in these 0.5mm orifices mimic misadjusted chokes. Clean with nylon bristles only; metal tools score bores, altering calibration. Verify throttle plate alignment by backlighting–gaps exceeding 0.1mm cause hesitation at mid-range due to disrupted Venturi effect.
Replace worn needle clips immediately. The tapered slide’s third groove (from top) typically balances power delivery; deeper grooves enrich, shallower lean. For altitude compensation, swap the main jet size by ±2 increments per 1000ft elevation change–stock #110 for sea level, #108 above 5000ft.
Cold Start and Acceleration Systems
Test the cold-start lever travel. The plunger’s O-ring duremeter must resist 50–60 Shore compression; softer compounds fail at 30°F, preventing full enrichment. On mechanical pump models, the accelerator rod’s ball joint wears unevenly–replace if free play exceeds 0.3mm to avoid flat spots during tip-in.
Set the slide cutaway notch angle using a dial protractor. Factory specs call for 60° to 75° relative to bore axis; angles outside this range cause abrupt transitions. For two-stroke applications, verify reed valve saturation by inverting the unit–fuel dripping faster than 1 drop per 5 seconds indicates needle wear, not float level issues.
Label vacuum ports before disassembly. The timed manifold port (1.2mm) and constant depression port (0.8mm) must not be swapped–reverse connection starves mid-throttle acceleration. On liquid-cooled engines, ensure the choke pull circuit bypasses water channels; cross-contamination corrodes zinc castings within 800 operating hours.
Locating Critical Elements in a Fuel System Assembly Breakdown
Begin by isolating the throttle valve–the central plate regulating airflow, typically marked with a distinct serial number near its edge. This component sits within the main bore, directly influencing engine response; misalignment here disrupts fuel mixture even if other elements appear intact. Measure its clearance against manufacturer specs–deviations beyond ±0.1mm warrant replacement to avoid lean or rich conditions.
The float assembly, often overlooked, dictates fuel level consistency in the reservoir. Check the float’s material: brass variants resist corrosion but may deform under ethanol blends, while synthetic floats (e.g., nylon) degrade faster with heat cycles. Weigh the float in grams–compare against service manual tolerances; a discrepancy of 5% or more indicates saturation or wear, requiring a full rebuild kit that includes needle and seat.
Trace the main jet and pilot jet pathways next. The former governs mid-to-high RPM fuel delivery, while the latter handles idle and low-load conditions. Use calibrated jets–aftermarket “equivalent” sizes may not match the taper or thread pitch, causing erratic fuel flow. Inspect for debris; a single particle smaller than 0.2mm can clog the orifice, necessitating ultrasonic cleaning for brass jets or replacement for steel variants.
Examine the choke plunger mechanism for cold-start enrichment. The plunger’s sealing surface must be free of scratches; even minor imperfections create vacuum leaks, making starts unreliable. Lubricate the plunger shaft with petroleum-free grease to prevent fuel contamination–silicone-based products resist degradation at temperatures up to 150°C. If the choke cable exhibits play exceeding 2mm, adjust or replace the assembly to maintain precise engagement.
Verify the accelerator pump diaphragm and check valve operation. The diaphragm’s elasticity ensures instantaneous fuel delivery during sudden throttle openings; cracks or stiffness reduce shot volume, leading to hesitation. Test the check valve by blowing through it–air should pass in one direction only. Replace both components as a set; mismatched parts disrupt timing, causing flat spots under acceleration.
Step-by-Step Guide to Locating the Float Chamber and Needle Assembly
Remove the fuel bowl retaining screws with a suitable driver–typically a Phillips #2 or flathead, depending on the model. Most units secure the lower housing with three or four fasteners; keep them in a labeled container to prevent misplacement. If corrosion is present, apply penetrating oil 10 minutes before attempting removal to avoid stripping the heads.
Gently pry the lower cover away from the main body by rocking it side-to-side while pulling downward. Some older variants may have a sealing gasket that adheres to the mating surfaces–use a plastic trim tool to separate it without tearing. Avoid excessive force to prevent damaging the brass or aluminum casting.
Inspect the exposed cavity: the float mechanism will be visible as a hinged arm with a small cylindrical or conical appendage at its tip. This is the needle assembly, which regulates fuel flow by seating into the inlet valve bore. On most models, it’s positioned directly beneath the fuel inlet fitting, aligned vertically with the center of the bowl.
Check the float’s condition by lifting it slightly–it should move freely without binding. If stuck, clear debris with compressed air or a fine wire brush, focusing on the pivot point and the needle’s seating area. Replace the entire component if cracks, distortion, or excessive wear are evident, as even minor defects disrupt proper fuel metering.
Locate the needle adjustment point–usually a tiny screw near the hinge or a clip on the needle itself. Turning this screw clockwise lowers the float’s resting position, reducing fuel level, while counterclockwise raises it. Use a precision screwdriver to avoid damaging the soft metal threads; one-quarter turn adjustments are sufficient for testing.
Reinstall the bowl only after verifying the needle moves freely and the seating area is clean. Align the gasket properly and hand-tighten screws in a cross pattern to ensure even pressure. Torque to 4-5 Nm to avoid warping the housing–over-tightening risks cracking the casting, especially on older units with brittle metal.
Decoding Throttle Slide and Jet Needle Positions in Schematic Illustrations
Identify the slide’s numbered cutaway first–this is the angled face visible when the component is installed. Values range from 0.5 to 6.0 and directly determine low-speed mixture strength; a 2.5 cutaway requires a leaner pilot outlet than a 4.0, often paired with a different idle screw setting. Check the schematic’s legend for color-coding: red typically marks lean conditions, blue indicates richer mixtures, and black denotes factory specifications. If the slide diagram lacks this, compare it to a known baseline from the same venturi diameter grouping (e.g., 28mm vs. 34mm).
Locate the needle taper’s clip position next. Schematics display this as a vertical column with slots labeled T (top) to 5 (lowest). Moving the clip down one slot enriches mid-range response by ~12-15% fuel delivery; conversely, raising it trims mixture. Cross-reference the needle part code (e.g., 6DH4, 5FJ10) within the exploded view–each code corresponds to a unique taper profile measured in thousandths of an inch (e.g., 0.045″ to 0.065″). Use a micrometer to verify dimensions if substituting aftermarket variants, as advertised specs often deviate ±0.002″.
The relationship between slide position and needle depth is nonlinear. At ¼ throttle, a slide with a 3.0 cutaway paired with a needle in the 3rd slot (from top) yields optimal transfer port filling; changing either parameter by one step alters the air-fuel ratio by ~8%. Record baseline vacuum readings at 1,500 RPM using a mercury column gauge before adjustments–target 5.5-6.8 inHg for most single-cylinder four-strokes, adjusting slide cutaway until readings stabilize within ±0.3 inHg. Avoid relying solely on exhaust note; use a wideband sensor for precise AFR verification (13.5:1 ±0.5 is ideal for crisp throttle response).
| Slide Cutaway | Needle Clip Slot | Idle Screw Turns (Out) | Target AFR @ ¼ Throttle |
|---|---|---|---|
| 2.5 | 2nd | 1.25 | 13.2:1 |
| 3.0 | 3rd | 1.5 | 13.8:1 |
| 4.0 | 4th | 1.75 | 14.5:1 |
Schematics often omit small but critical details: the clearance between the slide and throat at wide-open position (target 0.020″-0.030″), or whether the needle includes a tapered or straight section at its tip. Measure these with a feeler gauge and update the illustration in pencil–misalignment here causes hesitation at ¾ throttle even if all other components are correctly calibrated. Replace the needle if wear exceeds 0.001″; visible grooves indicate abrasive fuel contamination requiring a filter upgrade. Recheck clip slot depth with a depth gauge, as burred edges can skew positioning by half a millimeter, sufficient to cause stumble.
Cold-start enrichment pathways interact with these components in unexpected ways. A schematic shows the choke plunger’s stroke length but rarely labels position relative to the needle. Ensure the plunger fully clears the needle when engaged, or risk flooding–measure from the top of the slide bore to plunger face (standard 12-14mm). If adjustment is needed, lengthen the plunger rod in 0.5mm increments, testing between each; excessive length prevents full needle withdrawal. Pair this with a colder spark plug (drop by one heat range) if ambient temperatures regularly exceed 32°C.
Diagrams frequently group interchangeable parts without noting subtle functional differences. For example, a slide with twin vents (as seen in high-altitude kits) demands a needle with a 1.5mm longer parallel section–substituting a standard needle here causes erratic mid-range richness. Another often-overlooked detail: the orientation of the needle’s flats relative to the slide’s cutaway. Install the needle so flats align with the bowl’s fuel inlet side; a 90° rotation alters flow dynamics by ~6%, detectable as a 200 RPM idle variation. Always disassemble slide assemblies on a bench with non-marring tools; a vise-mounted holder prevents aluminum thread damage.
Dynamic measurement enhances static schematic interpretation. Attach a throttle position sensor logger (TPS) and data acquisition module (DAQ) outputting to a CSV file. Log RPM, manifold pressure, and slide position while sweeping throttle from closed to wide-open in one-second intervals–plot data to reveal dead zones where slide cutaway transitions abruptly affect mixture. Correlate this with AFR feedback to pinpoint whether enrichment is needed at specific openings (e.g., a sharp lean spike at 60% throttle may require a stepped needle taper rather than clip movement). Store annotated schematics alongside log files for future reference, as wear patterns vary across fuel blends (ethanol content alters slide-to-throat clearance by ~4% over 50 hours).
