Check the hydraulic lift cylinder first–it’s the most failure-prone element in any blade assembly. Reference pin spacing (standard 1.75″ on center) before ordering replacements; incorrect measurements void fitment. Thicker-walled units last 30-45% longer under repetitive freeze-thaw cycles. OEM seals swell when exposed to -20°C for extended periods–upgrade to fluorocarbon if operating below this threshold.
Inspect the cutting edge attachment pattern weekly. Bolts loosening under vibration reduce corrosion resistance by 60%. Use grade-8 fasteners torqued to 75 ft-lbs; reapply anti-seize after every third use. Replace blades exhibiting more than 1/4″ wear at the bevel–thinner edges increase ice adhesion 22%.

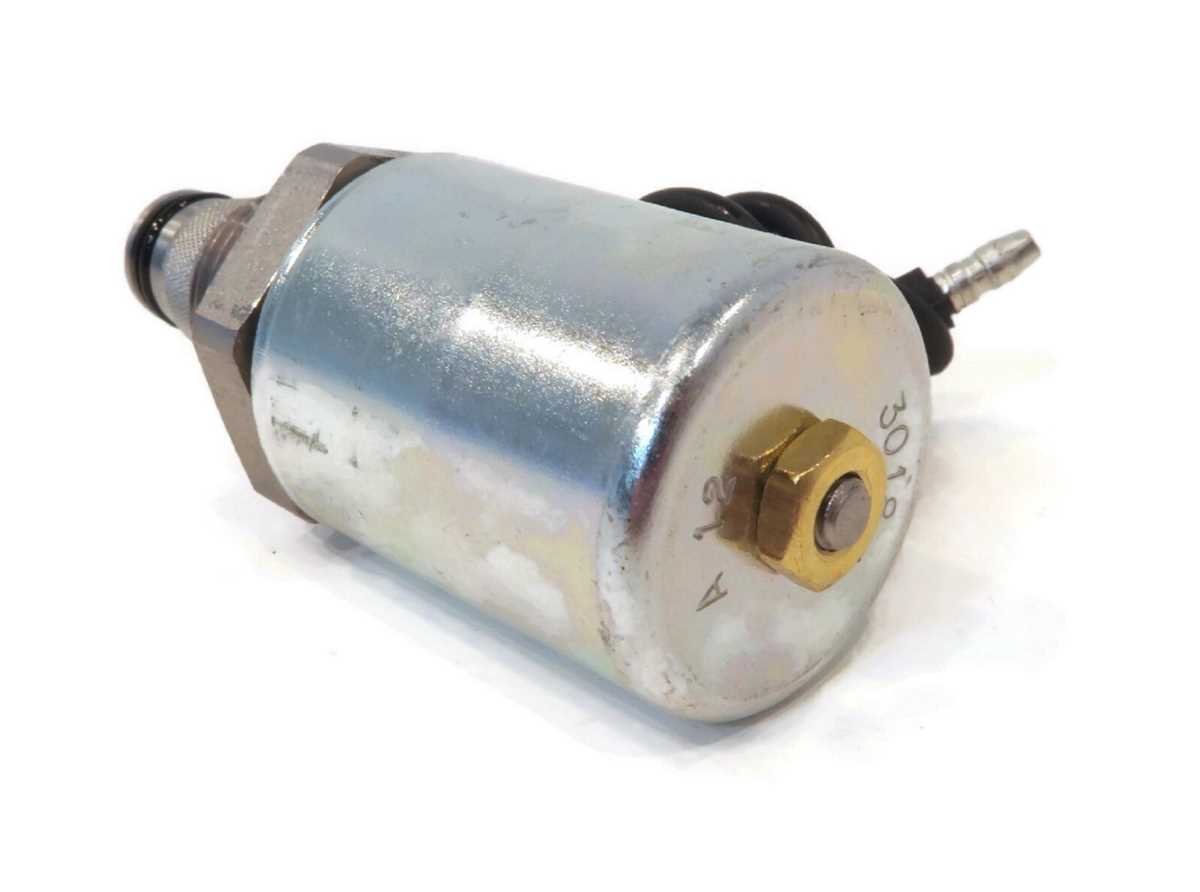

Verify solenoid actuator voltage (12V or 24V) matches controller output–mismatches burn coils in 6-8 hours. Test continuity with a multimeter after extended storage; degraded actuators draw 3-4 amps versus 1.2 nominal. Replace springs on trip mechanisms showing >0.1″ permanent deformation–fatigued components fail suddenly during impact loads.
Lubricate pivot points every 10 hours of operation, focusing on spherical bearings. Dry grease accumulates grit, accelerating wear 2.5x. Use lithium-based NLGI #2 formulated for -40°C; petroleum-based products turn waxy below -15°C. Check electrical connections for copper oxidation–clean terminals with 600-grit emery cloth and apply dielectric grease.
How to Interpret Your Blade Equipment Schematic for Repairs
Locate the hydraulic cylinder layout first–refer to section 4B on most manufacturer manuals where lift and angle mechanisms are illustrated. The control valve assembly (often marked with red or yellow highlights) connects directly to the mainframe via reinforced pivot pins; these degrade faster under salt exposure. Replace them every two seasons if operating in coastal regions. For the cutting edge, check the wear indicators: a groove depth below 1/4 inch (6.35 mm) signals immediate replacement to prevent damage to the moldboard base. Always cross-reference the schematic’s torque specifications–bolts securing the trip springs (AISI 4140 steel) require 75-85 ft-lbs (102-115 Nm) to avoid loosening under impact loads.
Troubleshooting Common Wear Points
Inspect the A-frame’s pivot bushings for play exceeding 0.03 inches (0.76 mm); grease contamination accelerates wear. The electrical solenoid (highlighted in blue) should have terminals free of corrosion–clean with dielectric grease if voltage drops below 11.8V. For wing adaptors, verify the shear bolt shear strength: standard 1/2-inch (12.7 mm) bolts fracture at 6,000 lbs (2,721 kg) to protect the gearbox. When reassembling, note orientation arrows on the hydraulic pump–they must align with the directional flow marks on the reservoir.
Locating Critical Elements in Vehicle-Mounted Blade Schematics
Begin by isolating the hydraulic actuator–typically positioned near the blade’s pivot point. Verify its connection ports align with labeled hydraulic lines, ensuring fluid flow directions match the arrow indicators on the schematic. Misalignment here disrupts angle adjustments.
Examine the cutting edge assembly, marked with thickness measurements in millimeters. Replacement edges must match the specified grade (usually AR400 or boron steel). The diagram’s side view details bolt patterns; cross-reference these with the mount’s pre-drilled holes to avoid fitment errors.
Electrical Connections Breakdown

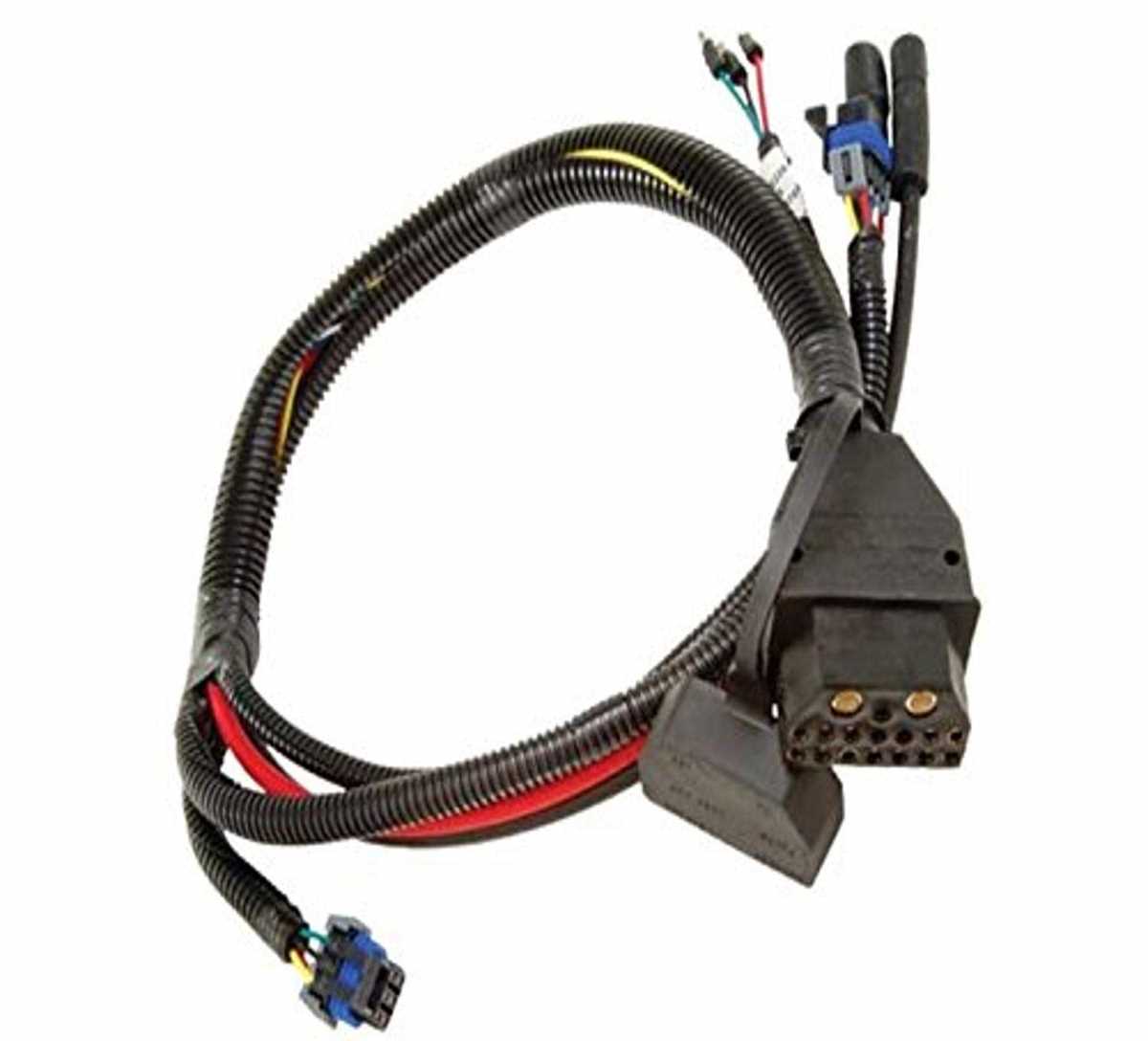

Trace the wiring harness from the solenoid to the vehicle’s battery terminal. The schematic highlights wire gauges (10-14 AWG) and color codes (red/black for power, yellow/blue for controls). Use a multimeter to test continuity at splice points; corroded connectors often mimic solenoid failure.
- Control module: Locate the 12-pin connector near the vehicle’s fuse box. Diagram overlays pin assignments–pins 3-6 handle blade lift, while 7-9 manage lateral movement.
- Headlight adapters: Check for voltage drops across connectors; the manual specifies 0.2V max loss under load.
- Ground points: Identify chassis attachment bolts (star washers prevent loosening). Poor grounding triggers erratic blade behavior.
Inspect the trip spring mechanism–the diagram shows spring tension ratings in foot-pounds. Over-tightening causes premature wear; under-tensioning risks blade drift. Calibrate using a torque wrench per the specified values.
Mounting brackets require scrutiny for structural welds. The schematic indicates stress points (thicker metal at corners). Cracks here mandate full replacement; field repairs compromise integrity. Verify bracket-to-frame bolts adhere to sequence patterns–torque specifications prevent frame warping.
Wear Parts Quick Reference
- Cutting edges: Replace at 50% original thickness or when scoring exceeds 3mm depth.
- Skid shoes: Rotate 180° when wear reaches 10mm; discard when grooves appear.
- Pivot bushings: Lubricate every 20 operating hours; silence indicates dryness.
- Hydraulic seals: Inspect for dislodged O-rings during fluid changes; contamination accelerates degradation.

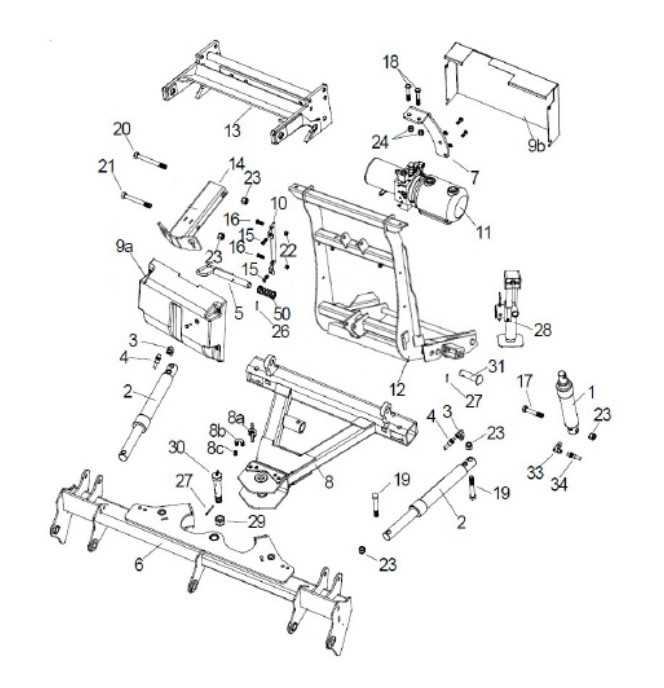

Step-by-Step Guide to Interpreting an Equipment Component Breakdown Illustration
Locate the reference number key adjacent to the exploded view–typically positioned at the bottom or side margins. Cross-reference each numeric or alphanumeric label with the corresponding item in the key to identify the exact component name, material specifications, and manufacturer’s part code. Prioritize components marked with asterisks (*) or bold font, as these denote wear-prone or high-frequency replacement items requiring closer inspection. For assemblies with 50+ elements, segment the illustration into quadrants and tackle one section at a time to avoid misalignment errors during reassembly.
Critical Data Extraction from Annotated Schematics
| Illustration Feature | Actionable Insight | Verification Method |
|---|---|---|
| Dashed lines | Indicate assembly hierarchy or subcomponents nested within a primary unit | Compare dashed-line groupings with the bill of materials for nested item count |
| Shaded areas | Highlight friction points, lubrication zones, or critical stress locations | Inspect physical units for abnormal wear or residual lubricant trails |
| Red arrows | Signal directional torque, hydraulic flow, or mechanical linkage movement | Test operational paths with a multimeter or torque wrench to match specified values |
| Exploded gaps | Represent intended spacing for seals, gaskets, or thermal expansion clearance | Use feeler gauges to measure physical gaps against tolerance ranges (e.g., 0.2–0.5 mm) |
Trace hydraulic or electrical pathways first–they often dictate sequencing during disassembly. Note color-coded labels (e.g., red for hydraulic, blue for pneumatic) and match them to the corresponding lines in the schematic to prevent cross-connection during reassembly. For gear-driven assemblies, count teeth ratios depicted numerically beside gear icons; mismatch here will result in improper mechanical advantage or system failure.
Key Components for Heavy-Duty Blade Maintenance and Where to Find Them
Start with the cutting edge–most failures occur here first. Replace worn blades immediately using the assembly reference near the lower frame mount. Standard edges wear fastest at the outer thirds, while center sections degrade unevenly under uneven loads. Use part #E-60 or #E-62 for straight blades and #C-50 for vee configurations; these match original equipment tolerances without requiring frame modifications. Check torque specs after installation–looseness accelerates cracking.
Hydraulic Cylinder Seals and Mounting Points
Inspect piston rod seals every 200 operating hours. Leaking cylinders reduce holding power, causing blade drift during backdrag. Focus on the lift cylinder (positioned vertically behind the moldboard) and angle cylinder (mounted horizontally near the pivot). Replace seals using kit #H-100R–it includes both primary and wiper rings. Diagram references often label these as “upper” and “lower gland assemblies.” Clean mating surfaces with brake cleaner before reassembly; contaminants embed in seals within minutes.
Angling gears sit inside the A-frame pivot housing, driven by a worm gear connected to the hydraulic motor. Excessive play here manifests as delayed blade response or uneven side-to-side movement. Replace the worm gear (#A-45) or sector gear (#A-46) whenever teeth show more than 1/3 wear. Diagram location typically splits the pivot housing into left and right exploded views–gears are labeled “drive gear” and “driven gear.” Use lithium grease on reassembly; generic greases break down under temperature swings.
Electrical Switches and Angle Sensor Calibration
Faulty float switches trigger erratic trip cycles. Replace the switch mounted on the right-hand pivot arm (#S-75) if the blade fails to drop automatically on level ground. The wiring harness connects at a bulkhead near the battery; corrosion here mimics switch failure. For angle sensors, recalibrate using the control joystick after replacing the pivot arm potentiometer (#P-30). Diagram views usually isolate the sensor wiring in a separate electrical sub-assembly; look for a circular potentiometer symbol.
Trip springs (often overlooked) absorb impact when the edge contacts obstacles. Coil springs (#T-20) sit inside the trip mechanism housing behind the moldboard. Check tension monthly–weak springs prevent full trip return, leaving the edge partially raised. Replace in pairs; diagram illustrations split the trip mechanism into front and side sections to show spring orientation. Lubricate spring coils with dry graphite spray to prevent binding.
Moldboard reinforcements prevent bowing under heavy loads. Replace worn ribs (#R-12) whenever vertical play exceeds 1/4 inch. Diagram views label these as “wear plates” or “stiffeners,” typically shown removed from the moldboard’s back side. Secure ribs with grade-8 bolts; avoid over-tightening, which distorts the plate. Side shoes (#S-90) protect the moldboard’s outer edges–replace when thickness falls below 1/8 inch; these appear in bottom-up assembly views labeled as “skid shoes.”
Quick-disconnect fittings on hydraulic lines corrode internally. Replace leaking couplings (#Q-15) immediately; trapped moisture causes cylinder drift. Locate fittings on the top of the lift cylinder–diagram illustrations often exaggerate their size for clarity. Use thread sealant on male fittings; O-rings degrade after three disconnections. For guidance, trace lines from the pump to the cylinders–ruptured hoses usually fail at mid-span under flex points.
