For immediate troubleshooting, reference the service manual explosion view for model year clusters 1995–2005. The impeller housing sits behind the lower unit cover–labeled #22 in standard schematics–while the fuel pump diaphragm (#38) requires replacement every 200 runtime hours under ethanol-blend usage. Verify torque specs: 18 ft-lbs on cylinder head bolts, 65 in-lbs on exhaust manifold fasteners. If corrosion is evident on the powerhead gasket face, machine-flatten to 0.003˝ tolerance before reassembly.
Thermostat (#12) opens at 143°F; bypass routes closed-loop coolant if stuck. Carburetor rebuild kits demand precise needle seating–ethanol residue warps brass jets after 400 hours. Replace spark plugs at 100-hour intervals; NGK B8HS at 0.032˝ gap. The water pump impeller (#47) wears asymmetrically–note vane direction before installation. Use OEM seals (#56, #57) if lower-unit pressure exceeds 10 psi post-seal failure.
Shift linkage adjustment (#63–#71) requires neutral verification via cable slack: 3/16˝ travel at control box ensures full engagement. Propeller spline wear accelerates with freshwater operation–replace hub kit every 3 prop strikes. Electrical schematic pinouts differ between tray-mounted CDI (1995–1999) and integrated ECM (2000–2005); test ECM grounds at battery negative terminal, resistance ≤0.2 ohms.
Understanding Your 50 HP Outboard Schematic
Begin by locating the exploded view reference for your model year–critical components like the powerhead, midsection, and lower unit are grouped sequentially in official manuals. Use the serial number (found on the transom bracket) to cross-reference with the exact schematic version, as variations exist between pre-2000 and post-2005 models. Late-model units integrate digital ignition systems, while older versions rely on mechanical CDI modules; the diagram’s section for electrical components will highlight these differences with shaded areas or dashed lines.
Prioritize these high-wear assemblies when ordering replacements: the water pump impeller (item #25-892390), piston rings (22-808426A2 for cylinders 1–2), and thermostat (32-864274). The schematic labels these with alphanumeric codes–match these exactly to avoid fitment issues. For example, the 2008–2012 models use a redesigned exhaust cover (part #61-889252A01) with integrated baffles, incompatible with earlier versions. Verify thread pitches (metric vs. imperial) using the diagram’s callouts, particularly for bolts securing the cylinder head (M10 × 1.25 vs. 3/8-24 UNF).
Key Subsystems and Their Indicators
| Subsystem | Visual Cues on Schematic | Failure Signs |
|---|---|---|
| Fuel Delivery | Highlighted in yellow; includes carburetor jets (mixture screws marked as #65-825670) | Erratic idle, fuel fouling spark plugs (NGK BR7HS for pre-2010 models) |
| Cooling Loop | Blue dashed lines tracing water passages; impeller housing indicated by casting number (e.g., 22-777785T) | Overheating alarm, white smoke from tell-tale outlet |
| Gearcase | Red outline; propeller shaft sealed with #15-808402 grease-filled bearings | Vibration at 4500 RPM, metallic debris in oil |
Inspect the schematic’s cross-sectional views for torque specifications–cylinder head bolts require 18–22 ft-lbs in a star pattern, while crankcase fasteners demand 12–15 ft-lbs. The diagram’s legend often omits these details, so refer to the accompanying service manual’s torque charts. For 1998–2003 models, the reed valve assembly (part #22-808271A01) sits between the carburetor and intake manifold; the schematic depicts its orientation with an arrow–installing it backward collapses low-end power. Replace the entire reed plate if petals show stress cracks wider than 0.5mm.
Tools and Diagnostic Shortcuts
Use the schematic to create a checklist for winterization: drain plugs (two on the lower unit, one on the powerhead) are color-coded (green for gear oil) in the diagram but often rust over–match their locations to the silhouette views. For misfire diagnostics, trace the ignition wiring harness from the flywheel (marked #22-803200) to the CDI box (typically left-mounted); the diagram colors spark plug wires red (cylinder 1) and blue (cylinder 2). If compression tests reveal >10% variance between cylinders, consult the piston/cylinder section–the schematic includes bore measurements (e.g., 48.00 ±0.02mm for standard overhaul kits) to determine if oversized rings are needed.
Identifying Key Components in the 50 hp Two-Cycle Engine Exploded View
Locate the powerhead assembly first–it sits atop the midsection and contains the crankcase, cylinders, and piston groups. Each cylinder houses a piston connected via a wrist pin to the connecting rod, which transfers motion to the crankshaft. Verify the piston rings’ condition, as worn rings reduce compression and throttle response. The crankshaft itself splits into upper and lower halves, secured by bolts torqued to 18-22 ft-lbs; mismatched torque causes uneven wear.
Inspect the exhaust system components next. The exhaust manifold routes gases from the cylinders to the water jacket, where cooling passages prevent overheating. Look for corrosion or blockages in the water pump impeller housing–impaired flow triggers temperature alarms. The thermostat, if equipped, regulates coolant circulation; a stuck unit causes erratic temperature readings.
Fuel System Breakdown
Trace the fuel delivery path starting with the carburetor or electronic fuel injection (EFI) throttle body. On carbureted models, the float bowl regulates fuel levels; a stuck float floods the engine. For EFI systems, the fuel rail distributes pressurized fuel to injectors–clogged injectors misfire. The fuel pump, driven by crankcase pressure pulses, operates at 2-4 psi; weak pulses signal a failing diaphragm or cracked lines.
The ignition system relies on the flywheel magnets generating voltage for the CDI box. Remove the flywheel cover to access the stator plate; damaged magnets produce weak sparks. The CDI box, mounted near the powerhead, converts low-voltage pulses to high-energy ignition–failed units cause misfires. Spark plugs should gap at 0.035 inches; wider gaps stress the ignition coils.

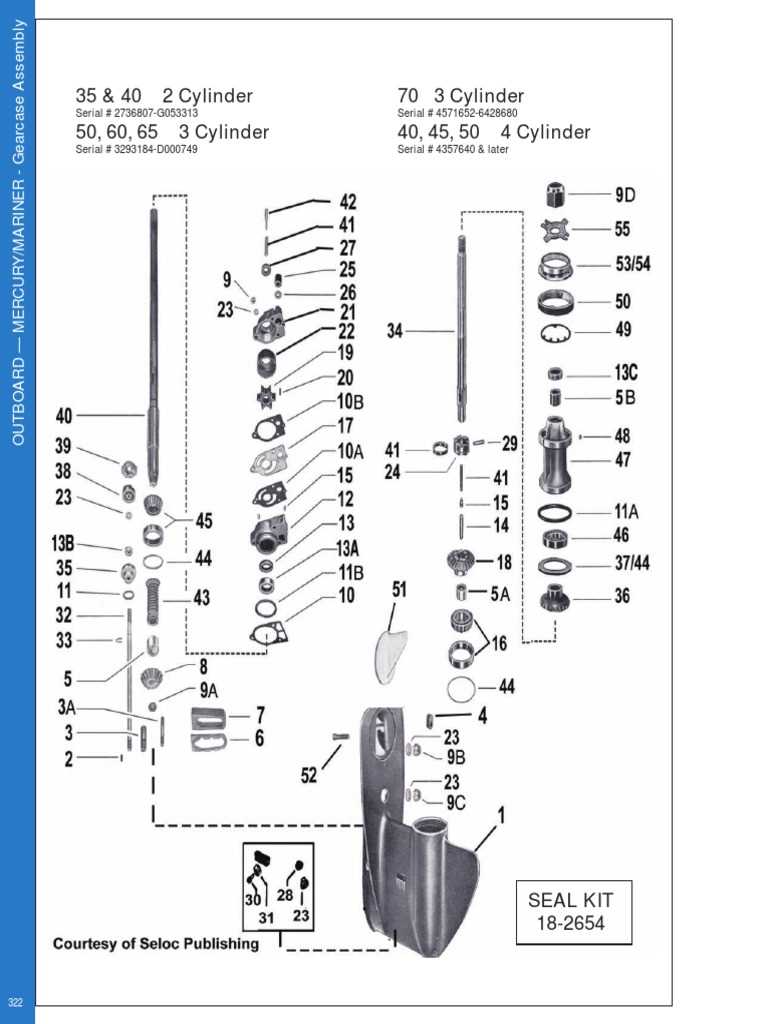

Lower Unit and Cooling Details
Examine the lower unit gearcase for the propeller shaft and forward/reverse gears. The driveshaft connects the powerhead to the propeller, transmitting torque while the water pump impeller draws cooling water. Replace the impeller every 100 hours–worn vanes reduce flow. The gearcase oil (SAE 90) lubricates bearings; milky oil indicates water intrusion from failed seals.
The shift mechanism uses dog clutches to engage gears–misalignment causes grinding. The trim tab, mounted on the cavitation plate, adjusts water flow for optimal thrust. Check the anode for corrosion; a depleted anode exposes aluminum components to galvanic erosion. Replace anodes when 50% depleted.
Look for the telltale signs of wear in the drive components: scored propeller hubs, pitted bearings, or sheared shear pins. A damaged hub slippage affects acceleration, while a bent propeller shaft vibrates at higher RPMs. Always match propeller pitch to the boat’s load–incorrect pitch strains the engine.
Finally, inspect the electrical harnesses for chafing or loose connectors. Corroded terminals disrupt signal flow to the gauges and kill switches. Secure all wiring with marine-grade ties–vibration loosens connections over time. Replace frayed wires immediately; exposed copper risks short circuits in wet conditions.

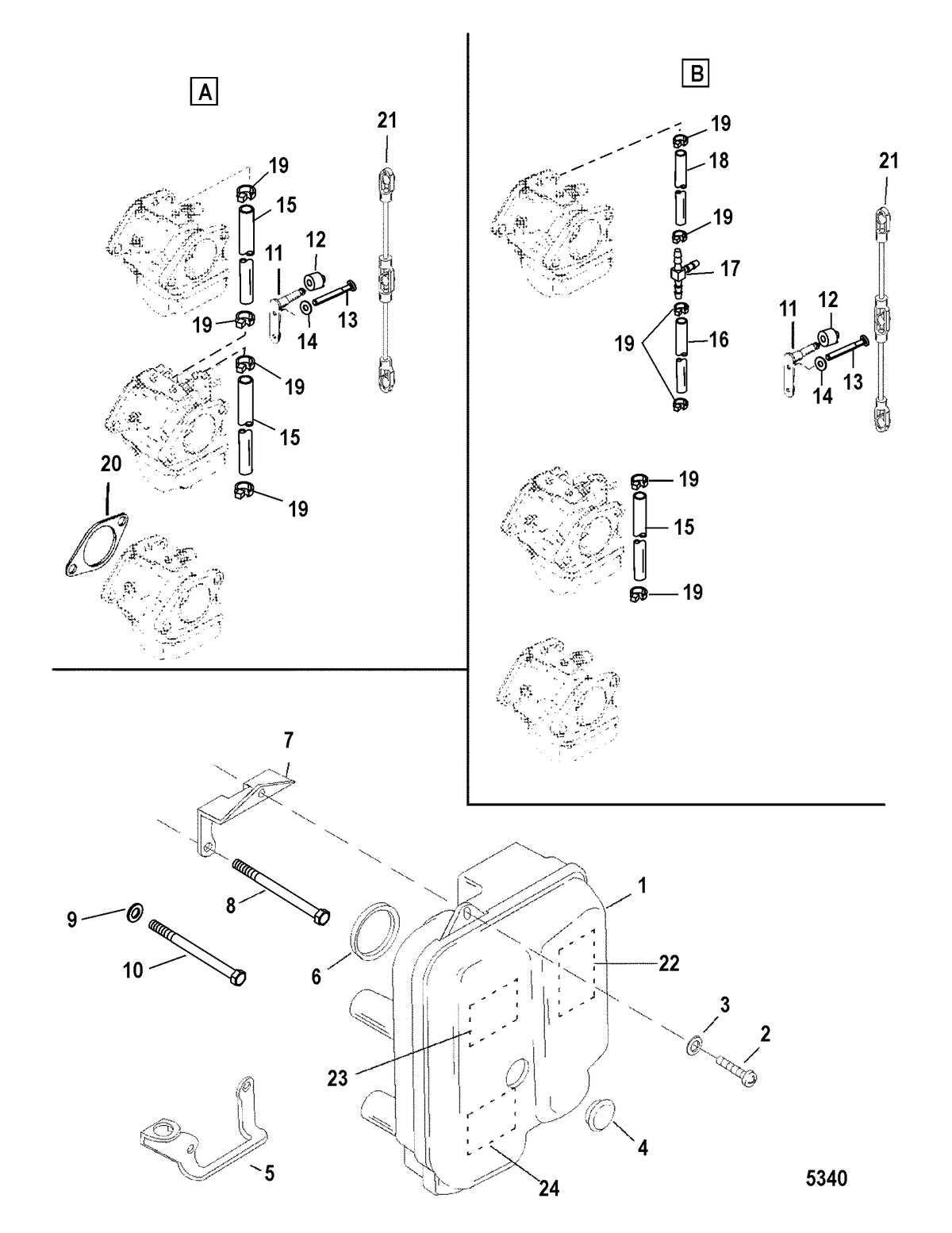

Identifying the Carburetor and Fuel Components on the Engine Layout
Begin by locating the carburetor near the center of the assembly, typically mounted on the intake manifold. On most schematics, it appears as a compact, rectangular or cylindrical unit with multiple small attachments–fuel lines, linkages, and a throttle lever. Refer to the numbered labels adjacent to the component; key identifiers include the fuel inlet nipple, adjustment screws, and the choke mechanism. If the layout includes color coding, the fuel system elements often follow red or green markings.
- The fuel pump–usually positioned above or beside the carburetor–is depicted as a small box or oval shape with inlet and outlet ports. It connects via thin, flexible lines (marked “Fuel In” and “Fuel Out”) to both the fuel tank and carburetor.
- The fuel filter appears as a cylindrical or canister-shaped object inline between the tank and pump, often near the lower half of the engine assembly. Look for a component with two threaded connections.
- Primer bulb is frequently illustrated near the carburetor’s side, resembling a small rubber or plastic dome with a feed line leading into the carburetor body.
Trace the throttle linkage–a rod or cable running from the control lever (usually at the top of the schematic) down to the carburetor’s throttle arm. The linkage is often represented as a dashed or solid line, occasionally interrupted by a small bell crank or pivot. If adjustments are needed, focus on the small screws near the linkage’s attachment points.
For the idle and mixture screws, check the carburetor’s lower or side face. These appear as small, protruding screws with slotted or Phillips heads, often labeled “Idle” or “Mixture” in the legend. The fuel bowl–the carburetor’s base–may be drawn slightly detached to reveal internal jets, which are small brass fittings marked with size specifications like “.042” or “.052.”
- Verify all hoses: the vapor separator tank (if equipped) connects via larger-diameter lines to the carburetor’s inlet side. Ensure no kinks or missing segments in the schematic’s hose paths.
- Cross-reference part numbers: components like gaskets, O-rings, and jets are often grouped in callout boxes around the carburetor area.
- If the schematic includes an exploded view, zoom into the carburetor’s sub-assembly for precise alignment of internal parts like the needle valve, float, and venturi cluster.
