For accurate disassembly or troubleshooting, secure the official schematic manual specific to this model–manufacturers update tolerances and fastener specifications with each production batch. Begin by identifying the powerhead assembly; critical torque values for cylinder head bolts typically range between 18–22 ft-lbs, though early 1990s variants may require 15–19 ft-lbs. Use a torque wrench calibrated to ±2% accuracy to prevent warping or thread stripping.
The lower unit demands precise alignment during reassembly. Note the propeller shaft spline count–this model usually employs 15 or 17 splines, but verify against the replacement part number (e.g., 50-819785A11) to avoid mismatched components. Lubricate bearings with water-resistant marine grease (NLGI Grade 2); standard automotive grease will degrade under prolonged submersion.
Fuel system repairs require attention to the carburetor linkage. Adjust the idle mixture screw 1–1.5 turns from a seated position, then fine-tune using a handheld tachometer for 700–900 RPM at neutral. Replace the flame arrestor (OEM part 32-866652T10) if corrosion exceeds 30% surface area, as compromised airflow directly impacts throttle response.
When servicing the ignition system, replace spark plugs with NGK B8HS or Champion L7J–aftermarket alternatives often misfire at cold starts. Check the stator resistance with a multimeter (400–800 ohms between leads); readings outside this range indicate coil failure. Store disassembled components in moisture-proof containers with desiccant packs to prevent oxidation during prolonged downtime.
Where to Find Accurate Schematics for a 40 Horsepower Outboard Engine
Start with the official service manual for your model year–any deviation risks compatibility errors. Locate the exploded-view pages under “Powerhead” and “Midsection” sections; these show every fastener, gasket, and linkage in exact assembly order. For 2000–2005 models, refer to manual code 90-861644A1, while 1995–1999 units use 90-823662A2–earlier editions contain outdated torque specs.
Key assemblies to cross-reference:
- Crankshaft seals (Part #27-60000 for 1998–2002)
- Carburetor rebuild kits (#27-58958 for Mikuni, #27-59000 for Walbro)
- Water pump impellers (#27-59580–verify pitch via manual)
- CDI modules (#33-20060–color-coded by serial number)
Third-party suppliers often mismatch subcomponents–use OEM part numbers etched on the original components instead of “compatible” listings. For example, a 1997 powerhead gasket set carries #27-59401, whereas aftermarket kits may substitute #8M0055021, causing improper sealing due to revised port shapes.
Download high-resolution schematics from marineengine.com by entering the serial number prefix (e.g., “0F” = 40EL/40MH); filters sort diagrams by year-range clusters. Compare these against salvaged units–many online sellers mislabel used lower units or powerheads without verifying gear ratios or exhaust manifolds.
For hands-on inspection, remove the cowl and mark every electrical connector location with painter’s tape before disassembly. Label fasteners: M6x1.0 bolts secure fuel rails, while M8x1.25 lock the flywheel. Store components by subsystem–cylinder heads in one bin, crankcase halves in another–to prevent mixing during reassembly.
Locating Critical Elements in the 40 hp Outboard Motor Schematic
Begin by isolating the powerhead assembly–marked by components like the cylinder block (part #22-63355) and crankshaft (22-67453)–in the upper-left quadrant of the breakdown. Verify alignment of the piston rings (22-73458) against the cylinder walls, ensuring minimal gap (0.2–0.4 mm) to prevent compression loss. The ignition system centers on the flywheel (22-49925) and stator plate (22-51236); check the gap (0.3–0.5 mm) with a non-magnetic feeler gauge before reassembly. Fuel delivery hinges on the carburetor (22-40413)–inspect the float level (12–14 mm from the bowl edge) and clean the main jet (0.8 mm orifice) with compressed air, not wire.
Lower-unit criticals include the propeller shaft (22-68901) and gearcase housing (22-44567); lubricate the splines with Marine Grease NLGI #2 to resist corrosion. The water pump impeller (22-44322) sits beneath the gearcase–replace if blade edges exceed 1.5 mm wear or if the hub shows cracks. Examine the shift shaft (22-45678) for bends; straightness is non-negotiable for clean gear engagement. Torque all fasteners to spec: 15–20 Nm for exhaust cover bolts, 25–30 Nm for gearcase screws–over-tightening risks thread stripping in aluminum components.
Step-by-Step Guide to Pinpointing Engine Assembly Components on Schematics
Begin by identifying the uppermost cluster in the schematic–this represents the powerhead. Trace the outline of the cylinder block first, then validate its position against the exploded view by cross-referencing the labeled item numbers with the corresponding legend. Common markers include finned housings, spark plug ports, and exhaust outlets. If the schematic lacks color coding, focus on angular lines or thicker borders, as these typically demarcate primary structures. For 40hp variants, the left side of the powerhead (when viewed from the rear) will host the ignition module; locate this by following the wiring harness paths that terminate near the flywheel housing.
Isolate individual elements using this method:
- Detachable covers: Look for rectangular or circular cutouts, often annotated with alphanumeric codes (e.g., “A2” or “B7”). These denote valve covers, reed plates, or inspection ports.
- Crankshaft alignment: Pinpoint the central shaft by finding the longest horizontal axis within the powerhead cluster–this connects to the lower unit via the driveshaft housing and must align with the propellor tunnel.
- Fuel delivery: Trace fuel lines from the carburetor or injector rail back to the pump assembly; these appear as dotted or dashed lines in schematics. Check for filter symbols (usually hexagonal outlines) along the path.
- Cooling system: Follow blue-highlighted paths (or hatched patterns in monochrome diagrams) from the water intake to the exhaust manifold outlets. Thermostat housings are typically marked with temperature symbols (e.g., “°C”).
Verify each component’s orientation by comparing the schematic’s side profile with a physical inspection: the exhaust manifold should align with the upper right quadrant, the alternator/stator with the lower left, and the starter motor beneath the flywheel. If discrepancies arise, re-examine the legend for suffixes like “-L” (left) or “-R” (right), which denote directional placement.

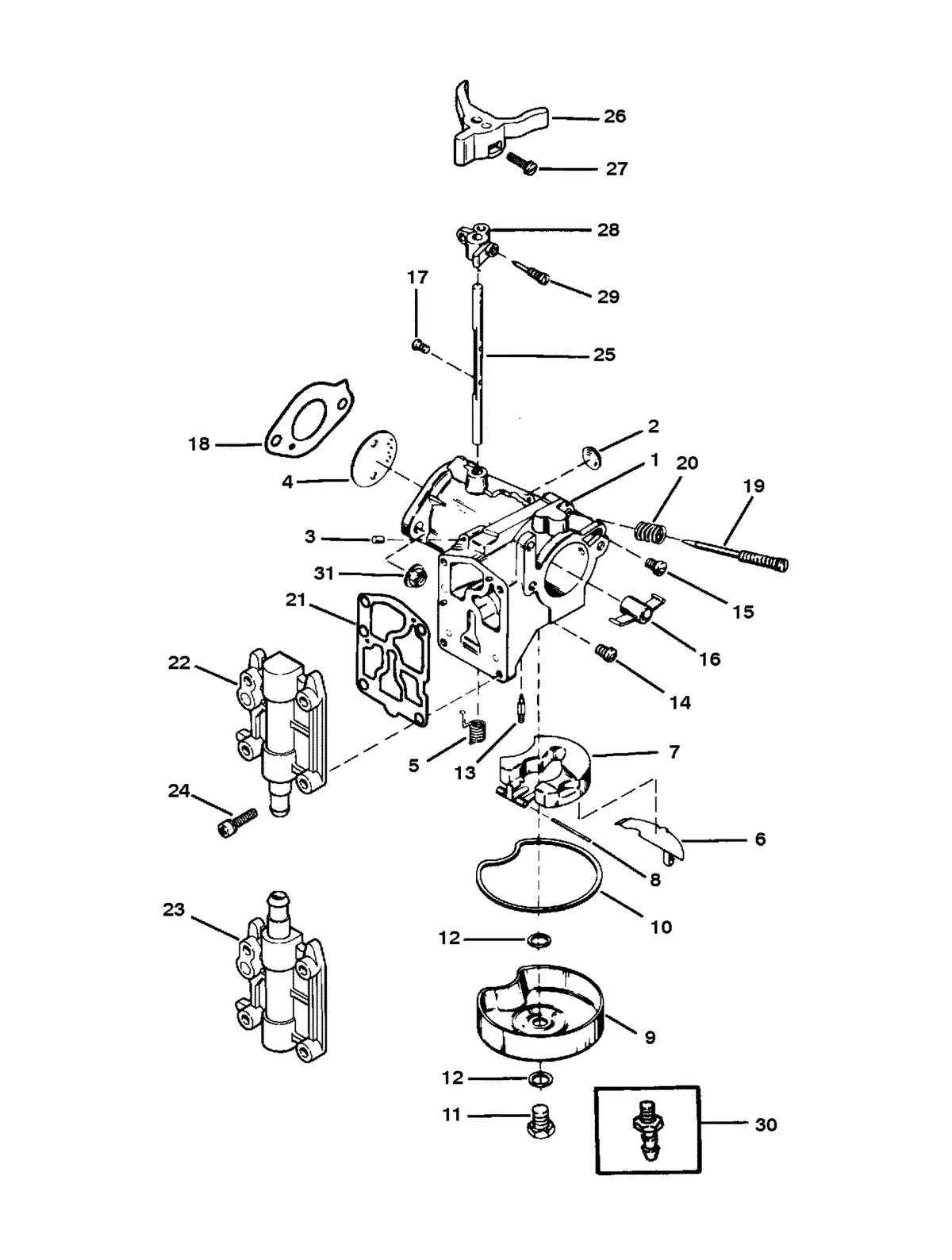

Aligning Carburetor Components with Your 40 Horsepower Outboard Inventory
Begin by locating the carburetor gasket set in the manufacturer’s catalog–item #22-77283A2 must match the brass sealing surface dimensions of your unit. Measure the diameter of the intake bore (typically 44mm) before ordering replacement parts; discrepancies here lead to vacuum leaks. If the existing gasket shows compression grooves, replace it immediately to prevent performance loss.
Verify the fuel pump diaphragm (#22-77283A4) thickness against the stock specification: 0.2mm tolerance is critical for consistent fuel delivery. Thinner aftermarket diaphragms fail under ethanol-blended fuels, causing lean mixtures. Peel back the cover plate and inspect for cracks–any visible distortion means the diaphragm needs replacement, regardless of age.
| Component | Catalog Reference | Critical Measurement | Failure Symptom |
|---|---|---|---|
| Needle valve (primary) | #22-77283A6 | 1.8mm stem length | Flooding at idle |
| Idle mixture screw | #22-77283A8 | 0.8mm orifice | Stalling on decel |
| Throttle plate | #22-77283A10 | 32° angle at WOT | Mid-range hesitation |
Pair the fuel enrichment valve (#22-77283A12) with the correct spring tension–factory springs exert 4.5N of force at full compression. Weak springs delay cold starts, while overly stiff ones cause bogging. Test by temporarily installing a pressure gauge at the enrichment port: readings below 2 psi confirm spring fatigue.
When sourcing float assemblies, confirm the float buoyancy matches #22-77283A14’s weight of 8.2g. Nylon floats absorb fuel over time, increasing weight and causing rich mixtures. Weigh each float before installation–discard any over 9g. Adjust the float height to 19mm below the carburetor body using a depth gauge; improper settings alter fuel delivery by up to 15%.
Check the venturi cluster (#22-77283A16) for corrosion around the emulsion tube holes–pitting here disrupts air-fuel ratios. Clean passages with 0.5mm wire only; larger tools strip threads. If the venturi’s internal diameter exceeds 24mm, it no longer matches factory airflow specs, warranting replacement instead of reconditioning.
Before reassembling, compare the throttle lever linkage (#22-77283A18) to the housing–clearance should not exceed 0.1mm. Loose linkages introduce play, making idle adjustments unstable. Lubricate pivot points with marine-grade grease; standard lithium grease washes out in 30 hours under load. If the lever’s throw exceeds 45°, the return spring (#22-77283A20) needs replacement–weak springs cause inconsistent engine braking.
Servicing Outboard Gearcase Elements with Authorized Schematics
Disconnect the battery and tilt the powerhead to access the gearcase. Match each removed fastener to the exploded view drawing–ignore visual similarities, as identical bolts may serve different torque specifications. For instance, the water pump housing bolts (p/n 22-897278) require 12 Nm, while propeller shaft bolts (p/n 22-85804) need 25 Nm. A torque wrench prevents thread stripping or improper sealing.
Inspect seals before reassembly. The gearcase oil seal (p/n 22-45546) must sit flush; any misalignment causes water ingress. Replace the impeller (p/n 22-154445) if vanes show wear–even minor fraying reduces cooling efficiency by 30%. Use the schematic to confirm orientation; the impeller’s curved edges face outward to maintain correct water flow direction.
Lubricate new components sparingly. Grease the shift shaft (p/n 22-800435) with marine-grade lubricant, but avoid overapplication–excess attracts debris. The lower drive shaft bearings (p/n 22-32438) demand a thin film of gear oil; press-fit them using a bearing driver matched to the schematic’s dimensions. Verify gear engagement by rotating the propeller shaft by hand–smooth movement confirms proper alignment.
Fill the gearcase with 80W-90 oil through the lower plug until it overflows from the upper vent. Overfilling causes pressure buildup; underfilling accelerates wear. Recheck all fasteners against the drawing after 10 operating hours–thermal expansion alters tolerances. Replace the sacrificial anode (p/n 22-852457) if more than 50% is corroded; failures allow galvanic damage to critical housings.
