Start by locating the lower unit assembly near the propeller shaft housing. The trim cylinder and gimbal bearing must align precisely during reinstallation–misalignment by even 2mm causes premature wear on splines. Refer to the 3.0L Alpha One exploded view when disassembling the drive housing; torque specifications for the water pump impeller bolts are 12-15 Nm, exceeding this risks stripping threads in the aluminum casing.
Examine the shift cable linkage before removing the drive plate. Corrosion on the forward gear coupling indicates contaminated gear lube–drain fluid within 5 hours of noticing metallic debris to prevent irreversible damage to the ring gear. For Bravo Three configurations, the upper intermediate housing gasket requires Permatex Ultra Black sealant applied to both mating surfaces to prevent water intrusion into the transom assembly.
When servicing the hydraulic steering system, bleed air from the lines using pressurized fluid starting at the helm pump and working toward the hydraulic cylinder. Failed steering often traces to worn piston seals–replacement kits should include Viton O-rings for saltwater applications. For Alpha Gen II models, the exhaust elbow flange bolts torque to 28-32 Nm; over-tightening cracks the riser housing.
Inspect the bellows prior to winterization. Cracks wider than 1mm near the universal joints require immediate replacement to avoid swamping the lower gearcase. Aftermarket bellows must match the OEM durometer rating of 60 Shore A to prevent flex fatigue under load. Zip-tie the wiring harness to the transom plate at 15cm intervals to prevent chafing against the gimbal ring.
Understanding Outboard Motor Component Schematics
Begin by locating the thrust plate assembly in your engine’s lower unit schematic–this critical area often corrode first. Use a magnifying glass to examine reference numbers imprinted on the casting; these correspond directly to the official breakdown provided by the manufacturer. Measure clearance between the gimbal housing and transom plate (ideal gap: 0.005–0.010 inches) before disassembly to prevent misalignment during reassembly.

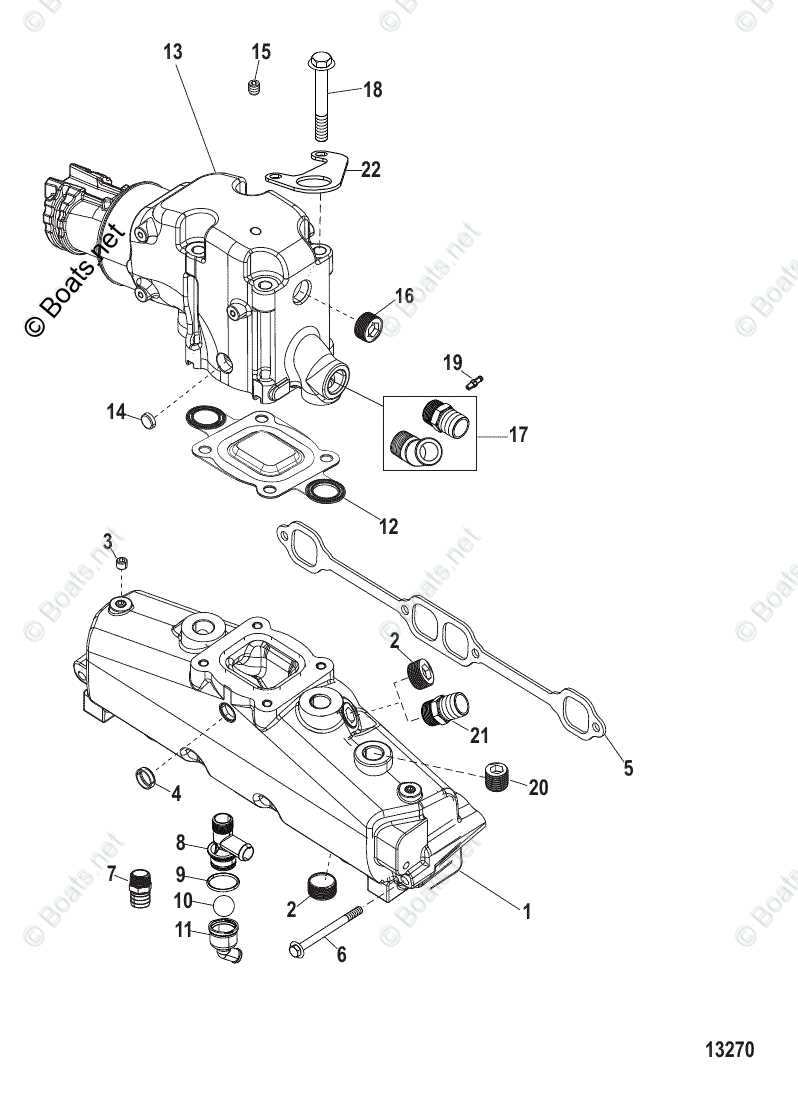

Consult the torque specifications table below when securing the exhaust elbow to the powerhead–over-tightening causes warping, while under-tightening allows exhaust leaks. Replace gaskets marked in red on the exploded view whenever removing components; pre-cut aftermarket versions frequently mismatch contours, leading to water intrusion.
| Component | Torque (ft-lbs) | Thread Sealant Required |
|---|---|---|
| Exhaust Elbow Bolts | 18–22 | Yes (Loctite 574) |
| Thrust Plate Fasteners | 25–30 | No |
| Shift Cable Housing Clamp | 8–10 | No |
Check the bellows boot condition using the visual guide–cracks wider than 0.5mm or soft spots indicate immediate replacement. Lubricate splines on the driveshaft with marine-grade grease (NLGI #2) before mating surfaces; dry splines seize within 50 operating hours. Note the gear ratio stamp on the propeller flange–mismatched ratios reduce fuel efficiency by up to 12%.
Trace electrical wiring harness paths using colored wires on the schematic–chafing typically occurs at the transom tie-bar. Test trim sender resistance (expected values: 0–100 ohms at full down, 2,400–3,000 ohms at full up) before assuming hydraulic failure. Replace the water pump impeller only if vanes show curvature beyond 2mm–minor deformities still allow adequate cooling.
Inspect the gimbal bearing for play by rocking the outdrive side-to-side–movement exceeding 0.020 inches warrants bearing set replacement. Apply dielectric grease to electrical connectors marked “S” or “P” to prevent corrosion in saltwater environments. Verify prop shaft seal installation orientation; inverted seals fail within 30 hours.
Use the numbered hydraulic cylinder sequence in the breakdown to bleed air from the power tilt system–bypassing steps 3 and 4 causes erratic trim operation. Cross-reference part numbers against the serial number decal on your unit; manufacturer updates frequently alter O-ring specifications without notice.
Common Missteps When Interpreting Assembly Blueprints
Skipping pre-torque measurements on bell housing bolts leads to uneven clamping force, warping mating surfaces. Many technicians incorrectly assume universal joint crosses are interchangeable–check alignment dowel locations on the schematic. Ignoring anodic plate placement (typically two per lower unit) accelerates galvanic corrosion, especially in brackish water.
Critical Areas Often Overlooked in Marine Propulsion Visual Guides
The trim limit switch bracket position affects engagement timing–adjust only after verifying angle with a digital inclinometer. Fuel pump diaphragm orientation on V6 models differs from inline-four configurations; reversed diaphragms rupture under pressure. Replace shift interrupt switch wiring if insulation shows green oxidation–intermittent failures mimic transmission issues.
How to Pinpoint Critical Elements in a Marine Propulsion Assembly Blueprint
Locate the universal joint at the base of the lower unit–the central pivot connecting the driveshaft to the propeller shaft. Check the component’s alignment codes: “UJ-400” (for inline 4-cylinder models) or “UJ-600” (for V6 variants) etched on the housing. Verify the spline count–21 teeth on standard gearcases, 23 on high-performance units–to confirm compatibility before disassembly. Inspect the rubber dust boot for cracks; a split seal (OEM #807960T) accelerates corrosion in the gimbal bearing. Replace the bellows and gimbal ring simultaneously to prevent misalignment torque.
Decoding Gasket and Seal Configurations
Examine the shift cable housing (part #31-813891A15) for excessive play–spec exceeds 0.030″ lateral movement. Cross-reference the oil pump impeller (typically #31-35703-1 or #31-35703-2) with the engine’s displacement: 3.0L uses a 6-vane rotor, while 4.3L models require an 8-vane variant. Match the exhaust elbow gasket material to the coolant type: graphite (#31-850130) for fresh water, copper-asbestos (#31-850131) for saltwater applications. Use a dial indicator to measure driveshaft endplay; tolerance ranges from 0.002″–0.006″ on Bravo One and 0.004″–0.008″ on Bravo Three configurations.
Official Sources for Genuine Marine Propulsion System Schematics
Start with the manufacturer’s authorized portal: Mercury Product Compliance Reports. The platform provides downloadable exploded views for all Alpha, Bravo, and Diesel outdrive models. Registration requires a valid serial number–enter it under the “Technical Publications” tab to access exact OEM blueprints. File formats include PDF and interactive SVG, allowing zoom and layer toggling.
- Bravo One schematics: section 3, pages 15–28 cover the bell housing assembly.
- Alpha One documentation: focus on sheet 7 for water pump housing details.
- Bravo Three: torque specs listed in appendix B, page 42.
Independent distributors like iBoats and Go2Marine host direct links to scanned manuals. Filter by year (2000–present) and select “Outdrive” under the category drop-down. Both sites include user-uploaded high-resolution scans, though verify against the original manufacturer’s version for updates–iBoats’ Bravo Two schematics may lag behind Mercury’s revisions by 4–6 weeks.
Marine Parts Express offers a searchable catalog with VIN-specific breakdowns. Input the outdrive’s 12-digit code (found on the transom plate) to retrieve trim-limit switch schematics or gimbal ring fastener diagrams. For legacy models (pre-2005), use their “Archived Documents” section–locate the splash well boot outline under model code 8M0067289.
How to Decode Marine Propulsion System Schematics
Locate the legend first–every manufacturer assigns unique identifiers to components, typically alphanumeric codes or color-coded lines. For example, hydraulic lines may appear as dashed blue traces, while mechanical linkages use solid red. Cross-reference these symbols with the accompanying table to avoid misinterpreting sensor wiring for fuel delivery paths.
Trace the power flow from engine block to propeller hub by following the thickest lines in the schematic. Start at the crankshaft coupling, noting spline counts (usually 17–23 teeth) and torque specifications (180–220 ft-lbs). Discrepancies here often indicate wear patterns unseen during visual inspections, such as micro-fractures in the gimbal housing.
Component Interaction Mapping
- Identify critical junctions: Where the shift cable (PN 860025) meets the upper gearcase assembly, ensure the interlock ball (∅12mm) sits flush. A recessed ball disrupts neutral-to-forward transitions.
- Verify seal placement: The water pump impeller seal (Viton, 0.030″ tolerance) must align with the housing groove. Misalignment causes coolant bypass, detectable via milkiness in exhaust.
- Check thermal expansion gaps: Exhaust manifolds require 0.060″ gaps at flanges. Use a feeler gauge; neglect triggers warping in aluminum heads.
Isolate sub-systems using dotted boundaries on the layout. The trim tab circuit, for instance, operates independently of the main lubrication loop but shares hydraulic fluid (40W mineral oil). Contamination risks arise if the 200-mesh strainer is bypassed during installation–replace it every 100 hours or post freshwater submersion.
Validate torque sequences for bolt clusters using the diagram’s inset tables. The transom bracket bolts (M12×1.75, grade 8.8) demand a 45–55 ft-lb incrementally applied in a star pattern. Reverse torque checks (15% above spec) prevent loosening from engine vibration, a common failure point in saltwater environments.
Post-Interpretation Verification
- Compare rendered schematic against physical components using a flashlight at 5° oblique angles–castings often reveal hairline cracks invisible head-on.
- Run a dielectric test on electrical harnesses (0.5–1.5 ohms normal); above 3 ohms indicates corroded terminals, below 0.3 suggests shorted circuits.
- Use a borescope to inspect internal passages obstructed by the flat illustration–especially the water jacket core plugs (∅25mm) prone to galvanic erosion.
