Replace the upper shift cable by first disconnecting the linkage at the transom plate. Release the cable housing clamp on the engine bracket–marked with a #85-8622 nut–then slide the cable free. Inspect the nylon sleeve (#85-8618-1) for cracks; failures cause delayed gear engagement. The lower unit must be fully trimmed down before removing the gimbal ring (#10-8M077751); torque the ring bolts to 30 ft-lbs in a cross pattern to prevent leaks.
Gaskets for the exhaust elbow (#27-33523A3) deform if reused. Install the new gasket dry–RTV sealant contaminates cooling passages. The thermostat (#35-8M12120A1) must face the brass pellet downward; an inverted install triggers chronically high temps. For the water pump impeller (#27-42646A2), replace both the housing (#27-33560A1) and the wear plate; a worn plate destroys a new impeller within 50 hours.
Bearing carriers (#17-832775A1) fail silently–noise occurs only after complete washout. Preload the carrier with 0.002–0.004″ of shim stock (#17-8M078751) before final assembly. Ignoring shimming guarantees premature carrier failure, typically within 100 engine hours. Corrosion on the trim sender (#25-19344A2) causes erratic gauge readings; clean contacts with DeoxIT before reinstalling.
Propeller shafts (#15-12801A1) with 1/16″ wear or visible pitting must be replaced–repair kits exist but void OEM hydrodynamic balance. Flush manifolds (#27-88143A1) with Barnacle Buster at 3 psi to clear salt deposits; restricted passages reduce cooling efficiency by 30%. Always verify exhaust riser (#27-861821) for obstructions post-maintenance–carbon buildup reduces horsepower delivery by 8-12%.

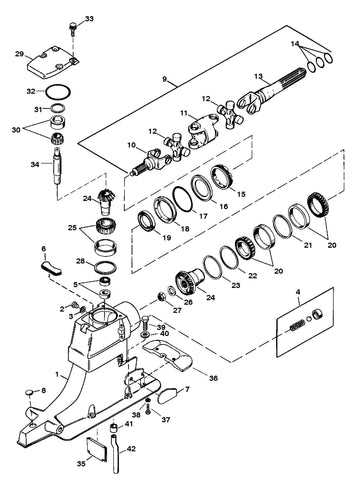

Engine Component Schematic for First-Generation Marine Outdrive
Locate the upper housing gasket (part #806984A1) in the assembly manual–it’s critical for preventing saltwater intrusion into the gearcase. Replace it every 100 hours of operation or if corrosion appears on the mating surfaces of the drive shaft housing. Pair it with fresh O-rings (#807179T) to maintain a watertight seal; mismatched sizes accelerate wear on the shift cable.
Key Wear Points in the Lower Unit
Inspect the propeller shaft bearings (#806798Q3) biannually–they should rotate freely without radial play exceeding 0.004″. Pair bearings with the correct thrust washers (#806797A2) to prevent lateral drift; misalignment here strips the forward gear teeth within 50 hours. Use lithium-based marine grease (NLGI 2) sparingly–overpacking pushes seals out of their grooves, leading to water ingress and premature clutch failure.
Finding the Outboard Assembly Breakdown Schematic for Early Single-Prop Models
Search official marine engine manufacturer resources for product literature archives. Sterndrive brands typically host PDF libraries with exploded schematics, filter by model year and serial number ranges–early iterations are usually classified under legacy product lines. Focus on propulsion system manuals rather than service bulletins to find detailed assembly illustrations.
OEM supplier portals and licensed distributor sites often mirror these documents. Navigate category trees labeled “stern drive components” or “lower unit assemblies”; early single-propeller variants share visual layouts with later revisions but differ in internal part numbering and fastener configurations, so verify the exact build date.
Third-party marine parts aggregators compile extensive image databases linking part numbers to high-resolution breakdowns. Use advanced search filters specifying the specific lower unit housing profile–earlier designs feature distinctive water pickup shapes and trim tab placements compared to subsequent generations.
Online forums dedicated to recreational boating mechanics frequently share direct downloads of rare manuals. Target threads discussing pre-2000 sterndrive models and search for keywords like “exploded drawing,” “disassembly illustration,” or “component layout chart.” Members often attach complete sections from hardcopy documentation scanned at high DPI.
If schematic views remain elusive, inspect the transom mounting surface of an existing unit. Early models imprint casting codes and date stamps near the trim sender bracket–cross-reference these markings with manufacturer tech support for tailored diagram retrieval.
Identifying Key Components in the Marine Sterndrive Assembly
Locate the upper gearcase housing first–it sits directly beneath the trim cylinder mounting bracket and houses the drive shaft, propeller shaft, and forward-reverse clutch mechanism. Markings on the housing often indicate torque specifications: 45-50 ft-lbs for the propeller nut and 18-22 ft-lbs for the water pump impeller bolts. Misalignment here causes cavitation, identifiable by pitting on the propeller blades; replace both the impeller and the wear ring if the clearance exceeds 0.015 inches.
Examine the shift cable linkage next–the stainless steel rod connects to the shift lever inside the gearcase via a ball-and-socket joint. Lubricate the joint with marine-grade grease (NLGI #2) every 50 hours; corrosion here manifests as stiff shifting or failure to engage gears. The bell crank, a zinc-coated pivot arm, transfers motion from the cable to the clutch dog–verify its movement range (90° ±5°) during disassembly to prevent premature dog wear.
Inspecting Critical Wear Points
Remove the gimbal bearing carrier–inspect the u-joints for play (0.030 inch max radial movement) and the carrier-to-transom plate gasket for deformation. Replace the gimbal bearing if its seals are compromised; water intrusion accelerates bearing failure, detectable by a rough, growling sound during operation. Apply thread locker (Loctite 242) to the carrier bolts (torque: 25-30 ft-lbs) to prevent galvanic corrosion in aluminum housings.
How to Interpret Your Marine Engine Schematic Like a Mechanic
Locate the assembly identifier in the upper-left corner of the schematic–this alphanumeric code (e.g., 8M0048001) specifies the exact model variant the illustration covers. Cross-reference this number with your engine’s serial plate before proceeding; mismatches indicate an incorrect chart.
Identify the exploded-view region at the center: components are arranged radially around their functional grouping, not in real-world orientation. Arrows between items denote sequence or direction of installation–solid arrows mark primary fasteners, dashed arrows show secondary connections like hoses or wires.
Use the callout numbers circled around each part to find descriptions in the adjacent legend column. This table pairs numbers with OEM part numbers, material specifications (e.g., stainless steel vs. zinc-coated), and quantity required per engine. Verify these counts against your engine’s existing hardware.
| Callout | OEM # | Description | Material | Qty |
|---|---|---|---|---|
| 3 | 27-86971 | Exhaust housing gasket | Graphite composite | 1 |
| 12 | 27-86423 | Shift lever pivot pin | 4140 alloy steel | 2 |
Trace the largest bolt patterns first–these typically secure the primary housings. The schematic outlines thread pitch (e.g., 1/2″-13) and torque values in foot-pounds directly beside each fastener icon. Overlooking these annotations risks stripping threads or improper clamping force.
Inspect sub-assemblies shown in separate boxes at the perimeter. These zoomed-in views reveal internal seals, bearings, or linkage systems not visible in the main view. Note orientation marks (e.g., “TOP” or directional arrows) on these cutaways, essential for correct reassembly.
Highlight discrepancies between the schematic and your actual engine components–aftermarket modifications or corrosion often alter original configurations. Document deviations in writing before ordering replacements to prevent delivery delays.
Download a digital copy of the schematic and annotate it with photographs of your engine’s current state. Overlay notes on wear patterns, missing components, or non-standard fasteners to streamline troubleshooting during repairs.
Common Misinterpretations
Beware of mirrored views–early schematics occasionally depict left-hand components as right-hand, requiring mental rotation. Confirm handedness by matching flange shapes or unique casting marks.
Critical Spares for Marine Drive Systems: Direct Replacement Codes
Replace worn impellers every 100–150 engine hours to prevent overheating. The standard water pump impeller (Quicksilver 805186Q02) fits models built between 1984–1997; verify shaft diameter before ordering. For later units (1998–present), use Quicksilver 878206A45–note the steel-backed hub difference. Always pair with fresh gaskets (814441A21 for early housings, 810001A17 for updated versions) to seal properly.
- Drive bellows (Sierra 18-7751) splits every 3–4 seasons; inspect for cracks at folds. Replace with Mercotac 854317T if internal vibrations are noticeable.
- Shift cables (Quicksilver 878205A4) fray near pivot ends–order 8M601242T for pre-1995 drives, 8M602177T for post-1995.
- Anodes (855154Q01) corrode unevenly; swap zinc hull and trim-tab anodes annually even if surface erosion appears minor.
Gearcase & Sealing Components
Upper gearcase bearings (SNR NU322, NTN 6307LLU) fail silently; listen for whirring at cruising revs. Seal kits differ by drive ratio–814081A4 for 1.81:1 (8M601262), 814344A2 for 1.97:1 (8M602190). Install seals dry; lube only after assembly with Quicksilver 92-39442 grease to prevent contaminant ingress. Replace prop shafts matching pitch–check spline count before sourcing; 17-spline shafts (Quicksilver 810055A15) fit 1986–2001, while 21-spline (810055A29) fits 2002–2012.
