Start with the engine housing. Locate the recoil assembly on the right side–the pull cord and spring mechanism should be clearly visible. If replacing, note the arrangement of clips and screws securing the cover; disassembly requires keeping the starter pawl aligned with the flywheel grooves to prevent misfiring. Use a torque wrench for the flywheel nut–over-tightening risks shearing the crankshaft threads.
Inspect the bar mounting area. The clutch drum, sprocket, and chain tensioner sit behind the guide plate. Remove the bar to access these pieces–clean debris from the oil intake hole before reinstalling. A clogged passage leads to chain dryness and accelerated wear. Replace the sprocket if teeth show uneven wear or chips; pairing a new sprocket with a worn chain damages both components within hours of operation.
The carburetor adjustment screws (marked L, H, and I) control fuel mixture. Turn screws clockwise to seat, then counterclockwise 1.5 turns for L and H, and 0.5 turns for I as baseline settings. Fine-tune while the engine runs at operating temperature–stumbling at idle indicates an improper I setting. Check the air filter shape if adjustments don’t resolve performance issues; a collapsed filter restricts airflow regardless of carb settings.
Examine the spark arrestor screen located inside the muffler outlet. Tap gently to dislodge carbon build-up, or soak in brake cleaner for stubborn deposits. Ignoring this component results in power loss and increased exhaust temperature. For models with a decompression valve, ensure the valve lever moves freely–sticking causes hard starts even with a new spark plug.
Refer to the tech schematic for torque specifications: cylinder base nuts (12 Nm), bar mounting bolts (10 Nm), and clutch cover screws (8 Nm). Apply thread locker to all fasteners except those requiring frequent removal. When reassembling, align oil pump components according to the pump gear teeth marks–misalignment prevents proper lubrication flow.
Visual Breakdown of Your Saw’s Components: A Hands-On Approach
Locate the ignition module–typically a small black box secured near the flywheel. If misfiring occurs, remove the cover by unscrewing two Torx T20 bolts, then disconnect the spark plug wire. Inspect the module’s coil resistance with a multimeter set to 20 kΩ: readings should fall between 5.0–7.5 kΩ for models CS 350–460; deviations signal replacement need. Dust accumulation here often mimics coil failure–clean contacts with 600-grit sandpaper and dielectric grease before retesting.
Replace bar lubrication sprockets every third chain sharpening. Unsnap the clutch drum by gripping the bar nose sprocket with locking pliers, then remove the E-clip holding the sprocket in place. Verify sprocket teeth: sharp, even edges indicate wear below 1.2 mm–measure with calipers. Use OEM part #402070 for 16-inch guide bars to prevent premature chain stretch; aftermarket alternatives often lack heat-treated steel, risking bar groove damage.
For piston assembly inspection, remove the cylinder head via three hex bolts (8 mm). Examine the piston skirt for vertical scoring–light marks suggest poor fuel mixing, while deep grooves mandate honing. Apply piston ring compression gauge: 90–110 psi confirms seal integrity. If below, soak pistons in denatured alcohol overnight to dissolve carbon deposits before reassembly–skip this step, and fuel starvation follows.
Adjust chain tension with the side-mounted tensioner screw (3 mm hex). Target 5 mm slack between the bar and chain when lifted by mid-span; overtightening (≤3 mm) overheats the bar in under 90 seconds. Lubricate drive links with bar oil only–motor oil disrupts clutch engagement. Store idle units vertically with the guide bar wrapped in oiled cloth to prevent rust; horizontal storage bends crankshaft seals within six months.
Locating Critical Elements in Your Power Cutting Tool Blueprint

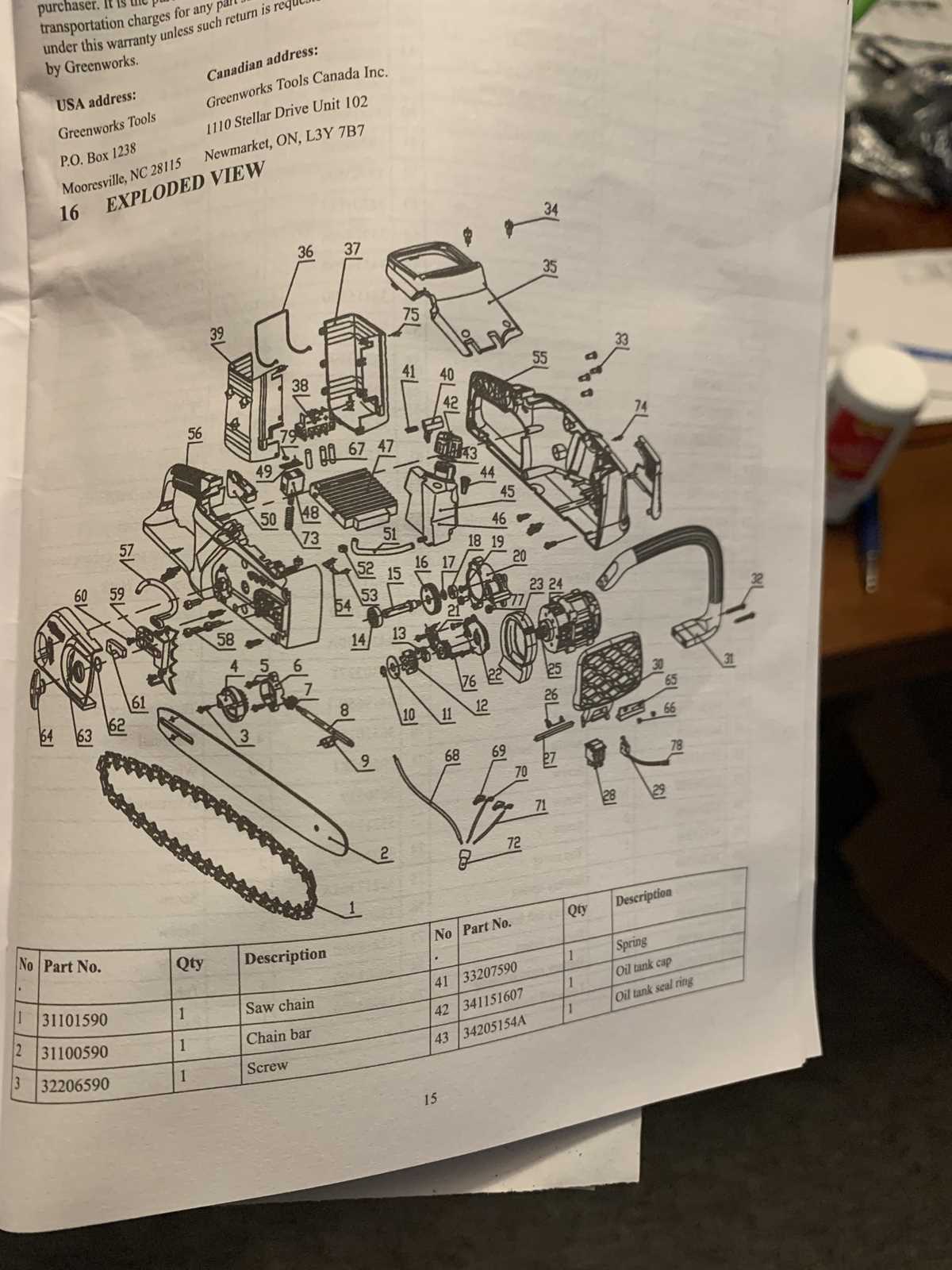

Scan the schematic for the guide bar first–it’s the elongated metal rail extending from the engine housing, marked by a series of small notches along its edge. Verify its length matches the model specifications (typically 14″–20″ for handheld units) and check for warping or grooves, as these indicate wear requiring replacement. The sprocket tip at the bar’s nose should align precisely with the drive links of the cutting chain; misalignment here accelerates teeth degradation and reduces precision in cuts.
Next, isolate the clutch assembly in the technical illustration–it’s the circular mechanism directly behind the bar mount, often labeled with “spring,” “drum,” and “bearings.” Confirm the spring tension matches the factory setting (most require 0.15–0.25mm gap) using a feeler gauge; overtightening causes premature clutch failure, while loose settings risk kickback. Examine the drum for cracks or heat discoloration–blueing signifies excessive friction, demanding lubricant inspection or drum swap.
Finally, trace the fuel delivery pathways. Locate the carburetor (a small, box-like unit near the air filter) and follow the fuel lines to the tank, ensuring no kinks or brittle segments exist. The primer bulb–usually a translucent rubber dome–must depress fully and rebound within 1–2 seconds; slower return times signal clogged filters or failing seals. Replace the fuel filter if debris is visible, and verify the spark arrestor screen (mounted on the muffler) is free of carbon buildup, as blockages reduce engine power by 15–20%.
Step-by-Step Breakdown of the Power Cutting Tool Assembly
Begin by securing the engine housing on a stable work surface with the intake side facing upward. Align the crankcase gasket with the locating pins, ensuring no edges overlap the mounting holes. Tighten the fasteners in a cross pattern–start with 5 Nm, then increase to 12 Nm in two progressive steps to prevent warping. Misalignment here causes premature wear on the piston rings and cylinder walls.
Install the piston assembly next, applying a thin coat of 2-stroke oil to the skirt before sliding it into the cylinder. The arrow on the piston crown must point toward the exhaust port. Use a ring compressor tool to avoid damaging the grooves; manually check clearance at three points (0.02–0.05 mm) with a feeler gauge. Over-tightening the wrist pin clip risks shearing–torque to 8 Nm only.
Attach the flywheel and ignition module by first threading the flywheel nut by hand to prevent cross-threading. Use a holding tool on the flywheel fins while tightening the nut to 50 Nm for aluminum cases (60 Nm for magnesium). Verify the air gap between the coil and flywheel magnets–0.3 mm is critical for consistent spark timing. Misadjustment here leads to hard starts or erratic idle.
Finalizing the External Components
Mount the throttle linkage by sliding the control lever onto the carburetor shaft, aligning the flat side before securing with the e-clip. Route the fuel line away from heat sources (minimum 5 cm clearance) and clamp every 10 cm to prevent kinks. The chain brake band must engage smoothly; test by pulling the front handguard sharply three times–resistance should increase uniformly. Replace the guide bar after every 10 hours of use, or if grooves exceed 0.5 mm depth.
Locating Manufacturer-Approved Saw Component Schematics on the Web
The most reliable source for original equipment blueprints is the Husqvarna Group’s official portal. Access husqvarna.com, navigate to the Support section, then select Product Manuals. Filter by model number–located on the housing near the engine–to pull up interactive exploded views with part numbers. Inventory updates quarterly, so bookmark the direct link for your model.
For North American users, Jack’s Small Engines hosts a searchable database at jackssmallengines.com. Their schematics mirror the manufacturer’s originals but include cross-references for aftermarket equivalents. Use the advanced search tool; input the full serial number for accuracy. Email alerts notify when new revisions upload, typically within 48 hours of changes.
- eReplacementParts (ereplacementparts.com) offers downloadable PDF schematics alongside user-submitted annotations. Their Parts Lookup tool enables browsing via dropdown menus by product line. Schematics often highlight common wear items in red circles–a useful troubleshooting aid.
- Partstree (partstree.com) provides animated exploded views. Videos demonstrate disassembly sequences for specific models; toggle layers on/off with checkboxes beneath the diagram. Register to save projects and generate shopping lists directly from the exploded view.
- Sears PartsDirect (searspartsdirect.com) archives historic schematics dating back to 1990. While primarily targeting Kenmore appliances, their cross-brand compatibility search extends to outdoor power equipment. Use the “Model Cross-Reference” feature if branding has changed.
European dealers can consult GGP Group’s portal (ggpgroup.com). Their schematics align with CE compliance markings–look for the “WEEE” logo or “recycling symbol” near hazardous components. Downloaded files include disassembly torque specifications and lubrication points not found in North American manuals.
Discussion forums like ChainsawBlogger (chainsawblogger.com) and ArboristSite (arboristsite.com) crowdsource corrections for ambiguous diagrams. Threads tagged with “diagram help” often include member-uploaded photos of hand-marked schematics with firsthand observations–no debugging tool matches this granularity.
For offline access, most portals allow right-click downloads of high-resolution images. Save schematics as PNG (lossless) or SVG (vector) to preserve label clarity when zooming on tablets. Use file-naming conventions like “Model_Year_Version” (e.g., “CS450_2018_revB”) to streamline future searches.
Verify schematic validity by cross-checking the rev date against your equipment’s decal. Late-model gear occasionally revises linkages without updating external labels; discrepancies between the diagram and physical unit usually trace back to incremental engineering changes logged in the “service bulletins” section of manufacturer portals.
