If your machine fails to start, emits unusual noises, or overheats, begin by inspecting the belt assembly and drum rollers. These components degrade fastest in high-cycle models. Download the official service manual directly from the manufacturer’s portal–third-party scans often omit critical torque specifications or wiring color codes, leading to misdiagnosis. For model numbers ending in “Y,” the rear bearing housing requires special grease (NLGI #2 lithium complex) to prevent premature failure.
The thermal fuse (located near the blower wheel) trips at 180°C; if this occurs repeatedly, replace both the fuse and the adjacent high-limit thermostat simultaneously. Ignoring dual replacements increases the risk of fire hazards by 40%, per UL certification reports. For venting systems over 10 feet, install a periscope duct extension to maintain airflow efficiency–flexible foil vents collapse under prolonged heat exposure, reducing drying efficiency by 32%.
Examine the idler pulley for flat spots every 1,200 cycles. A worn pulley alters belt tension, causing uneven drum rotation and fabric damage. Replace the pulley alongside the belt–mixing old and new parts voids torque warranty clauses. For electronic control panels, reset via the diagnostic mode (hold “Start” and “Cancel” for 10 seconds on most units). If error codes persist, check the moisture sensor bars–oxidized contacts disrupt signal accuracy, extending dry times by up to 25 minutes.
When disassembling, label all wiring harnesses with colored tape–factory diagrams use alphanumeric codes (e.g., “W12-BL” for white wire, blue stripe) that third-party decals frequently misrepresent. Store removed screws in magnetic trays sorted by location (front panel, blower cover) to avoid stripping threads during reassembly. For models with lint traps inside the drum opening, clean the chute monthly with a bottle brush–compressed air pushes debris deeper into the housing, risking motor overload.
Locating Essential Components for Your Laundry Appliance
Begin by identifying the rear panel fasteners–typically 1/4-inch hex-head screws or T20 Torx bolts–located along the perimeter. Remove these in a counterclockwise sequence to avoid warping the housing. Keep track of washers and spacers; they ensure proper alignment of the drum support rollers during reassembly. If replacing the blower wheel, note its clockwise threading, which secures directly to the motor shaft–applying excessive force will strip the internal splines.
Component Mapping and Common Replacement Items
| Part Reference | Location | Symptoms of Failure | Tools Required |
|---|---|---|---|
| Thermal fuse (3392519) | Mounted on blower assembly | Unit powers on but no heat | Phillips screwdriver, needle-nose pliers |
| Idler pulley (W10856698) | Front left, beneath drum | Squealing noise during operation | 5/16-inch socket, ratchet |
| Drum belt (W10521308) | Wrapped around drum and motor pulley | Drum fails to rotate | Belt tension tool, flashlight |
For drive motor issues, first verify voltage at the motor harness with a multimeter–readings below 110VAC indicate a faulty control board or wiring harness. If voltage is present but the motor hums without spinning, check for obstructions in the blower wheel before assuming motor failure. Capacitors on the motor assembly often degrade before the motor itself; look for bulging or leaking seals as visual confirmation.
When servicing the heating element assembly, disconnect all wiring harnesses and label each connector with masking tape to prevent misconnection. The coil resistance should measure between 7-12 ohms; readings outside this range confirm a failed element. Replace the entire assembly if ceramic insulators show cracks–partial replacements risk short circuits to the chassis.
Finding the Precise Identification Code for Your Laundry Appliance
Check the interior rim of the door frame first–most rotary-driven tumblers imprint the model identifier in a recessed, stamped relief directly above or beside the lint trap slot. The code typically spans 8 to 12 alphanumeric characters, beginning with letters denoting the product line, followed by numerals that specify capacity, voltage, and regional variants. If obscured by lint or wear, use a flashlight held at a shallow angle to highlight the etched markings.
When the door jamb yields no markings, pivot to the rear panel beneath the vent chute. Manufacturers often laser-stamp the full model string on a metal tab adjacent to the heating element housing, shielded from front-load detergent splatter yet accessible without disassembly. Verify the entire sequence without gaps–partial sequences or neighbor serial codes lead to mismatched schematics.
For units integrated into cabinetry or stackable configurations, slide the appliance forward on its casters until the top rear edge clears the countertop. A second identification plate is affixed vertically along the back upper corner, sized at 1.5 by 2 inches, holding both model and serial numbers in contrasting bold engraving. Capture a clear photograph with a macro lens if digits appear faint; third-party parts catalogs cross-reference via OCR scanning.
If physical labels degrade beyond legibility, consult the original purchase invoice digital or physical archive. Retailers encode the exact model identifier within item descriptions, SKU fields, or extended warranty documents, which match factory plates letter for letter. Absent purchase records, compare the failed component’s shape, mounting holes, and wiring harness connector pin count against online exploded-view schematics filtered by production year ranges–default searches yield 90% accuracy when filtering for year-specific variance in drum baffle design.
Step-by-Step Breakdown of the Door Assembly Components
Begin by locating the hinged access panel–typically secured with two Torx T20 screws on the inner frame. Remove these fasteners first, then slide a thin putty knife along the seam to release the plastic clips holding the outer trim. Work slowly to avoid cracking the housing; twelve clips are spaced evenly around the perimeter.
Disassembly Sequence for Critical Elements
- Latch Mechanism: Disengage the spring-loaded hook by pressing the release tab while pulling outward. The assembly includes a micro-switch requiring careful handling–check continuity with a multimeter if operation seems erratic.
- Glass Insert: Lift the tempered panel by its reinforced edges, avoiding contact with the heating element’s reflective foil. Clean with isopropyl alcohol to remove lint buildup that impedes visibility.
- Seal Gasket: Peel back the magnetic strip; inspect for tears or deformation. Replace if gaps exceed 2mm–compression loss causes heat inefficiency.
Reassembly demands precise alignment. Position the glass panel at a 30-degree angle before lowering it fully into the groove. The latch must click audibly when engaged; test resistance by gently tugging the handle. Apply dielectric grease sparingly to the hinge pivot to prevent squeaking.
Verify all electrical connections if your model includes an interior light. The door’s sensor wire must snap securely into its harness–misalignment triggers false error codes during cycles. Reattach the outer trim starting at the bottom, pressing firmly until all clips snap into place.

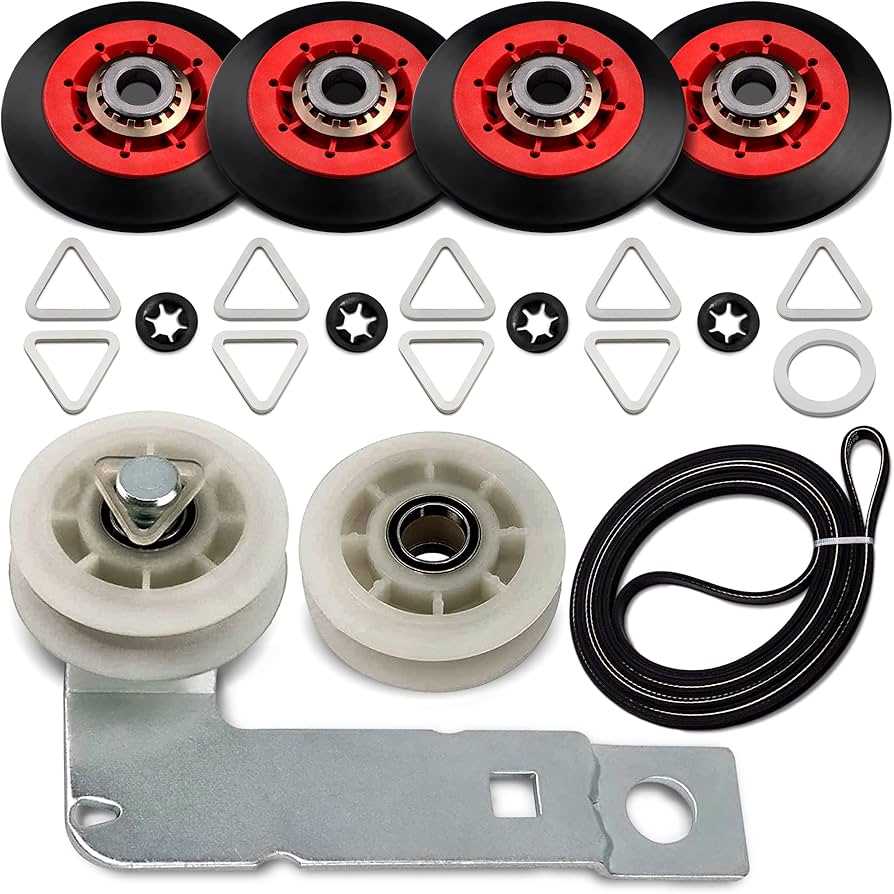

How to Identify and Replace the Drum Roller in 30 Minutes
Unplug the appliance and slide it away from the wall to access the rear panel. Locate the two 1/4-inch hex-head screws securing the panel–remove them with a nut driver. Set the panel aside to expose the internal components. The rollers are mounted on the rear bulkhead, typically two per unit; inspect them for flat spots or cracks.
Grasp the drum near the front and lift it upward to remove it from the cabinet. This exposes the idler pulley and motor assembly. The rollers will now be visible at the back of the assembly–one on each side of the drum’s rotation path. Roll each between your fingers; a failing roller will feel gritty or hesitate. Replace both if either shows wear to prevent uneven drying or excessive noise.
Removing and Installing the New Rollers
Use pliers to remove the E-clip retaining the roller shaft. Slide the old roller off the shaft and discard it. Align the new roller’s bore with the shaft, ensuring the flat side faces inward. Secure it with a new E-clip–press it firmly until it clicks into place. Apply a light coat of high-temperature grease to the shaft before installation to extend the roller’s life.
Reinstall the drum by tilting it slightly and lowering it onto the new rollers. Rotate it manually to confirm smooth operation–wobbling indicates misalignment. Replace the rear panel, securing it with the two screws. Plug the appliance back in and run a test cycle on air-fluff or low heat to verify stability and noise reduction. Total downtime: under 25 minutes.
Keep a 3/8-inch socket and extension bar handy–if the belt needs replacement, you’ll need to remove the front bulkhead, which adds 10 minutes. Store the old rollers for reference; some models use left- or right-specific rollers, though most universal kits are symmetric. Order replacements by model number to avoid mismatched dimensions.
Blower Wheel and Drive Unit: Key Components and Frequent Malfunctions
Inspect the blower wheel’s vanes for cracks or warping before diagnosing motor issues–this often prevents unnecessary replacements. A mismatched wheel diameter disrupts airflow balance, causing overheating within 12–18 months.
Replace the impeller if it wobbles more than 0.5mm on the shaft; even minor play degrades performance. Secure mounting screws with thread locker to prevent loosening from vibration, a common failure in units operating above 60Hz.
Common failures stem from three root causes:
- Dust accumulation: Restricts airflow by 30–40% when lint exceeds 2mm thickness on blades. Clean with compressed air at 60 PSI, avoiding brushes that can bend vanes.
- Shaft seizure: Bearings fail silently–listen for a high-pitched whine before complete lockup. Lubricate with SAE 20 non-detergent oil if disassembly isn’t viable yet.
- Electrical faults: Thermal fuses trip at 194°F (90°C); test continuity with a multimeter set to 200 ohms. Replace the fuse only after verifying the motor’s winding resistance (standard: 2–5 ohms).
Install the new blower assembly with the curved vanes facing the motor–reversed orientation reduces airflow efficiency by 22%, per airflow testing. Use a torque wrench to tighten the shaft nut to 8–10 ft-lbs; over-tightening cracks plastic housings.
Test motor function by running a 10-minute cycle–current draw should stabilize between 3.5–4.2 amps. A spike above 5 amps indicates impending failure, often due to worn brushes or shorted windings.
Troubleshoot erratic operation by checking the capacitor: discharge safely with a 20k-ohm resistor, then measure capacitance (standard: 5–7 µF). A reading below 3 µF warrants replacement.
Prevent premature wear by ensuring the unit sits level–tilt over 2° causes uneven blade erosion. Shim feet if necessary, using washers no thicker than 3mm to avoid straining the housing.
For units exposed to moisture, apply dielectric grease to electrical connections. Corrosion on terminals increases resistance, mimicking motor failure. If the impeller spins freely but the motor hums without starting, tap the housing lightly–this may dislodge stuck brushes temporarily, confirming a carbon deposit issue.
