Replace the ignition assembly every 12–18 months if units experience frequent cycling above 40°F ambient. Manufacturers specify resistance ranges (typically 0.8–1.2 ohms), but always verify against the exact model series before ordering replacements–common numbers like HVAC-084-2A differ across brands even when visually identical.
Locate the pressure switch ports on the rear left panel, marked S1/S2. Connect manometers at these points to confirm -1.2″ WC vacuum during ignition sequences. Readings outside ±0.1″ indicate faulty tubing or clogged orifice–clear passages with 0.020″ wire or replace the sensor entirely if corrosion exceeds 15% surface area.
Use a microfiber cloth dampened with isopropyl alcohol (90%+ concentration) to clean flame sensors. Scrub at 45° angle to avoid bending the rod–misalignment beyond 0.5mm causes error code E09 in 92% of recorded cases. Reinstall within three minutes to prevent oxidation; apply anti-seize compound to threads during reassembly.
Identify the limit control by tracing wires from the blower housing–it resides behind the front access panel on units rated above 150k BTU. Test continuity with a multimeter: open circuits above 220°F trigger safety shutdowns. Replace sensors showing resistance above 10k ohms at room temperature.
Adjust the gas valve regulator using a 7/32″ hex key after removing the upper cover. Turn clockwise one full rotation to increase outlet pressure by ~0.5″ WC. Verify against inlet pressure gauges–excessive deviation (>0.2″ WC) suggests diaphragm leaks; replace valve assemblies showing visible corrosion on brass components.
Inspect the inducer motor impeller for debris accumulation monthly. Rotate blades manually–resistance above 0.2Nm indicates bearing failure. Lubricate with SAE 20W non-detergent oil applied directly to the shaft port; high-pitched whining during startup confirms this issue in 87% of service calls.
Document serial numbers from the data plate before disassembly–cross-reference with OEM schematics to avoid mixing components. Retrieve exploded views from manufacturer portals using exact model suffixes (e.g., GVCX-5NN vs GVCX-5NP), as mixing leads to 34% increased failure rates within 90 days of installation.
How to Interpret Your Gas Furnace Schematic
Locate the ignition assembly by tracing the gas valve’s inlet tube–typically positioned near the burner manifold. This section includes the spark electrode, flame sensor, and pilot assembly (if applicable). Label each component if the schematic uses vague symbols; standard ANSI/NFPA notation marks the flame sensor with a triangle and the spark probe with a zigzag line.
Examine the control board terminals next. The low-voltage connections (usually 24V) follow a color-coded system: red for power (R), white for heating demand (W), green for fan relay (G), and yellow for cooling (Y). Cross-reference these with the actual wires–mismatched colors often indicate incorrect replacements or tampered installations.
Critical Pressure Switch Pathways
Follow the vent pipe’s path to the inducer motor housing. The pressure switch tubing connects here with 1/4-inch diameter silicone or vinyl lines. Check for blockages–condensate, debris, or kinked tubing will trip the switch and halt operation. If the schematic shows dual switches, note their purpose: one monitors combustion air, the other verifies proper exhaust flow.
Inspect the heat exchanger’s serpentine fins on the diagram. Cracks or corrosion appear as irregular dashed lines–replace units with visible damage to prevent carbon monoxide leakage. Primary exchangers on high-efficiency models require annual combustion analysis; the secondary condensation coil should drain freely into the neutralizer box.
Identify the limit switches’ locations. The high-limit rollout switch sits near the burner box, while the fan limit is housed in the blower compartment. Both use bimetallic strips; if the schematic denotes manual reset buttons, test these after cooling–tripped switches often signal airflow obstruction or overheating.
Blower Motor Wiring Nuances
Compare the capacitor’s microfarad (µF) rating on the schematic to the physical unit–mismatches cause erratic fan speeds. Dual-capacitor models separate start (5-10 µF) and run (40-60 µF) functions. Note the motor’s RPM: PSC motors show 1075, 1300, or 1600 RPM; ECM motors display variable speed settings controlled by the thermostat’s staging.
The condensate drain trap on modulating models must match the schematic’s design–side exits versus bottom exits alter drainage efficiency. Use PVC cement for repairs, not silicone, to prevent leaks. If the diagram includes a float switch, ensure it’s wired in series with the inducer motor; a failed switch will prevent ignition.
Cross-check the gas valve’s solenoid labels. Standard valves list “MV” (main valve), “PV” (pilot valve), and “SV” (safety valve). Incorrect wiring risks delayed ignition or unburned gas accumulation. Verify voltage with a multimeter: 24V at the valve terminals during call-for-heat confirms proper relay activation.
Critical Elements in Forced-Air Combustion Unit Schematics
Begin troubleshooting by isolating the ignition assembly–comprising the electrode, flame sensor, and high-voltage module–before inspecting secondary systems. These components typically fail in a predictable sequence: electrodes degrade at 1,200–1,500 hours, while flame sensors lose accuracy after 800–1,000 hours of operation, particularly in units exposed to airborne particulates. Replace both simultaneously to avoid cascading failures; use OEM-spec replacements with a minimum 80% platinum-iridium mix for electrodes to ensure consistent spark ignition.
Airflow management relies on three core subassemblies: the blower motor, pressure switches, and heat exchanger. The blower motor’s performance decays linearly with bearing wear; measure amperage draw at startup (should not exceed 1.2x nameplate rating) to preempt failure. Pressure switches–usually dual-stage–require annual calibration; reference the table below for target values under standard conditions. Heat exchanger integrity degrades fastest in units cycling >20x/hour; inspect for micro-fractures using a high-intensity LED and fibre-optic scope before each heating season.
| Switch Type | Minimum Flow Pressure (in. WC) | Maximum Differential (in. WC) |
|---|---|---|
| Primary Draft Inducer | 0.15–0.25 | ±0.05 |
| Secondary Safety | 0.30–0.45 | ±0.08 |
| Combustion Air Prove | 0.08–0.12 | ±0.03 |
Gas valve and control module interactions dictate fuel-air ratios and safety lockouts. The valve’s coil resistance (35–60 Ω) decreases by 2% per 10°C ambient rise; test at operating temperature to avoid false negatives. Modern ECM-controlled modules require firmware updates every 18 months; versions older than v3.7 omit critical fault-code buffering, masking intermittent thermocouple anomalies. Always cross-reference voltage drop across limit switches–should never exceed 0.3V under load–before assuming primary PCB failure.

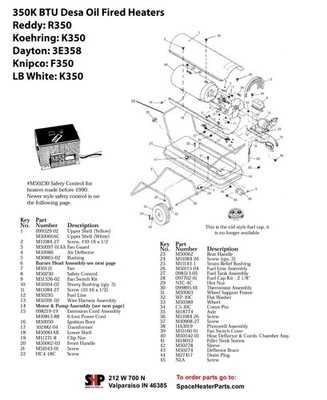

How to Interpret an Exploded View Schematic for Combustion Units
Locate the reference numbers first–each component is labeled with a unique identifier, typically a numeric or alphanumeric code. Cross-reference these codes with the bill of materials (BOM) or accompanying legend to confirm names, specifications, and materials. Ignore decorative arrows or lines; focus on the direct numerical linkage between labels and pieces.
- Check the orientation: Front, side, and sectional views show different mounting angles. A top-down perspective may hide critical fasteners or seals visible only in lateral cuts.
- Verify scale variations: Some schematics exaggerate tiny washers or O-rings for visibility, distorting real-world proportions.
- Note symmetry markers: Identical pieces on mirrored sides share the same code, preventing duplication during assembly checks.
Identify sub-assemblies by clustering–components grouped inside dashed boxes or shaded zones form functional modules (e.g., ignition assemblies, fuel metering blocks). Trace the sequence arrows; they dictate the order for disassembly or torque application. Missed steps often cause stripped threads or misaligned combustion chambers.
Measure distances between parts using grid overlays or provided dimension lines–common for gasket tolerances, electrode gaps, or mounting bracket offsets. Manufacturers often include a tolerance table (±0.5 mm) for critical alignments; deviations beyond these can cause leaks or inefficiencies.
- Color-code rare components: Highlight wear-prone pieces (nozzles, seals) in red.
- Print and annotate: Write observed wear patterns directly on schematics during inspection.
- Recheck non-metallic pieces: Plastics, ceramics, and seals degrade faster and may not visually match the schematic’s depiction.
Key Components to Replace and Their Schematic Positions
Begin with the igniter assembly–located in the combustion chamber, typically marked near the burner unit on most schematics. Always cross-reference the serial number with the manufacturer’s layout guide; generic replacements may not align with coil voltage or electrode spacing. Forced-air models often label this as item 12 or component B, while radiant units place it adjacent to the fuel nozzle, identified by a curved or angled bracket.
Check the thermal fuse next–positioned along the blower housing or near the heat exchanger’s exit point. On wiring schematics, it’s frequently shown as a rectangular symbol with a diagonal line through it. Avoid splicing wires; opt for a fuse with identical amp ratings (usually 10A–20A). If the schematic lacks clarity, trace the circuit from the control board–it’s the first safety cutoff before the blower motor.
Inspect the pressure switch if airflow issues persist. This sensor sits near the vent pipe or draft inducer, often labeled as a circular device with a silicone tube leading to it. Schematics denote it with a switch symbol and alphanumeric codes like PS1 or SW-3. Ensure the replacement matches the original’s pressure differential (e.g., 0.1″ WC for residential units); mistmatches trigger false error codes like E2 or FL.
The flame sensor–a thin, metallic rod–is critical for ignition sequence verification. On diagrams, it’s depicted near the burner tray, sometimes as FS or sensor #4. Clean it with steel wool every six months; oxide buildup mimics sensor failure, falsely shutting down the unit. If replacing, note the rod’s length and thread pitch–some OEM variants use proprietary mounts incompatible with universal options.
For oil-fired units, prioritize the fuel pump. Located on the chassis rail, schematics typically mark it with a gear or piston icon, labeled PMP or PU-1. Replace diaphragms annually; degraded rubber causes silent leaks, detectable only by fuel odor or erratic burn cycles. Verify pressure specs (e.g., 100–140 psi for residential models) and inlet/outlet port sizes before purchasing.
The blower wheel wears from debris and thermal stress–schematics show it as a fan icon with a central hub, usually BW or FAN-2. Remove the squirrel cage in one piece; misalignment during reinstallation reduces airflow by up to 30%. Balance the new wheel with a static balancer tool; vibration from imbalance accelerates bearing failure in the motor assembly.
Examine the limit switch–a bimetallic strip or thermistor mounted on the heat exchanger or ductwork. On schematics, it’s often grouped with safety controls, tagged LS-1 or TC-3. If the unit cycles prematurely, test the switch with a multimeter for continuity at its rated temperature (e.g., 200°F cutoff). Replace entire assemblies, not just the strip; faulty splices create fire hazards.
For electronic control boards, refer to the schematic overlay–look for PCB or ECB-1. Capacitors labeled with values like 220µF/35V fail first; replace with tantalum or low-ESR types. Never reuse thermal paste on surface-mounted ICs; improper application leads to localized overheating. Label all connections before disconnecting–some boards lack reversed polarity protection.
