Replace the burner assembly only after verifying gas pressure at the regulator output–typically 11 inches of water column for standard propane systems. If readings deviate, adjust the regulator spring tension using a flat-head screwdriver while monitoring a manometer. Loose or corroded igniter electrodes cause inconsistent sparking; clean with fine-grit sandpaper and space at 3-4mm from the burner’s flame spreader plate.
Inspect the grease tray for warping–excessive heat cycles degrade 0.8mm aluminum within 200 operating hours. Replacements should match OEM thickness; thinner aftermarket trays distort under standard 500°F searing temps. The drip pan gasket compresses over time–silicone-based replacements retain seal integrity longer than fiberglass under cyclic thermal stress.
Stainless steel crossbars in the grated cooking surface expand 0.12% per 100°F–account for this when aligning new purchases. Misaligned bars warp unevenly; use a precision straightedge during reinstallation. The windscreen’s mounting holes elongate after 75 heating-cooling cycles–reinforce with stainless steel washers to prevent loosening during transport over rough terrain.
Thermocouple failure triggers a 3-second safety cutoff. Test voltage output–30-50mV indicates normal function. Below 20mV, replace the sensor. The safety valve solenoid draws 0.3A at 12VDC–verify power delivery with a multimeter at the control panel harness connector. Corroded wires from saltwater exposure require marine-grade heat-shrink tubing for reliable insulation.
Hinged lid mechanisms seize when grease residue polymerizes–degrease monthly with isopropyl alcohol before applying PTFE-based lubricant to pivot points. The lid’s gas strut loses pressure linearly over 4,000 cycles–calculate remaining force using F=(P1 × V1)/V2, where P1 is initial pressure (120 PSI) and V1/V2 are strut volume ratios.
Understanding Your Gas Burner Assembly Schematic
Locate the burner base ring first–positioned at the bottom of the firebox–before disassembling any components. This ring secures the flame disperser and prevents grease buildup from clogging gas ports. Use a 7/16-inch socket to remove the three bolts holding it in place; label each bolt by size if working near other hardware to prevent mix-ups during reassembly. Failure to reinstall this ring snugly causes uneven heating, often mistaken for faulty valves.
Inspect the venturi tubes annually, especially if ignition becomes sluggish or flames appear yellow. These metal ducts, attached to the control knobs, draw in air to mix with propane. Clear debris using a 0.035-inch wire–anything thicker scratches the brass, disrupting airflow. Check for cracks where the tube meets the orifice; hairline fractures allow gas leaks detectable only with soapy water, never an open flame. Replace cracked tubes immediately–no temporary fixes exist.
Common Replacement Components and Compatibility
| Component | OEM Part Number | Aftermarket Alternative | Tool Required |
|---|---|---|---|
| Ceramic igniter | A10-003 | Weber 7557 | Phillips #2 |
| Stainless cooking grate | B22-985 | BroilKing 126614 | 10-mm wrench |
| Thermocouple | T40-110 | DCS 35200 | 7/32-inch nut driver |
Swap corroded burner caps with stainless models weighing 1.2 lbs; lighter aluminum versions warp at temperatures above 550°F. When installing replacement caps, align the notch over the gas port–a misstep voids the one-year warranty. Store original caps indoors during off-seasons; UV exposure degrades the protective coating within 18 months.
Grease trays require monthly removal and cleaning with degreaser. Soak trays in 140°F water for 20 minutes to dissolve hardened residue–scrubbing with steel wool removes the non-stick finish. Dry trays upside down to prevent moisture pooling near seams; trapped water rusts the tray within one season. Apply food-grade mineral oil to the tray edges before reinserting to ease future removal and deter corrosion.

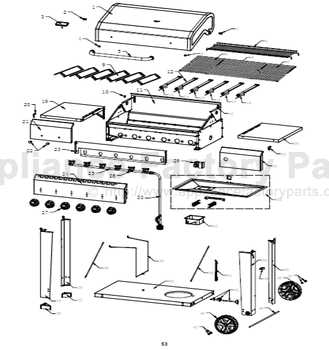

Locating Critical Elements in Your Burner Assembly Breakdown
Begin with the firebox–this rectangular base houses the burner tube and must align precisely with the venturi ports near the control knobs. Misalignment here disrupts gas flow, leading to uneven heating or ignition failures. Check the brass fittings connecting the propane hose; corrosion or loose threading here often causes leaks, so verify tightness with a soapy water test before each use.
The burner tube’s perforations require biannual inspection for clogs from grease or carbon buildup. Use a wire brush or compressed air to clear obstructions, ensuring uniform flame distribution. The ignition electrode–positioned adjacent to the burner–should sit roughly 3mm from the tubing edge; adjust if sparks fail to reach the gas outlet.
Examine the heat diffuser plates above the burner assembly. Warping from high temperatures reduces cooking efficiency and creates hot spots. Replace plates showing discoloration or deformation; aluminum models degrade faster than stainless steel. The grease tray beneath must slide freely–lingering residue accelerates flare-ups and rust.
Control valves demand periodic lubrication with food-grade silicone to prevent stiff rotation. The thermocouple–attached to the safety shutoff–must generate at least 20mV when heated; lower readings indicate replacement need. Verify the regulator’s PSI output (typically 10-11″ WC) with a manometer if flames appear weak or yellow-tinged.
Gasket seals around the hood and body vents deteriorate over time, compromising heat retention. Replace cracked or brittle seals immediately; neoprene lasts longer than fiberglass alternatives. For portable models, check the rear panel’s hinge pins–excessive play causes misalignment, while corrosion leads to difficulty opening or closing.
Finding and Purchasing Genuine Burner Component Replacements
Identify the exact model of your outdoor cooker by checking the serial plate–usually affixed beneath the side shelf or inside the cabinet base. Record the full model number, including any suffixes, as manufacturers update sub-assemblies frequently. Without this data, locating compatible components becomes nearly impossible.
Download the official service manual directly from the manufacturer’s support portal. Key sections to examine include the exploded view pages, which detail every piece by part number, and the troubleshooting appendix listing common failure codes. Print or save these pages for offline reference to avoid repeated downloads.
- Search authorized dealers by filtering for “factory-direct suppliers” rather than third-party resellers–official stockists guarantee identical metallurgy and heat tolerances.
- Compare pricing across three reputable distributors before ordering; genuine replacements often carry a 5-10% variance in cost.
- Avoid listings lacking detailed descriptions or offering “universal” alternatives, which rarely fit without modification.
Place orders using the exact OEM numbers, specifying required quantities. If inventory appears low, request back-order notification timelines–some specialty alloys require 3-4 week lead times. Select expedited shipping only if documenting urgent failure; standard delivery suffices for preventative upgrades.
Validate shipments immediately upon arrival. Cross-reference each item against both the packing slip and the original service diagrams. Inspect for damage, particularly to heat shields and threaded connectors, which sustain shipping stresses. Reject partial shipments unless arranged in advance; most suppliers enforce strict return policies for opened packages.
Assembling Your Portable Cooking Station: A Detailed Guide
Lay out all components on a flat surface before starting. Verify each piece against the provided schematic–metal fasteners, hinges, burners, and the main frame should match the reference numbers. If any elements are missing or damaged, contact the manufacturer immediately to avoid delays.
Attach the base legs to the undercarriage using the pre-drilled holes. Secure them with the included hex bolts, ensuring they’re tightened evenly. Uneven installation can cause instability during use. Use a torque wrench set to 15-20 Nm for consistent pressure.
Slide the burner trays into their designated slots along the cooking surface. Align the gas ports with the intake valves–they should click into place without force. If resistance occurs, check for bent edges or debris. Wipe each tray with a damp cloth to remove protective coatings before first ignition.
Connect the regulator hose to the fuel source, then thread it through the designated opening in the side panel. Hand-tighten the coupling, then use pliers for an additional quarter-turn to prevent leaks. Test the connection by spraying soapy water along the joint–bubbles indicate escaping gas, requiring reassembly.
Position the heat diffusers above the burners, ensuring they sit flat. These plates distribute temperature evenly; misalignment can create hotspots and uneven cooking. Fasten them with the provided thumbscrews–no tools needed unless corrosion is present.
Install the side shelves by inserting the support brackets into the frame’s side channels. Secure them with the locking pins, then test for wobble. If loose, apply thread locker to the pins before final tightening. These surfaces should support at least 15 lbs without sagging.
Mount the control knobs onto the valve stems, aligning the indicator marks with the off position. Press firmly until fully seated, then test each knob for smooth rotation. Stiff movement suggests misalignment–adjust the stem or replace the knob if necessary.
Perform a final inspection by rotating each component and checking for loose fasteners. Ignite the burners briefly to verify blue flames–yellow tips indicate incomplete combustion, requiring air intake adjustment. Extinguish, then wipe all surfaces with food-safe degreaser to remove manufacturing residues.
