Start by securing the slide assembly–this includes the barrel, recoil spring, guide rod, and extractor. The barrel should have precise rifling (typically 1:16″ twist for .45 ACP) and a properly timed link to ensure reliable cycling. Misalignment here causes feeding failures or jams, especially with hollow-point or +P ammunition. Always verify the barrel’s crown: a damaged or irregular crown degrades accuracy immediately.
Inspect the frame’s rails and disconnector. The rails must be smooth but not overly worn–rough edges or excessive play (beyond .003″) will lead to slide bite or inconsistent lockup. The disconnector should snap crisply into place; a sluggish reset indicates worn surfaces or debris buildup. Function-test it by dry-firing and releasing the trigger–any hesitation signals a need for replacement or polishing.
The grip safety demands attention: its engagement point must be neither too high (preventing firing) nor too low (compromising safety). Adjust the beavertail or main spring housing if necessary–aftermarket extended models reduce slide bite but require precise fitting. Check the sear’s engagement surfaces; wear here causes light or inconsistent trigger pulls, increasing the risk of accidental discharges.
Use a dedicated schematics reference (e.g., Colt or Para-Ordnance exploded views) to cross-check parts positioning. Critical tolerances: firing pin protrusion (.060″-.070″), extractor tension (8-12 lbs), and headspace (.006″-.008″). Calipers and a headspace gauge are non-negotiable for accurate assessment. Replace springs preemptively after 3,000 rounds–coil bind shortens service life and leads to malfunctions.
Lubricate sparingly: apply grease to the barrel link and frame rails, oil the slide rails and trigger mechanism. Avoid over-lubrication–excess attracts debris, causing sluggish operation. For duty use, opt for CLP or Mil-Tec grease; lighter oils evaporate under sustained fire. Test function with snap caps after reassembly–a failure to cycle indicates misaligned or damaged components.
Understanding the Breakdown of a Classic Browning-Design Firearm
Begin disassembly by ensuring the chamber is clear–visually verify no cartridge remains. Depress the recoil spring plug with a non-marring tool (brass or polymer) while rotating the barrel bushing clockwise until it locks in place. This allows the guide rod and spring to slide free from the slide assembly without binding. Failure to align the bushing notch with the barrel lug risks damaging the guide rod threads or the plug seat.
Separating the receiver from the slide requires pulling the slide rearward until the hammer lowers, then lifting the take-down lever upward. The slide should now move forward off the rails–apply consistent pressure to avoid misalignment. If resistance occurs, check for accumulated fouling in the rails or a displaced firing pin stop. Lubricate contact points sparingly; excessive oil attracts debris, leading to malfunctions.
Component Identification and Common Wear Points
| Component | Material | Service Interval | Failure Signs |
|---|---|---|---|
| Barrel link | Carbon steel (hardened) | 500–700 rounds | Cracked or elongated pivot hole |
| Extracting claw | Tool steel (heat-treated) | 1,000–1,200 rounds | Chipped edge or rounded hook |
| Disconnector | Spring steel | 800–1,000 rounds | Flattened nose or sheared surface |
Inspect the sear and hammer hooks under magnification–microscopic cracks propagate rapidly under stress. Replace both if wear exceeds 0.002 inches (0.05 mm) on either hook. The grip safety tang must pivot freely; polish binding surfaces with 800-grit aluminum oxide if stiffness persists after cleaning. Tighten mainspring housing screws to 25 in-lbs; over-torqueing distorts the frame rails.
Reassembly Sequence and Critical Checks
Insert the firing pin into the slide channel, ensuring the rear pin stop cutout aligns with the stop tab. The extractor should snap into place with audible resistance–if it seats loosely, the tension screw requires adjustment (standard torque: 12 in-lbs). Reattach the slide to the frame by reversing the take-down steps, then dry-fire the unit three times while monitoring hammer fall. A sluggish reset indicates a binding sear or weak mainspring; reassess both.
Function-test the safety mechanisms after reassembly: thumb safety must lock the trigger without slop, and grip safety must prevent hammer drop when depressed. For suppressors or heavy recoil springs, install a firing pin weight (e.g., Wilson or EGW) to prevent primer cratering. Final step: apply a light coat of anti-seize compound to the barrel bushing threads–this prevents galling during repeated disassembly.

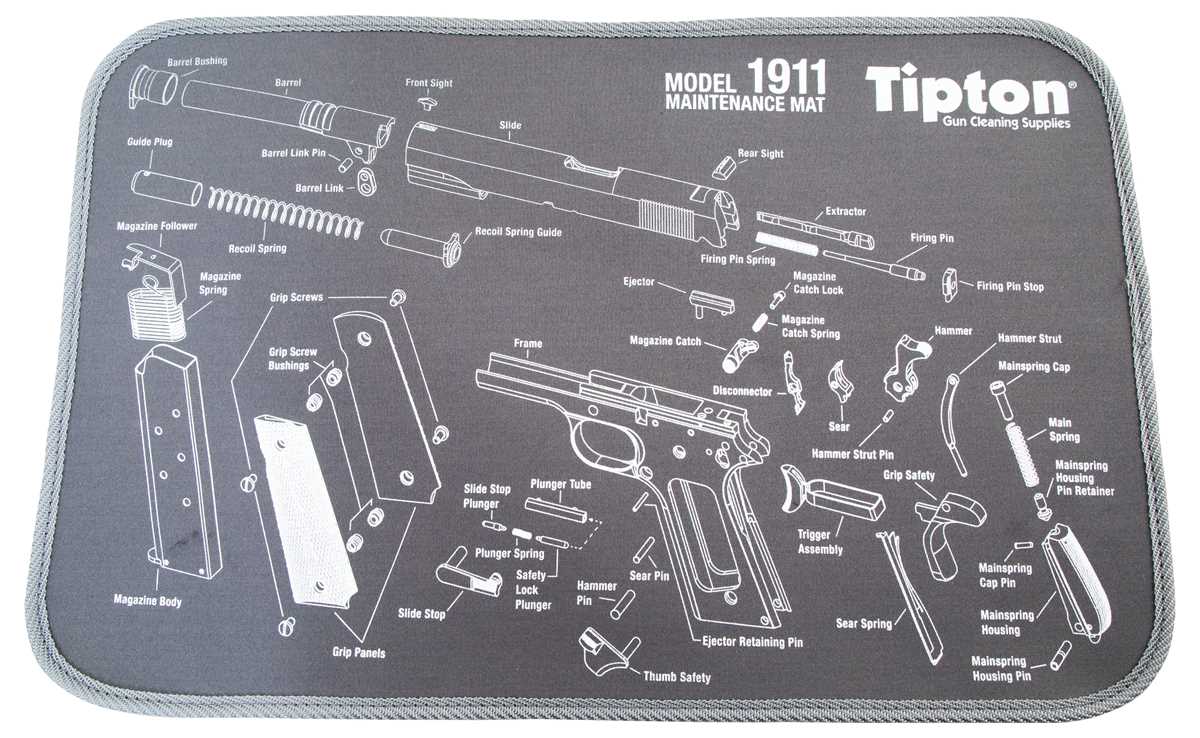

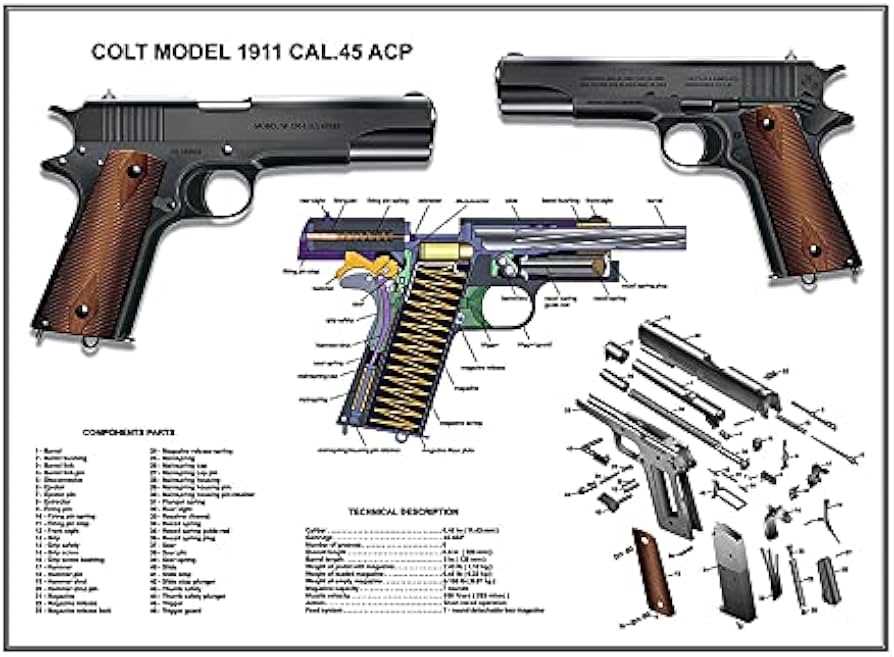

Key Elements in a Colt 1911 Breakdown Schematic
Start inspection with the firing mechanism–locate the hammer, sear, and disconnector at the rear of the frame. The hammer should have distinct notches for single-action engagement, while the sear’s hook must align precisely with the hammer’s engagement surface. Misalignment here causes unreliable ignition or failure to reset. Verify the disconnector’s выступ under the slide–that small protrusion dictates trigger reset timing.
The recoil assembly consists of three critical pieces: the guide rod, spring, and recoil plug. Remove the guide rod first–it secures the spring under tension. Check for wear on the plug’s threads; stripped grooves prevent proper reassembly. Spring tension should demand ~18-21 lbs of force when compressed–any deviation risks slide malfunctions or rapid wear on the barrel bushing.
Slide and Frame Interface
Examine the slide rails–these machined channels dictate smooth reciprocation. Uneven surfaces or burrs indicate improper lubrication or debris interference. The breech face’s extractor claw must grip rimmed cartridges firmly; worn extractors skip ejection cycles. Look for cracks near the barrel hood–they often propagate from chamber pressure during firing.
Separate the barrel from the link; tilt barrel test ensures proper unlock timing. A damaged link pin causes inconsistent lockup–listen for metallic scraping during field-stripping. The barrel bushing’s bearing surface wears faster than expected–polish any galling immediately to avoid slide binding. Muzzle crown damage disrupts accuracy even with perfect sight alignment.
Trigger group demands attention: magazine catch, grip safety, and thumb safety must operate without resistance. Worn grip safeties fail to disengage, creating non-functional fire controls. Check the mainspring housing’s plunger–it must retract smoothly when the hammer drops. Replace any mainspring showing coil deformation; compromised springs cause light strikes or inconsistent trigger pull weights.
Field Disassembly of the Colt .45 ACP Handgun: A Precision Walkthrough
Before handling any firearm, verify the chamber is empty by removing the magazine, racking the slide twice, and visually inspecting. Secure the weapon muzzle-down on a clean, flat surface with sufficient lighting. Use a non-marring vise block or soft cloth to prevent slide marring.
Depress the recoil spring plug with a properly sized punch–avoid using screwdrivers, which can damage the plug’s locking grooves. Rotate the barrel bushing clockwise (for standard models) until it disengages, then ease it forward past the slide lock. The spring and guide rod will now be accessible; extract them together to prevent spring tension from launching small components.
- For full-length guide rods: No additional disassembly is required–proceed to slide removal.
- For captured or dual-spring systems: Compress the spring slightly and lift the rod assembly straight out.
Retract the slide rearward until the serrated grooves align with the disassembly cutouts on the frame rails. Lift the rear of the slide upward, then guide it forward off the frame, keeping fingers clear of the firing pin channel. The barrel should remain seated in the slide; if stuck, tap the muzzle lightly with a brass rod–never force it.
Inspect the firing pin stop and extractor claw for wear. To remove the firing pin, push it forward from the rear until the stop disengages, then tilt the slide to let both components slide out. The extractor can be pried out with a small screwdriver if necessary, but take care not to scratch the claw’s engagement surface.
Cleaning should focus on three critical zones: the chamber throat, breech face, and under the extractor hook. Use a bronze brush dampened with solvent for carbon buildup, followed by a dry patch pushed through the chamber with a cleaning rod. Avoid excess oil on the firing pin channel; a light coat on the pin itself prevents corrosion.
Reassembly reverses the order, with key checks:
- Ensure the firing pin moves freely under its own weight when the slide is inverted.
- Verify the extractor tension by inserting an empty case–the rim should snap into place audibly.
- Before reinstalling the bushing, apply a drop of lubricant to the recoil spring seats.
Test functionality by racking the slide–it should move smoothly without binding before inserting a magazine.
Key Firearm Components for Upgrades and Their Positions in Schematics
Replace the mainspring housing first–it’s the most failure-prone element in legacy platforms. Locate it at the base of the grip frame on exploded views, typically labeled as item 28 or MSH. Choose a reinforcement plate if the firearm sees heavy use; aftermarket options like the Ed Brown or Wilson Combat variants eliminate flex under recoil. Check fitment with a straightedge before final installation.
Critical Wear Items and Exact Placement
- Firing pin stop (labeled 15 or FPS) sits atop the slide, housing the firing pin. Oversized models prevent slide lockup from repeated firing. Test function with dummy rounds.
- Extractor (19) clamps the rim; Wilson Combat #6 extractors solve ejection failures in .45 ACP loads. Ensure the claw’s tension matches the cartridge’s rim thickness.
- Barrel bushing (12) threads into the slide–match the crown diameter to the barrel’s muzzle. EGW bushings improve accuracy in target models.
- Grip safety (23) must contour to the shooter’s hand. Beavertails like the Wilson Combat ‘Bamby’ prevent hammer bite during rapid strings.
Upgrade the sear (18) and disconnector (17) as a matched set. Lightened sears reduce trigger pull weight to 3.5–4.5 lbs; Brownells’ components come pre-tuned. Verify engagement geometry with a 1/10th-inch feeler gauge–improper alignment causes doubles. Polishing tool marks on the disconnector’s engagement surface optimizes reset without compromising safety. Test dry-fire cycles with snap caps to confirm crisp break before live fire.
