Start by identifying the model number stamped on the engine housing or main frame. For most mid-size riding tractors manufactured between 1998 and 2005, this identifier appears on a metal plate near the rear axle. Cross-reference this number with the official service manual–available as a PDF download from the manufacturer’s support portal–to pinpoint the exact assembly breakdown. Third-party vendors often stock universal replacements, but verify compatibility with OEM specs to avoid misaligned mounts or incorrect bolt patterns.
Use exploded-view schematics to trace component relationships. These illustrations, typically found in repair guides, show bearings, pulleys, and linkages in precise spatial order. Pay extra attention to smaller elements like spring clips and bushings, as these are frequent failure points yet often overlooked during reordering. Online marketplaces list individual SKUs–compare part numbers directly to the diagram labels to eliminate guesswork.
When sourcing electrical modules, confirm voltage and connector layouts. Aftermarket switches and solenoids may fit physically but fail electrically if amperage ratings differ. Measure resistance across wiring harness terminals with a multimeter before installation; corroded contacts misaligned by even 0.5 ohms can disrupt power distribution. Keep a torque wrench handy–most fasteners require tightening between 18 and 25 ft-lbs to prevent thread stripping.
For blades and cutting decks, prioritize balance. A replacement blade must weigh within 2% of the original to prevent harmonic vibration. Sandpaper strips attached to the deck underside can temporarily reduce rust-induced friction while waiting for new rollers or skid plates to arrive. On hydrostatic transmissions, check fluid levels weekly–low oil accelerates wear on internal gears, especially when operating on uneven terrain.
Reference Guide for Sears Lawn Tractor Component Layouts
Identify the exact model number engraved on the tractor’s chassis panel–typically beneath the seat or near the engine. Use this number to source the correct exploded-view schematics from the manufacturer’s official database or verified third-party suppliers like Partstree or Jack’s Small Engines. Manuals labeled “operator” often exclude technical breakdowns, so search specifically for service manuals or illustrated repair guides to ensure component placements and torque specs are accurate.
Focus on three core assemblies when troubleshooting:
- Powerplant section: locate the air filter housing, carburetor linkages, and ignition coil connections marked on the schematic. Label wires by color codes to avoid misrouting during reassembly.
- Transmission cluster: note the differential cover gasket placement and hydrostatic pedal assembly pivot points. Replace washers thicker than 0.030″ to prevent slippage.
- Cutting deck: verify blade spindle alignment against the diagram’s dimensional callouts–deviation beyond 1/8″ risks uneven cutting. Grease zerks every 25 operating hours.
Critical Component IDs and Common Failure Points
Cross-reference these part numbers with your schematic to confirm compatibility:
- Drive belt (OEM #131495) – Examine the serpentine path around pulleys labeled “A” through “E”; fraying often starts at pulley “C”.
- Spindle bearings (Kit #9-7551) – Listen for grinding at RPM > 2800; replace both left and right assemblies simultaneously.
- Hydro filter (#7-1779) – Change every 100 hours; a clogged filter mimics transmission failure.
- Ignition switch (#136061) – Test continuity across terminals 1 and 3 with a multimeter; resistance > 5 ohms indicates replacement need.
Print the exploded-view at 125% scale and use a red grease pencil to trace removed fasteners during disassembly–prevents orphaned bolts during reassembly. Store small hardware in labeled zippered bags, referencing corresponding zones on the schematic (e.g., “Deck Lift – Zone 4”). Validate spindle torque at 45–50 ft-lbs; over-tightening warps aluminum housings.
Finding Repair Schematics for Your Sears Lawn Tractor Online
Begin with the official Sears PartsDirect website at searspartsdirect.com. Enter the model number–typically found on a metal plate near the engine or under the tractor seat–in the search bar. The site generates an exploded-view breakdown of every component, including assembly sequences, part numbers, and pricing. Filter results by component category (e.g., mower deck, transmission) to skip irrelevant listings.
Alternative Sources for Detailed Blueprints
| Source | What You’ll Find | Access Notes |
|---|---|---|
| Manage My Life | Step-by-step breakdowns with user comments on common fixes | Free, but requires registration for downloadable PDFs |
| PartsTree | Interactive schematics with zoom, part quantities, and installation tips | Paid, but offers free 30-second previews |
| YouTube (search: “[model number] breakdown”) | Video walkthroughs showing disassembly and part identification | Free, but quality varies; cross-check with official docs |
For older units where the original manufacturer site returns no results, turn to specialized forums like MyTractorForum or LawnSite. Use the model number in quotation marks when searching–e.g., “917.276220 schematic”–to pull threads where users attach PDF scans or photograph assemblies. Archive.org occasionally retains discontinued manuals; prepend “site:web.archive.org” to your model number search.
Download any schematic immediately upon finding it; hosting sites sometimes remove files without warning. Save in two formats: PDF for detail and JPEG for quick reference on mobile. Label files with the exact model variation–e.g., “917_276220_hydro.pdf”–so future searches skip duplicates. Bookmark direct links rather than relying on search engines, which may not re-index expired content.
Detailed Walkthrough of the 20HP Garden Tractor Engine Layout
Begin by locating the crankcase housing at the base of the engine schematic–it anchors the entire assembly. Verify the torque specifications for its bolts (20–25 ft-lbs) to prevent misalignment during operation. The lower section typically includes the oil sump, which requires a clean surface for the gasket to seal properly. Use a straightedge to check for warping before reassembly.
The piston and connecting rod subassembly attaches directly to the crankshaft. Match the rod caps to their original positions using alignment marks; swapping them risks uneven wear. Install the rings with the gaps staggered at 120-degree intervals to reduce blow-by. Lubricate all surfaces with fresh 10W-30 oil before sliding the piston into the cylinder bore.
Inspect the camshaft timing gears–look for worn teeth or cracks. The crankshaft gear must mesh precisely with the camshaft gear, marked by alignment dots. Rotate the engine by hand to confirm smooth movement; binding indicates incorrect timing or debris in the oil passages. Replace the timing chain if slack exceeds 1/2 inch under moderate tension.
The cylinder head bolts follow a specific tightening sequence: start at the center and spiral outward in stages. Tighten in three passes (10 ft-lbs, 20 ft-lbs, final torque of 40 ft-lbs) to avoid warping. The head gasket must be positioned dry–never use sealant unless specified by the manufacturer. Check the valve stem seals for brittleness; damaged seals lead to oil consumption.
Reattach the rocker arms, ensuring the pushrods seat fully in their guides. Adjust valve lash only after the engine reaches operating temperature (intake: 0.004–0.006 inches; exhaust: 0.006–0.008 inches). Over-tightening the rocker arm nuts can bend pushrods, causing inconsistent valve operation. Test each rocker arm for free movement before finalizing adjustments.
The carburetor linkage connects to the governor lever–ensure the throttle plate moves freely without binding. Clean the carburetor jets with compressed air, avoiding metal tools that can damage delicate passages. Reinstall the air filter with a new element; a clogged filter restricts airflow, increasing fuel consumption. Verify the choke linkage engages fully in cold-start positions.
Mount the flywheel using a proper puller–never strike it with a hammer. The keyway must align accurately to prevent crankshaft damage. Torque the flywheel nut to 70–90 ft-lbs, then install the ignition coil at the specified gap (0.020–0.030 inches). A misaligned coil causes weak spark, leading to hard starts or misfires.
The blower housing (cooling shroud) directs airflow over the cylinder fins–ensure all seals are intact. Missing or torn seals reduce cooling efficiency, risking overheating. Secure the housing with all original fasteners; missing screws cause vibration during operation. Finally, test the engine on a bench with a drill-driven starter before reinstallation–listen for unusual noises or hesitation, indicating assembly errors.

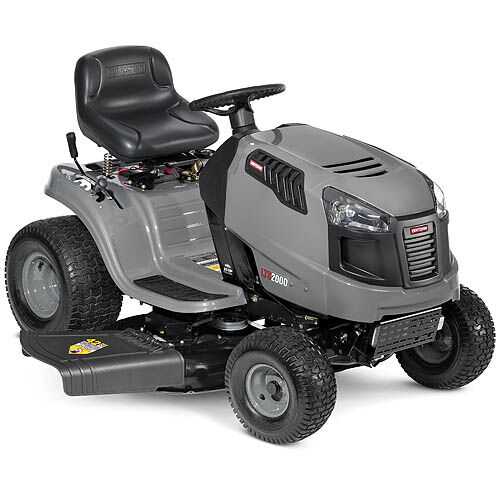

Locating Component Alternatives with the LT2000 Schematic
Begin by visiting Sears PartsDirect, the official source for manufacturer-approved substitutes. Enter the model number from your machine’s identification plate–typically located under the seat or on the rear frame–into the site’s search bar. The platform generates an exploded view matching your equipment’s assembly, with each element numbered and linked to inventory. Filter results by availability to bypass out-of-stock items; genuine replacements ship within 3–5 business days, while aftermarket options may arrive sooner from select third-party vendors listed on the same page.
Secondary Suppliers for Faster Delivery
For urgent repairs, check PartsTree and Jack’s Small Engines, which stock identical components but often at discounted prices. Both sites offer real-time stock alerts–sign up to receive notifications when backordered elements become available. Jack’s provides a side-by-side comparison tool, pairing the schematic’s numbered pieces with their SKUs; use this to cross-reference measurements before purchasing belts, blades, or deck spindles to ensure precision fit.
Local dealers carrying the brand’s yard equipment lines may also have components in stock. Call ahead with the schematic reference and part number–dealers frequently pull from the same distributor network as online retailers but can offer same-day pickup. Ask about “service kits” for common wear items like filters or spark plugs, which bundle multiple elements at a reduced rate compared to individual purchases. Avoid generic “will-fit” substitutions unless the retailer confirms compatibility with the original diagram’s specifications, particularly for critical systems such as transmissions or hydraulic pumps.
Community Resources and Salvage Options
Explore dedicated owner forums like MyTractorForum, where enthusiasts share annotated versions of the assembly guide with notes on aftermarket upgrades. Threads often include direct links to vendors or eBay listings for rare pieces, such as steering gears or electrical harnesses, that official channels no longer carry. For cost-sensitive replacements, check Facebook Marketplace or Craigslist for used units being parted out–compare the seller’s images against the schematic to verify condition and match exact identifiers, including casting numbers or color codes.
