Locate the component breakdown for older equipment variants by searching model-specific reference numbers stamped on the housing–typically a six-digit code near the serial plate. Cross-reference this identifier with manufacturer archives or third-party technical databases like RepairClinic or PartSelect, where exploded-view illustrations remain available for discontinued lines. Avoid generic searches; suffixes like “-A” or “-R2” denote revisions that alter compatibility.
For critical assemblies such as transmissions or cutting decks, use OEM-issued schematics rather than aftermarket replicas–dimensional tolerances in replacements often diverge by 0.5mm, causing fitment issues. Secure PDF versions from manualslib.com or manualshelf.net; they preserve original annotations including torque specs and assembly sequences. If unavailable, reverse-engineer the layout by photographing each phase of disassembly, then label images with component names pulled from service bulletins.
When sourcing replacements, match part numbers exactly–substitute kits may omit hardware like spacers or springs, leading to misalignment. Prioritize suppliers with illustrated catalogs; Jack’s Small Engines provides annotated thumbnails alongside inventory filters for vintage gear. For electrical sub-systems, trace circuit paths manually using a multimeter; schematics often omit later revisions caused by component obsolescence.
Tag every detached piece with painter’s tape during teardown, noting both the diagram position (e.g., “A7”) and physical orientation. Store fasteners in segmented containers; a standard 2.5” deck typically requires 18 distinct bolt sizes, each varying by thread pitch. Verify hydraulic seals against the legend–seal codes precede metric diameters in schematics (e.g., “NBR-12×1.5” denotes nitrile rubber, 12mm ID, 1.5mm cross-section).

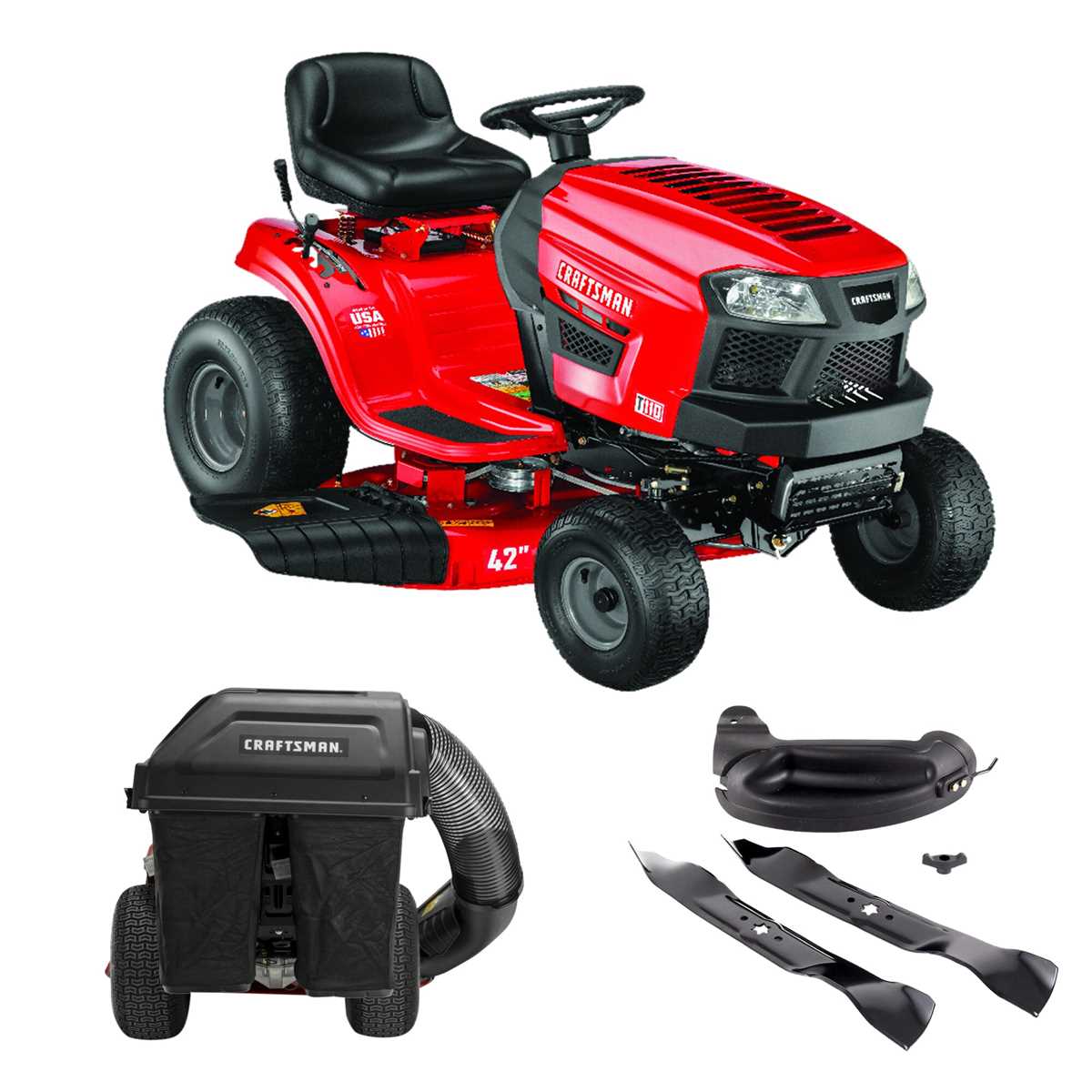

Key Components for Your Riding Mower: A Step-by-Step Visual Reference
Locate the drive belt assembly under the mower deck–identify the tension pulley first (marked with a yellow decal on most 42-inch models). If it shows wear beyond 1/16″ cracks, replace immediately; compatible aftermarket belts (MoTor 754-0429) cost ~$18 and install in under 12 minutes. Remove the deck by loosening four bolts (use a 9/16″ socket) before accessing the belt path–skip this step and risk misalignment.
Inspect the spindle housings next. Check for play by gripping the blade and wiggling–any lateral movement over 0.05″ means bearing failure. Order OEM replacements (PN 134123) or upgrade to sealed bearings (Timken 09074) for extended service life. Torque spindle nuts to 45 ft-lbs; under-tightening causes vibration, over-tightening seizes the assembly. Include a shop rag when draining old grease from zerks–used lubricant contaminates soil.
The hydrostatic transmission (typically Tuff Torq K46) requires fluid changes every 200 hours. Use 20W-50 motor oil, not ATF–wrong fluid destroys seals. Drain via the lower plug, then refill through the breather tube until fluid appears at the dipstick’s “Full” mark. If the trans slips under load, adjust the linkage rod (connects pedal to pump) by turning the threaded end ¼ turn clockwise–but test in reverse first, as over-adjustment locks the wheels.
Finding the Right Schematic for Your Garden Equipment Online
Begin with the manufacturer’s official website–Sears PartsDirect remains the primary repository for authentic breakdowns of riding mowers and tractors. Input the model number (found on a metal plate near the seat or under the hood) into the search bar to pull up a labeled exploded view. These schematics include part numbers, assembly sequences, and torque specifications, ensuring precise repairs.
Check eReplacementParts for user-uploaded scans if official sources lack detail. Filter results by model to avoid outdated or incorrect documents. Verify the schematic’s accuracy by cross-referencing the depicted components with physical labels on your machine–critical for older units where revisions exist.
YouTube teardown videos often overlay animated overlays of component layouts. Search “[model number] + service manual walkthrough” to find step-by-step visuals. Download accompanying PDFs linked in video descriptions; creators frequently include direct links to high-resolution files stored on Google Drive or Dropbox.
For rare models, try PartSelect or ManualsLib. Both aggregate schematics from discontinued product lines. Use browser plugins like OneTab to consolidate multiple open tabs of diagrams, preventing confusion between similar assemblies. Save files locally–online availability fluctuates.
Critical Elements Highlighted in the Riding Mower Schematic
Start by verifying the compatibility of replacement blades with the model’s cutting deck before purchasing. The cutting assembly includes three primary sections: the blade spindle housing, deck mounting brackets, and the drive belt pulley–each must be cross-referenced with the original equipment manufacturer (OEM) specifications. Spindle housings often fail due to bearing wear or misalignment; inspect for excessive play or grinding noises during rotation. If defects are present, replace the entire spindle assembly rather than individual bearings to avoid uneven deck height or premature failure.
The drive belt system demands meticulous attention. The schematic reveals a serpentine routing path, which, if incorrectly reinstalled, causes slippage or increased friction. Measure the belt’s width, length, and rib count against the OEM part number–deviations as small as 1/8 inch can lead to disengagement under load. When replacing, tension the belt to 30-35 pounds of force (per manufacturer guidelines) and verify alignment with the idler pulleys; misaligned pulleys accelerate wear by up to 40%.
Engine and Electrical System Breakdown
Locate the engine’s air intake manifold within the schematic–this area frequently accumulates debris, restricting airflow and reducing efficiency by 15-20%. Clean the manifold using compressed air (never high-pressure water) and inspect the foam pre-filter for tears; damaged filters allow dust ingress, leading to piston scoring. For the carburetor, follow the fuel line routing precisely; reversed connections disrupt the float bowl balance, causing flooding or lean fuel mixtures.
- The ignition coil sits adjacent to the flywheel; its mounting gap must be 0.010-0.012 inches. Use a feeler gauge to confirm–incorrect spacing results in weak spark or hard starts.
- Battery terminals corrode faster than wiring harnesses; apply dielectric grease post-cleaning and check voltage drop under load (should not exceed 0.5V).
- Starter solenoids often fail silently; test for continuity with a multimeter before replacing the entire starter motor.
Transmission components require periodic fluid checks, though the schematic may not explicitly label drain points. Remove the rear axle cover to access the hydrostatic fluid reservoir–low or contaminated fluid causes sluggish response or jerking. Use only manufacturer-approved fluid; incorrect viscosity damages the drive plate and pump gears. For hydrostatic systems, the schematic identifies the neutral control lever linkage, which must be adjusted to engage smoothly without binding. Misalignment here leads to accidental engagement or transmission drag.
Structural Integrity and Safety Mechanisms
The frame’s weld points, particularly near the engine mount and mower deck hangers, often develop stress cracks. Inspect annually with a flashlight–hairline fractures propagate under vibration, risking catastrophic failure. Reinforce with 7018 welding rods if cracks are detected; avoid patching with weaker alloys.
- Seat safety switches interrupt power when disengaged; locate the switch in the schematic and test continuity with the seat in both positions. Faulty switches bypass critical safeguards.
- Parking brake linkage connects to the rear wheel hubs; verify the cable’s tension adjusts to hold the unit on a 10-degree slope. Loose cables cause rollaways.
- Deck lift arms must move freely without lateral play; lubricate bushings with lithium grease but avoid over-application–excess attracts dirt, accelerating wear.
Steering components degrade unpredictably. The schematic pinpoints the front axle’s kingpin bushings, which wear faster than ball joints. Grinding noises during turns indicate failure; replace bushings in pairs to maintain alignment. For models with rack-and-pinion steering, check the gearbox for fluid leaks–dry seals strip gears, requiring full gearbox replacement. Always torque fasteners to the specified ft-lbs; under-torquing loosens critical connections, while over-torquing warps components.

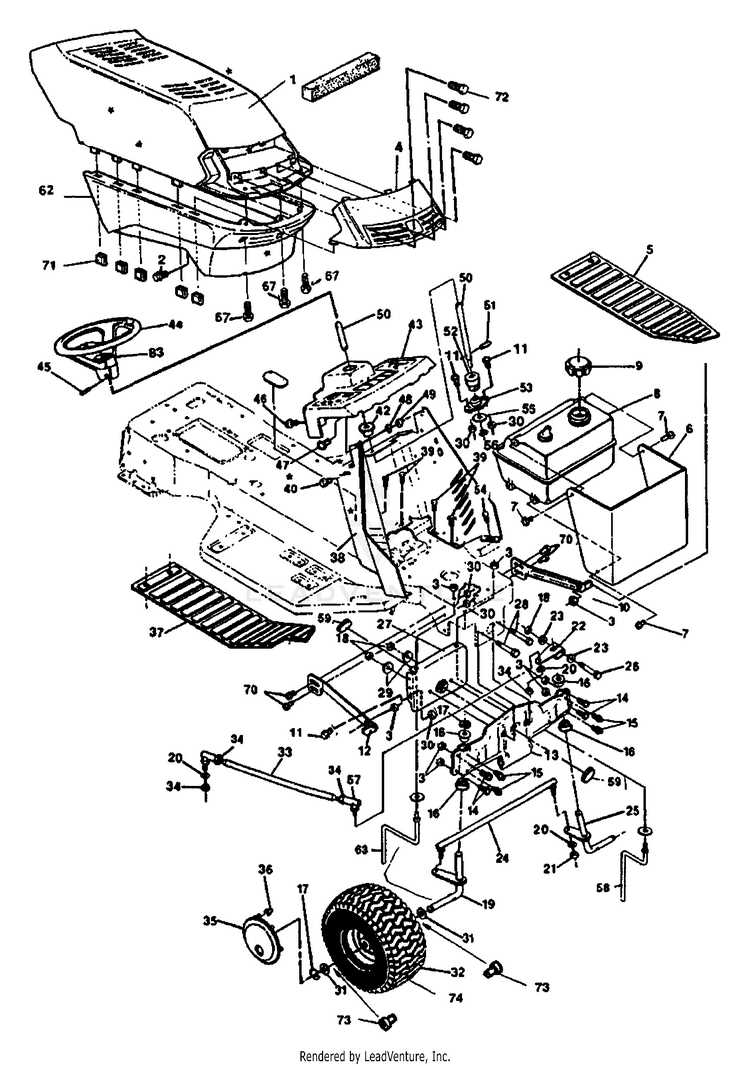

How to Decode Your Equipment’s Exploded Schematic: A Practical Walkthrough
Locate the reference number grid–typically printed along the edges of the schematic sheet. Each component correlates to a row (letters) and column (numbers) intersection, like A5 or D12. Cross-reference this with the parts list to identify items by description, not just appearance. Pay attention to symbols: dashed lines indicate optional assemblies, while solid arrows show installation sequence. If a part appears multiple times (e.g., bolts, washers), note the quantity code in parentheses next to its number.
Break Down Sub-Assemblies First
- Isolate the largest contiguous structures (e.g., deck frame, engine housing) by tracing their outer boundaries with a highlighter.
- Identify fasteners connecting these structures–common bolts are labeled with length (e.g., “M8x25”) and thread pitch. Verify dimensions with calipers if measurements aren’t specified.
- Check for hidden components: exploded views often omit internal linkages or wiring harnesses; look for small callouts or inset diagrams near electrical connectors.
- Use a magnifier for micro-scale items like retaining clips or O-rings; these frequently lack labels but influence reassembly tolerance.
Compare the schematic to physical components systematically: place each removed piece directly on its corresponding drawing section to confirm accuracy. Store fasteners alongside their parent parts in labeled bags–mismatched screws can strip threads or fail torque specs. For ambiguous items, measure shaft diameters or spline counts; most schematics include critical tolerances (e.g., “Ø12.5 ±0.1mm”). If a section lacks detail, cross-check against manufacturer service bulletins or proprietary repair manuals, which often expand on overlooked steps like pre-load adjustments for bearings.
