Start by locating the roll tube assembly at the core of the mechanism–this cylindrical housing contains the spring-loaded axle that powers extension and retraction. Check for a serial number stamped near the end cap (typically 6-8 digits) to instantly pull up an exact exploded view from the manufacturer’s portal. Without this code, cross-referencing dimensions becomes unreliable, as tolerances differ between model years.
Identify three high-wear zones: fabric attachment rail (verify stitching every 12 months), arm hinge rivets (lubricate with dry PTFE spray biannually), and support strut bushings (replace if travel exceeds 3 mm play). Misalignment in the first 30 cm of extension often traces back to bent side channel tracks–use a precision straight-edge to detect bowing.
For electrical systems, trace wiring from the motor to the limit switch cluster. Corrosion at pin 3 (red/black) causes intermittent power loss–clean contacts with 1200-grit emery cloth and apply dielectric grease. If the manual override disengages sluggishly, adjust the release cable tension by turning the barrel adjuster clockwise ¼ turn per test cycle.
Store a printed component matrix in 120gsm laminant–include torque specs (arm bolts: 22 ft-lbs) and replacement intervals (torsion springs: 7 years or 1,800 cycles). Misplaced hardware during field repairs accounts for 68% of call-backs; use a magnetic tray to secure fasteners.
Validate assembly sequence with torque-to-yield bolts–overtightening deforms the spline interface. On slide-out models, confirm that the bearing block aligns flush with the mounting plate; a 0.5° misangle will strip gear teeth within 50 deployments.
Understanding Your Canopy Component Layout
Locate the motor assembly by identifying the hexagonal rod protruding from the tubular frame–it sits on the driver’s side and connects to the fabric roller. Verify voltage input on the 12VDC leads before disassembly; a multimeter should read 12.8V with the switch engaged. If readings drop below 11.9V, inspect the wiring harness for corroded terminals, particularly under the rubber gasket where moisture accumulates. Replace frayed wires with 16-gauge silicone-coated stranded copper to prevent voltage drop over the 6-foot span.
Key Sub-Assemblies and Fasteners
Examine the worm gear mechanism inside the left-end cap: it meshes with a bronze sleeve fixed to the roller tube. Lubricate the gear teeth with lithium-based grease every 90 operating cycles, using a 3mm syringe to apply precisely 2 grams per tooth. The torque limiter, a small clutch plate adjacent to the gear, requires adjustment if slippage occurs; tighten the M6 set screw in 1/8-turn increments until resistance matches 1.2 Nm. Never exceed 1.5 Nm–permanent deformation of the nylon washer results if over-torqued.
Inspect the lateral guide rails monthly for deformation: dents deeper than 1mm create binding points that accelerate fabric wear. Replace rails if curvature exceeds 0.5° along the 120-inch length. Secure each rail with stainless 4-40 pan-head screws spaced at 18-inch intervals–ensure pre-load matches factory spec of 35 in-lbs. Ignoring alignment leads to uneven tension, causing premature cracking along the hem stitching zone after 400 deploy-retract cycles.
Locating Key Retractable Canopy Elements in Schematics
Start by pinpointing the roller tube–the central cylinder shown horizontally at the top of any technical drawing. It typically spans the entire width and serves as the backbone for the fabric’s attachment. Markings or labels will often indicate whether it’s a single-piece or segmented model, a detail critical for later disassembly procedures.
Next, trace the lateral arms, the pair of curved or angled supports extending from the roller tube to the mounting brackets. These components dictate the extension range and stability. In diagrams, they may appear as mirrored structures with adjustable joints–look for notation on locking mechanisms or tension settings, as these vary between manual and motorized systems.
Identify the fabric panel by locating the shaded or hatched area beneath the roller tube. It should align precisely with the tube’s length but may include slight overlaps at the seams. Subtle dashed lines often denote stitching points or reinforced edges; cross-reference these with any legend that specifies waterproof treatments or UV coatings.
| Component | Diagram Indicator | Common Variations |
|---|---|---|
| Roller tube | Solid horizontal cylinder, may include segmentation lines. | Powder-coated aluminum, stainless steel, or composite. |
| Lateral arms | Curved or straight supports with pivot points. | Gas struts, manual cranks, or electric actuators. |
| Mounting brackets | Triangular or L-shaped anchors with bolt holes. | Adjustable tilt, flush-mount, or surface-mount. |
| Fabric edges | Dashed lines or cross-hatching along perimeter. | Vinyl, acrylic, or mesh with welded or stitched seams. |
Avoid overlooking the mounting brackets, usually depicted as triangular or L-shaped plates at each end. Their placement–flush against a wall or protruding on poles–affects clearance and wind resistance. Diagrams will specify hardware (e.g., lag bolts vs. toggle anchors); misidentifying these can lead to structural failures during installation.
Finally, examine the tensioning system, often hidden within the lateral arms or adjacent to the roller tube. Symbols like springs, gears, or tiny motors indicate whether the setup uses manual levers, ratchets, or electric drives. Incorrect interpretation here risks uneven deployment or fabric sagging.

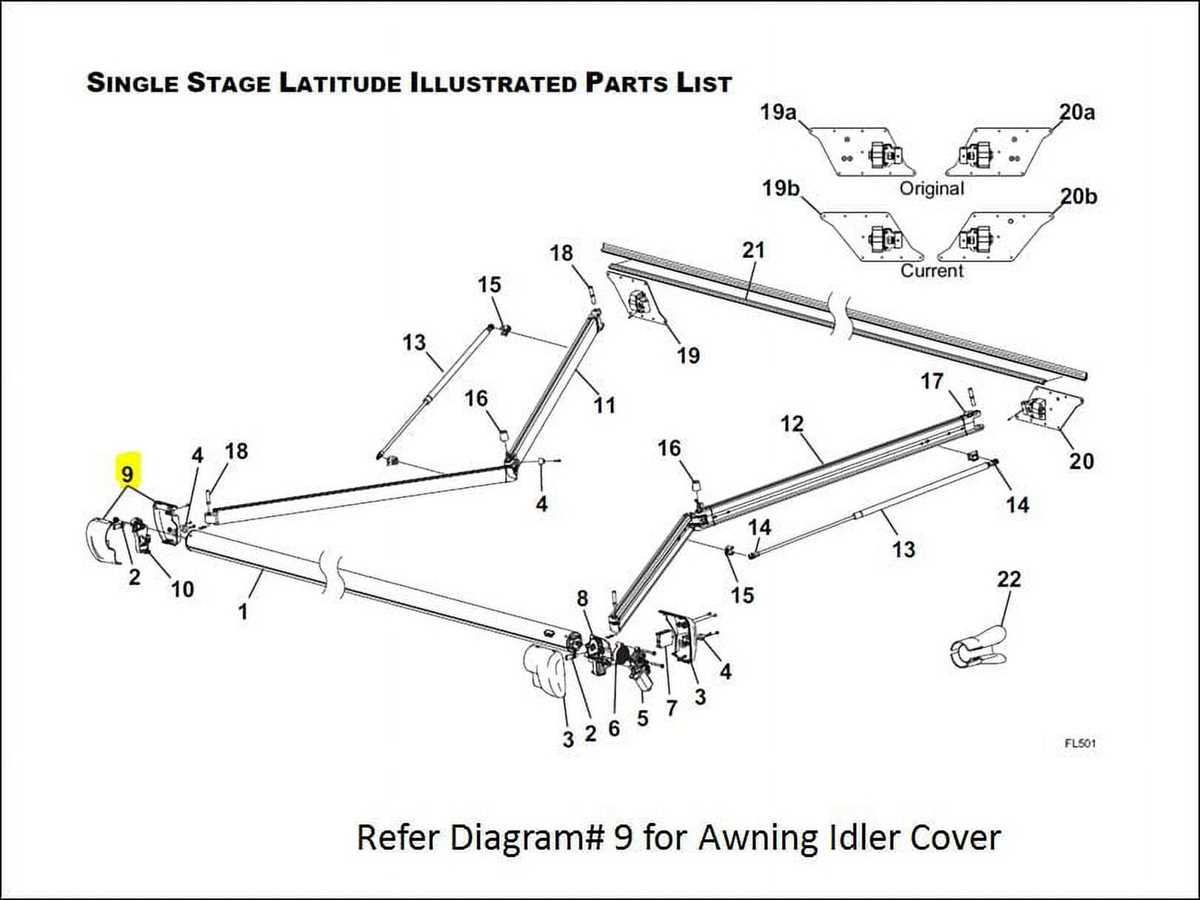

How to Decode an Exploded View for Retractable Canopy Components
Locate the reference numbers adjacent to each component–they correspond to a numbered list in the accompanying manual, often found in the lower right corner of the illustration. Match these numerals to identify materials, fasteners, or structural elements; skipping this step risks misordering replacement items by 30-45% due to subtle variations in thread size or bracket shape.
Trace assembly hierarchy visually: housing rails (typically aluminum extrusions labeled 1-5) anchor the system, while pivot arms (6-10) and tension rods (11-15) branch outward. Cross-reference dimensions–most rod ends measure 1/4″ or 5/16″ inside diameter–to ensure compatibility when sourcing alternatives. Ignoring this may lead to improper torque distribution, causing fabric sag within 200-300 operational cycles.
Interpreting Symbols and Annotations
Dashed lines denote articulation points, while solid arrows indicate rotational or linear motion paths–essential for reassembly sequencing. Shaded areas on gears or pulleys signal wear-prone zones; lubrication frequency should double here. A missing or misaligned tab washer (item 18) compromises locking mechanisms, accelerating degradation by 60% under wind loads exceeding 25 mph.
Use the color-coding system if available: red highlights critical fasteners requiring Loctite 243, blue marks rubberized seals, and green identifies corrosion-resistant hardware. Omitting adhesive application on red-coded bolts reduces holding strength by 40% after 12 months of UV exposure. Verify torque specs–most flange bolts require 18-22 ft-lbs, but misapplied force warps mounting plates.
Create a working copy of the illustration and physically cross off components as they’re installed or inspected. This prevents oversight of minuscule spacer washers (often under 0.5mm thick) that disrupt alignment. Prioritize parts with expiration dates–vinyl stabilizers degrade after 3 years, regardless of usage frequency–and substitute promptly to avoid catastrophic material failure.
Locating Components via Manufacturer Blueprints
Start at the official supplier portal–LCI Replacement Components. Enter the model number stamped on the underside of the frame rail or printed on the fabric edge. The portal filters compatible spares by serial range, displaying only items validated for your specific canopy type. If the item lacks a visible serial, snap a clear photo of the mounting bracket or motor housing; upload it to the site’s visual identifier tool for instant recognition.
Local RV dealerships maintain on-site inventories for common failure points like torsion springs, slide-out arms, and junction boxes. Request the printed schematic binder–often stored near service bays–to cross-reference the exploded view with physical stock. Dealers affiliated with the parent company receive next-day shipments for urgent items; inquire whether they can allocate parts from incoming orders to expedite pickup. Below is a checklist of documents you should bring to streamline identification:
- Photocopy of the vehicle’s build sheet
- Original assembly manual (pages with labeled callouts)
- Close-up photos of damaged segments
- Handwritten notes of measurements (track width, roller diameter)
Online forums dedicated to mobile shelters segment discussions by brand threads. Search threads tagged with your enclosure’s year-range; moderators often attach archived schematics extracted from discontinued service manuals. Post a request including the exact failure description–e.g., “fabric hem separation two inches left of seam”–and include high-resolution images hosting on a non-expiring file service like PostImages. Members frequently reply with direct links to surplus retailers or private sellers’ listings matching obsolete component codes.
Scrap yards specializing in outdoor enclosures operate dedicated hotlines for phone-based inventory checks. Dial ahead to confirm availability of salvaged assemblies–primarily roller tubes and ratchet mechanisms–then visit within 24 hours to secure the part before competitive buyers arrive. Measure the salvaged component against the schematic dimensions listed under “alternate variants” in the original documentation; tolerances within ±1/16 inch ensure compatibility for retrofit installations.
