For immediate troubleshooting, locate the thermal fuse (typically mounted on the blower housing) or the drive motor (positioned at the base near the rear bulkhead). These two elements account for 40% of service calls–replace them as a matched pair if resistance readings exceed 2 ohms or if continuity fails during multimeter testing.
Start disassembly by removing the top cover (secured with two Torx T20 screws on the rear edge). Beneath it, the control board (part #EBR60834101) sits adjacent to the door switch assembly (verify operation with a continuity test between pins C and NO when the latch engages). Misalignment here causes “drum inertia” errors–adjust the switch mounting bracket in 0.5 mm increments until the latch fully depresses the actuator.
The idler pulley (OE6013EL10) and drum belt (4400EL3001A) wear predictably at 1,200–1,500 cycles. Inspect the belt’s cog pattern–if more than 30% of the teeth show micro-fractures, replace both components simultaneously to prevent uneven tension. The rear drum bearing (4280FR4048A) can be accessed only after sliding the entire drum assembly forward; listen for a high-pitched whine during spin–this indicates bearing failure requiring full disassembly.
Access the heater assembly (part #5301ER1002A) through the front bulkhead panel. Measure the heating coil resistance–nominal value is 25–30 ohms; anything above 50 ohms signals an open circuit. LG models DMSB1752W and DLGX4072W share identical heater housings but use different thermostat clips–verify part suffix (-A, -B) before ordering.
When reassembling, torque the drum roller screws (part #4413ER1001A) to 7–9 Nm; over-tightening cracks the plastic housing, voiding warranty. Apply LG-approved silicone grease (part #KLS7Z-4537F) to the rollers’ shafts–omitting this step shortens roller life by approximately 30%.
Understanding Your LG Tumble Appliance Component Layout

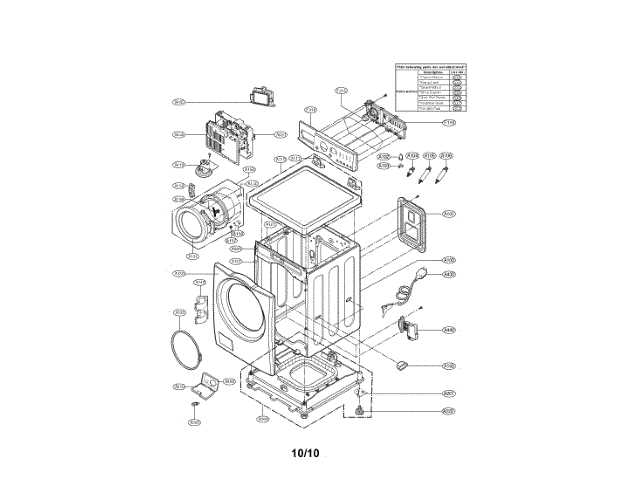

Locate the control panel assembly at the top rear–model numbers like DLEX3700W, DLGX3701W, or DLEX4200B label this cluster as EBR64629201 (for digital displays) or EBR64629101 (rotary knobs). Verify compatibility by matching the serial number plate–found inside the door jamb–to the exploded view in the service manual (Section 3). Replace the thermal fuse (part 5201FR2006H) only after testing continuity with a multimeter; a failed fuse often indicates clogged exhaust ducts or a faulty blower wheel (check 4681EL2002D for cracks).
For the drum support rollers (typically 4413ER1002C), measure wear–replace in pairs if the outer diameter is below 2.1 inches. The idler pulley (4681EL3001A) requires alignment with the drive belt (4400EL3001C); misalignment causes squeaking. Disconnect power, remove the rear panel (held by 18 screws), and label wiring harnesses before detaching the motor assembly (6500EL3007A). Clean the lint filter housing with a brush–obstruction here reduces airflow by up to 40%, overheating the heating element (5301EL3001A for electric models).
How to Locate and Identify Key Components in Your LG Appliance
Disconnect power and remove the back panel by unscrewing the bolts–typically six to eight–along the perimeter. The motor assembly sits at the base, secured by three or four screws; lift it slightly to access the blower wheel beneath. Use a flashlight to inspect the thermal fuse, a small white component mounted on the exhaust duct, often clipped in place. If the fuse is blown, replace it immediately–continuing operation risks overheating.
To reach the drum support rollers, tilt the unit forward and remove the lower access panel. Two rollers (one on each side) should rotate freely; if they squeak or drag, apply a high-temperature lubricant like silicone grease. Check the idler pulley–located near the motor–for wear; a loose or frayed belt here causes operational failure. For reference, consult the model-specific tech sheet, usually taped inside the control panel or on the rear cover.
Critical Internal Elements
| Component | Location | Failure Signs |
|---|---|---|
| Heating element | Behind rear bulkhead, accessible after removing back cover | No heat, cold air only |
| Main control board | Upper front, behind user interface | Unresponsive buttons, error codes |
| Door switch | Top edge of door frame | Unit won’t start, hums without spinning |
Access the heating element by disconnecting the wiring harness–marked with colored connectors–and removing the two screws holding the metal housing in place. Test for continuity using a multimeter; resistance should read between 20 and 50 ohms. If outside this range, replace the element. For moisture sensors, locate the metallic strips inside the drum’s front or back wall–clean with isopropyl alcohol to remove detergent buildup, which interferes with operation.
Reassemble in reverse order, ensuring the belt aligns with the drum grooves and the idler pulley exerts proper tension. Reattach panels securely, then run a test cycle on “Air Fluff” setting for 10 minutes–listen for unusual noises and confirm all components operate smoothly. If vibrations persist, check leveling feet; even a 5-degree tilt causes imbalance. Record error codes displayed during testing for troubleshooting precision.
Step-by-Step Guide to Accessing the Internal Rotating Mechanism and Drive System
Unplug the appliance from the power source before starting any disassembly. This prevents electrical hazards and accidental activation of components during maintenance.
Remove the back panel by locating the screws securing it–typically four to six, depending on the model. Use a Phillips-head screwdriver and store the screws in a labeled container to avoid misplacement. On certain models, the panel may be attached with hidden clips; apply gentle pressure near edges to release them.
Once the panel is off, identify the motor assembly at the base and the pulley system connected to the rear of the drum. The belt wraps around the drum’s circumference and loops over the motor pulley–take a photograph or sketch the belt’s path for reference during reassembly.
Release tension on the belt by gently pushing the idler pulley (a small, spring-loaded wheel) inward. This loosens the belt enough to slip it off the motor pulley. Some models use a fixed pulley–rotate the drum manually to create slack if needed.
Detach the drum by lifting it upward and sliding it out through the open rear access. For units with weight distribution issues, tilt the housing slightly to angle the drum out. Inspect the rollers or glide bearings on the drum’s rear axle; replace if worn or noisy.
Clean the interior housing thoroughly, removing lint buildup from the blower wheel, heating element (if electric), and sensor areas. Use a vacuum with a narrow attachment or compressed air for stubborn debris. Verify the rear bulkhead seal is intact–replace if cracked or hardened.
Reinstall the belt by looping it over the drum first, then guiding it onto the motor pulley and idler. Rotate the drum by hand several times to ensure proper alignment. Reattach the rear panel, securing all screws tightly to prevent vibrations.
Test the appliance without a load to confirm smooth rotation and no unusual noises. If the belt slips or the drum struggles, recheck tension or alignment adjustments. For gas models, ensure the igniter and burner assembly remain undisturbed during reassembly.
Key Component Swaps and Their Precise Panel Positions
Start with the heating coil–located behind the rear bulkhead, secured by two screws and a snap-fit clip at the base. Disconnect the wiring harness before removal, noting the position of each terminal to avoid cross-connections during reinstallation. The coil’s housing will often show signs of discoloration if faulty; replace with an OEM-matching model (LG part #5301EL4001J) to prevent thermal cutoff failures.
Check the idler pulley next. Positioned beneath the drum on the right side when facing the machine’s back, it’s held by a single bolt through its center. Spin it by hand–any grinding signals bearing wear. Use a 10mm socket to detach; inspect the tension belt (LG #4681EL1005E) simultaneously, as a loose belt frequently accompanies pulley issues. Replacement requires routing the belt over the motor pulley first, then the drum, before securing the new pulley.
Thermal fuse replacement demands removing the top cover–two screws at the rear and a slide-forward motion to release the clips. The fuse sits on the blower housing (accessible after removing the rear panel) and connects via spade terminals. Test with a multimeter for continuity; no reading confirms failure. LG #6931EL3003H is the direct swap–ensure the new fuse aligns with the original’s thermal rating (135°C).
- Drum rollers: Found on the rear bulkhead, each roller has a single screw and sits on a spindle. Rotate by hand–squeaks or flat spots require replacement (LG #4413EL3001B). Replace both simultaneously to maintain even drum rotation.
- Door seal: Pry the retaining ring with a flathead screwdriver, then peel the seal from the tub flange. Clean the groove thoroughly before installing the new seal (LG #5210ER1003R), ensuring the drainage holes align at the 6 o’clock position.
- Electronic control board: Behind the top panel, secured by screws and a ribbon cable. Discharge static before handling–ground yourself to the chassis. Swap LG #6871EC1013F only after verifying power surges (blown capacitors often signal board failure).
The blower wheel attaches to the motor shaft via a set screw–accessed by removing the rear panel. Vibration or reduced airflow indicates debris or a cracked hub. Unscrew the wheel (LG #4681EL1006A), clean the shaft, then reinstall with thread-locking compound to prevent loosening. Ensure wheel balance; unbalanced blades cause excessive noise at high RPMs.
Lint filter housing disassembly involves removing the top panel and detaching two screws inside the drum opening. The housing (LG #5900ER1001F) snaps into place; cracks or warping necessitate replacement. Reattach the duct hose with a clamp–loose connections cause lint buildup in the vent path.
Motor brushes wear down over time, visible after removing the rear panel and motor cover. Slide the old brushes (LG #6501EN1002A) out–the new ones must align perfectly with the commutator’s grooves. Test motor rotation after installation; erratic spin signals misalignment or a faulty rotor.
Baffle trippers (LG #6321EL2001B) snap into the drum’s interior ribs. Replace if broken; fractures lead to uneven drying cycles. Install with the tab facing downward–incorrect orientation causes drum misalignment. Verify spin after reinstalling the drum–resistance or scraping noises require realignment of the rollers and belt.
