Replace or inspect internal elements in this specific LG ventless heat pump condenser unit by referencing the official exploded view schematics. Official documentation splits the assembly into six functional groups: front panel and door assembly, rear bulkhead and motor mount section, blower wheel and drum support framework, control and sensor cluster, electrical harnesses, and heating coil module. Each category lists individual stock keeping units (SKU) with precise part numbers that match the manufacturer’s repair manual.
Begin disassembly by unplugging the power cord and removing the top cover with a ¼-inch hex driver–five screws secure it along the rear edge. Once exposed, detach the control board bracket using a T20 Torx bit; the bracket sits adjacent to the lint filter housing. Next, release the drum belt by rotating the drum counterclockwise until the idler pulley spring disengages. Lift the drum assembly upward and forward to access the blower wheel cavity beneath.
Inside the blower cavity, locate the heating coil module–part number EBR66861202–mounted to the rear bulkhead. Remove two Phillips-head screws securing the coil housing, then unplug the temperature sensor connector before sliding the module outward. Behind the coil lies the condenser unit fan assembly, identifiable by its dual-wire connector. Mark wire positions for reassembly before unplugging the connector. Replace components only with OEM equivalents to maintain thermal efficiency ratings.
Verify belt tension with a metrics-specific gauge before reassembly; optimal deflection is 10–12 mm under 3 kg of applied force. Reinstall the door microswitch (6871EL2001D) only after confirming continuity with a multimeter–valid resistance range is 0.2–0.5 ohms. Complete the reassembly sequence by reversing the steps above, confirming torque specifications on all fasteners using a calibrated driver.
Finding Replacement Components for Your LG Appliance
Start by locating the serial number plate–typically mounted on the interior door frame, near the lint filter housing, or behind the front panel kickplate. The plate lists the exact configuration code needed to identify compatible internal assemblies for your electric tumble unit. Use this code to pull the official exploded-view sheet from LG’s service portal, which breaks down every subcomponent within the tumbler’s heating, blading, and control modules. If you’re ordering through third-party suppliers, cross-reference each item number with the manufacturer’s part number to avoid mismatches in voltage, drum capacity, or sensor compatibility.
Critical components often misleadingly labeled as “universal” require precise verification:
- Thermal fuse (LG part #6931EL3003D): Must match the 240-volt, 41.5-amp rating–substitutes from other brands may trigger false overload errors.
- Moisture sensor bars (LG part #6323EL3001B): Positioned on the front bulkhead; contamination from dryer sheets or fabric softener residue will skew auto-dry cycles.
- Idler pulley assembly (LG part #4413ER1001F): Replace alongside the drive belt; worn pulleys accelerate belt wear and generate a rhythmic squeal during spin.
- Control board (LG part #6871EC1052F): Pre-programmed firmware must align with your specific tumble unit’s cycle sequencing; reflashing may be required if error codes E638, E642, or E680 appear.
Before disassembly, discharge residual capacitance by running an empty air-fluff cycle for 5 minutes. Disconnect power at the breaker, not just the unit’s power switch, to prevent latent voltage from stored capacitors within the control module.
Step-by-Step Assembly Breakdown
- Upper panel removal: Remove two spring-loaded clips securing the lint filter assembly, then tilt the top panel forward 60 degrees to unhook the rear retention tabs.
- Front bulkhead access: Detach the door switch harness (white/blue wires), then remove four 1/4-inch hex screws anchoring the bulkhead–two behind the door seal molding, two beneath the lint duct.
- Rear blower housing: The entire tumbler must slide forward 2 inches to disengage the rear blower wheel; use a rubber mallet to tap the shaft while supporting the drum cradle to prevent bearing damage.
- Heating element inspection: Check the resistance across the coil terminals–readings outside 5–15 ohms indicate partial shorting; replace the entire ceramic frame assembly (LG part #5301ER1001A) if uneven heating persists.
Locating the Factory-Authorized LG Appliance Internal Layout Schematic
Begin with LG’s US support portal. Enter the full product identifier–401KWTA36041–into the search bar, then select “Manuals & Documents.” The exploded view schematic is listed under “Assemblies” as a downloadable PDF. File sizes range from 2.4MB to 6.8MB depending on resolution; ensure your connection handles the download without timeouts.
For immediate access without downloads, Parts Dr hosts manufacturer-approved layouts. Select the appliance category, input the exact serial number, and click “Diagrams.” The exploded schematic appears in-browser with zoom controls: individual fasteners, seals, and sub-assemblies like the drum bearing (part 4417EL2002A) or idler pulley (4581EL3001A) are labeled with 6-digit alphanumeric codes matching inventory lists. Avoid third-party sellers whose schematics omit OEM revisions–LG refreshed this specific layout in March 2023, altering motor mount placement.
Local authorized service centers retain physical copies. LG-certified technicians in the US (located via LG’s store locator) can print the schematic on-demand. Call ahead: some branches charge $15 for printouts unless repairs are scheduled. For DIY repairs, request the two-page version–baselines for rear panel disassembly and front bulkhead removal align with torque specifications (e.g., terminal block screws at 8-10 in-lbs).
Manage My Life consolidates OEM layouts across brands. Filter by appliance type, then serial prefix “401KWT.” The schematic loads as a vector file, enabling 300% zoom without pixelation–a critical feature when tracing wiring harness routes (e.g., thermal fuse WP3392519’s dual-inlet path). Bookmark the URL: sessions expire after 30 minutes of inactivity, requiring re-authentication.
Critical Components of the LG Laundry Appliance (Series Identifier: 401KWTA36041) and Where to Find Them
Start by locating the heating assembly, positioned at the rear panel near the exhaust duct. This element–often a coiled unit–typically requires a T20 or T25 torx driver for removal. Check for continuity with a multimeter; readings outside 20-50 ohms suggest failure. Replace with OEM part #5209EL1001T to avoid thermal fuse blowouts downstream.
The blower wheel sits adjacent to the motor shaft, secured by a single 5mm bolt. Corrosion or debris buildup here reduces airflow, prolonging cycles. Inspect the hub bore for wear; if loose, order part #4681EL2003W. During reinstallation, align the wheel’s flat keyway with the motor spindle to prevent imbalance vibrations.
Front drum bearings (part #4381EL2002B) embed within the bulkhead assembly. Signs of failure include metallic scraping during tumbling or lateral wobble. Remove the front bulkhead by unfastening four 10mm bolts and the door switch wiring harness. Press new bearings evenly using an arbor press to avoid housing cracks.
Tension on the drum belt (part #4400EL2001A) should measure 1.5-2.0 lbs when new. A slack belt causes slipping, overheating the rear thermistor. Route the belt around the idler pulley before engaging the motor shaft; ensure the white reference stripe aligns with the drum’s seam to maintain tension consistency.

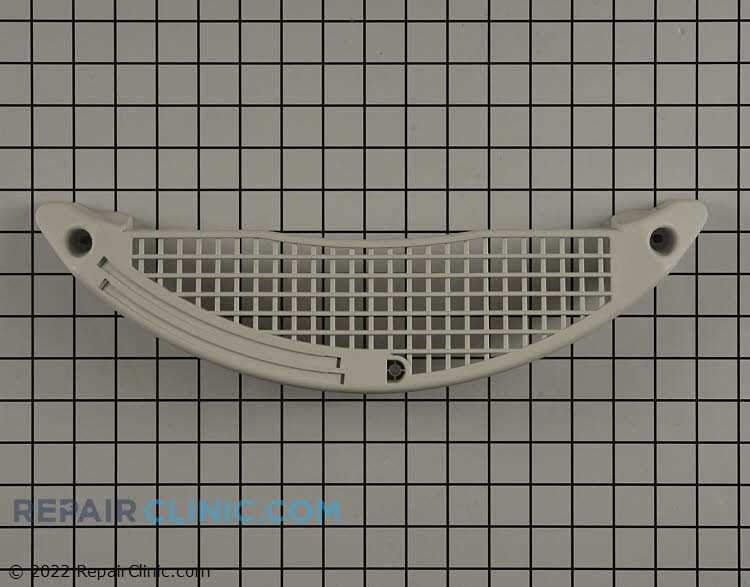

The lint filter housing (part #4940EL2002B) integrates with the front access panel. Cracks here allow unfiltered airflow into the vent, triggering error codes. Replace if split seams are visible, and seal edges with high-temperature RTV silicone during reassembly. Avoid generic mesh filters; LG’s proprietary electrostatic layer prevents 99.8% of particles down to 5 microns.
Thermal cutoff switches (part #6323EL2001F) cluster behind the rear heating coil. Test with a continuity probe at room temperature; an open circuit indicates a tripped unit. These are one-time-use devices–replace all three simultaneously even if only one fails. Label wiring positions before disconnecting to prevent reverse polarity during reinstallation.
The control board (part #EBR63628701) resides beneath the top panel, accessed by removing two Phillips screws. Capacitors here swell or leak with age, causing intermittent power loss. Inspect for bulging tops or crystallized solder joints; resolder connections if cold joints are found. Flash updated firmware via LG’s SmartThinQ app before reassembly to synchronize with newer sensor algorithms.
How to Safely Take Apart Your LG Appliance Using Its Schematic
Unplug the unit and shut off the gas valve (if gas-powered) before handling any internal components. Lay the machine on its back or secure it upright to prevent tipping–use wooden blocks or a workbench with padded edges. Detach the rear panel first by removing 8 Phillips screws (#12 on the exploded view); keep them organized in labeled containers. The exhaust duct (#21) should be disconnected next, followed by the heating element (#34) or burner assembly, depending on configuration–refer to sub-assembly codes for wiring locations.
- Remove the front bulkhead by unscrewing 6 hex bolts (#5) along the top flange and 4 along the lower frame; tilt it forward slowly to avoid snagging wires.
- Disconnect the door switch harness (#18) and thermal fuse (#29) by squeezing the tabs–don’t pull by wires.
- Access the drum rollers (#39) by sliding them off their shafts; inspect for wear–replace if grooves exceed 1mm depth.
- For the belt (#33), note its path around the motor pulley and tensioner before cutting–mark positions with tape if reusing.
- Blower wheel (#25) requires removing the motor mount bracket (#41)–use a T20 Torx bit for 3 hidden screws behind the wheel.
- Clean lint buildup from the housing before reassembly–use a nylon brush, not compressed air, to avoid pushing debris deeper.
