For optimal performance, select a control valve with a minimum flow rate of 4.5 GPM and a pressure rating above 30 PSI. Models with built-in check valves prevent backflow contamination–prioritize units certified by ASSE 1011 or IAPMO. Avoid generic valves; confirmed brands like Hunter PGV or Rain Bird DV reduce failure rates by 40% over five years.
Install impact rotors no closer than 15 feet apart to prevent uneven coverage. Use 24V AC solenoids with resistance between 20-60 ohms–any deviation signals wear or short circuits. For clay-heavy soil, opt for nozzles with matched precipitation rates; adjust arc patterns in 5° increments to eliminate dry zones.
Backflow preventers require annual testing under local codes. Choose double-check assemblies for municipal connections, or reduced-pressure models for regions with high chemical exposure. Position the device 12 inches above grade to prevent flooding–slope the area slightly away from the unit.
Replace worn diaphragms in valves every 2-3 seasons; signs include slow activation or continuous dribbling. Use Teflon tape on threaded fittings, but avoid excessive application–two wraps are sufficient to prevent leaks. For above-ground piping, use SCH 40 PVC in freeze-prone climates, switching to HDPE for underground runs where expansion is a concern.
Test controller wiring before backfilling. Use 18-gauge direct burial wire for runs under 800 feet, and 14-gauge beyond that threshold. Label each wire at both ends–standardized codes (A, B, C, etc.) accelerate future repairs. Weatherproof the station connections with silicone-filled wire nuts; avoid electrical tape as a primary seal.

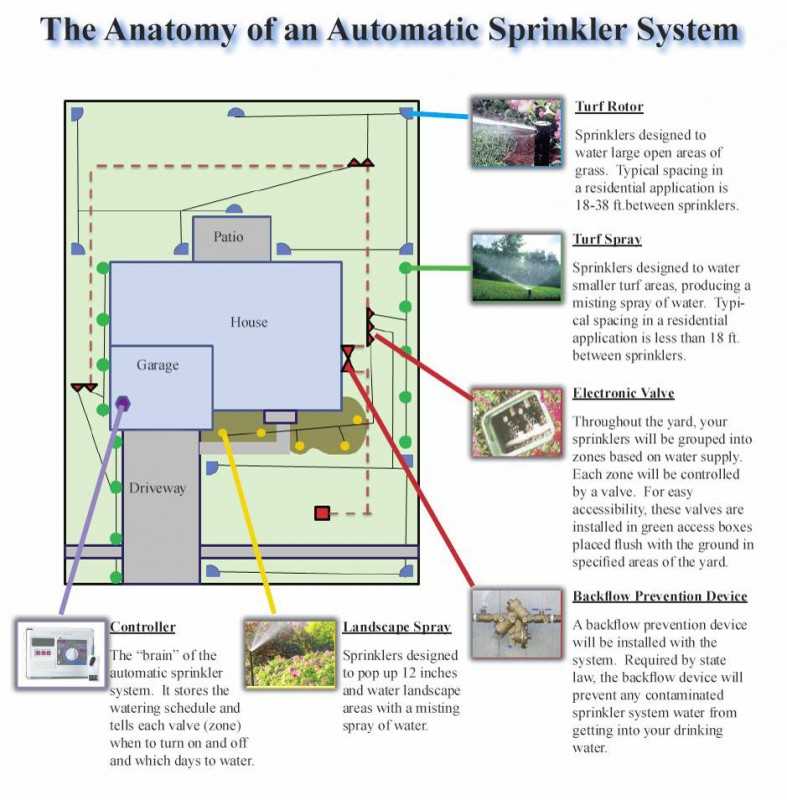

Understanding Your Irrigation Component Blueprint
Begin by locating the main control valve–typically a brass or plastic fixture near the water source. Verify its compatibility with your setup: 20-40 PSI for residential models, 50-80 PSI for commercial-grade units. Mark this on your schematic with a red triangle to avoid confusion with secondary valves downstream.
For zone distribution, use color-coded PVC piping to distinguish routes: white for spray zones (0.75″ diameter), blue for rotor zones (1″), and yellow for drip lines (0.5″). Label each pipe segment with its max flow rate (GPH) and zone number using a permanent marker–errors here waste 15-20% of water during first-season adjustments.
| Component | Material | Pressure Tolerance | Lifespan (Years) |
|---|---|---|---|
| Polyethylene tubing (drip) | LDPE | 15-25 PSI | 7-10 |
| Schedule 40 PVC (underground) | uPVC | Up to 200 PSI | 25+ |
| Galvanized risers | Steel | 125 PSI | 15 |
Backflow preventers must be installed 12″ above the highest emission point or local code requirement, whichever is greater. Dual-check valves (DCV) fail after 3-5 freeze cycles–replace with Reduced Pressure Zone (RPZ) models in regions below -5°C. Include this on your layout with a dashed circle around the device.
Nozzle selection directly impacts coverage uniformity. Match arc patterns to turf shape: 90° nozzles for corners (radius: 8-15 ft), 180° for straight edges (15-25 ft), and 360° for center placement (25-40 ft). Calculate GPM per nozzle using the formula: (Radius × Pressure × 0.67) ÷ 96.3, rounding down to avoid runoff.
Electrical wiring requires direct burial (18 AWG for distances under 50 ft, 14 AWG up to 200 ft) with gel-filled splice kits to prevent corrosion. Separate valve wires from common lines by 6″ to eliminate cross-talk. On your schematic, use arrows to indicate flow direction and voltage (24V for standard controllers).
Rain sensors save 30-50% of water by interrupting cycles during precipitation. Mount them north-facing, at least 5 ft from any obstruction, and calibrate to 1/8″ rainfall threshold. Test biannually: pour 4 oz of water directly onto the sensor–if the controller doesn’t pause, replace the sensor immediately.
Winterize by blowing out lines at 50 PSI with an air compressor–never exceed 80 PSI to avoid damaging rotors. Document pressure readings during purge (ideal: 40-60 PSI) and verify all risers are empty by checking for residual drips after 30 seconds. Store disassembled components indoors at temperatures above 0°C to prevent cracking.
Critical Elements of Irrigation Setups and Where to Find Them
Install the main valve box near the water source–typically within 3 meters of the meter for residential setups–to minimize pressure loss. For municipal connections, position it at least 30 cm below the frost line; in colder climates, use insulated valve covers with heat-tracing cables rated for -20°C.
Buried lateral lines should run perpendicular to the longest edge of the turf, spaced every 4.5–6 meters for 1.9 cm diameter pipes. Use schedule 40 PVC for main lines and class 200 poly tubing for laterals, ensuring sweeps at corners to prevent turbulence. Avoid 90° elbows–opt for 45° bends or two 22.5° fittings to reduce cavitation.

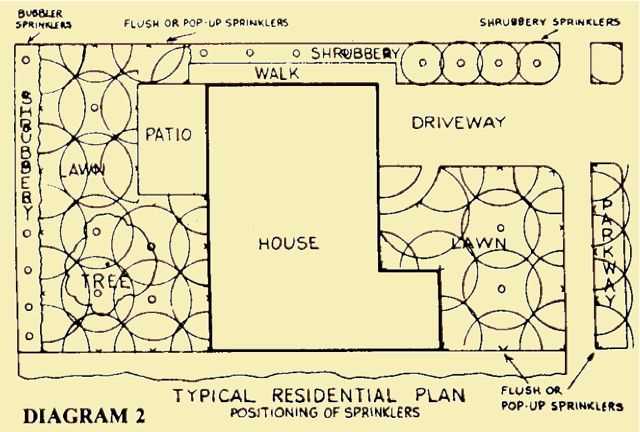

Pop-up emitters require precise placement: 20–30 cm tall units for turf, 10–15 cm for flowerbeds. Position them 1 meter apart for full-circle nozzles, 60 cm for half-circle. Group zones by hydraulic demand–mix rotor and fixed-spray emitters only if their precipitation rates differ by less than 10%. Attach check valves to emitters in sloped areas to prevent drainage, using models with a 0.2–0.3 bar cracking pressure.
Place the controller indoors near a GFCI outlet, within 15 meters of the first valve. Hardwire units for commercial setups; avoid wireless models with more than 4 zones or ranges exceeding 30 meters. Select smart timers with flow sensors rated for 0.3–12 GPM and a minimum 5-year battery backup. Program cycle-and-soak for clay soils: 3-minute intervals with 30-minute pauses, adjusted seasonally based on ET rates.
Backflow preventers must sit above grade, 30–60 cm higher than the highest emitter. For RPZ assemblies, install a by-pass tee and ball valve upstream for winterization; for double-check valves, use bronze bodies if chlorine levels exceed 2 ppm. Test ports–located between the first and second checks–require annual calibration by a certified technician; document readings within ±0.07 bar of baseline.
Drain valves should be installed at the lowest point of each zone, using brass petcocks for manual systems or automatic drain cups for slopes steeper than 8%. Position them above cleanouts, with a slope of 2% toward the drain to ensure complete evacuation. In regions with hard water, add a secondary filter (150-mesh) upstream of drains to prevent clogging from calcium deposits.
Rain sensors mount 3–5 meters above ground, away from trees or roofs to avoid false triggers. Use wired models for reliability in areas with Wi-Fi interference; adjust the threshold to 3 mm for sandy soils, 5 mm for loam. Pair with soil moisture sensors buried 10–15 cm deep, calibrated to a moisture content of 12–18% for most grasses.
Mark all underground components with colored flags: white for laterals, blue for mains, red for electrical. Use tracer wire (14-gauge, direct-burial) for poly tubing to aid detection with 10 kHz locators. For winterization, blow out lines at 4–5 bar, starting with the highest elevation zone and moving downward–record pressure and air volume to monitor for leaks.
How to Identify and Label Piping in Irrigation Schematics
Begin by marking the main supply line in bold red or a distinct thick line–this is the backbone carrying water from the source to zones. Use dashed blue lines for lateral pipes branching off, labeling each with its diameter in millimeters (e.g., 25mm, 32mm) directly on the schematic. Assign unique alphanumeric codes to each segment–Z1-L1 for Zone 1, Lateral 1–to avoid confusion when troubleshooting or referencing during installation.
For buried conduits, note material type (PVC, poly tubing) with abbreviations PVC or PE alongside the pipe’s length and valve connection points. If the layout includes pressure-regulated sections, denote them with a small PRV symbol near the affected lines. Cross-reference these labels with a legend placed in the corner of the drawing to ensure clarity for contractors or maintenance teams.
Step-by-Step Assembly of Irrigation Emitters and Diffusers
Begin by selecting emitters rated for your soil type: sand requires low-flow 0.5–1.0 GPH nozzles, while clay needs 2.0–4.0 GPH to prevent runoff. Lay out emitter spacing on graph paper–12–18 inches apart for drip lines, 8–10 feet for fixed spray patterns–to ensure uniform coverage without overlap. Mark positions with flags to avoid misalignment during installation.
Install the riser adapter first: thread a ½-inch MPT x barb fitting into the polyethylene tubing using a tubing wrench–hand-tighten, then add ¼ turn with pliers to seal without cracking. For pop-up units, cut tubing at 90° with a ratcheting cutter, deburr edges with a utility knife, and push the emitter onto the barb until resistance stops airflow testing. Secure connections with 1-inch stainless steel clamps if working in high-pressure zones (50+ PSI).
Nozzle-Specific Adjustments
- For rotating jets, align the trajectory arrow with the target radius–adjust from 4–30 feet via the built-in screw.
- On fixed-pattern diffusers, set the radius dial to 50% open before fine-tuning to avoid over-spray into hardscapes.
- Insert check valves beneath emitters in slopes >5° to prevent drainage–install ¼-inch valves directly into the riser base.
- Test each unit at 30 PSI pressure: flag leaks, then flush lines for 2 minutes before sealing connections with pipe thread tape (avoid liquid sealant–it clogs filters).
After securing all emitters, bury supply tubing 4–6 inches deep in non-freeze zones or 12+ inches where frost occurs. Backfill with native soil–never gravel–to prevent rodent damage. For zones requiring winterization, install automatic drain valves at low points; cap risers with rubber thread protectors to block debris. Calibrate controller run times: 15 minutes for clay/loam, 10 minutes for sandy soils–adjust in 3-minute increments based on catch cup readings.
