Begin by locating the differential assembly–the central housing that distributes torque to the wheels. Inspect the ring and pinion gears for wear, as these endure the highest stress during acceleration and braking. Use a micrometer to measure gear teeth thickness; replace if deviation exceeds 0.1mm from factory specs.
Next, examine the axle shafts. Look for spline damage or corrosion, particularly at the wheel-end connection. A torque wrench set to 85-95 ft-lbs ensures proper installation of retaining nuts. Apply molybdenum-based grease to CV joints to prevent dry starts, a common failure point in high-load conditions.
For the brake assembly, focus on the caliper pistons and rotor surface. Contaminated brake fluid accelerates seal degradation–flush every 2 years or 200 hours. Replace pads if thickness falls below 3mm, and resurface rotors if runout exceeds 0.002 inches.
Refer to schematics that detail bearing preloads. Improper adjustment leads to premature spinout; a dial indicator should register zero axial play when torqued to manufacturer specifications (typically 15-20 ft-lbs). Keep spare seals on hand–OEM #D900-32910 fits the output flange and costs 20% less than aftermarket equivalents.
When sourcing components, prioritize vendors supplying exploded views with part numbers. Cross-reference with the vehicle’s serial plate (located beneath the driver-side seat) to avoid compatibility errors. Top-tier suppliers provide 3D renderings for complex assemblies, reducing misassembly rates by up to 40%.
Visual Breakdown of Utility Vehicle Differential Assembly
Start by locating the final drive housing on the right side of the drivetrain–this component houses the ring gear (part #70037-30850) and pinion assembly. Remove the drain plug (14mm hex) to empty lubricant before disassembly; residual fluid can complicate alignment during reassembly. The ring gear tooth count is 38, matched with a 9-tooth pinion, producing a 4.22:1 reduction ratio–critical for maintaining torque delivery in off-road conditions.
- Separate the retaining plate (part #70001-22203) by removing six M10x1.25 bolts; use a breaker bar for the two lower fasteners, often corroded in older units.
- Extract the differential carrier (assembly #70006-20350) as a single unit; avoid prying against bearing surfaces to prevent scoring.
- Inspect the cross-shaft (part #70036-22010) for wear; replacement requires a hydraulic press due to interference fits with side gears.
Axle shafts (left: #70024-11161, right: #70024-11171) feature 28 splines with a 30° pressure angle–verify engagement by test-fitting with differential side gears before final installation. Lubricate tapered roller bearings (part #70000-21020) with GL-5 80W-90 synthetic gear oil during assembly; improper preload can cause premature failure. The left shaft extends 58mm farther than the right to accommodate the wheel hub offset.
Key Elements of Utility Vehicle Drivetrain Rear Section
Begin by locating the differential housing – a robust, sealed casing mounted centrally between the wheels. This component splits torque between the half-shafts and absorbs shock loads during articulation over uneven terrain. Inspect the housing for signs of gear oil leaks near the seals; leakage at this point requires immediate replacement of output shaft lip seals to prevent lubricant loss and subsequent bearing failure. Standard gear oil for this assembly is 80W-90 GL-5, with a refill interval of every 200 operational hours.
Trace the half-shafts outward from the differential to the CV joints. Each shaft should move smoothly through its full range of motion without binding. A worn CV joint often emits metallic clicking under sharp turns; if detected, replace the entire shaft assembly rather than attempting repairs, as internal tolerances are critical. Universal joint boots must remain intact and greased monthly with molybdenum disulfide-based grease to prevent dust ingress and retain flexibility.
Critical Fasteners and Torque Specifications
Secure wheel hubs using Grade 8.8 bolts torqued to 120 ft-lbs. Loose bolts lead to catastrophic wheel separation at speed, especially under load. The differential cover is fastened with fourteen M10 bolts; torque these to 25 Nm in a cross pattern to prevent warping and gasket failure. Always replace crush washers on fluid drain and filler plugs to ensure a reliable seal during refilling.
Inspect the rear suspension mounting points where trailing arms attach to the chassis. Bushings compress over time, reducing alignment stability. Measure deflection rates with a dial indicator: values exceeding 0.05 inches indicate worn bushings needing replacement. Polyurethane bushings offer longer life than OEM rubber but require periodic greasing to prevent squeaking.
A final critical component is the parking brake mechanism integrated with the driveshaft. Cable tension should be adjusted annually; insufficient tension allows discs to drag, accelerating pad wear. Clean rotors with isopropyl alcohol before adjustment to remove contamination that can affect braking efficiency. Brake shoes must maintain a minimum thickness of 2.5 mm; replace any thinner units immediately to avoid metal-on-metal contact and rotor damage.
Detailed Guide to Servicing the Utility Vehicle’s Drivetrain Assembly
Begin by elevating the machine’s opposite end using a hydraulic jack positioned under the frame rail near the midsection. Place jack stands beneath reinforced points–never rely solely on the jack once the unit is raised. Lower the vehicle slowly onto the stands, ensuring stability. Remove both rear wheels by loosening lug nuts in a star pattern before lifting to prevent warping the brake rotors.
Drain the differential fluid by locating the drain plug at the housing’s lowest point. Use a 19mm socket to remove the plug, allowing the lubricant to flow into a catch pan. Clean the plug’s magnetic surface to inspect for metallic debris, which indicates bearing or gear wear. If particles exceed 2mm in size or appear copper-colored, further internal inspection is required before proceeding.
| Component | Tool Required | Torque Specification |
|---|---|---|
| Brake caliper bolts | 14mm socket + breaker bar | 35-40 ft-lbs |
| Axle shaft flange nuts | 24mm socket + impact wrench | 60-65 ft-lbs |
| Differential cover bolts | 12mm socket + torque wrench | 25-30 ft-lbs |
Detach the brake calipers by removing the two guide pins and suspending the assemblies using mechanics wire–never let them hang by their hoses. Slide the rotors off the hubs; if corrosion binds them, strike the rotor’s inner face with a rubber mallet while rotating. Next, disconnect the driveshaft flange by marking its position relative to the pinion yoke to maintain alignment during reassembly. Four 17mm bolts secure the flange–remove them while supporting the shaft to prevent it from dropping.
Unbolt the axle shafts from the carrier housing by removing the four flange nuts at each wheel end. Gently pry the shafts outward using a suitable tool inserted between the backing plate and shaft flange–avoid damaging the oil seals. The shafts should slide free with minimal resistance; if binding occurs, check for debris in the spline channels. With shafts removed, unfasten the twelve 13mm bolts securing the differential cover. Tap the cover’s perimeter with a plastic mallet to break the gasket seal, then lift it away to expose the internal gear set.
Inspect the ring and pinion teeth for pitting or chipping, which necessitates replacement. Measure backlash using a dial indicator–acceptable range is 0.10–0.15mm. Adjust preload by rotating the pinion nut in 1/8-turn increments while checking bearing drag with a fish scale; target 10–15 inch-pounds of resistance. When reinstalling, apply anaerobic sealant to cover surfaces and torque bolts in a spiral pattern to ensure even gasket compression.
Key Components of Utility Vehicle Suspension Systems Prone to Wear
Start by inspecting the differential assembly, particularly the bearings and seals. These components endure high stress during turning and heavy loads, leading to premature degradation. Replace bearings if noticeable play is detected during manual rotation checks–ignore minor resistance, but address any grinding or uneven movement immediately. Seals should be examined for leaks or hardening; even small amounts of gear oil seepage indicate failure.
CV joints and boots rank among the most failure-prone elements. Look for torn or cracked boots, which allow dirt ingress and accelerate joint wear. Replace both the boot and joint if contamination is visible–delaying this causes costly damage to the entire half-shaft assembly. Grease leakage or a clicking noise during turns confirms joint deterioration.
Brake pads and rotors demand regular assessment, especially in off-road conditions. Measure pad thickness monthly; replace at or below 2mm to prevent rotor scoring. Rotors with deep grooves or below manufacturer-specified thickness (typically 20-22mm) must be resurfaced or swapped. A pulsating pedal signals warped rotors, often caused by uneven pad deposits or overheating.
Less Obvious but Critical Replacement Candidates
Check the wheel hub assemblies for corrosion or bearing wear. Hubs with internal rust–or those showing excessive endplay–require replacement to avoid wheel detachment risks. Swap both hub and bearing as a unit to ensure proper alignment; mismatched components void manufacturer torque specifications and reduce longevity.
Sway bar links and bushings degrade from constant articulation, particularly in rough terrain. Worn links produce clunks during cornering or uneven weight transfer, while cracked bushings reduce stability. Replace links in pairs and use OE-spec polyurethane bushings for durability–soft rubber alternatives compress too easily under load.
Shock absorbers lose effectiveness gradually; monitor for leaking oil, uneven tire wear, or poor rebound control. Replace shocks if they fail the bounce test (vehicle continues oscillating after manual compression) or show visible damage. Pair replacements on the same side to maintain consistent damping characteristics.

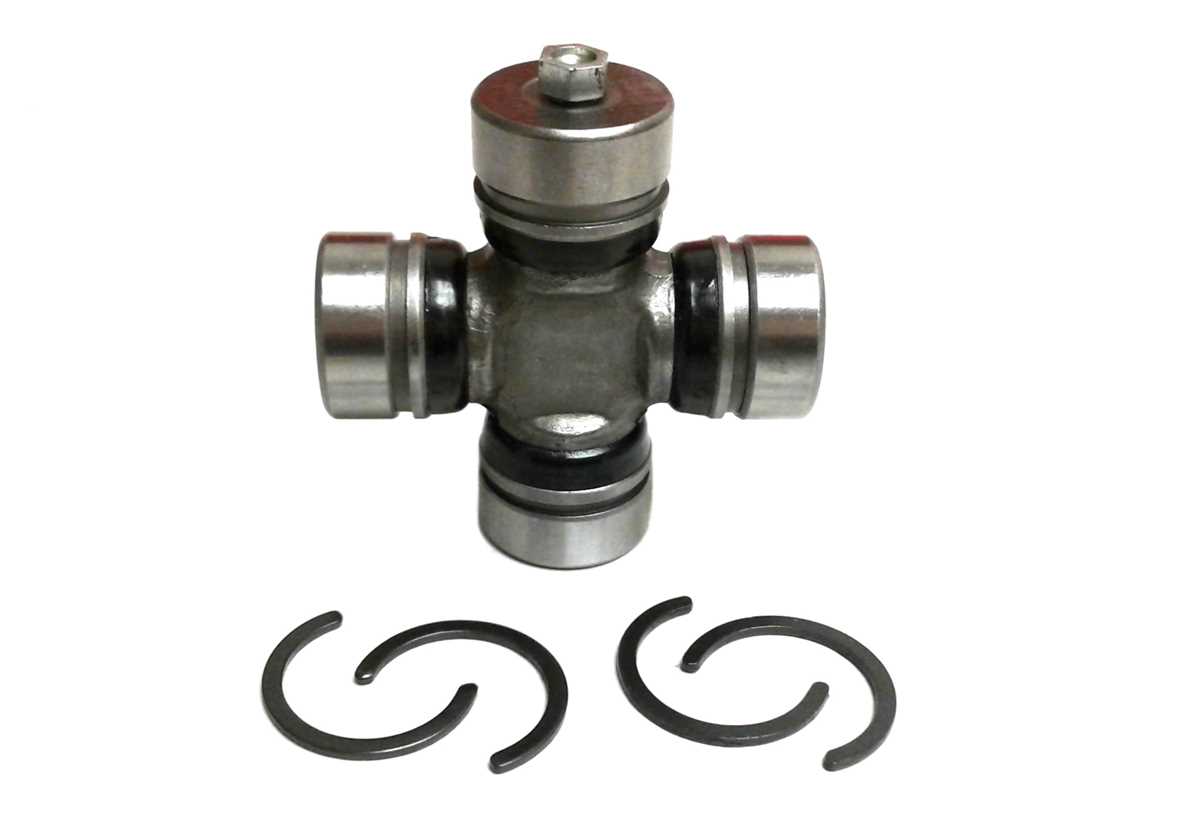

U-joints in the driveshaft assemble often go unnoticed until failure. Grinding noises or vibration at speed indicate worn joints–replace the entire driveshaft if play is detected, as individual joint servicing is impractical. Use greaseable u-joints for prolonged service life, particularly in muddy or wet environments.
Final-drive gears and pinions rarely fail without warning; listen for whining or howling under acceleration. Replace these as a matched set to prevent premature wear on the new component. Keep gear oil levels topped up–low fluid accelerates wear by reducing lubrication to critically loaded surfaces.
