Begin by locating the pump assembly–the core of the system. This section includes the motor, hydraulic chamber, and pressure control valve. The motor drives the hydraulic fluid, which pressurizes the paint in the fluid section. Check the valve seat and ball check for wear; these regulate flow and prevent backpressure buildup. Replace if scoring or pitting is visible.
The fluid section connects directly to the material intake and consists of the piston, packings, and cylinder. Use manufacturer-specific O-rings to avoid leaks–generic seals may fail under high pressure. The suction tube should be inspected for clogs; a blocked filter reduces efficiency and risks damaging the piston. Clean or replace every 50 hours of operation.
Examine the nozzle assembly closely. The tip determines spray pattern width and material flow rate. Wear causes uneven application; measure orifice size with a gauge. The guard and retaining nut must secure the tip firmly–misalignment leads to inconsistent coverage. For proper atomization, match tip size to viscosity: 0.011–0.019″ for primers, 0.013–0.021″ for topcoats.
Trace the hose connections from pump to applicator. High-pressure hoses degrade internally; bend and twist to check for cracks. Secure couplings with Teflon tape to prevent leaks. The trigger mechanism on the handheld unit should engage smoothly–lubricate spring-loaded parts with silicone grease. Electrical connections, if present, require corrosion-resistant terminals to maintain signal integrity.
Label each component before disassembly. Store smaller elements like packings and seals in a dry, labeled container. Reference the service manual for torque specifications–overtightening damages threads. Calibrate pressure settings after reassembly using a digital gauge; deviations exceeding ±5% indicate worn valves or seals. Regular maintenance extends service life by up to 30%.
Understanding Air-Powered Tool Component Layouts
Locate the fluid nozzle assembly by identifying its threaded connection at the front of the device–typically marked with a precision-machined collar. The standard configuration includes a 1.8mm or 2.5mm orifice, but verify measurements using calipers to confirm compatibility before disassembly. Replace worn nozzles immediately if internal grooves exceed 0.1mm depth to prevent inconsistent material application.
Critical Worn Elements to Inspect
- Needle valve: Check for scoring along the tapered section–corrosion or pitting compromises sealing. Apply high-temp grease sparingly during reassembly to ensure smooth actuation.
- Air cap: Examine the horn alignment for cracks. Misalignment causes uneven fan patterns, requiring adjustment via the locking ring’s 1/4-turn mechanism.
- Trigger mechanism: Test spring tension by applying 4-6 lbs of pressure. Weak tension indicates fatigue; replace springs if decompression occurs under load.

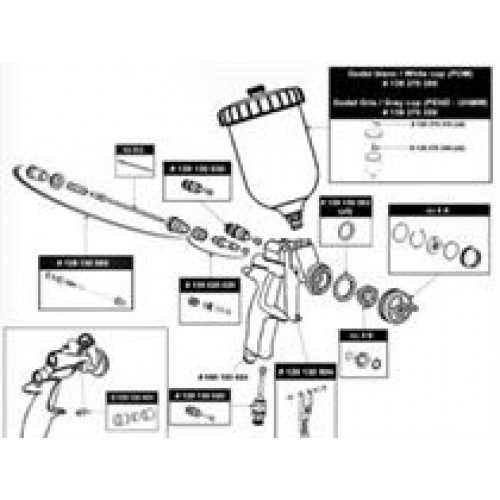

Refer to the manufacturer’s exploded view for torque specifications: fluid adjustment screws require 12-15 in-lbs, while air cap bolts demand 20-25 in-lbs. Use PTFE tape on threaded connections exposed to solvent-based coatings to prevent seizing. When storing, detach the pressure regulator and store it horizontally to avoid diaphragm deformation.
Key Elements of a High-Pressure Coating Applicator
Begin by examining the nozzle assembly–its orifice size dictates fluid flow and pattern width. Standard sizes range from 0.3 to 2.5 mm, with smaller openings suited for fine finishes and larger ones for high-volume output. Verify compatibility with the material viscosity; coatings above 500 cP may require heated hoses or pressurized pots to maintain consistency.
Air Cap and Fluid Tip Mechanics
Locate the air cap’s angled holes–typically six to eight–and confirm their alignment with the fluid tip. Misalignment causes uneven fan patterns or overspray. The fluid tip’s internal taper should match the needle’s profile; a 60° angle is common for most industrial applications, while 45° suits low-viscosity fluids. Replace worn tips if streaking occurs during application.
Inspect the trigger valve mechanism. A loose or damaged valve seat leads to unintended material leakage or erratic pressure drops. Use a pressure gauge to test responsiveness–ideal performance shows immediate pressure build-up when engaged and full release upon deactivation. Lubricate the valve stem monthly with silicone-based grease to prevent seizing.
Check the needle packing nut. Over-tightening compresses the packing, restricting needle movement; under-tightening risks fluid bypass. Adjust until slight resistance is felt when manually operating the needle. Replace packing if fluid seeps past the nut during operation–most kits include PTFE or graphite-impregnated seals for durability.
Maintenance of High-Wear Components
Focus on the piston cup in pneumatic units. A degraded cup reduces air efficiency, causing sluggish trigger response or inconsistent atomization. Replace cups every 100–150 operating hours, or sooner if air consumption increases unexpectedly. Pair replacement with an inspection of the piston’s O-rings–nicks or flats signal imminent failure.
Clean the filter housing weekly. Particulate accumulation reduces fluid throughput, altering pressure dynamics. Use a 100-mesh screen for most coatings; finer filters (200-mesh) suit UV-cured or metallic pigments. Backflush with compatible solvent after each use to prevent clogging; compressed air can embed debris further into the filter matrix.
Monitor the hose connection fittings. Cracked or loosely threaded fittings leak pressurized fluid, creating hazardous working conditions. Swap nylon or brass fittings for stainless steel in high-solvent environments–alcohol-based coatings corrode brass rapidly. Apply PTFE tape sparingly when reassembling; excess tape migrates into the system, blocking internal passages.
Step-by-Step Disassembly for Cleaning and Maintenance
Before handling, disconnect the air supply and release residual pressure by triggering the mechanism. Use a 6mm socket wrench to remove the cap nut securing the nozzle assembly–avoid overtightening during reassembly, as torque exceeding 12 Nm may damage threads. Detach the fluid needle by unscrewing the adjustment knob counterclockwise, then pull the needle straight out; inspect its tip for pitting or wear exceeding 0.2mm depth, replacing it if necessary. The air diffuser threads into the body–grip it with pliers wrapped in a microfiber cloth to prevent scratching and twist until separated, noting the orientation of the O-ring for correct reinstallation.
- Soak disassembled metal components in a solvent bath of isopropyl alcohol (99% concentration) for 10–15 minutes, agitating periodically to dissolve dried residues. Avoid acetone–it degrades rubber seals.
- Clean air passages with a 0.5mm diameter nylon bristle brush, ensuring all spiraled channels are clear of debris; use compressed air (40–60 PSI) to blow out residual solvent.
- Lubricate the needle guide and packings with PTFE-based grease (NLGI Grade 2), applying a thin film to prevent gumming. Replace seals if compression set exceeds 20%.
Reassembly Procedures
- Align the diffuser so its ports match the body’s air channels, then hand-tighten until resistance is felt–final torque: 8 Nm.
- Insert the needle, ensuring the tapered end seats fully into the nozzle; test movement by manually cycling the trigger–resistance should be smooth with no sticking.
- Secure the cap nut, verifying the nozzle orifice and needle are concentric; misalignment causes pattern distortion.
After reconnecting the air supply, test with water at 25 PSI–pattern uniformity indicates correct assembly. If atomization is uneven, recheck fluid needle alignment and air diffuser seating.
Critical Components Subject to Degradation and Optimal Servicing Cycles
Replace the fluid nozzle every 150–200 operating hours under normal load conditions. High-viscosity coatings or elevated ambient temperatures will reduce this interval to 100–120 hours. A worn nozzle directly impairs pattern consistency, increasing overspray and finish defects.
Seals inside the handle assembly demand inspection at 80-hour intervals, with full replacement mandated every 300–350 hours regardless of visible condition. Material compatibility dictates seal lifespan: polyester-based coatings cause accelerated degradation compared to acrylics or waterborne formulations. Ignoring seal wear introduces inconsistent pressure delivery and premature corrosion of internal channels.
| Component | Inspection Frequency | Replacement Interval (Hours) | Failure Symptoms |
|---|---|---|---|
| Fluid tip | 50 | 150–200 | Uneven pattern, excess atomization |
| Needle packing | 40 | 250–300 | Fluid leakage at rear, sticky trigger action |
| Air cap | 60 | 400–500 | Fan distortion, coarse spray pattern |
Trigger valve diaphragms require swap-out every 200 hours, even if no sticking or hesitation is observed. Material fatigue in these diaphragms is not visually detectable but manifests as inconsistent flow rates, especially during initial activation.
Extended Service Strategies
For units operating in dust-intensive environments, clean the air intake filter weekly and replace it every 100 hours. A clogged filter increases internal wear by elevating back pressure, which shortens the lifespan of both seals and the internal air motor. Units equipped with stainless steel housings tolerate 15% longer intervals than aluminium counterparts before showing signs of pitting or corrosion.
Static dissipative hoses should be retired every 400–450 hours, regardless of exterior condition. Electrical resistance measurements above 1 megaohm indicate internal degradation that compromises grounding efficiency, risking static discharge that damages surface adhesion properties.
