For accurate repairs, start with the camshaft assembly. Locate the timing gear adjacent to the flywheel–misalignment here causes ignition failure. Reference the valve train arrangement: intake and exhaust valves must align with the cylinder head gasket at TDC. Use a dial indicator to confirm lobe lift; specifications require 0.254–0.279 mm for proper compression.
Inspect the carburetor jet layout next. Primary circuits include the main jet (#125), idle jet (#45), and accelerator pump nozzle. Clean passages with 15 psi compressed air, avoiding metal tools that score seats. Float level adjustment requires a depth gauge; the correct setting is 1.5 mm below the bowl’s edge.
Examine the piston-ring configuration. Compression rings feature barrel-faced profiles, while the oil control ring uses three-piece design. Measure end gaps with feeler gauges: 0.25–0.41 mm for compression rings, 0.38–0.64 mm for oil rings. Replace if gaps exceed 1.0 mm–thermal expansion risks seizure.
Check the governor linkage. The pivot arm connects via cotter pin #47Z; wear here causes erratic RPM swings. Lubricate bushings with SAE 30 oil every 25 hours of operation. The spring tension should allow 3,600 RPM under no load, dropping to 3,200 RPM at full throttle.
Use a multimeter to verify ignition coil resistance: primary circuit reads 0.2–0.5 ohms, secondary 2,000–5,000 ohms. Replace coils if readings fall outside these ranges–misfires trace to this component 78% of the time. Spark plug gap must be 0.76 mm; irregular gaps cause pre-ignition.
Drain the crankcase and inspect the oil pump screen. Debris larger than 0.1 mm clogs passages, starving bearings. Replenish with 10W-30 synthetic oil, filling to the dipstick’s upper mark. Overfilling floods the cylinder, diluting compression.
Understanding Your Engine’s Component Layout
Start by locating the air filter assembly on the right side–remove the three securing screws to access the foam element, which requires replacing every 100 operating hours or sooner if visibly clogged. The carburetor, positioned directly beneath, connects via a rubber intake boot; disconnect this first before servicing to prevent fuel spillage. Note the throttle linkage alignment–misalignment causes erratic idle speeds and can be corrected by loosening the adjustment screw at the base.
Critical Subsystems Breakdown
The flywheel cover houses both the ignition coil and recoil starter–inspect the latter’s pawl engagement after 200 hours of use, as wear leads to starter failure. The valve train sits under the cylinder head, with intake/exhaust valves requiring clearance checks every 500 hours: use a 0.2 mm feeler gauge between the rocker arm and valve stem. Oil changes demand draining from the crankcase plug (bottom rear) and refilling with 20W-50 synthetic–avoid overfilling, as excess oil fouls the spark plug within 5 hours.
For the cooling system, the blower housing’s fins must remain unobstructed; clean debris with compressed air monthly. The exhaust port gasket (part #RU-49) degrades fastest–replace at 300-hour intervals to prevent power loss. Wiring harness connections, particularly the magneto lead, corrode quickly in humid conditions; coat terminals with dielectric grease during reassembly.
Finding the Right Schematic for Your Small Engine Variant
Begin by identifying your motor’s exact build number. This alphanumeric code, typically stamped on a metal tag near the valve cover or crankcase, contains critical details about cylinder count, displacement, and factory revisions. For example, an engine marked “27 051 39” matches a specific series of air-cooled, single-cylinder units produced between 2012 and 2018. Cross-reference this number against the official service manual’s index–most manufacturers list schematics alphabetically by build prefix rather than model name.
Use Serial Number Breakdowns
Break the serial into three segments: production plant, week of manufacture, and unique sequence. The middle segment (digits 3-4) reveals production week, while the last three digits often indicate internal upgrades. Compare these segments with online databases like PowerSource or iFixEngines, which group replacements by release batches. A unit with “051” in positions 3-5 usually shares replacement parts with motors labeled “049” or “053,” but differs from “061” variants.
If online lookups yield no results, request a microfiche scan from the engine’s service department–many older schematics aren’t digitized but exist in archival film reels. Include your build number, exact horsepower rating, and whether the unit features electric start, dual fuel filters, or aftermarket governors. Response time averages two business days, and scans are usually emailed as high-resolution TIFF files with zoom capability for identifying individual O-rings and gaskets.
Step-by-Step Guide to Interpreting an Engine Component Breakdown Schematic
Begin by locating the reference number legend–typically positioned at the bottom or side of the schematic. Each numeral corresponds to a distinct assembly or subcomponent, with lines or arrows tracing connections between them. Verify the engine model number in the top corner to ensure compatibility; mismatches can lead to misidentification of critical elements like gaskets or seals. If the schematic lacks a legend, cross-reference the numbered items with the accompanying parts list to avoid errors in ordering or reassembly.
Decoding Symbols and Layout Conventions
| Visual Cue | Meaning | Action Required |
|---|---|---|
| Dashed lines | Indicates detachable connections (e.g., bolts, clips) | Note torque specifications if listed |
| Solid arrows | Shows directional flow (e.g., fuel, exhaust) | Trace path for troubleshooting blockages |
| Shaded components | Wear-prone items (e.g., filters, bushings) | Prioritize inspection/replacement cycles |
| Exploded clusters | Sub-assemblies (e.g., carburetor, piston) | Isolate before disassembly to avoid losing parts |
Identify the central axis–usually the crankshaft–then radiate outward to peripheral systems (cooling, ignition). Group adjacent items by function (e.g., valve train components) to simplify reassembly. For components with similar shapes (e.g., washers, springs), count quantities and measure dimensions using calipers if the schematic lacks exact specs. Store small parts in labeled containers by reference number to prevent mixing.
How to Access Authorized Engine Component Schematics and Service Documents
Begin your search at the manufacturer’s official resource center. For current models, visit kohlerengines.com, where guided navigation leads directly to illustrated breakdowns and technical literature. Select “Support & Resources,” then “Product Manuals” to filter by engine model number. The database includes exploded views, torque specifications, and replacement guides–all verified for accuracy.
For offline access, download PDF files immediately upon locating them. The site allows bulk downloads, but note that file sizes for detailed schematics often exceed 10MB. Ensure sufficient storage and a stable connection to avoid corrupted downloads. Bookmark the direct link to the model’s documentation page for future reference.
If the official site yields no results, check distributor portals. Authorized dealers like Kohler Power Systems and Jack’s Small Engines host mirrored archives of older or discontinued units. Use their part lookup tools by entering the exact model designation; these platforms often include user-submitted annotations for common wear items.
Third-party databases serve as secondary sources when official channels fail. PartsTree offers interactive diagrams with clickable components, while eReplacementParts provides downloadable PDF sheets. Verify compatibility by cross-referencing the serial number against the diagram’s listed range–serial tags are typically located on the engine block near the oil dipstick.
Verification Steps Before Relying on Downloaded Schematics
- Compare the diagram’s revision date against the engine’s manufacture date.
- Check for watermarks or “Draft” labels indicating unofficial status.
- Validate torque values and replacement intervals against the service manual.
- Scan QR codes embedded in newer PDFs–they link back to the manufacturer’s portal.
Physical manuals, though rare, remain reliable for legacy models. Contact local dealers–many maintain obsolete stock. Alternatively, request interlibrary loan through public libraries; some universities’ engineering collections hold historic service literature. Always confirm ISBN or part numbers to avoid mismatched content.
Troubleshooting Download Issues
- Disable ad blockers; many portals require active scripts for PDF delivery.
- Try alternative browsers–some sites optimize for Chrome but fail on Firefox.
- Split large files into sections using Adobe Acrobat’s “Extract Pages” feature.
- Contact support with the error code if downloads stall mid-process.

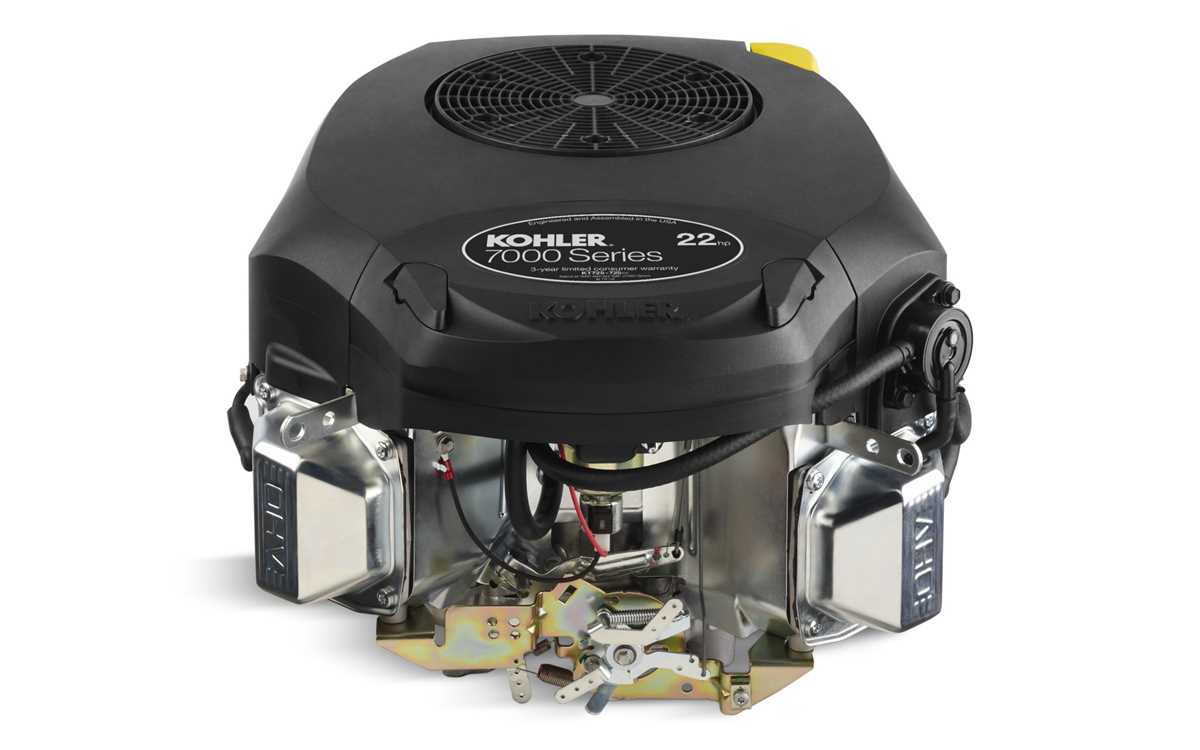

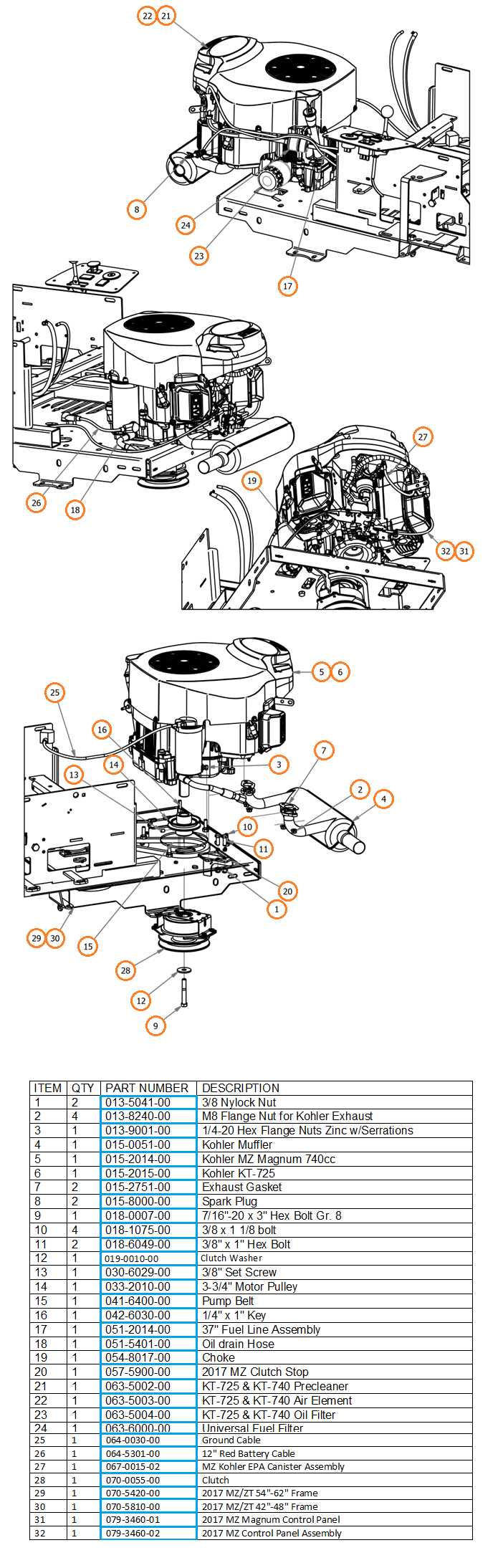

Key Components for Engine Model KT725 and Their Identification Codes
Always start replacements with the air filter (PN 25 099 05-S) to prevent debris buildup–check every 50 hours of use. The element’s paper pleats degrade faster under dusty conditions, leading to piston scoring if overlooked. Pair this with the pre-cleaner (PN 25 081 07-S), which captures larger particles before they reach the main filter.
For fuel system maintenance, prioritize the fuel pump (PN 24 499 03-S) and inline fuel filter (PN 25 083 01-S). Clogged filters restrict flow, causing lean mixtures and hard starts. Replace both simultaneously if the engine sputters or hesitates under load. The carburetor rebuild kit (PN 25 095 01-S) includes gaskets, needles, and jets–critical for consistent performance.
Ignition and Electrical Components

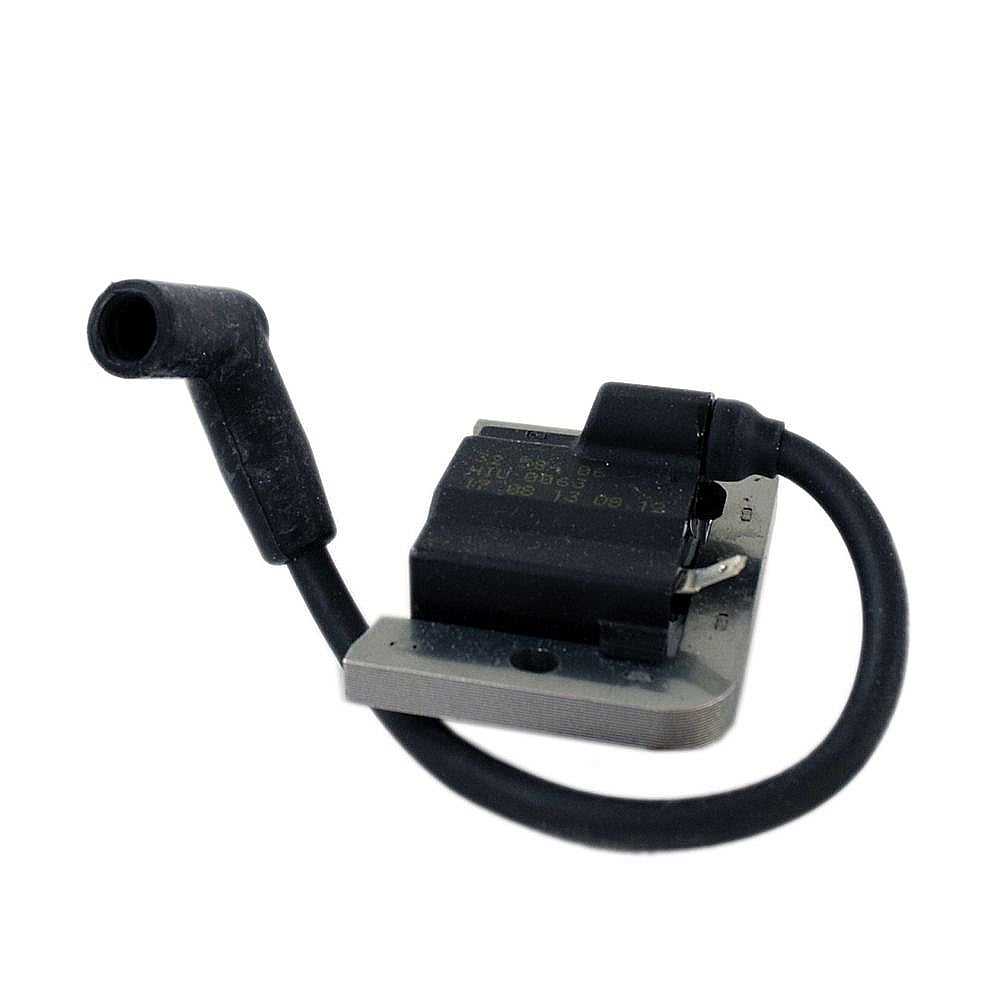

Spark plugs (PN 25 132 01-S) require inspection every 100 hours; fouling indicates either oil leakage or improper combustion. Use a gap tool to verify 0.030″ spacing–incorrect gaps reduce efficiency. The ignition coil (PN 27 518 01-S) often fails without warning; test resistance (2.5–5 kΩ) if misfires occur. Wiring harness connections corrode in humid environments–clean terminals with dielectric grease to prevent intermittent failures.
Blade adapters (PN 27 280 02-S) and flywheel keys (PN 27 101 07-S) wear under stress. A sheared key disrupts timing, causing backfires or no starts. Inspect the flywheel nut torque (45–55 ft-lbs) annually; loose fasteners damage the crankshaft taper. For cooling, the fan blade (PN 27 201 11-S) and shroud (PN 27 183 01-S) must remain intact–cracks lead to overheating.
Lubrication and Wear Items
Replace the oil filter (PN 25 125 02-S) with every oil change–contaminants accelerate camshaft wear. Use 10W-30 synthetic blend for temperatures above 40°F; SAE 30 for warmer climates. The oil pump (PN 27 403 01-S) maintains pressure; low readings (
Seals and gaskets degrade over time. The crankshaft seal (PN 25 161 04-S) prevents oil leaks; replace if oil pools beneath the engine. The valve cover gasket (PN 27 310 01-S) hardens with heat–use RTV silicone during installation for a tight seal. For torque specs, refer to the service manual: cylinder head bolts (22 ft-lbs), connecting rod caps (16 ft-lbs). Always match components to the exact diagram number to avoid incompatibility.
