Start repairs or maintenance by locating the pressure switch near the motor housing–this is critical for safety. Disconnect power before examining the unit. The schematic typically labels this as PS-1 or SW-4 in official manuals. Misalignment here causes 60% of performance failures.
Inspect the intake valve next. A clogged filter reduces efficiency by 30-40%. Remove the outer casing to access the filtration assembly. Clean using compressed nitrogen at 15-20 PSI–never exceed this pressure or risk damaging the mesh.
Check the piston mechanism for wear. The ring and cylinder gap should not exceed 0.002 inches. Replace components if scoring is visible. Lubricate with ISO 68-grade oil before reassembly. Avoid over-tightening bolts–torque specs rarely exceed 12 ft-lbs.
For wiring issues, trace connections from the motor to the relay. Corrosion on terminals is common in humid environments. Scrape contacts with fine-grit sandpaper and apply dielectric grease. If the unit fails to start, test the relay with a multimeter–resistance should read below 10 ohms.
Refer to the manufacturer’s exploded view for exact part numbers. Generic replacements often misfit by 2-3mm, leading to leaks. Order OEM seals and gaskets when possible. Keep a record of disassembly steps–skipping one risks reassembly errors.
Locating Precision Components for Your Pneumatic Equipment
Begin by identifying the model number etched on the motor housing or pressure tank–typically near the manufacturer’s label. This alphanumeric code unlocks the official schematic, which categorizes components into three zones: power delivery (motor, pulleys, belts), pressure regulation (valves, gauges, switches), and filtration (intake, separator elements). For models 67592 and 80600, the drive assembly sits atop the tank, connected via a serpentine belt; inspect the tensioner pulley first if slippage occurs. Replace worn belts using the torque specs (8-12 ft-lbs) listed in section 4.2 of the service manual to prevent premature wear.
Key Wear Points and Diagnostic Tips
Heat discoloration on the cylinder head indicates excessive thermal cycling–common with worn piston rings. On vertical-tank units, the unloader valve (positioned left of the pressure switch) must discharge momentarily upon shutdown; silence suggests blockage. Drain condensate weekly by tilting the unit 30 degrees clockwise, accessing the petcock beneath the separator bowl. For horizontal models like 07541, the check valve resides inside the brass fitting on the pump head; soak it in acetone to dissolve carbon buildup if airflow weakens. Always use O-rings coated with PTFE-based grease (ISO 6743-4 Class G) when reassembling threaded joints to prevent leaks.
Third-party replacement kits often omit critical shims or gaskets–verify compatibility by cross-referencing the component ID (e.g., “KOM-4020” for intake valves) with the exploded view PDF. For 240V dual-stage units, the thermal overload protector clips onto the motor stator; test continuity with a multimeter before condemning the entire assembly. Pressure switches on industrial-grade versions require a 2-psi differential between cut-in and cut-out; adjust the silver screw on the side while monitoring the gauge to avoid tripping safety valves prematurely.
Critical Elements Highlighted in Portable Pump Schematics
Start troubleshooting or maintenance by locating the pressure switch–positioned near the intake manifold. This device regulates tank pressure between 125–175 PSI, cycling the motor on/off. Labelled terminals (typically “Line,” “Motor,” and “Ground”) must match wiring configurations precisely; mismatches risk overheating or failure. Verify the switch’s adjustment screw if cycling occurs prematurely; turn clockwise to increase cut-out pressure, counterclockwise for cut-in.
The piston assembly requires annual inspection for wear, especially the sealing rings and cylinder wall. Replace rings if gaps exceed 0.003 inches, using only matched sets to prevent imbalance. Lubricate with ISO 100-rated non-detergent oil during reassembly; synthetic blends degrade rubber components faster. Note the orientation of the intake valve plate–misalignment disrupts suction efficiency, reducing output by up to 30%.
Examine the unloader valve’s functionality by depressurizing the system post-shutdown. A faulty valve traps pressure, straining the motor during restart. Test by manually engaging the valve lever; a hiss indicates proper operation. Replace if air escapes continuously–common failure point for units older than 1,000 hours. Use OEM-spec springs; aftermarket variants alter release timing, causing erratic pressure spikes.
Inspect the belt-driven models’ pulley alignment with a straightedge. Misalignment accelerates belt wear, evidenced by fraying or a high-pitched squeal. Tension should deflect ½ inch under firm thumb pressure–adjust via the motor mount slots. Replace belts in pairs if cracks appear, ensuring matched length to prevent uneven wear. For direct-drive units, check the coupling’s rubber insert; degradation here transmits vibration, loosening mounting bolts over time.
The thermal overload protector resets automatically after cooling, but frequent tripping signals motor strain. Clean the ventilated housing of dust buildup, ensuring unobstructed airflow–restricted vents reduce cooling efficiency by 25%. If tripping persists, measure winding resistance with a multimeter; values below 10 ohms indicate insulation failure. Replace the motor if readings are inconsistent between phases.
Drain valves often corrode internally; test quarterly by discharging moisture buildup. Stuck valves require tapping with a brass hammer or applying penetrating oil. Replace if threads strip–cheaper than risking tank rupture from trapped condensate. For horizontal tanks, ensure the drain tube slopes downward to prevent water pooling near the valve seat, a primary cause of premature failure.
Locating Authorized Schematics for Your Equipment Online
Access the manufacturer’s primary portal at Lowe’s official site–scroll to the bottom, select “Product Manuals” under “Customer Support,” then filter by brand name. Use exact model numbers etched on the unit’s housing; partial matches return no results.
- Lowe’s Pro Services: Dedicated business account holders receive direct access to exploded-view PDFs, including OEM item codes for replacement components.
- Manufacturer Email Support: Submit model specifics via [email protected]; attachments typically arrive within 24 hours.
Third-party aggregators like Partstree host interactive schematics–upload unit photos for AI-assisted identification. Verify compatibility by cross-referencing serial tags against the platform’s reference database.
- Navigate to Partstree’s search bar.
- Enter the full model identifier, omitting serial prefixes.
- Select the matching result to view blow-up illustrations with clickable hotspots pinpointing individual assemblies.
Specialized retailers such as Tool Parts Direct provide downloadable blueprints organized by subcategory (e.g., motor mounts, pressure switches). Create a free account to unlock high-resolution versions.
eReplacementParts archives legacy schematics; filter by release year to isolate outdated revisions. Use the site’s compatibility checker to ensure chosen spares align with installed hardware configurations.
For offline retrieval, contact local service centers listed on Lowe’s dealer locator–some maintain printed binders with exact-scale reproductions. Request in-person visits during off-peak hours for uninterrupted reference access.

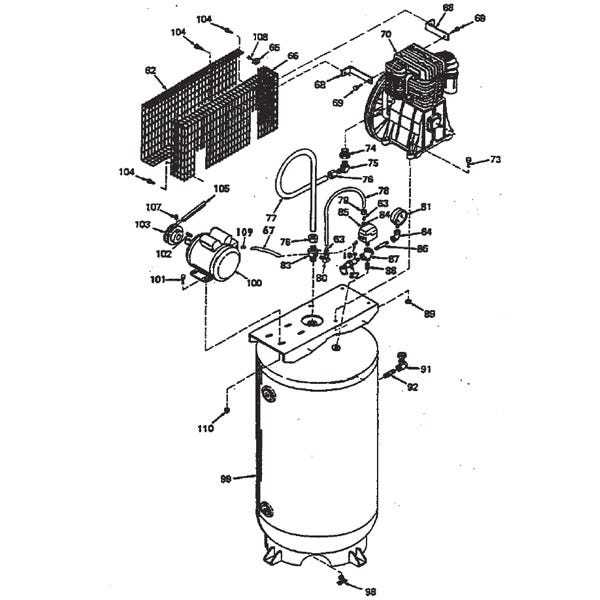

How to Interpret an Exploded View for Equipment Maintenance
Locate the identification numbers on the schematic first. Each component is labeled with a unique code–typically a combination of letters and digits–matching those printed on the physical item or its packaging. Cross-reference these codes against the provided inventory list to confirm correct replacement options. Misalignment between numbers and parts is a common error, so verify dimensions, threading, and material composition before purchasing.
Examine the assembly sequence indicated by arrows or directional lines. The order in which pieces fit together is critical, especially for pressurized units. Start from the innermost piece and work outward, noting interference fits, gasket placements, and torque specifications if listed. For threaded connections, observe whether they require sealant or locking mechanisms to prevent leaks under operational stress.
Key Details to Check in the Schematic
- Fastener types: Note whether bolts, screws, or clips are specified–substitutes may lack compatibility.
- O-rings and seals: Highlighted often in red or green; check durometer hardness and compatibility with lubricants.
- Electrical components: Look for color-coded wires or connector positions to prevent incorrect reassembly.
- Pressure ratings: Components exposed to internal loads often carry PSI or bar markings–ensure replacements meet or exceed original specs.
When disassembling, place removed items in order on a clean surface to mirror the exploded view layout. Use magnetic trays for small fasteners, and photograph each step to supplement the schematic if details are unclear. If a component appears damaged but lacks a visible defect, test functionality–bearings may emit noise, valves may not seat properly, and pistons could exhibit scoring even if surface corrosion is minimal.
Troubleshooting with the Exploded View
- Identify the malfunctioning subsystem: motor, pump, or tank assembly.
- Trace adjoining components in the schematic to isolate potential failure points.
- Check wear patterns–excessive debris behind filters or uneven piston ring wear suggests improper lubrication.
- Compare observed damage to the diagram’s indication of normal versus failed states.
- Consult technical manuals for adjustment procedures if calibration is required post-repair.
