Start by locating the engine assembly breakdown in the official repair manual. Focus on pages 42–47, where critical subsystems–including the crankcase, piston, and transmission–are detailed with precise measurements and torque specifications. Ignore generic online schematics; they often omit tolerance values for fasteners, leading to stripped threads or misalignment during reassembly. Use a digital caliper to verify component dimensions if replacements are needed.
For the suspension system, prioritize the OEM diagram showing fork internals. Aftermarket guides frequently swap damper rod lengths or spring rates, causing instability. Note the correct preload settings–rear shock requires 5 mm of sag for trail use, while front forks should have 20–25% stiction to prevent dive under braking. Replace seals if oil leaks exceed 1 cc per ride or damping feels inconsistent.
Electrical wiring harnesses are a common failure point. Trace circuits using the color-coded schematic from the manufacturer’s microfiche, not community forums–improper splices risk shorting the ignition coil or ECU. Test continuity with a multimeter; resistance should measure
Frame and chassis diagrams are often overlooked. Check the swingarm pivot torque (45 Nm) and axle alignment with a straightedge. Misalignment by even 0.5 mm accelerates tire wear. When replacing bearings, heat the housing to 100°C with a heat gun for easier installation–hammering risks housing damage. For plastics, sand mating surfaces with 400-grit before applying adhesive; cracks recur if contamination remains.
Comprehensive Breakdown of Kawasaki Off-Road Junior Bike Components
Begin by locating the engine cover on the right side of the bike’s frame–this houses the crankcase, transmission, and kickstart mechanism. Use a T25 Torx bit to remove the five screws securing it; avoid forcing the bolts as stripped threads are common on 2002–2012 models. Once open, inspect the clutch plates; friction disks should measure at least 1.5mm in thickness, while steel disks must be free of grooves deeper than 0.3mm.
Check the carburetor float height next: unhook the fuel line and drain residual petrol into a sealed container. The float valve should sit parallel to the carburetor body when flipped upside down; adjust the tang with needle-nose pliers to maintain 13–15mm clearance. Incorrect settings cause flooding–evident by blackened spark plugs or fuel seeping from the air intake.

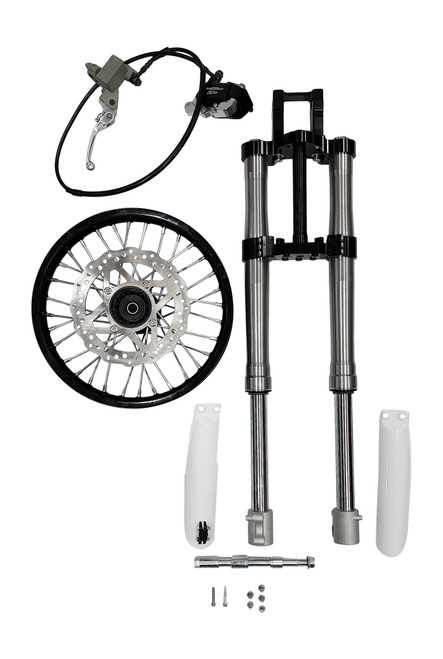

Front fork disassembly requires a 24mm wrench to loosen the fork cap. Each leg contains 150ml of SAE 10W fork oil; replace it every 50 hours of riding or if debris is visible. Compression damping rods must slide freely–stuck rods produce a harsh ride and accelerated tire wear at the center. Grease the dust seals with lithium-based grease before reassembly to prevent premature cracking.
Electrical and Chassis Diagnostics
Trace the magneto wire harness from the stator to the CDI box–crimp connections often corrode under the seat rail. Use dielectric grease on the bullet connectors to prevent moisture ingress. Test ignition resistance with a multimeter: stator output should read 0.2–1.0 ohms, while the pulse generator ranges between 50–200 ohms. Readings outside these ranges indicate a faulty stator or shorted coil.
The swingarm pivot bearings demand attention every 100 hours; pry off the snap rings with circlip pliers and drive out the bearings using a brass drift. Inspect needle rollers for brinelling–pitting or flat spots necessitate replacements (part #92049-2047). Pack new bearings with high-temperature lithium grease, ensuring full seating without over-striking, which distorts the housing.
Brake caliper rebuild involves removing the piston with compressed air; place a rag over the caliper to catch the piston during ejection. Replace the square-cut O-ring if flattened–common on bikes ridden in muddy conditions. Lubricate the new seal with DOT 4 fluid, not silicone-based products, which swell rubber compounds. Rotors thinner than 3.0mm (front) or 4.0mm (rear) must be replaced to avoid heat fade.
Air filter servicing differs based on usage: paper elements last 20 hours in dusty terrain, foam elements 10. Oiled foam traps finer particles but requires weekly cleaning with kerosene, then re-oiling with dedicated filter oil–avoid WD-40 or motor oil, which clog pores. Ensure the filter cage sits flush against the airbox; misalignment allows unfiltered air ingress, accelerating cylinder wear.
Chain tension should measure 20–30mm of slack at the tightest point. Adjust via the rear axle nut and locknut; uneven tension accelerates sprocket wear. Use a rivet-type master link rather than clip links on OEM chains–retaining clips vibrate loose under load, risking derailment. Lubricate the chain every two rides with paraffin-based wax to repel grime without flinging excess lube onto brake rotors.
Identifying Key Elements in Your Off-Road Mini Bike’s Powerplant
Begin by securing the bike on a stable lift or stand to prevent movement, then remove the seat and side panels for unobstructed access. The airbox sits directly above the crankcase–detach its bolts and lift off the cover to expose the carburetor and intake manifold. Trace the fuel line from the tank to the carburetor inlet; label connections if unfamiliar with routing. The cylinder head bolts (four 8mm fasteners) require sequential loosening in a star pattern to avoid warping–consult a torque wrench for 18-22 Nm specs. Beneath the head, note the piston orientation: the arrow on the crown must point toward the exhaust side during reassembly.

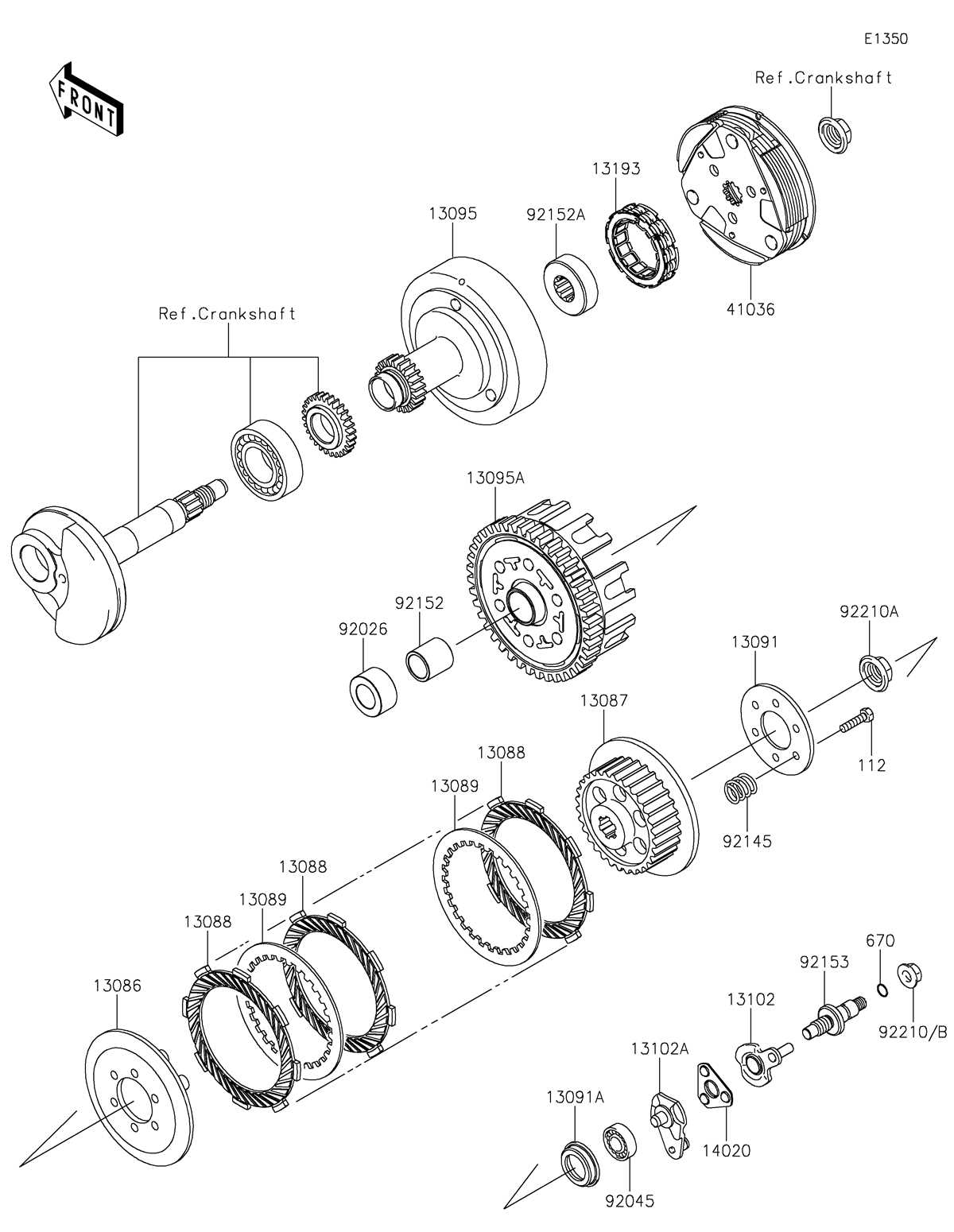

Inspect the crankshaft bearings through the side covers–gently rotate the flywheel while checking for lateral play. The clutch assembly is housed behind the primary drive gear; remove the three 10mm bolts holding the cover to reveal the friction plates and springs. When handling the cam chain tensioner, release stored pressure by unscrewing the cap in small increments to prevent sudden extension. The stator and ignition coil reside behind the flywheel–mark their position with a paint pen if removing to preserve timing.
Step-by-Step Suspension Assembly for Off-Road Mini Bikes
Begin by securing the front fork assembly in a vise with protective jaws to prevent scratching. Align the lower triple clamp with the fork tubes, ensuring the steering stem hole is centered. Tighten the pinch bolts evenly in a cross pattern to 18-22 Nm–over-tightening risks binding the fork seals.
Install the rear shock absorber by threading it through the frame’s mounting lugs. Use the manufacturer-specified spacer (6mm thick) between the shock eye and frame to maintain proper linkage geometry. Torque the shock bolts to 35-40 Nm; use thread locker on the bolt threads to prevent loosening from vibrations.
Critical Alignment Checks Before Final Torquing
| Component | Torque Spec (Nm) | Tools Required | Common Error |
|---|---|---|---|
| Fork pinch bolts | 18-22 | 8mm Allen wrench, torque wrench | Uneven clamping force |
| Shock absorber bolts | 35-40 | 12mm socket, breaker bar | Missing spacer |
| Swingarm pivot bolt | 50-55 | 14mm socket, torque wrench | Misaligned chain tension |
Rotate the swingarm through its full travel to verify smooth movement. Lubricate the pivot bushings with molybdenum grease if stiffness is detected–dry pivots accelerate wear. Measure the distance between the swingarm and rear axle adjusters at full extension; deviation exceeding 2mm indicates bent components requiring replacement.
Attach the rear suspension linkage arms in sequence, starting with the lower arm connected to the swingarm. Apply lithium-based grease to the spherical bearings before insertion. Use a drift punch to seat the bearings fully without damaging the seals. The upper linkage arm should pivot freely; binding suggests incorrect installation.
Adjust the preload on the rear shock by turning the threaded collar clockwise for firmer rebound. A 5mm hex wrench fits the adjustment flats–rotate in 90-degree increments and test ride between adjustments. Factory settings (3 turns from fully soft) suit most riders; stiffer settings risk reducing wheel traction on uneven terrain.
Final Inspection Points
Inspect the fork seals for leaks after the first ride. Wipe the stanchion tubes with a clean cloth; oil residue indicates seal failure. Replace seals immediately to prevent dirt ingress. Check all fasteners after 50 km of riding–vibration loosens bolts even with thread locker.
Balance the front and rear suspension by comparing compression rates. Press down on the seat and handlebars simultaneously–resistance should feel progressive, not abrupt. If the rear shock bottoms out before the fork, increase shock preload by 1/2 turn. For aggressive riding, consider upgrading to a heavier-weight fork oil (10W instead of 5W).
Reading Motorcycle Electrical Schematics: Key Insights for the Off-Road Model
Trace the ignition circuit first–locate the magneto output wire (typically green with a white stripe) leading to the ignition coil. Verify continuity between this wire and the coil’s primary terminal using a multimeter; resistance should fall between 0.2–0.8 ohms. Discrepancies indicate a faulty stator or corroded connectors, often hidden beneath the flywheel cover.
- Battery cable routing: The positive (red) and negative (black) leads converge at the main fuse (10A) before splitting to the ignition switch and regulator-rectifier. Oxidation on these terminals causes voltage drop, mimicking charging system failure. Clean connections with electrical contact cleaner and apply dielectric grease.
- Lighting circuit: The headlight harness branches from the AC side of the stator (yellow wires). Measure AC voltage at the bulb socket with the engine running; expect 12–14V. If readings fluctuate, inspect the regulator-rectifier–failed units allow overvoltage, destroying bulbs.
- Ground paths: Multiple components share the engine casing as ground. A single corroded bolt (10mm) disrupts the entire system. Scrape paint around bolt holes and tighten to 12 Nm to ensure consistent conductivity.
Label every wire before disconnecting connectors–use masking tape and a fine-tip marker. Schematics show wire colors, but real-world builds often splice aftermarket accessories altering original paths. Cross-reference modified wiring against a known-good harness using a continuity tester.
For the CDI unit, check the trigger coil (blue/white wire) resistance: 50–160 ohms is normal. Readings outside this range mean a bad stator or shorted wire, causing random misfires. Replace the stator if internal windings fail, as repairs rarely last.
