Start with the official service manual for your heavy-duty stand mixer–it’s the most reliable source for exploded views. Look for documentation labeled “Series HD” or “Commercial-Grade Model”; these will include numbered callouts for gears, shafts, and housing segments. If the manual isn’t available, third-party repair sites often host downloadable PDFs of schematic layouts, but verify the revision matches your unit’s production year. Avoid generic diagrams: precision matters when replacing the worm gear assembly or planetary hub.
Mechanical components like the transmission housing and motor mount require exact part matching. Use the seven-digit part code printed on the underside of the base or inside the motor cover to cross-reference with supplier inventories. Online marketplaces sometimes mislabel subcomponents–check seller ratings and request close-up images before purchase. For internal gears, the tooth count and diameter must align perfectly to prevent misalignment. If working with bearings, ensure they’re sealed and rated for high-torque applications.
For common wear items (e.g., bowl lifts, speed control plates), local appliance repair shops often stock aftermarket alternatives. These cost less than OEM parts but may lack durability under prolonged load. When sourcing, prioritize suppliers that provide metallurgical specs–especially for mixer arms and shaft collars–to avoid early failure. If disassembling, label each component and take high-resolution photos of wiring placements to simplify reassembly.
Online forums dedicated to culinary equipment maintenance frequently share annotated breakdowns created by technicians. These often highlight subtle variations between model revisions, such as differences in grease fittings or motor brush configurations. Use search filters to narrow discussions to verified repair logs or posts with attached circuit schematics. Always store spare gears and seals in a cool, dry environment to prevent corrosion before installation.
Exploded View for Heavy-Duty Stand Mixer Repairs
Locate the gearbox assembly first–it’s item #W10217840 in most repair manuals. Before disassembling, mark each gear’s position with a scribe to ensure precise reassembly. Lubricate the plastic gears with food-grade grease (e.g., Dow Corning Molykote FG-710) to prevent premature wear.
Check the worm gear (part #9708226) for chipping; replace if grooves exceed 0.5mm. Align the bowl-lift lever with the lift mechanism’s spline–misalignment causes the bowl to jam. Verify the clutch spring tension by measuring free length (12.7mm ±0.3mm); compressed length below 9mm indicates a need for adjustment or replacement.
- Motor mount bracket (#269696): Torque screws to 8-10 Nm–loose mounts vibrate excessively.
- Planetary hub (#W10162206): Inspect for radial play beyond 0.2mm; replace seals if oil leaks appear.
- Speed control plate (#W10189358): Clean contacts with isopropyl alcohol; oxidation distorts speed settings.
For the wire harness (#W10177267), use a multimeter to test continuity between pins 1-4 (resistance
Inspect the bowl-support assembly (#W10168861) for warping. A bowed support unevenly distributes dough stress, leading to planetary gear failure. Calibrate the bowl height by adjusting the threaded rod–clearance should be 2.0mm ±0.1mm for optimal beater-to-bowl contact.
The tilt-head lock mechanism (#W10186571) requires periodic lubrication with PTFE spray. Friction in the latch leads to head bounce during heavy mixing. Replace the torsion spring if tension decreases below 5 N·m–measure with a spring scale.
- Remove the endcap (#W10167871) with a spanner wrench (24mm).
- Extract the drive shaft seal (#W10189499) using a hook tool–pry evenly to avoid damaging the housing.
- Pack the shaft cavity with 3g of high-temperature grease (e.g., Mobilgrease 28).
- Reinstall the seal flush with the outer rim; misalignment causes grease leaks.
Test the thermal fuse (#W10197977) with a continuity tester–blown fuses must be replaced, not bypassed. Check the capacitor (#W10145154) for bulging or electrolyte leaks; these components fail silently after 8-10 years, causing overheating or slow startups.
Locating the Authorized Stand Mixer Component Schematic Online
The primary source for the original technical blueprint is the manufacturer’s support portal. Visit whirlpoolcorp.com and select the “Product Manuals” tab in the top navigation. Filter by appliance category–blenders, food processors, and stand mixers fall under “Small Appliances.” Use the model series prefix KP followed by the specific number code to narrow results. The schematic typically appears as an interactive PDF with exploded views of motor housings, gears, and attachments.
For verified third-party distributors, partselect.com maintains an extensive archive of branded schematics. Enter the model identifier in the search bar, then navigate to the “Diagrams” section under product details. The site renders high-resolution illustrations with part numbers overlaid on each component, including wiring harnesses and accessory mounts. Avoid sites listing generic “compatible” replacements–these often lack precision labeling.
Specialized repair forums like applianceblog.com host direct downloads from technicians who’ve extracted schematics from official service kits. Look for threads tagged “[Model] Internal Views” or “[Model] Gear Assembly Breakdown.” Members frequently attach scanned manuals or vector files converted from CAD assets. Downloading from forums requires registration but grants access to annotations explaining common failure points in the planetary pinion or worm gear.
E-commerce platforms stocking OEM replacement pieces occasionally bundle schematics with purchase. amazon.com sellers marked “Ships from Manufacturer” include a link to the PDF in order confirmation emails. Similarly, eBay listings for certain high-wear items–the bowl-lift lever or mixing paddle–often embed schematic links in item descriptions. Verify seller ratings exceeding 98% to avoid corrupted files.
Alternative Channels for Offline Access
Authorized service centers retain physical copies of all repair documentation. Locate a local provider via the manufacturer’s dealer locator tool. Centers are legally permitted to email schematics to owners of registered appliances when proof of purchase is provided. Expect a watermarked document highlighting proprietary components like the electronic speed control board.
University lab technicians maintaining institutional kitchen equipment sometimes archive schematics. Contact departments handling hospitality, culinary arts, or mechanical engineering programs and request archives labeled “[Brand] Heavy-Duty Mixer Technical Packet.” Libraries may require interdepartmental permissions but provide unaltered master files.
Commercial kitchen equipment suppliers stock literature for bulk purchasers. Firms like webstaurantstore.com offer free downloads when adding a schematic-request flag to quotes. Specify the need for internal mechanisms–drive shaft seals, spiral gears–rather than exterior casing illustrations.
For immediate needs, search file-sharing platforms using the query “[model series] + ‘service manual’ + pdf”. Filter results by upload date–prioritize files modified within the last 24 months to ensure compatibility with recently updated calibration standards. Confirm downloads from reputable hosts like manualslib.com to avoid malware disguised as schematics.
Locating Key Components for Your Heavy-Duty Stand Mixer
Start by checking the model number plate on the base–usually beneath the main body or inside the attachment hub. Match this code with the exploded view schematic from the manufacturer’s official service manual. Common wear items include the planetary gear assembly (part #W10210886) and the drive shaft pin (part #W10159842), both prone to stripping after prolonged use. Replace these immediately if the mixer emits a metallic grinding noise during operation.
Examine the bowl lift mechanism for signs of misalignment or excessive play; the lift lever linkage (part #W10386280) and bowl height adjuster screw (part #W10211817) often require tightening or replacement. A loose bowl may fail to engage the beater, causing uneven mixing. For electrical issues, test the speed control board (part #W10325984) with a multimeter–resistance values below 20Ω indicate a faulty unit.
Quick-Reference Component Checklist
| Component | Visual Signs of Failure | Replacement Part # |
|---|---|---|
| Plastic worm gear | Chipped teeth or powder debris | W10225635 |
| Motor brushes | Shortened length ( | W10118477 |
| Hub cover | Cracked or missing alignment nubs | W10327464 |

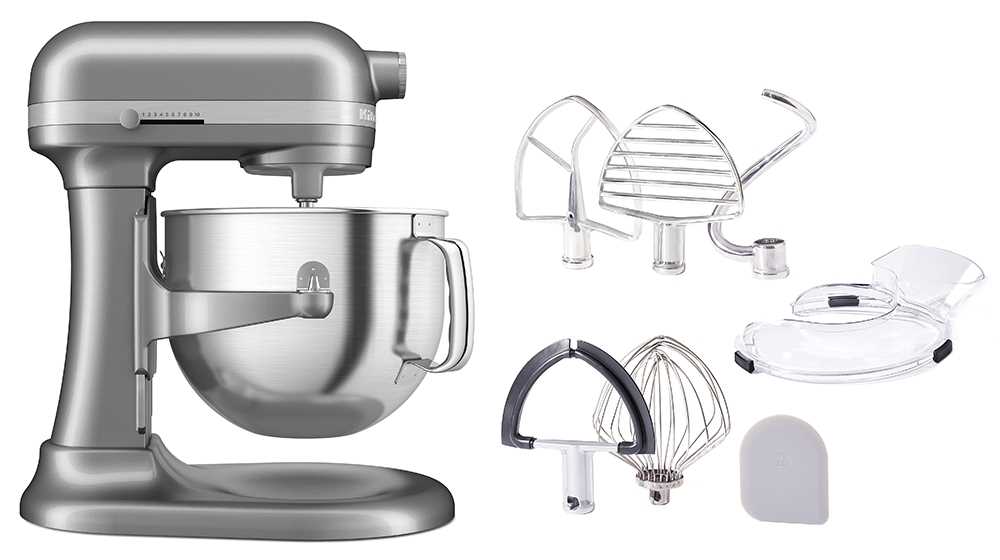

Inspect the wire whip, flat beater, and dough hook for bent wires, deep scratches, or coating peels–these defects can damage bowl finishes. Order replacements based on the attachment type (K-series or flex-edge for older units; coated steel for modern variants). For gearbox leaks, drain excess grease and replace the seal kit (part #PS10007925) to prevent lubricant seeping into the motor housing.
Step-by-Step Guide to Disassembling Your High-Capacity Stand Mixer for Maintenance
Unplug the appliance and secure the bowl in place with a locking pin or clamp before starting. Remove the splash guard by lifting it upward–the lugs on either side should release with light pressure. Detach the wire whip, flat beater, or dough hook by pressing the lever at the base of the attachment hub, then twist counterclockwise until it disengages. Set these aside on a clean surface; residue buildup here can hinder future performance.
- Place the appliance on its side, base down, to access the underside.
- Remove the 4 screws securing the bottom cover using a #2 Phillips screwdriver–two near the rear feet, two flanking the power cord entry.
- Gently pry the cover away; it may resist due to residual grease–work slowly to avoid damaging the plastic clips.
- Inspect the exposed gear assembly for worn teeth or dried lubricant; pay special attention to the worm gear, which often requires re-greasing every 2–3 years under heavy use.
Release the planetary shaft by removing the retaining ring at the bottom of the attachment hub. Slide the shaft upward–it may need gentle tapping with a rubber mallet if corroded. The gear housing separates into two halves after extracting 7 screws: 5 torx (T15) along the perimeter and 2 hex (4mm) at the rear. Note the orientation of the gears before disassembly; reassembly errors can lead to motor strain or uneven mixing. Clean components with degreaser, avoiding water near electrical contacts. Reapply food-grade grease (NLGI #2) to the gear teeth before reassembly, ensuring even coverage without excess.
