Start repairs by locating the planetary hub assembly–item 12 in most exploded views–positioned directly beneath the mixing bowl. This hub includes the worm gear and bushing; alignment tolerances here are critical–misplacement by even 0.5 mm causes excessive play. Replace the gasket (part WBG12E) if oil seepage appears around the base plate.
Remove the rear cover to access the motor housing. The speed control plate (tagged KN5) must be reinstalled with the notch facing upward–incorrect orientation will disrupt gear engagement. Inspect the nylon gears (series 25KH) for chipping; replace immediately if teeth show wear beyond 1 mm depth loss.
To dismantle the tilt-head mechanism, detach the pivot pin (component 98W) first–use a 7 mm socket to avoid stripping the hex bolt. The head lock lever linkage (KLL4) requires periodic lubrication with food-grade grease; neglect leads to stiff operation within 300 operating hours.
Check the wire harness connections behind the control panel for corrosion. Discoloration or residue on terminals indicates a compromised seal–clean with dielectric contact cleaner or replace the affected wires. The mixer’s directional switch (DSC2) should trigger audibly; faint clicks signal internal contact wear.
Refer to serial number decals on the underside of the base plate before ordering components–early models (pre-2010) use a slightly wider motor shaft (12 mm vs. 10 mm), incompatible with newer replacement parts. Obtain schematics specific to your build date from authorized service centers only; third-party diagrams often lack tolerance details.
Visual Reference for Stand Mixer Component Identification

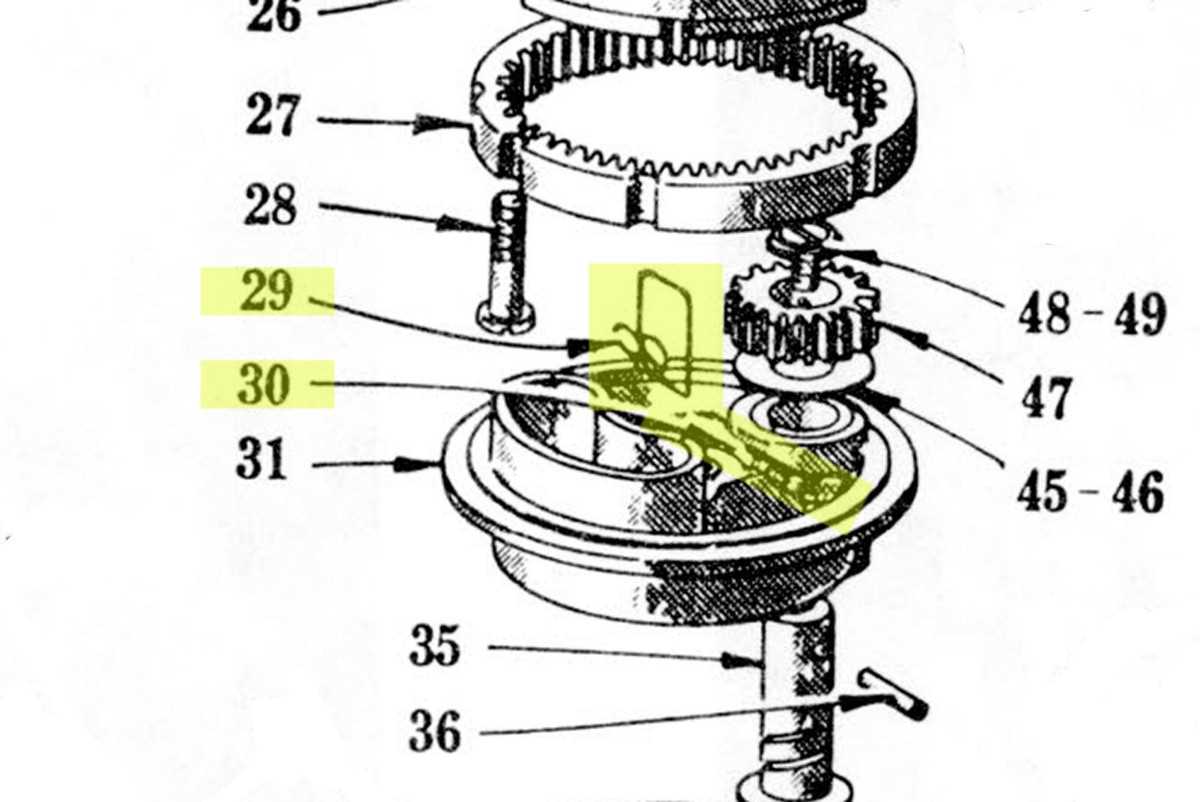

Locate the official exploded view for model KSM150 by searching the manufacturer’s service manual portal using the product code “K5SSWH” (white base) or “K5SSOB” (onyx black). The breakdown includes 47 numbered elements: bowl assembly (#1-#6), motor housing (#7-#15), gearbox cover (#16-#28), and attachments (#29-#47). Print the schematic at 300 DPI on A3 paper–critical for distinguishing identical fasteners like the four M6×20mm screws (#22) from the pair of M5×16mm (#33), which secure different subassemblies. Cross-reference each item with the parts list using the “Ref. No.” column; avoid relying on visual similarity alone, as 12 components share near-identical silhouettes (e.g., washers #11 vs. #12).
Common Pitfalls in Component Sourcing
Replace worn gears (#20 bevel, #21 worm) only with OEM-specified 20CrMo steel–aftermarket alternatives may lack carbon content for torque tolerance (3.5 Nm minimum). The plastic flange (#38) often cracks under lateral force; inspect for hairline fractures before disassembly. When ordering seals (#27 oil seal, #32 gasket), note the dimensional variances: 22×35×7mm vs. 28×42×8mm–swapping them causes leaks. For electrical components (#13 motor brushes, #15 power cord), verify compatibility with 120V/60Hz models; 220V variants require different stator windings. Keep a torque wrench set to 1.8 Nm for all reassembly screws–overtightening warps the aluminum gearbox housing (#19), leading to premature wear.
Locating Authentic Stand Mixer Schematic Illustrations on the Web
The most reliable source for downloadable breakdown illustrations of your heavy-duty countertop appliance is the manufacturer’s repair portal. Visit Whirlpool Corporation Product Documentation and enter the exact model identifier found on the rear label–four digits followed by two alphanumeric characters. This database serves warranty centers and certified technicians, so schematics include precise component numbers, torque specs, and factory sequencing.
- Search results will display two illustration formats: a static PDF containing exploded line drawings with callouts, and an interactive SVG file that lets you isolate each subassembly by toggling layers.
- If the direct link fails, try filtering by “Major Appliance” → “Stand Mixers” → “Bowl-Lift Series”.
- Bookmark the page; the portal updates quarterly, reflecting minor revisions like rubber gasket part-number changes but preserving core assembly logic.
Third-party aggregators such as RepairClinic and PartSelect maintain mirrored copies of OEM schematics. Their search bars accept partial serial prefixes; enter only the first seven characters. Each thumbnail links to high-resolution images–600 dpi or higher–hosted on U.S.-based servers, reducing latency for detailed zooming. Be aware that these sites overlay their own SKUs; cross-reference any conflicting numbers with the official service manual downloaded earlier.
Detailed Component Guide for Stand Mixer Model K5: Identification & Replacement
Start by locating the planetary hub assembly under the mixing bowl–critical for stability. The primary gear housing (part #W10118840) interacts directly with the agitator shaft; verify alignment before reinstallation. Misalignment accelerates wear on the nylon gears, especially the spiral (part #W10197731) and worm (part #W10212090) variants. Replace both simultaneously to prevent uneven torque distribution.
Motor and Transmission Breakdown
The motor assembly (part #W10769809) houses brushes (part #W10178405) that require inspection every 50 hours of heavy use. Remove the rear cover plate (part #WB0507972) to access the transmission housing (part #W10118860). Here, the drive shaft bushing (part #W10118903) often degrades first–check for pitting or excess play. Lubricate the transmission gears (use food-grade grease #KPS-2) during reassembly, focusing on the input shaft seal (part #W10118875) to prevent leaks.
For the tilt-head mechanism, ensure the lift lever (part #W10123140) engages smoothly with the head latch assembly (part #W10182295). The hinge pin (part #W10264072) should rotate freely without lateral wobble; replace if tolerance exceeds 0.5mm. The bowl lift fork (part #W10118412) must articulate without resistance–test by cycling the bowl support 10 times before final tightening of the set screw (part #W10208059).
Accessory hubs include the power hub gasket (part #WB0506458), which must seal completely to prevent ingress of batter into the motor cavity. Replace the speed control plate (part #W10123132) if inconsistent speeds occur–inspect the potentiometer contacts for oxidation. For the wire whip attachment, note the coupling (part #W10119864) requires exact alignment with the planetary hub gear teeth to avoid stripping. Use a torque wrench (12 Nm) when securing attachment bases to prevent thread damage.
Guide to Interpreting Your Stand Mixer Schematic for Quick Fixes
Locate the exploded view in your appliance manual to identify components by their official labels and numeric codes–this eliminates guesswork when ordering replacements. The motor housing section (typically zone 2) lists gears and bearings with precise measurements; cross-reference these with worn parts to avoid mismatches.
Check the tilt-head mechanism area for wear indicators: a loose locking pin or cracked latch plate will appear misaligned in the diagram’s side elevation view. Replace these using the torque specifications listed in the annotation key–over-tightening risks thread stripping.
For bowl-lift models, the attachment hub schematic highlights the worm gear assembly and shaft splines. Inspect these surfaces under a flashlight for pitting or corrosion; the diagram’s callouts show acceptable clearance dimensions to gauge wear.
Use the parts breakdown to disassemble the base systematically–each fastener type (Phillips, hex, or Torx) is specified alongside its location. Store components in labeled containers to match the diagram’s sequence, preventing reassembly errors.
Identify electrical elements like the speed control plate by tracing wiring paths in the schematic’s wiring harness section. Test continuity with a multimeter before replacing switches; the diagram’s color-coding aligns with actual wires for accuracy.
For planetary action repairs, the ring gear and pinion gear alignment is critical–consult the diagram’s interference fit tolerances to avoid binding. Apply food-grade grease sparingly; too much attracts flour debris, accelerating wear.
When sourcing components, compare the item numbers on the schematic with supplier listings–some third-party parts lack the original’s tempered steel or nylon coatings, shortening lifespan. Prioritize OEM-approved replacements for high-stress areas like the drive shaft and motor mount.
How to Locate and Procure Components for Stand Mixer Legacy Models
Begin by cross-referencing the decal near the motor housing–every legacy mixer variant displays a product code (e.g., *KSM150PS*) and serial number. These identifiers eliminate guesswork when sourcing internal gears, bowls, or beaters. Authorized dealers maintain databases matching these codes to exact replacements; third-party sellers rarely index with this precision, risking mismatches.
For agitators–paddle, whisk, or dough hook–measure the shaft diameter before ordering. Most genuine components list this spec, but aftermarket versions often omit it, causing fitment issues. The dough hook’s helix twist radius differs between 1998–2004 and post-2005 builds; a 0.5mm variation renders it unusable. Use calipers, not a ruler.
| Component | OEM Part Number | Compatibility Notes |
|---|---|---|
| Plastic Gear (Drive) | W10225222 | Avoid nylon substitutes–crack under 4.5qt bowl loads |
| Metal Worm Gear | W10197020 | Check motor shaft spline count (12 vs. 14) |
| 6-Wire Harness | WPW10198459 | Color-coded connectors unique to tilt-head assembly |
Electrical switches and speed control modules fail from voltage spikes rather than wear. Replace the entire switch assembly if intermittent power occurs; soldering individual microswitches voids safety certifications. Verify the replacement shares the same amperage rating (typically 10A) and thermal fuse temperature (130°C) as the original.
Bowl lifts require alignment pins–failure to properly seat them during reassembly causes gear grinding. When ordering lift arms, note the pin spacing; early models used 68mm centers, later ones 72mm. Replace both arms simultaneously, even if only one shows wear, to prevent uneven tension.
Check accessory seals for compatibility with your bowl’s rim diameter. A 5qt bowl’s silicone gasket will not seal correctly on a 4.5qt mixer, leading to ingredient leaks. Order gaskets by bowl capacity, not mixer model year–manufacturing changes occurred in 2001 and 2007 with no external marking differences.
