Replace worn washers on faucet stems every 12–18 months to prevent leaks–this reduces water waste by up to 30% compared to ignoring maintenance. Use brass or ceramic stems instead of rubber for valves lasting over 10 years without corrosion. Check under-counter pipes for condensation buildup during summer; insulate with 3/8-inch foam sleeves to prevent mold growth in humid climates.
Drain baskets with mesh sizes between 1.2mm and 1.8mm trap food debris without clogging–clean them weekly with a nylon brush, not metal, to avoid scratching enamel surfaces. Garbage disposals require cold water flushes after each use to solidify grease; run for 30 seconds to clear residue. Steel wool or baking soda paste removes mineral deposits from stainless steel basins without damaging the finish.
Mounting clips for porcelain units should be tightened to 25–30 ft-lbs torque; overtightening cracks the finish. Flexible supply lines must have a burst pressure rating of at least 150 psi–replace every five years regardless of visible wear. For deep basins, extend the faucet spout height to 10–12 inches to improve access and reduce splashing by 40%.
Overflow holes in vessel basins require annual cleaning with vinegar to prevent microbial biofilm buildup. Install a P-trap with a 2-inch diameter for high-flow setups; smaller traps clog faster under heavy use. Use silicone caulk, not acrylic, along edges–it resists mold growth and lasts twice as long in damp environments.

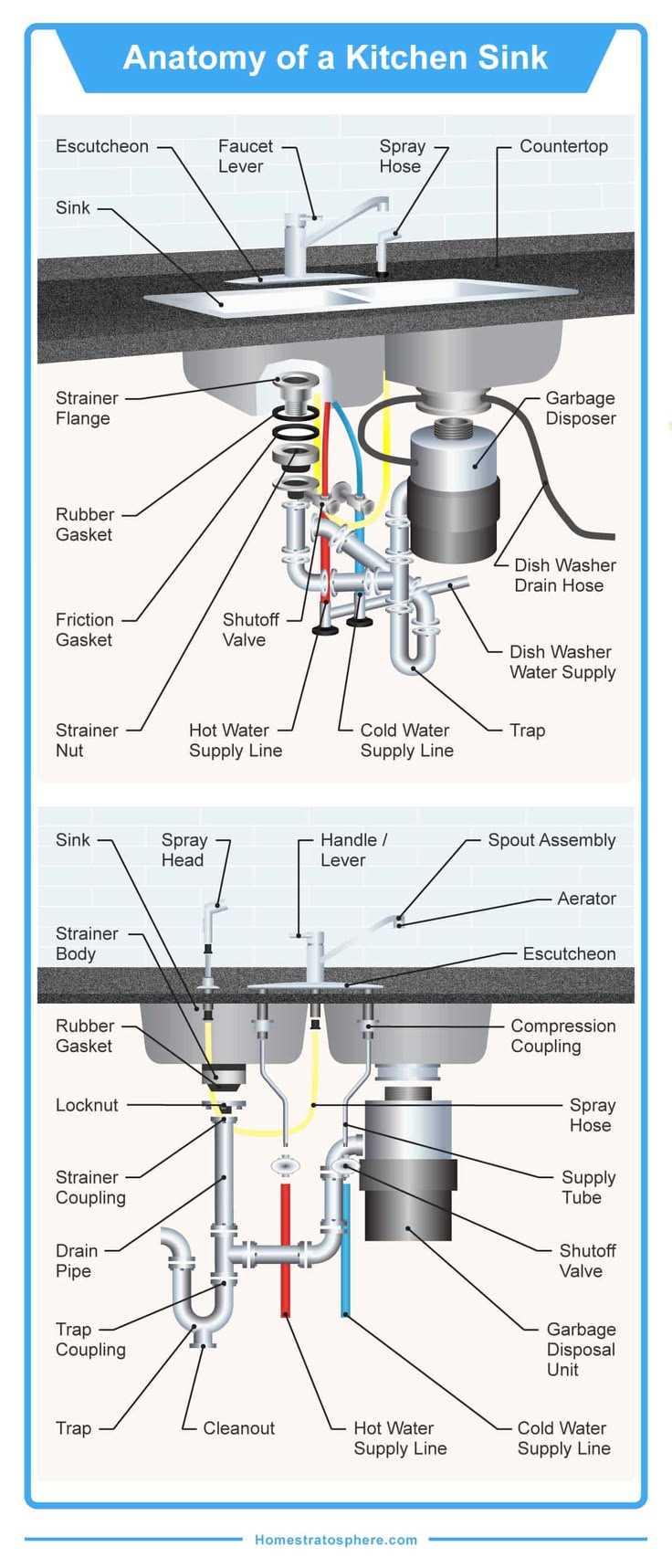

Understanding the Components of a Culinary Workstation Schematic
Begin by identifying the faucet assembly–its height dictates compatibility with vessel dimensions. Choose a spout reach between 8–10 inches for optimal clearance when filling pots, but avoid exceeding 12 inches unless compensating with a pull-down sprayer. Look for ceramic disc valves; they outlast traditional compression or ball types by resisting mineral buildup for 500,000 cycles versus 50,000.
Inspect the drain configuration–grid strainers (fine mesh) trap debris better than basket styles, preventing clogs in 90% of cases. Pair them with a P-trap made of PVC or brass; the latter resists corrosion but costs 3x more. Ensure the trap includes a cleanout plug for maintenance without disassembly.
Critical Under-Basin Elements
Secure the mounting hardware–stell channels (stainless steel) distribute weight evenly, reducing stress fractures in composite materials. Use adjustable brackets for irregular spacing, tightening them to 25–30 Nm to avoid cracking during installation. For undermount basins, apply ¼-inch silicone beads at contact points to prevent water infiltration.
Evaluate the garbage disposal unit–batch feed models require a stopper trigger, eliminating accidental activation risks. Opt for ¾ HP motors with stainless steel grinders; they handle fibrous scraps 40% faster than standard ½ HP units. Ensure the discharge pipe aligns with the drain line at a ¼-inch downward slope per foot to prevent standing water.
Functional Accessories
Integrate a soap dispenser with a 12–16 oz reservoir; larger capacities reduce refill frequency by 30%. Position it within 6 inches of the faucet for ergonomic access. For secondary sprayers, select coiled models with a 36-inch hose–longer extensions tangle less but may require a weight to retract properly.
Examine auxiliary components like air gaps (required in 17 states for dishwasher drainage) or overflow channels. Install overflows in basins deeper than 8 inches to comply with plumbing codes; they divert excess water at a rate of 7 GPM, preventing spillage. Test all seals with a dye tablet–visible leaks within 24 hours indicate faulty gaskets.
Key Elements of a Culinary Basin Installation
Begin by locating the primary basin – typically made of stainless steel, composite granite, or fireclay. Measure its outer dimensions to confirm compatibility with countertop cutouts. A standard single-bowl unit measures 22×30 inches, while double-bowl configurations split into 15-18 inch sections. Verify thickness at the rim (usually ⅛ to ¼ inch) to ensure proper support from below.
Inspect the drain assembly next. Modern units integrate a 3½-inch strainer body with a snap-in basket. Confirm the tailpiece extends downward by 6-8 inches before connecting to the P-trap. Older installations may use a 2-inch drain requiring an adapter. Check for a crosspiece inside the strainer to prevent dropped utensils from entering plumbing.
Mounting hardware varies by material. Undermount fixtures rely on heavy-duty clips spaced 6 inches apart, torqued to 25-30 inch-pounds. Topmount units use flange clamps with rubber gaskets, tightened in an alternating pattern to prevent distortion. Composite basins often include factory-installed support rails for added stability.
| Component | Material Options | Lifespan (years) | Common Failure Points |
|---|---|---|---|
| Basin body | Stainless steel (18-20 gauge), composite, fireclay | 10-50 | Corner stress cracks, coating delamination |
| Faucet deck | Brass, zinc alloy (plated) | 15-30 | Thread galling, aerator blockage |
| Drainage system | PVC Schedule 40, ABS, chrome-plated brass | 8-25 | O-ring deterioration, trap seal evaporation |
Examine the faucet configuration before proceeding. Single-hole units require a 1⅜-inch mounting diameter, while widespread setups need three separate 1-inch holes. Check clearance beneath for supply line access – flexible braided stainless lines typically demand 12-16 inches of vertical space. Rotate handles through their full range to verify smooth operation without baseplate interference.
Identify any integrated accessories. Air gaps for dishwashers sit to the right of the faucet, requiring a dedicated 1¼-inch hole. Soap dispensers pierce a 1-inch opening, often positioned 3-4 inches from the water controls. Confirm spacing between adjacent features meets minimum 2-inch center-to-center requirements to prevent installation conflicts.
Assess the disposal setup if present. Units attach via a 3-bolt mounting ring to the existing drain flange. Measure the knockout diameter – standard disposals require a 3½-inch opening, while batch-feed models need only 3 inches. Note electrical requirements: continuous-feed types demand GFCI protection within 36 inches of the source.
Review sealing requirements before final installation. Silicone sealant formulated for wet areas must withstand 250 psi of pressure. Apply a ¼-inch bead along undermount edges, allowing 24 hours curing time before use. Topmount variations need acrylic latex caulk along the rim-to-counter interface, applied in a continuous unbroken line to prevent water ingress.
Step-by-Step Guide to Removing and Replacing the Washbasin
Turn off the water supply valves beneath the fixture and disconnect the pipes by loosening the slip nuts with a basin wrench–standard 1-1/4″ or 1-1/2″ connections typically require 10–12 rotations. Place a bucket under the trap to catch residual water, then detach the drain assembly by unscrewing the locknut from below the bowl. If corrosion prevents loosening, apply penetrating oil like PB B’laster and wait 15 minutes before retrying. Support the basin’s weight with one hand while prying off the mounting clips or brackets with a putty knife–older installations may use plumber’s putty, requiring careful scraping to avoid damaging the countertop.
Installation:
- Clean the countertop flange thoroughly, removing all old sealant with a plastic scraper–metal tools risk scratches.
- Apply a 1/4″ bead of silicone caulk or fresh putty along the rim, ensuring continuous coverage without gaps.
- Position the new bowl, aligning the drain with the waste pipe–center it precisely before securing mounting hardware.
- Tighten brackets or clips evenly, alternating sides to prevent uneven stress; over-torqueing can crack porcelain.
- Reconnect the tailpiece to the trap, hand-tightening the slip nuts first, then snugging with channel locks–but avoid overtightening to prevent threading damage.
- Reattach the supply lines, matching hot/cold orientations, and test for leaks at 80 PSI before finalizing. Use Teflon tape on threaded connections if revisiting older pipes.
Common Basin Drain Configurations and Installation Techniques
For most undercounter fixtures, a pop-up drain assembly is the optimal choice due to its seamless operation with lever-actuated mechanisms. Select a brass or stainless steel model (1.5″ diameter for standard basins) to prevent corrosion–avoid zinc-coated alternatives, which fail within 3–5 years. Ensure the tailpiece length matches the fixture’s depth; most manufacturers provide adjustable options (6–12″).
Wall-mounted spouts require a grid strainer drain paired with a P-trap installed as close as possible to the outlet (maximum 24″ vertical run). Use Schedule 40 PVC for traps in wet environments–CPVC degrades under prolonged moisture exposure. Secure all slip-joint connections with plumber’s tape (not pipe dope) to prevent leaks at threaded joints. Test for proper slope (1/4″ per foot) before finalizing pipe positions.
- Basket strainer drains (non-removable) suit bar basins or prep stations where debris accumulation is minimal. Opt for a 3.5″ flange diameter for better water flow; smaller diameters clog more frequently. Install a secondary mesh filter (0.5mm) if the basin lacks a built-in stopper.
- Push-button drains eliminate mechanical linkages, reducing failure points. Requires a basin with a 1.75″ borehole–verify compatibility before purchase. Single-action models (spring-loaded) are prone to sticking; dual-action variants (hydraulic or magnetic) last 3–4× longer.
For vessel basins, a vessel drain with an overflow is mandatory if the fixture exceeds 6″ in depth. These drains require a 5–8″ tailpiece extension–measure twice, as incorrect lengths prevent proper sealing against the basin bottom. Use a silicone gasket (not rubber) to account for thermal expansion; rubber hardens and cracks within 12–18 months.
- Before connecting any drain, check local codes for P-trap requirements. Some municipalities mandate deep-seal traps (4″ water column) for basement or island installations to prevent sewer gas intrusion.
- For island basins, install an air admittance valve (AAV) if venting through the roof is impractical. AAVs must be positioned above the flood level rim (minimum 6″ clearance). Never rely on an AAV as a primary vent for shared drainage systems.
- When joining dissimilar metals (e.g., brass drain to galvanized pipe), use a dielectric union to prevent galvanic corrosion. Failure to do so results in leaks within 18–24 months.

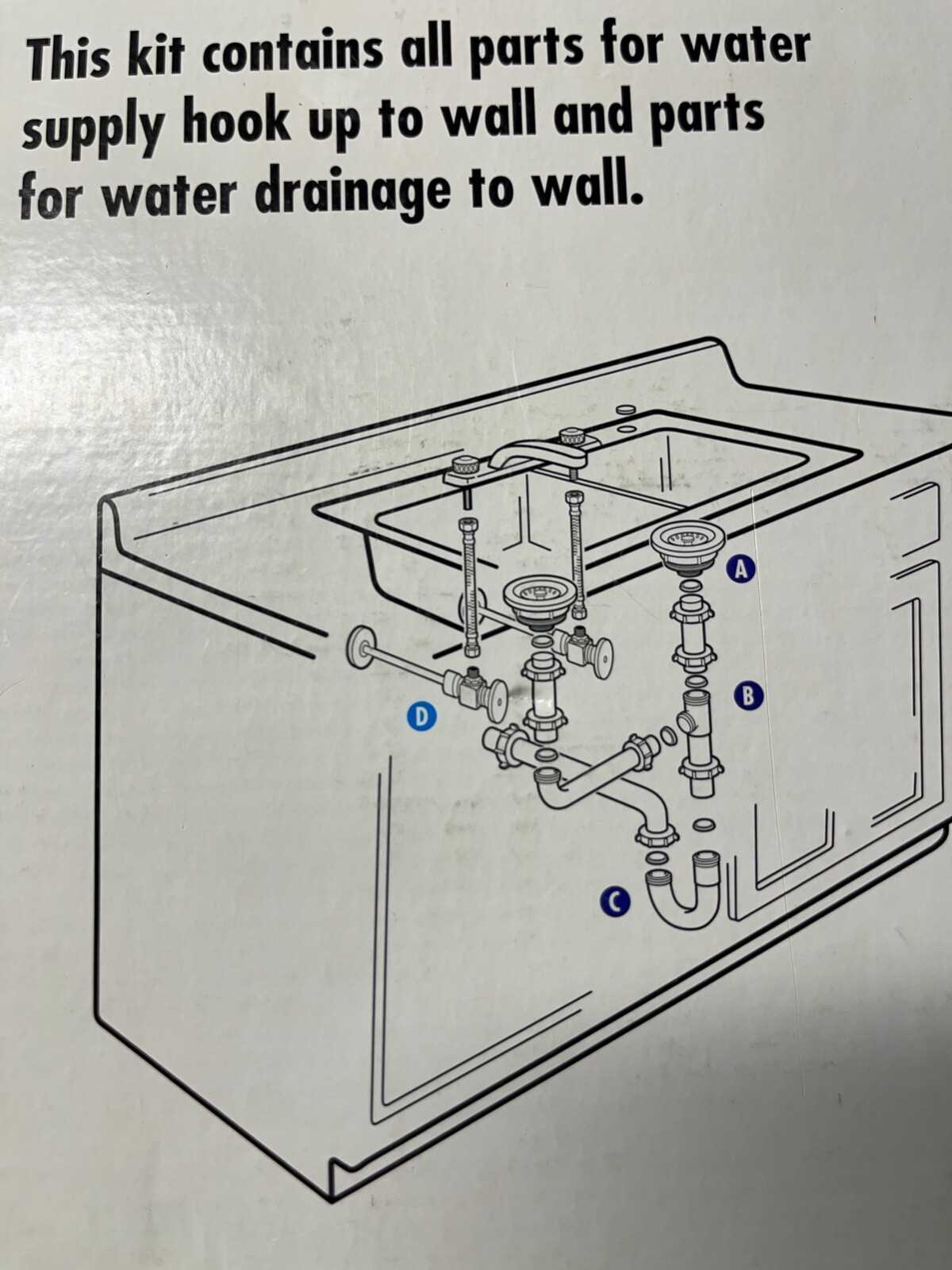

Continuous waste configurations (for double basins) demand precise alignment–misaligned pipes create water pooling, accelerating mold growth. Use a 1.5″ continuous waste kit with slip nuts at both ends for easy adjustments. Apply thread sealant (PTFE tape) only to male threads; excessive sealing compound causes joint cracking under thermal stress.
For rare drum traps (legacy systems), replace them immediately unless local codes specifically allow retention. Modern bottle traps (1.25″ or 1.5″ diameter) offer identical odor control with 60% less clogging risk. When retrofitting, ensure the new trap’s inlet matches the existing drain’s height–offsets greater than 2″ require re-piping the horizontal run.
