For immediate troubleshooting, reference the official technical schematic available through authorized service centers–specifically document 85470 in their database. This document details internal arrangements for Series 9 compact front-load variants, covering both electrical and mechanical assemblies.
Start by disconnecting power, then remove the rear access panel (retained by 6x 1/4″ screws). The motor coupling should be visible at the base–check for wear if the drum fails to spin. Drum bearing replacement requires splitting the outer tub (16x 3/8″ torx bolts). A multimeter test at the motor’s two black leads (120V expected) confirms function before disassembly.
Control board issues often trace to the central microprocessor (labeled PCB-21XX). Examine capacitor C5 for bulging–common failure point on units older than 8 years. The lid switch assembly (part 3949239) typically fails on 12-15lb capacity models; bypass temporarily with a meter to verify open circuit before ordering.
Water inlet valve screens (item 285803) clog with sediment–clean with white vinegar quarterly. For belt-driven variants, inspect the drive belt (part 661602) for cracks every 200 cycles. Pump replacement requires tilting the machine forward to access the sump (drain residual water first). Torque specifications: tub bolts 45 ft-lbs, motor mount 30 ft-lbs.
Diagrams for older “direct-drive” iterations differ–look for split-phase motors with red/white start winding leads. Thermistors (part 8181581) fail unpredictably; test resistance against ambient temperature charts (25°C ≈ 11k ohms). Avoid using generic seals (item 350930) unless OEM-molded–they warp under heat cycles.

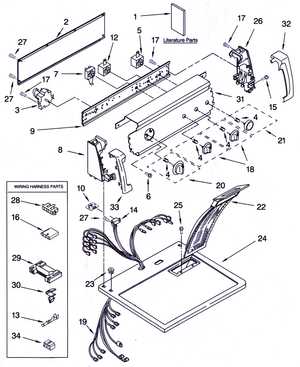

Exploded View Guide for the Classic Series 110 Appliance
Locate the official breakdown schematic by entering the full product serial number–found on the metal plate inside the door or along the rear panel–into the manufacturer’s online database. This ensures compatibility with replacement components, as variations exist between production years even within the same lineup.
Identify the three primary assembly zones in the schematic: the drum and suspension cluster (upper left quadrant), the motor and transmission unit (center), and the control and wiring section (right). Each zone contains 12–25 individual items, color-coded by material (blue for plastics, red for metals, black for wiring).
For the drive belt replacement, note the belt path indicated by dashed lines in the upper-left quadrant. The belt must align precisely with the idler pulley (part code 34001340) and motor pulley (part code W10006355) to prevent slippage. Verify the belt’s part number–661570V–against the serial number, as early variants used a narrower belt (661570).
Critical Wear Points and Replacement Intervals
The shock absorbers (pair, part code 80661) degrade after 800–1,200 cycles; replace both simultaneously to maintain drum balance. The door latch assembly (part code WPW10404152) fails after repeated use; test with a multimeter for continuity before ordering. Lid switch wires (part code WP3949247) often fray near the hinge–secure with heat-shrink tubing during installation.
The water inlet valve (part code WPW10169510) clogs with sediment; flush the valve or replace if water flow exceeds 20 seconds. The tub seal (part code WP354048) leaks when worn–apply silicone grease to the lip during reassembly to prevent future leaks. For the pump (part code WPW10142014), check the impeller for debris before assuming failure.
Print the schematic at 100% scale and place components on it during disassembly to track placement. Label each part with masking tape and the corresponding reference number from the diagram–this prevents errors during reassembly, especially for the baffles (part code WPW10129607) inside the drum.
Sourcing Components and Verification
Purchase replacements only from authorized distributors or retailers listing the exact schematic reference number. Counterfeit parts–common in online marketplaces–often lack the OEM tolerances, leading to premature failure. Compare the exploded view with the physical component; for example, the agitator dogs (part code WP3944304) should have sharp edges–blunted edges indicate a replica.
For rare or discontinued items (e.g., the timer knob, part code WPW10106556), search salvage listings or contact appliance repair forums for verified sources. Always cross-reference the schematic’s date code with the component’s molding number–even a one-digit discrepancy can result in incompatibility.
Locating Authorized Repair Schematics for Your Washing Appliance
The manufacturer’s support portal remains the most reliable source for original component breakdowns. Visit searspartsdirect.com, enter the appliance’s serial number found on the interior of the door frame, and access exploded-view schematics with exact part identifiers. This site catalogs official replacements, ensuring compatibility and warranty compliance.
For alternative online retailers specializing in appliance repairs, AppliancePartsPros.com offers downloadable PDF schematics labeled with OEM codes. Filter by the machine’s series (early 2000s front-load variants) to isolate the correct assembly illustration. Their search tool matches components directly to the disassembly sequence in service manuals.
Manufacturer Archives and Third-Party Databases
If the primary portal generates errors, archive.org preserves snapshots of discontinued support pages. Search for cached versions of the original manufacturer’s repair hub using date ranges between 2015–2020. These archives often retain high-resolution diagrams scanned from paper manuals distributed to authorized technicians.
The FixitNow forum hosts user-uploaded schematics alongside step-by-step disassembly guides. Verify file authenticity by cross-checking part numbers against the serial plate and comparing torque specifications listed in user comments. Community members frequently annotate diagrams with notes on common failure points.
Offline Alternatives and Direct Manufacturer Contact
Local authorized service centers retain bound printed manuals indexed by serial ranges. Request a photocopy of the relevant section–most technicians provide these at no charge if you present proof of ownership. For urgent needs, fax a request to the manufacturer’s technical support line (number listed in the warranty booklet) for an emailed schematic within 24 hours.
Hardware suppliers like Grainger and Ferguson stock universal repair kits with included schematics. Specify the appliance’s production year when ordering to receive the closest match. Their catalog databases link components to corresponding visual assemblies, useful for identifying inherited designs from overlapping product lines.
Locating Critical Elements in Your Laundry Appliance Breakdown
Begin by cross-referencing the assembly breakdown with the serial number plate located inside the front panel. This stamped identifier typically sits adjacent to the main door latch, often etched onto a metal or plastic tab. Match these digits to the specific iteration listed in the technical reference guide–earlier production runs (pre-2005) may feature a direct-drive transmission, while later variants integrate a clutch assembly.
Examine the agitator assembly first, as its components frequently require servicing. The central post should unscrew counterclockwise once the fabric softener dispenser cap is removed. Beneath lies the agitator dogs–small plastic wedges that wear out and necessitate replacement every 30–50 cycles under heavy loads. These are catalogued under part numbers 3363254 (white) or 3362978 (gray) in most replacement inventories.
Key Wear-Prone Assemblies
- Motor coupling: Situated between the motor shaft and transmission, this rubber-and-plastic connector often deteriorates. Check for cracks or disintegrated segments–signs of failure include excessive humming without drum rotation. Reference numbers vary: 285759A (standard) or 285849 (high-torque version).
- Water inlet valve: This solenoid-operated component controls flow into the tub. Listen for a distinct clicking during fill cycles; absence indicates malfunction. Inspect for mineral buildup on the mesh screens–clean with vinegar if clogged. Replacement valves (WPW10250669) include dual solenoids for hot/cold selection.
- Lid switch: A safety mechanism preventing spin cycles when open. Test continuity with a multimeter; no reading confirms failure. The switch (WPW10181439) mounts behind the main top panel–access requires removing two screws beneath the control console edge.
The suspension system merits close attention during disassembly. Each of the four springs (part 80820) connects the tub to the cabinet frame–look for corrosion or elongation, which causes imbalance. Replace in pairs to maintain equilibrium. The snubber ring (3388591), a foam gasket beneath the tub, dampens vibration; degradation results in excessive noise during extraction phases.
Use the exploded view to trace wiring harnesses, noting connection points for the timer assembly (WPW10178167). This electromechanical device dictates cycle progression–burnt contacts appear as blackened or pitted terminals. Remove the control console by prying the top edge forward, then releasing two clips on either side. Label each wire before detachment to ensure correct reassembly, as incorrect routing risks motor burnout or erratic operation.
Pressure Switch and Drainage Pathways
- Locate the air dome tube (part 3363583), a translucent hose linking the tub to the pressure switch. Kinks or splits disrupt water level sensing–replace if leakage occurs.
- Remove the front panel to inspect the pump assembly (WPW10130918). Check the impeller for obstructions or broken vanes; spin it manually to verify free rotation. The drain hose (3392589) should slope downward without loops to prevent siphoning issues.
- The pressure switch itself (WPW10201314) mounts behind the control console. Blow into the air dome tube–audible clicks confirm functionality. Silent operation signals internal failure, requiring direct replacement rather than repair.
For the outer tub, focus on the bearing assembly. A high-pitched squeal during spin cycles indicates worn bearings (part 6406en2rs). Replacement demands specialty tools–a spanner wrench (WPW10261353) and bearing puller–to separate the tub halves. Apply lithium-based grease (3366287) to the new bearings during installation to prevent premature wear. The tub seal (3390655) must be replaced concurrently to avoid future leaks.
