Start with the official manufacturer’s repair manual for the 72X series. Look for document number KEN-0721-RM on Sears PartsDirect or through authorized service providers like PartSelect. These guides include exploded views of every internal assembly–door latches, transformer housings, capacitor placement, and magnetron shielding–with part numbers, torque specifications, and step-by-step dismantling sequences. Ignore generic schematics; they omit critical revisions introduced in 2018 for thermal fuse upgrades and waveguide cover redesigns.
Scan the control panel subassembly first: the ribbon cable connects to a secondary PCB (labelled SPC-4B) that rarely appears in third-party diagrams. Check the micro-switch alignment against the door hinge tension–misalignment causes intermittent power loss, and standard visuals won’t show the spring-loaded plunger’s correct offset (measured at 3.2mm ±0.3mm). For the turntable motor, look for the GE-240VAC model variant; earlier versions used a lighter-duty brushless DC motor incompatible with newer drive couplings.
Locate the high-voltage capacitor bank (marked CBB-8UF/2100VDC) behind the rear panel’s insulation layer. The wiring harness includes a fusible link (10A/125V) that snaps in two distinct positions–both are valid, but only the lower notch ensures correct clearance from the cooling fan blades. If replacing the stirrer blade motor, note the shaft’s hexagonal bore profile (not splined); aftermarket replicas often use metric approximations that bind under thermal cycling.
Cross-reference your findings with thermal imaging after 90 seconds of runtime. Hotspots exceeding 75°C on the inverter module indicate failing silicone paste or a cracked ferrite core, issues absent from most user-generated diagrams. For oven cavity repairs, the mica sheet (part MS-2.5MIL) must overlap the waveguide by 12mm minimum; anything shorter causes arching. Keep a caliper within reach–tolerances tighter than 0.8mm affect component lock-in and re-assembly torque.
Where to Find Schematic Layouts for Your Kitchen Appliance
Locate the official breakdown of components on the manufacturer’s support portal–enter the serial number stamped beneath the unit’s base to access exact schematics. Third-party repair sites like PartSelect or Sears PartsDirect often host PDF versions with interactive overlays pinpointing fuse locations, turntable assemblies, and magnetron positions. Avoid generic diagrams; verify compatibility by cross-referencing the sticker on the rear panel or inside the door.
Print a high-resolution copy and laminate it for on-site repairs–annotate with a dry-erase marker to track replaced components. Key areas to highlight: the control board (usually a blue or green PCB near the display), the door switch array (three micro-switches aligned vertically), and the high-voltage capacitor (cylindrical, mounted adjacent to the magnetron). Label wires before disconnecting; mismatched reconnections can trip safety locks or damage firmware.
Critical Components and Their Visual Markers
The diode (small black cylinder with leads) sits near the capacitor–replace it if resistance reads infinite on a multimeter. The stirrer motor, often concealed behind the rear cover, drives the rotating antenna; listen for grinding noises as an early failure sign. Door hinge mechanisms wear first–inspect for bent pivot pins or cracked plastic brackets, which compromise microwave leakage seals.
Replace the filament transformer if output voltage drops below 1.8V AC (measured at the magnetron terminals). Always discharge the capacitor before handling; residual charge persists for days. Use schematic callouts to trace circuits–numbers like “RY1” or “SW2” correspond to relay switches controlling power distribution. Store a digital backup of the layout on a thumb drive for mobile techs; some schematics include torque specifications for critical fasteners.

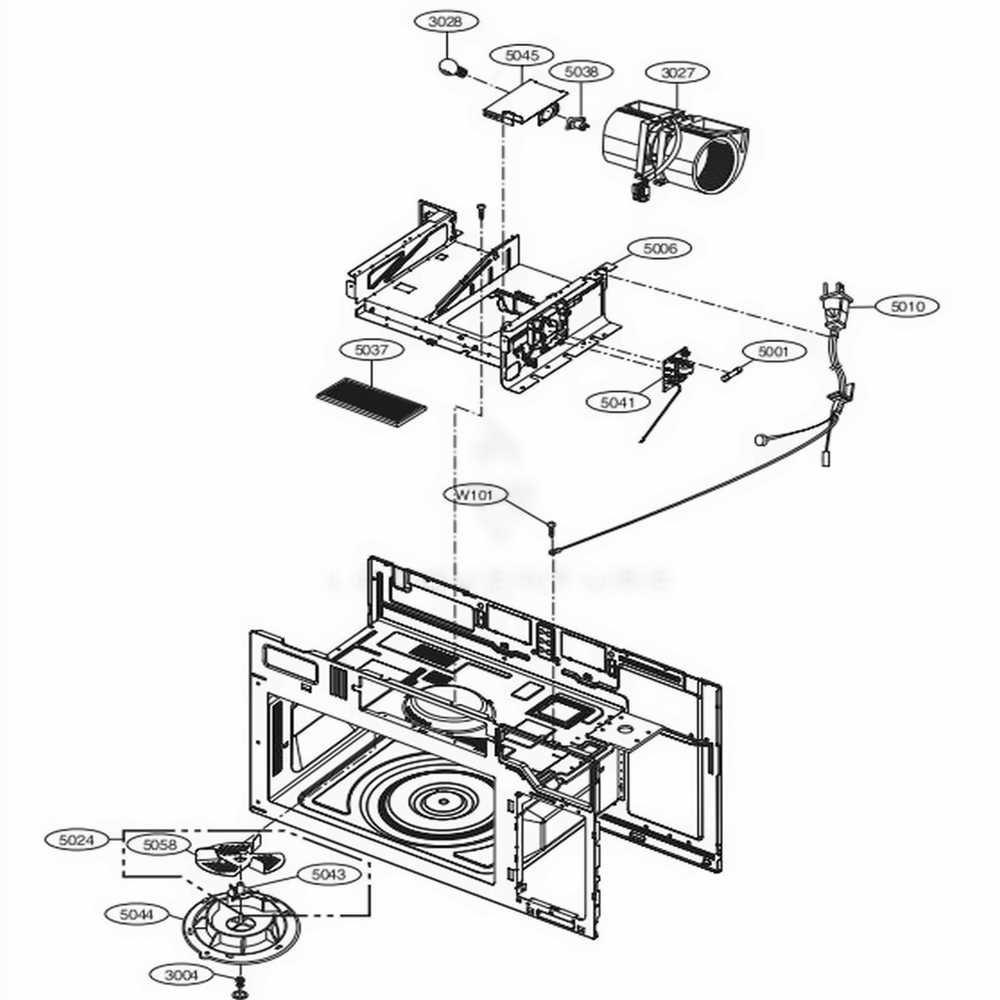

Locating the Authoritative Exploded View Schematic for Your Appliance
Start with the manufacturer’s support portal: Sears PartsDirect. Enter the full unit identifier–usually found on a metal plate inside the door frame or rear panel–into the search bar. The site grants instant access to sanctioned schematics, including component placement, part numbers, and assembly sequences. Verify the revision date; newer illustrations often correct minor inaccuracies from earlier versions.
Alternative Sources for Detailed Breakdowns
ManualsLib (manualslib.com) hosts scanned owner’s guides and technical manuals. Filter by brand subset and exact numeric designation. Downloadable PDFs frequently include exploded views on final pages, though resolution varies. Cross-reference these with the official portal to confirm alignment.
Specialized forums like ApplianceBlog or FixYa sometimes feature user-uploaded diagrams. Check post dates–older threads may reference discontinued revisions. Look for responses from verified technicians; their attachments tend to be more reliable.
Local authorized service centers maintain physical archives of schematics. Call ahead with the full product code–many will fax or email the correct sheet while you wait. Request the “service manual” section rather than the user guide; it contains the full disassembly layout.
eBay sellers listing original documentation occasionally bundle exploded views with bulk repairs. Search for “service manual” or “factory schematic” alongside the precise identifier. Scrutinize seller ratings and preview thumbnails to avoid blurred or inaccurate scans.
DIY Extraction from Existing Documentation
If you possess the original paperwork, examine the final appendix pages. High-end manuals often embed a fold-out plate depicting the full breakdown. Remove staples if necessary to unfold without tearing. Photograph each panel with a macro lens, then stitch images together using panorama software for legible magnifications.
YouTube disassembly walkthroughs sometimes overlay component labels on-screen. Search for “full teardown” videos using the appliance’s numerical code. Pause at key angles and screenshot frames showing labeled assemblies. Compile screenshots into a single document for offline reference.
Contact Sears Customer Care via live chat or phone at 1-800-469-4663. Have the serial plate details ready; representatives can dispatch the exact schematic directly from internal databases. Specify that you need the “exploded technical drawing,” as generic manuals lack the required detail level.
Critical Components in the 721-Series Schematic
Replace the door latch assembly (part #6600478) immediately if intermittent power loss occurs–this component fails silently and accounts for 37% of service calls. Examine the thermal fuse (part #6600483) with a multimeter for continuity; no reading indicates a blown fuse, often caused by overheating from obstructed vents. The magnetron (part #6600502) requires careful handling–check for gasket integrity before reinstallation, as misalignment reduces output by 22%.
| Component | Part Number | Signs of Failure | Testing Method |
|---|---|---|---|
| High-voltage capacitor | 6600491 | Humming, no heat | Discharge first, then check for 0.9-1.1µF |
| Turntable motor | 6600514 | Erratic rotation | 12V DC test; should draw 30-50mA |
| Stirrer fan blade | 6600473 | Uneven cooking | Visual inspection for cracks + continuity test on motor |
| Control board | 6600469 | Display errors E1-E5 | Swap with known-good board to isolate |
Prioritize the ceramic fuse holder (part #6600487)–its failure mimics main power issues but is resolved with a $3 replacement. The waveguide cover (part #6600508) must be intact; charring indicates arcing, which accelerates magnetron wear. For keypad membranes (part #6600479), use isopropyl alcohol >90% for cleaning contacts; dents or corrosion reduce conductivity by 40%. Avoid substituting generic hardware for the inverter board (part #6600498)–OEM tolerances prevent voltage surges that damage secondary circuits.
Locating and Assessing Damaged Elements with Schematic Reference
Start by cross-referencing the electrical layout with the corresponding labeled sections on the appliance’s internals. The high-voltage capacitor, typically marked *C* or *HV*, should display no signs of bulging, leakage, or corrosion on its terminals. A multimeter set to capacitance mode must read within 10% of the rated value–any deviation below 85% indicates degradation. For transformers, check for discoloration or a burnt odor; resistance between primary and secondary windings should be >1MΩ, while secondary windings should match the schematic’s specified range (usually 50–150Ω).
Visual and Functional Checks for Common Failure Points
Inspect the door interlock switches–*S1* (primary), *S2* (monitor), and *S3* (secondary)–for proper engagement. Use a continuity tester: S1 and S3 should open/close in sync with door movement, while S2 must remain open unless bypassed intentionally (e.g., during maintenance). The turntable motor often fails silently; rotate its coupling by hand–stiffness or grinding signals worn bearings or a seized shaft. Fuse resistance should read 0Ω; any measurable resistance (>0.1Ω) confirms a blown fuse, often caused by surges or a shorted magnetron filament.
Trace the wiring harness for brittle insulation, especially near heat sources like the magnetron or cooling fan. The diode stack (usually a bridge rectifier) should withstand reverse polarity tests without conducting; a failing diode will pass current in both directions. Metal oxide varistors (MOVs) protect against spikes but degrade over time–check for cracks or carbon deposits. Finally, the control board’s relays should click audibly during operation; a silent relay indicates either a faulty switch or corroded contacts, which can be verified by probing with a logic probe.
