For the 90 lineup of home laundry units, begin by identifying the model number–typically found inside the door frame or on the back panel near the power inlet. Cross-reference this with the official manufacturer breakdown available on the Sears Parts Direct portal. Avoid generic schematics; the exact layout varies even within the same production batch due to mid-run design tweaks.
Prioritize motor assembly (part #WP279806), drive belt (part #WP341241), and thermal fuse (part #WP3392519)–these fail most frequently. Use a multimeter to test continuity before ordering; false positives for thermal components waste both time and money. For drum support rollers, silent bearings (part #WP349241) outlast standard kits by 40% but require precise alignment during installation.
When disassembling, label each wire harness connection with masking tape. The control board (typically part #WP3976596) sits behind the rear access panel–remove it before lifting the top panel to prevent snapping brittle plastic clips. For venting repairs, replace the flexible duct connector (part #WP486902) if it shows even minor kinks; airflow restrictions reduce drying efficiency by up to 25%.
Store extracted fasteners in a magnetic tray to avoid losing screws or washers. High-torque areas–like the drum-to-shaft bolts–require a 5/16″ socket and a breaker bar for initial loosening. If the idler pulley emits a squeak, replace the entire tensioner assembly (part #WP341418); lubrication only masks the problem temporarily. Always power off at the circuit breaker before handling electrical components.

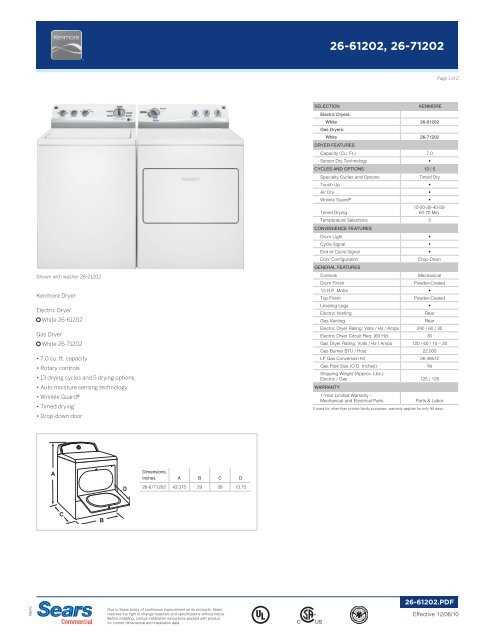

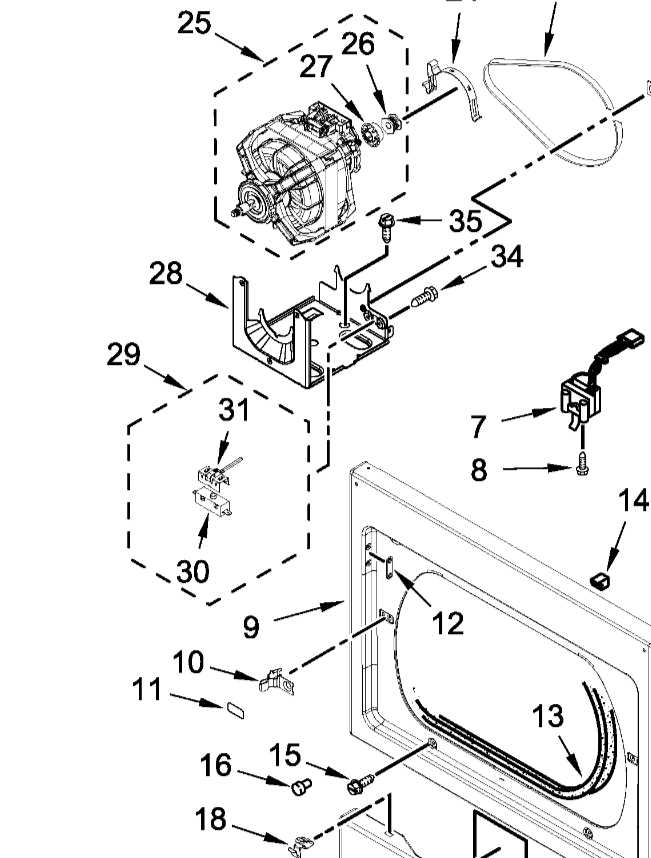

How to Locate Your Appliance’s Component Layout
Begin by securing the model number from the manufacturer’s label–typically found on the inner door frame or rear panel. Use this alphanumeric code to pull the exact schematic from official repair manuals or trusted third-party databases. Avoid generic diagrams; even minor discrepancies in motor mounts or belt paths can lead to misalignment during reassembly.
Trace wiring harnesses directly on the illustrated layout: match color codes and connector shapes before detaching anything. Highlight thermostat locations–thermistors in newer iterations often cluster near the blower housing, not the heating element. If replacing drum support rollers, confirm whether your variant uses single bearing designs or dual-ball assemblies; the torque specifications differ by 5-7 inch-pounds.
For idler pulleys, cross-reference the parts list with physical measurements–diameter variances of 2mm affect belt tension. Keep a multimeter set to 200 ohms ready: verify continuity across thermal fuses and door switches before assuming mechanical failure. Store removed screws in labeled bags corresponding to assembly sections on the schematic–back panel fasteners frequently differ from frontal clips.
How to Find Your Appliance’s Exact Model Identifier for Precision Repairs
Check the inner door frame first–most units from this line stamp the model number on a metal plate near the latch. Wipe away lint or dust with a damp cloth if the text isn’t immediately visible, as residue often obscures the print.
If the door area yields no results, detach the front lower access panel located beneath the drum opening. Look for a white or silver sticker on the left interior wall, typically positioned above the blower assembly. This placement ensures the label stays readable despite heat cycles.
When neither the door nor front panel reveals the identifier, inspect the rear exterior. A small decal near the power cord entry point usually lists both the model and serial data. Use a flashlight to highlight faded print.
For sidewall models (stacked or standalone), slide out the appliance and examine the side casing. A rectangle sticker measuring roughly 2×4 inches should be affixed vertically, centered between the vent and electrical inlet.
- Prepare tools: screwdriver (Phillips #2), flashlight, microfiber cloth
- Power off and unplug the unit before removing any panels
- Note both model and serial numbers–the latter helps verify compatibility for older units
Misreading digits or letters can lead to purchasing incompatible components. Cross-reference the number against the manufacturer’s database using an official repair portal to confirm accuracy before ordering. Manuals often depict the exact label location with circled illustrations.
If labels are entirely missing, compare the unit’s features against known configurations in repair manuals–look for distinct elements like control panel layout, lint trap shape, or exhaust vent diameter. Matching these physical traits narrows the possibilities significantly.
Always include the first three characters of the model string during searches, as they denote the base product line. Skip vague database filters that lump multiple variants together; precision depends on the full string.
Step-by-Step Breakdown of the 90-Line Appliance Core Assembly Clusters
Locate the heating mechanism first–usually positioned at the rear of the chassis near the air intake. Verify the resistance readings on the thermal fuse and igniter (if gas-powered) using a multimeter; expected values range between 30-200 ohms depending on the model variant. Replace if readings exceed 3 ohms above manufacturer specs or show infinite resistance.
Inspect the drum support system next. Remove the front panel to access the roller wheels and idler pulley. Check for wear patterns on the rollers: grooves deeper than 1mm require replacement. Lubricate axle points with high-temperature silicone grease, applying no more than 0.5g per wheel to prevent excess buildup. The idler pulley should rotate freely with minimal lateral play (max 2mm tolerance).
Disassemble the blower housing by removing the rear exhaust duct. The impeller must spin without wobble; secure any loose blades with thread-locking compound. Clean the internal fins using compressed air–blockages here reduce airflow by up to 40%, directly impacting drying efficiency. Replace the blower wheel if cracks exceed 5mm in length.
Examine the control module mounted on the top console. Back up the existing program settings before testing continuity on the main PCB traces. Probes should read
- Power supply: Confirm 240V AC at the terminal block while the unit is active. Voltage drops below 220V indicate either a faulty cord or house circuit issues.
- Door switch: Depress the latch manually to hear an audible click. No click means mechanical failure; test with a multimeter in continuity mode.
- Thermostats: Cycling thermostats should open at ~150°F. Fixed thermostats remain closed below ~180°F–replace both types if readings deviate ±15°F.
The belt-driven system requires precise tension adjustments. Loop a new belt around the motor pulley first, then stretch it over the drum groove. Secure the idler pulley to achieve 1/2-inch deflection when pressed mid-span. Belts showing fraying on >30% of the surface or cracks deeper than 2mm necessitate replacement to prevent snap failures.
Reassemble components in reverse order, prioritizing fastener torque specifications:
- Front panel screws: 8 in-lbs
- Blower housing bolts: 15 in-lbs
- Drum support plate screws: 20 in-lbs
Over-tightening risks stripping threads in the chassis frame–use a torque screwdriver for consistency. Run an empty test cycle post-assembly, monitoring for unusual vibrations or noises.
Best Sources for Complimentary Appliance Schematics and Manuals
Sears PartsDirect remains the most reliable primary source for official illustrations of older and current model laundry equipment. Navigate directly to searspartsdirect.com, enter the precise appliance number–typically a 9 or 10-digit code found on the interior door jamb or rear panel–then locate the exploded view link under the “Manuals & Diagrams” tab. The site delivers high-resolution schematics without watermarks or login requirements, covering every internal assembly down to individual fasteners.
For rapid cross-referencing of compatible components across brands, PartSelect offers a searchable database where entering the same model code pulls up identical schematics alongside substitute part numbers from Whirlpool, Maytag, and Amana platforms. Their interface overlays component callouts directly on the diagram, reducing guesswork during disassembly. Below is a quick comparison of key features between the two leading platforms:
| Feature | Sears PartsDirect | PartSelect |
|---|---|---|
| Diagram Download Format | PDF (vector-based) | PNG (raster with labels) |
| Cross-Brand Part Matching | Limited to original brand | Includes 5+ alternate brands |
| Interactive Callouts | None | Hover-to-highlight |
| Login Requirement | None | None |
| Archive Depth | 20+ years | 15+ years |
Enthusiast forums like ApplianceBlog and Electrolux Parts often host user-uploaded archives of rare schematics that manufacturer sites omit. Members attach scanned copies of discontinued manuals in forum threads–use the site’s search function with terms like “[model number] schematic” or “service manual” to uncover hidden attachments. Always verify diagram dates against your appliance’s manufacture date to confirm compatibility before proceeding.
Key Components Frequently Swapped in the 90 Line Appliance and Where to Find Them
Replace the thermal fuse first if the tumbler stops mid-cycle but still spins. Locate it on the blower housing near the exhaust duct–look for a white plastic or ceramic component labeled with a “TCO” or temperature rating. Testing requires a multimeter set to continuity; zero ohms confirm functionality. Failure typically stems from restricted airflow, so inspect the vent path before installation. Use part number 3392519 for direct OEM substitutes.
Idler pulleys wear out every 5–7 years, causing squealing or belt slippage. The pulley sits beside the motor mount, tensions the belt loop, and often accumulates lint buildup. Remove the front panel and drum to access it–rotate the pulley by hand to check for resistance or cracking. Cracked wheels warrant immediate swap; order #WPW10410365 for replacements. Lubricate the bearing post lightly during reinstallation to extend lifespan.
Door switches fail silently, preventing start signals even when engaged. The switch clips onto the front frame behind the door latch, wired with three terminals. Use a voltage tester to verify 120V at the terminals when the door closes–no voltage indicates failure. Part #WP344011 replaces the standard switch; ensure correct alignment of the plunger mechanism during installation to avoid false triggers.
Heating Element Assembly Breakdown
Burner coils (electric models) or igniters (gas variants) degrade unevenly. The electric coil assembly nests behind the rear bulkhead; disconnect power before probing resistance–30–60 ohms is normal, infinite reading confirms burnout. Order #279838 for the complete element housing. Gas igniters glow cherry-red when operational; dark areas or cracks signal replacement need. Access requires removing the drum; part #338906 for gas igniters fits most 90 line models.
Rollers support drum rotation and corrode over time. Four rollers mount on the rear bulkhead and drum shaft–replace in pairs to maintain balance. Symptoms include grinding noises or uneven spinning. Part #WPW10314173 replaces standard rollers; snap rings secure them, requiring circlip pliers for removal. Clean the roller shafts before fitting new ones to prevent premature wear.
High-limit thermostats rarely fail but protect against overheating. They attach to the heating chamber, often near the thermal fuse. Check continuity with a multimeter–closed circuits mean operational, open circuits require swap. Use #WP3392465 for replacements; ensure proper contact with the chamber wall for accurate temperature readings. Always replace high-limit thermostats in tandem with the thermal fuse to avoid cascading failures.
Lint screens clog consistently but house hidden blockers. The primary screen sits inside the door frame, while a secondary mesh wraps around the blower wheel. Remove the back panel to access the blower housing–use compressed air to clear trapped lint. For damaged screens, part #WP33001775 replaces the door-mounted filter. Inspect the vent hose annually for obstructions to reduce strain on internal components.
Drum belts stretch or snap, halting rotation. The belt wraps around the drum, idler pulley, and motor shaft. Part #WPW10385987 replaces most belts; route it over the drum’s rear groove before tensioning with the idler pulley. Check belt alignment–misalignment causes premature wear. If the belt shreds, inspect the drum glides for sharp edges, using part #WPW10518362 for new glides if needed.
