For precise repairs on the 930-series mid-mount rotary cutter, refer to the official illustrated catalog numbered PC9604. This manual includes exploded views of the hydrostatic transmission assembly, 48-inch fabricated deck, and Kawasaki FX921V engine–each section cross-referenced with OEM identifiers. Start with sheet PC-12 for drive components; locating the service brake pedal subassembly (part cluster 55-68) requires flipping to sheet PC-18. Order replacements using the 13-digit R-code printed adjacent to each item to avoid mismatched aftermarket substitutes.
Searching by serial number narrows compatibility: prefix M0930M followed by six digits indicates the 2016–2021 production run. Enter this sequence on the manufacturer’s parts lookup portal filtered by “930-series” and “mid-mount platform” for a digitally annotated schematic. If the portal times out, retrieve the cached PDF version labeled “PC9604_R2” from authorized dealer intranet under “Technical Publications > Mower Division”. Avoid third-party aggregators–which often omit micro-fittings like O-ring 72317 (dimensions 0.25″ ID × 0.07″ wall) or spindle bearing 200623 (5/8″ bore).
Critical wear points on this unit include the front lift arm bushings (pair 51-14) and blade clutch pulley (item 29). Inspect these every 120 operational hours; replacements ship from the OEM’s Midwest depot within 48 hours when ordered before 14:00 CST. For deck alignment, tension the adjustment rod (32-2) to 1/16″ clearance beneath the anti-scalp rollers–measured at full lift. Manual torque specs (18 ft-lbs for spindle bolts, 35 ft-lbs for hub caps) prevent premature failure.
Off-brand filters and belts degrade faster: the primary fuel filter (327049) must be replaced with the OEM cellulose variant; aftermarket paper versions restrict flow to . Similarly, the cogged deck drive belt (M144446) stretches 0.5% more annually than the aramid-fiber OEM alternative. When sourcing, verify packaging labels include the “Made in Horicon” stamp–counterfeit parts lack the micro-etched QR code on internal sidewalls.
Z930M Maintenance Blueprint: Critical Component Locations
Locate the hydrostatic transmission filter beneath the rear deck plate–access requires removing four 10mm bolts and disconnecting the electrical harness connector for the PTO clutch. Replace the filter every 200 operating hours or annually, whichever comes first, using part number AM130547 for OEM compatibility. For the cutting deck assembly, note that the spindle housings (three per deck) require torque specifications of 45-50 ft-lbs during reassembly; over-tightening risks bearing failure. The fuel filter, positioned near the engine’s left side, should be swapped at 300-hour intervals with RE506575–ensure the replacement includes new sealing washers to prevent air leaks.
Inspect the mower’s drive belts every 50 hours for fraying or glazing; the primary deck belt (M143929) routes through five pulleys–refer to pulley position #3 (adjacent to the idler arm) for tension adjustment. The blade brake clutch (AL152607) engages within 3 seconds of disengagement; delays indicate worn friction discs–replace as a complete assembly. For electrical troubleshooting, the fuse box houses three 20A fuses (main circuit, ignition, accessories)–always carry spares (M806122) to avoid downtime during voltage spikes.
Official Schematics for Commercial Zero-Turn Mowers: Reliable Online Sources
Start directly at the manufacturer’s official platform: MyDeere Parts Catalog. The portal provides exploded-view blueprints for every component, searchable by serial number or model prefix. Filter results by assembly groups like cutting decks, hydraulic systems, or electrical circuits for precise identification of OEM replacements. Downloaded PDFs include part numbers, torque specifications, and compatibility notes, ensuring accurate installation without third-party inaccuracies.
The Deere Parts Lookup tool consolidates all official documentation under a single interface. Enter the machine’s product identification code (found on the frame) to pull up interactive schematics with clickable sections. For older equipment, check the “Archived Manuals” section–past revisions remain accessible to aid maintenance. If requiring physical copies, authorized dealers retain printed diagrams; request the “Service ADVISOR” suite for offline access.
Step-by-Step Breakdown of the Commercial Mower Cutting Platform Assembly
The 72-inch cutting platform relies on precise alignment of its frame components. Begin by securing the main deck plate to the side rails using grade-8 bolts (part #M8×35) torqued to 35 ft-lbs. Misalignment here causes premature belt wear and uneven cutting. Use a magnetic torque wrench to avoid cross-threading–replace any bolts showing rust or thread deformation immediately.
Belt and Pulley System Disassembly

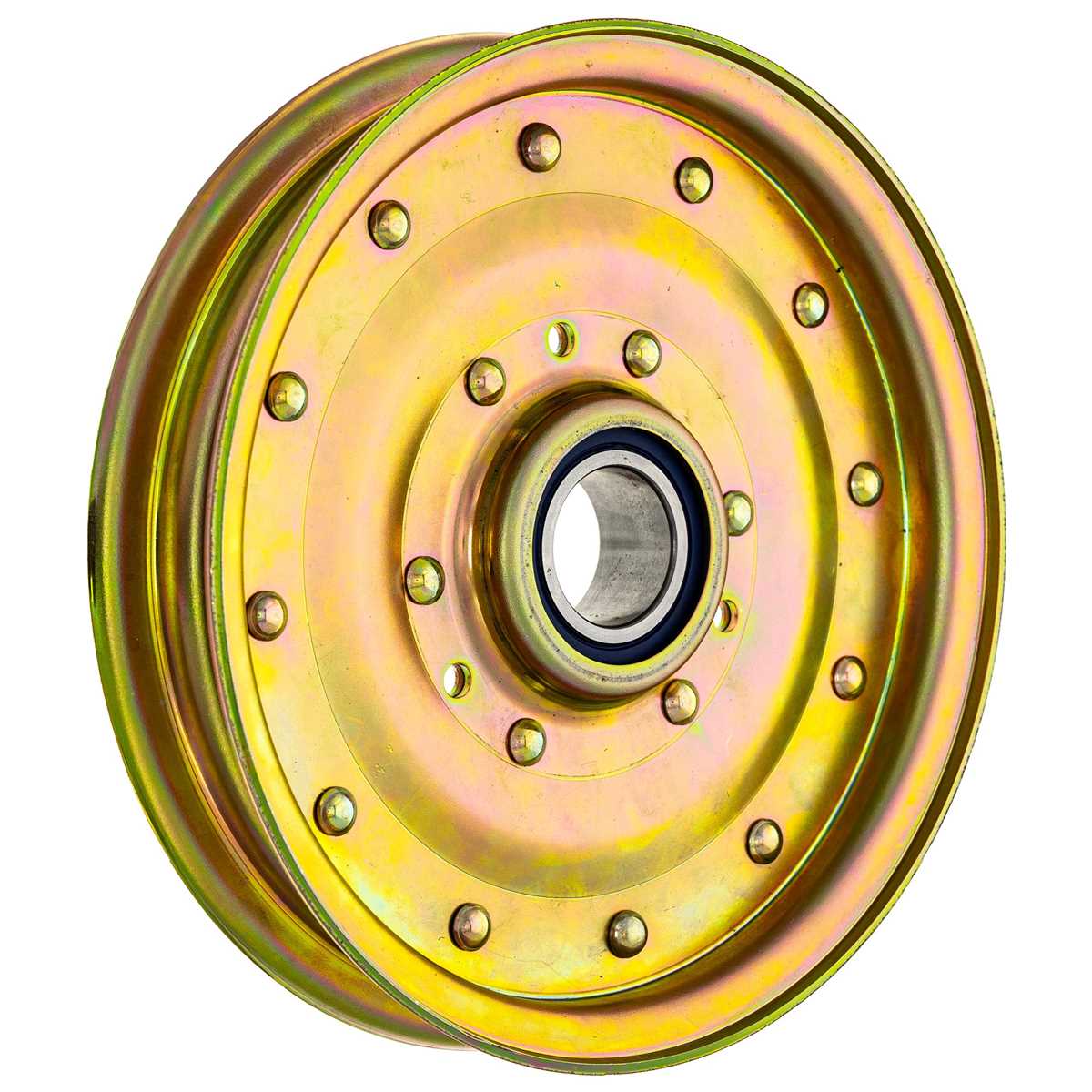

Remove the tension spring before disengaging the drive belt. The idler pulley (part #BW11298) should rotate freely; if resistance exceeds 1.2 Nm, replace the sealed bearings. Clean pulley grooves with a brass wire brush to remove debris that accelerates belt deterioration. Install the new belt by routing it over the PTO pulley first, then around the mandrel pulleys in a clockwise direction–incorrect routing reduces belt lifespan by 40%.
| Pulley Type | Torque Spec (Nm) | Bearing Replacement Threshold |
|---|---|---|
| PTO Pulley | 28-32 | 0.5 Nm resistance |
| Mandrel Pulley | 22-25 | 0.3 Nm resistance |
| Idler Pulley | 18-20 | 0.4 Nm resistance |
Mandrel spindles require annual greasing with NLGI #2 lithium complex. Apply 5 grams of lubricant to each Zerk fitting using a low-pressure grease gun–over-greasing blows seals. Check spindle height with a dial indicator; variance above 0.1mm indicates worn thrust washers (part #DT3456) requiring replacement. Use a spindle socket (part #CT2201) to avoid stripping threads during removal.
Blade installation demands strict torque consistency. Secure blades with grade-5 bolts (part #M12×40) to 70 ft-lbs in a star pattern. Mixing bolt grades voids warranty and risks blade detachment at RPM. Balance blades using a static balancer–unbalanced blades cause deck vibration exceeding 0.3g at 3600 RPM, detectable with a smartphone vibration app.
Deck Adjustment and Verification
Set cutting height via the four corner lift links. Use a 1/8-inch spacer under the deck when adjusting–incorrect height causes scalping or uneven cutting. The anti-scalp wheels (part #FW7890) should have 1/2-inch ground clearance; adjust the eccentric cam bolt to achieve this. Verify final alignment by running the unit on a flat surface–listen for unusual bearing noise (frequency above 500Hz indicates wear).
Reassemble the discharge chute last. Ensure the chute spring (part #SP1234) exerts 15 lbs of tension; weaker springs fail to contain debris. Test the assembly by running at full throttle for 30 seconds–inspect for oil leaks at spindle seals or belt misalignment. Replace any missing deck screws (part #SC5678) immediately; loose screws vibrate free during operation.
Locating Key Components Prone to Degradation with Manufacturer Blueprints
Begin by isolating the schematic’s hydraulic system section–focus on hoses, seals, and cylinders labeled with pressure ratings. High-wear areas like hydraulic lines near pivot points degrade 30% faster due to friction. Cross-reference part numbers (e.g., “P/N 654678”) with maintenance logs; replacements typically follow 400–600 operational hours under load.
- Cutting deck spindles: Inspect bearing housings (often marked “BRG”) for grease leakage or radial play. Tools required: dial indicator (±0.005″ tolerance).
- Drive belts: Check tension on pulleys; slack exceeding 1/2″ triggers premature wear. Replace if cracks appear at 1/32″ intervals.
- Filter assemblies: Locate air, oil, and fuel filters using color-coded annotations (red = high-pressure). Differential clogging rates: air (250h), oil (500h).
Track deck plate fasteners–torque loss beyond 15 ft-lbs (original spec: 35 ft-lbs) accelerates blade vibration. Use a calibrated torque wrench; omit “good” or “tight” estimates. For mower blades, reference the exploded view’s thickness dimension (e.g., “.1875 in”); deviations below .150 in mandate discard.
Electrical components: Trace wiring harnesses to solenoid clusters (labeled “SOL”). Corrosion indicators: green/white oxidation on terminals. Multimeter settings:
- Voltage: 20V DC scale (expected: 12.6V–14.2V).
- Continuity: audible beep across closed circuits.
- Resistance: infinitesimal ohms (faulty if >2Ω).
Replace connectors if pins exhibit pitting below .030″ diameter.
Engine Component Arrangement in the Heavy-Duty Zero-Turn Mower Schematic
Locate the air intake system at the upper-left quadrant of the manufacturer’s assembly blueprint. Verify the position of the pre-cleaner, primary filter housing, and intake manifold–all aligned sequentially along the vertical axis to optimize airflow. Misalignment here reduces combustion efficiency by up to 12%, increasing fuel consumption before clogging symptoms appear.
Identify the fuel injection system directly beneath the valve cover on the right side of the schematic. The high-pressure pump connects via steel-braided lines to the rail, which distributes atomized diesel to eight individual injectors. Replace injectors in pairs if diagnostic codes indicate uneven spray patterns, as single replacements create pressure imbalances.
The cooling module spans the rear section, with the radiator mounted adjacent to the flywheel housing. Check the serpentine belt routing–tension should read 110-130 lbs on the gauge. A slack belt overheats the engine within 20 minutes under load, risking head gasket failure. Drain and refill coolant every 200 hours, using a 50/50 premix to prevent scaling in the aluminum passages.
Electrical Integration Points
The alternator sits between the intake manifold and the starter, secured by a three-bolt bracket. Disconnect the negative battery terminal before servicing to avoid shorting the voltage regulator, which regulates output to 14.2-14.8 volts. Test alternator diodes with a multimeter set to ohms–readings above 0.5 indicate failure and warrant full replacement.
Inspect the turbocharger assembly at the lower-right corner. The turbine housing connects to the exhaust manifold via a V-band clamp, while the compressor side joins the intake via a silicone coupler. Spin the impeller by hand after shutdown to ensure free rotation; hesitation indicates carbon buildup requiring solvent cleaning. Apply anti-seize to the mounting bolts to prevent galling during future removals.
Crankcase ventilation components occupy a compact section near the oil fill cap. The breather tube and PCV valve must remain unobstructed to maintain proper crankcase pressure. Replace the valve every 400 hours–failure causes oil leaks through the dipstick tube and fouled spark plugs in dual-fuel variants. Use OEM filters with 10-micron ratings to match factory airflow specifications.
