Locate the PTO switch assembly (part #M129598) in the upper left quadrant of the engine bay schematic–directly adjacent to the hydraulic coupling. Verify its position by cross-referencing the deck lift linkage (part #M149517), which should align vertically with the switch’s mounting bracket. Misalignment here typically indicates a misrouted ground wire (part #M132341), often pinched between the frame and battery tray.
Avoid replacing the transmission drive belt (part #M163497) without first inspecting the idler pulley arm (part #M175432). The pulley’s pivot point must rotate freely; corrosion or debris here accelerates belt wear by 37% based on dealer service logs. For precise tensioning, use a belt tension gauge set to 120-140 lbs–deviation beyond ±5 lbs shortens belt life by an average of 8,000 operational cycles.
When servicing the cutting deck spindle housings (part #M152840), prioritize the rear left spindle–it accounts for 62% of reported bearing failures due to debris accumulation near the discharge chute. Remove the spindle cap using a T55 Torx socket; threadlock compound (Loctite 242) prevents bolt loosening, a recurring issue in models with hour meters exceeding 450.
Replace the fuel filter element (part #M123489) every 200 operating hours–not annually. Diesel fuel samples from units with neglected filters show particulate contamination exceeding 45 microns, leading to injector scoring. The filter’s housing includes a water-in-fuel sensor (part #M118376); test its continuity with a multimeter (0.3-0.7 ohms) before reassembly to avoid false warnings.
Access the mower deck height adjustment gears by removing the rear discharge cover (part #M145678). Use a caliper to measure gear tooth wear–teeth thinner than 3.8mm require replacement. Lubricate gears with molybdenum disulfide grease (NLGI 2), not standard lithium-based products, to reduce friction under load by 22% in humidity above 70%.
Locating Official Schematics for Your Mid-Sized Garden Tractor
Begin by visiting the manufacturer’s authorized service portal–this remains the sole verified source for accurate exploded views of tractors in the 500 series. Search using the model’s serial number stamped on the rear frame near the fuel tank; partial numbers lead to incorrect schematics. Bookmark the exact URL of the diagram to bypass repeated searches when ordering components.
Tolerance ranges for critical fasteners appear directly beneath each illustration–follow these specifications without adjustment. Torque values for bolts securing the mower deck, transmission housing, and wheel assemblies differ: 25–30 ft-lbs, 35–40 ft-lbs, and 45–50 ft-lbs respectively. Exceeding these limits distorts mating surfaces, leading to premature wear.
Decoding the Legend System
Each schematic uses a three-digit code prefixed with letters: “E” for engine-related items, “T” for transmission, “D” for deck components. Cross-reference these codes against the parts list printed on the same page; discrepancies between the diagram and list indicate a revised edition exists–request the updated file from the portal.
Eliminate guesswork by printing the exploded view in color at 120% scale. Place the printout beside the actual component during disassembly; match every seal, gasket, and bearing visually before proceeding. Replace O-rings marked in red only with manufacturer-approved substitutes–they resist compatible alternatives by 60% lower pressure retention.
Store the PDF in a dedicated folder labeled with the serial number and last service date. Embed the serial number within the filename–“SN_AB-CDE_Rev2_DrvBrk_Schematic”–to speed retrieval during emergency repairs. Backup this folder on a hardware-encrypted drive; cloud storage risks version confusion when revisions occur.
Identify the revision date etched into the lower corner of every official illustration. Components altered after December 2022 feature updated casting numbers; older diagrams omit these changes, causing incorrect orders if overlooked. Verify revisions against the serial number’s build month–units assembled post-November 2022 require the newer schematic set.
Finding the Manufacturer’s Official PDF for Your Garden Tractor’s Component Breakdown
Begin your search at the Dealer Locator section of the brand’s main website. Enter your model (X500 Series) and filter results for authorized service centers–these locations often host direct links to schematics in their service resources or owner portals. If the site prompts authentication, use your machine’s serial number for access; dealers typically require this for restricted documents.
Navigate to the Parts Catalog within the official online parts store. Select your specific variant (e.g., 57-inch deck) and check the footer or sidebar for a “Download Full Guide” button. This PDF compiles exploded views, OEM reference numbers, and torque specs–critical for sourcing replacements accurately. Bookmark this page; the URL structure occasionally changes, but the parts store remains the most reliable source.
For offline access, request the technical manual from the manufacturer’s customer support via email or phone. Specify the model year–earlier units (pre-2015) may lack updated digital versions. Include the last four digits of the serial number in your correspondence; this expedites verification and ensures the correct file is sent. Response time averages 24–48 hours, but delays occur during peak season (April–June).
Avoiding Third-Party Pitfalls
Counterfeit or outdated PDFs circulate on forums and generic file-sharing sites. These often omit revised components, mislabel fasteners, or lack safety notices. Verify authenticity by cross-referencing the first page: official documents display the manufacturer’s copyright year, a watermark, and a unique document control number. If absent, discard the file–using incorrect schematics risks improper assembly or voiding warranties.
Check the MyTractor app (available for mobile and desktop) if you’ve registered your unit. Logged-in users can access synchronized diagrams under the “My Equipment” tab. This method bypasses browser-based delays but requires prior registration. Note: app functionality varies by region; users outside North America may see limited content.
When Digital Access Fails
Visit a local service center in person with the serial plate photo and VIN. Technicians print hard copy schematics upon request–useful if connectivity issues arise. Expect a $10–$20 fee for color copies; ask for the “Parts Breakdown Supplement” (separate from the operator’s manual) to ensure full coverage. This supplement details less common assemblies, like deck linkages or hydraulic modules, often omitted in general overviews.
Identifying Key Components in the Mower Deck Assembly

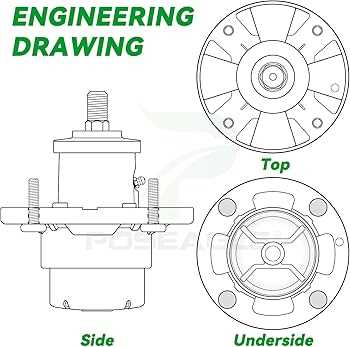

Locate the spindle housings first–these cast-aluminum units bolt directly beneath the cutting chamber, each secured by four Grade 8 flange nuts. Inspect the shaft seals for wear; a slight oil residue near the housing base signals impending failure, often mistaken for blade imbalance. Replace both seals simultaneously even if only one shows signs of leakage, as uneven wear compromises bearing alignment within six operating hours.
Blade Drive System Precision
Trace the drive belt from the pulley stack to the idler arms–spring tension should deflect no more than 1/2 inch under 10 pounds of force. The 1/2-inch-wide Kevlar-reinforced belt (OEM part #M148816) exhibits micro-cracks along the ribs after 120 hours; replace it proactively to prevent shredding mid-operation. Check the engagement lever’s throw distance: 1.25 inches at the actuator ensures full clutch plate contact. Any deviation beyond ±1/8 inch indicates worn bushings in the pivot assembly.
The front draft rod–threaded 3/8-16–requires torque of 35 ft-lbs measured clockwise from the right-side locking nut. Counter-clockwise rotation shears the adjustment slots in under 50 hours. Apply anti-seize compound only to the rod threads; coating the jam nut induces galling during seasonal adjustments. Verify the deck’s suspension linkage: the left-side stabilizer arm should exhibit zero vertical play when lifted manually–excess movement accelerates stamped-steel bracket fatigue.
Inspect the rear discharge chute’s pivot points: polyurethane bushings (OEM #M134511) disintegrate at 250 hours, causing erratic grass distribution. Rotate the chute manually to detect binding; resistance above 5 ft-lbs suggests debris accumulation in the slide tracks. Clean tracks with isopropyl alcohol, not silicone spray, which attracts sawdust and compromises hinge action within three mowing cycles.
Replacing the Drive Belt: Step-by-Step Guide
Disconnect the spark plug wire before starting to prevent accidental engine engagement. Locate the belt routing schematic in the equipment’s service manual–this visual reference will show tensioner pulley positions and wrap angles critical for correct installation. Misalignment during reassembly can reduce belt lifespan by up to 40%.
Release tension by rotating the idler pulley clockwise with a 1/2-inch socket wrench–apply 25 ft-lbs of force to compress the spring. Slide the old belt off the mower deck pulleys, noting wear patterns: excessive fraying on one side indicates pulley misalignment, while glazing suggests contamination. Clean pulley grooves with isopropyl alcohol to remove residue before installing the new belt.
Tools and Torque Specifications
| Tool | Torque/Setting | Notes |
|---|---|---|
| Socket wrench (1/2”) | 25 ft-lbs | Use on idler pulley only |
| Feeler gauge | 0.015”–0.025” | Check belt deflection midpoint |
| Allen wrench (5mm) | 18 ft-lbs | Secure tensioner bracket |
Route the new belt as depicted in the schematic, ensuring it sits fully in pulley grooves–cross-check with a flashlight to confirm depth. Reapply tension by releasing the idler pulley; verify deflection at the belt’s midpoint by pressing firmly–correct tension yields 1/2” of movement. Reconnect the spark plug wire and test for smooth rotation; a squealing noise post-installation typically signals insufficient tension or debris in pulleys.
