Begin by locating the engine bay schematic in the operator’s manual, page 42, section 3.5. This illustration identifies critical filters, belts, and pulleys by numerical labels–match these numbers to the parts list on the following spread. If the manual is not available, download the official service blueprint from the manufacturer’s support portal (file ID: X330-EN-REV03). Avoid third-party replicas; they frequently omit hydraulic lines or mislabel electrical connectors.
For the mower deck assembly, focus on the exploded view (Figure 7). Check the blade spindle housings–replace the bearings if play exceeds 0.015 inches or grinding noises persist. Use OEM spindle kits (part series 125R) rather than generic alternatives; aftermarket units fail under load within 90–120 hours. Verify torque specs: 45–50 ft-lbs for spindle bolts, 22–25 ft-lbs for deck lift rods.
When inspecting the drive system, isolate the hydrostatic transmission. The fluid cooler (mounted behind the radiator) requires annual cleaning–clogged fins reduce cooling efficiency by 30%. Use only Hy-Gard oil; substitutes cause seal swelling within 400 hours. Replace the transmission filter every 200 operation hours; a clogged filter triggers cavitation, damaging the pump.
For electrical components, refer to wiring harness diagram (page 87). The ignition switch (terminals 1–4) often fails; bypass corroded contacts with dielectric grease, or replace the switch if resistance exceeds 0.5 ohms. The fuel pump (mounted on the firewall) demands 12.5–13.2 volts to function–low voltage (
Air filtration requires weekly inspection. The primary element (paper) lasts 100 hours in dusty conditions; the secondary foam (oiled) must be cleaned every 25 hours. Replacement intervals double in non-dusty environments. Never reverse airflow–reinstallation errors void factory warranties. For snowthrower attachments, the auger shear pins break at 80 ft-lbs torque; stockpile OEM pins (473-022) to prevent delays.
Finding and Using Engineered Riding Mower Component Illustrations
Begin with the official service manual PDF–search for “[model identifier] technical manual” on the manufacturer’s support site. The exploded views section contains labeled schematics grouped by assembly: cutting deck, transmission housing, engine block, steering linkage, electrical harness. Each numbered item corresponds to a row in the parts list table beneath the illustration, showing OEM reference codes, descriptions, and compatible aftermarket equivalents.
- Deck pulley assembly (page 42): multi-groove belt tensioner bracket (ref #M149239) pairs only with 1.25″ shaft diameter idler arm.
- Hydrostatic transmission filter (ref #LV67345): replace every 200 operating hours; filter wrench size 76 mm.
- Mower blade bolt torque specification: 70-85 Nm; use blue thread locker on fresh fasteners.
Download three distinct schematic types: exploded views for disassembly sequences, wireframe diagrams for electrical troubleshooting (pins labeled A1 through Z4), and lubrication point charts showing grease zerks. Bookmark these PDFs on a tablet mounted near the workbench for instant access during repairs–printing wastes time flipping pages during torque checks.
Cross-reference OEM numbers against supplier databases like Messicks, Jack’s Small Engines, and Partstree. Substitutes must match three criteria:
- Identical mounting bolt pattern (e.g., 4-hole 8.5 cm spacing).
- Material grade (ductile iron vs stamped steel).
- Spline count if shaft-driven (20-tooth input shaft mandatory).
Filter search results by “confirmed compatibility” tags–unverified listings cause misalignment failures.
Use the manufacturer’s interactive diagram tool if troubleshooting mid-repair: hover over components to highlight adjacent parts relationships (e.g., seat switch wiring connects to PTO solenoid through 6-pin Deutsch connector). Rotate 3D renderings to inspect underside fasteners obscured in 2D drawings–critical for torque verification without removing entire assemblies.

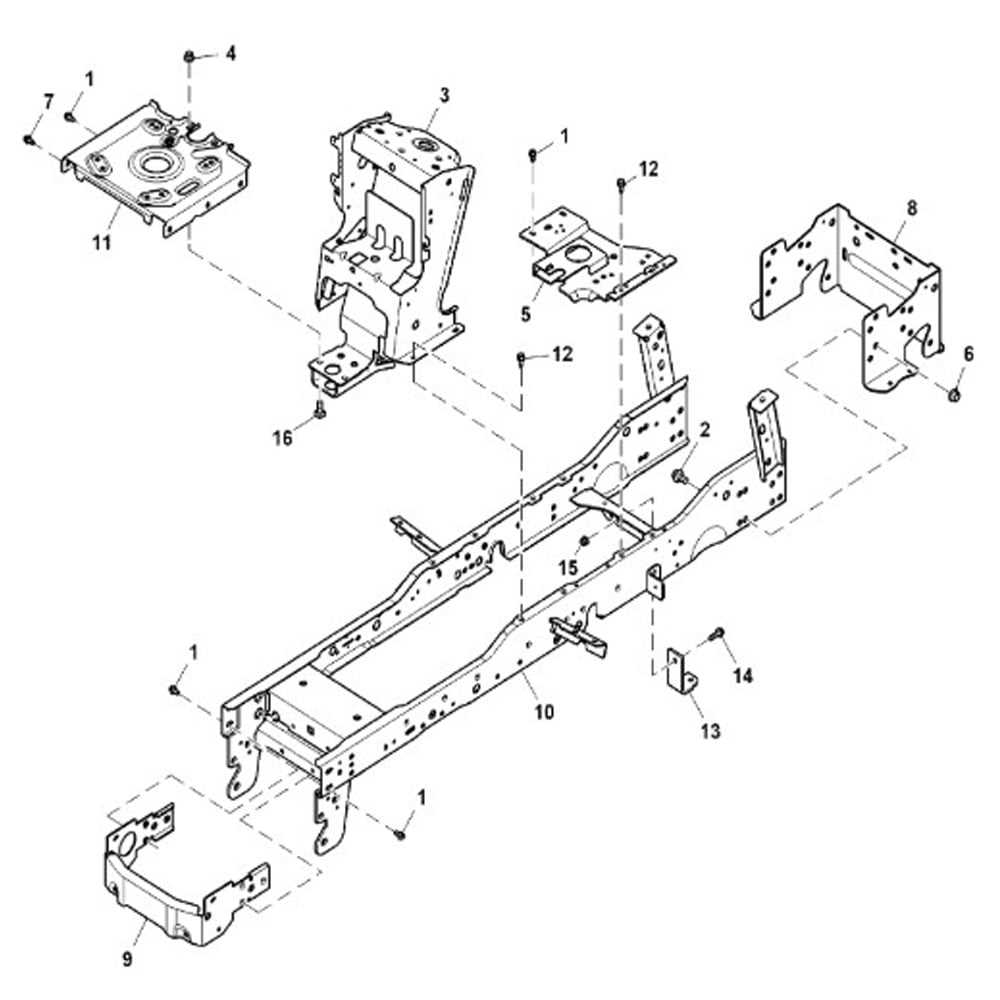

Print a poster-sized schematic for the cutting deck and frame rail assemblies (actual 1:5 scale); laminate and mount it 6 feet above the workbench. Dry-erase markers allow circling suspicious wear areas observed during visual inspections–document patterns (e.g., bell-mouthed spindle bores) correlating to specific noise frequencies.
Archive old schematics after major version updates–hydraulic control arms (ref #AM115861) received revised pivot bushings in 2022 models (material switched from bronze to PTFE composite). Note revision dates directly on physical copies; mismatch errors void warranty claims for premature wear components.
Locating Authorized Schematics for Your Lawn Tractor Online
The manufacturer’s official support portal provides immediate access to exploded views for all machinery variants. Visit Deere’s parts lookup tool and enter your model identifier–this system displays factory-approved illustrations directly linked to genuine replacement components. Filter results by category (engine, transmission, mower deck) to isolate the specific assembly needed, then download or print the schematic in high resolution for offline reference.
Third-party aggregators like Jack’s Small Engines and eReplacementParts host mirrored copies of OEM blueprints, often with annotated callouts for common wear items. These platforms allow cross-referencing serial numbers across multiple tractor lines, ensuring compatibility before ordering. Verify the diagram date matches your machine’s build year to avoid discrepancies in newer revisions.
Dealer-only resources such as the JD Parts Portal require an account but offer unrestricted access to engineering-grade schematics, including service bulletins and torque specifications. Independent repair shops and authorized service centers typically obtain login credentials–request a temporary guest pass if you’re performing warranty-covered repairs. The portal’s advanced search includes assembly animations for complex subcomponents.
Specialized forums like GreenStitch and MyTractorForum archive user-uploaded PDFs of rare or discontinued systems that may not appear in standard databases. Members frequently highlight revisions between early-run and current production batches, saving hours of trial-and-error fitting. Before relying on community-sourced files, compare them against a single page from the OEM site to confirm accuracy.
For emergency field repairs, mobile apps like Repair Clinic provide offline access to cached illustrations on Android and iOS. These apps synchronize with your device’s camera to overlay the schematic onto live footage of the disassembled unit, assisting precise identification of fasteners and linkages. Update the app weekly to ensure inclusion of all recently released technical updates from the equipment manufacturer.
Locating Critical Power Unit Elements in Your Garden Machine’s Catalog
Begin with the exploded view illustration numbered 100-series–this section isolates the main motor assembly. The cylinder block (101) anchors most internal mechanisms; locate its four-digit identifier in the upper-left corner of the schematic. If the number ends in -AA, the component includes the oil cooler bracket as a single unit. For -AB suffixes, verify the presence of the oil filter adapter (102) mounted on the left side, which differs in thread pitch.
Trace coolant hoses to the thermostat housing (105)–its placement varies by serial number. Machines manufactured before 2018 position it atop the cylinder head; later models relocate it to the front near the water pump pulley. Check the housing gasket (106) for a yellow silicone bead; mismatch here causes overheating within 40 operating hours. Replace any gasket showing compression set or missing alignment tabs.
- Oil pan (110): Verify depth with a dipstick if fluid capacity exceeds 3.2 liters–overfill voids warranty claims. The –BA variant includes baffles; missing baffles increase aeration risk.
- Crankshaft pulley (115): Inspect keyway wear using a 0.05mm feeler gauge–exceeding clearance requires pulley replacement, not just retorque.
- Camshaft (120): Count lobes on intake vs. exhaust–mismatch indicates incorrect timing alignment; reset via flywheel mark at TDC before reinstalling.
Inspect the fuel rail (125) for injector ports–early models use –AA injectors with 120° spray patterns, while –AB variants shift to 60° for ethanol blends. Remove rail bolts in reverse order of tightening (inner screws first) to prevent warp. If rail pressure drops below 280 kPa during cranking, bypass the filter (126) temporarily–restricted flow here mimics pump failure.
The flywheel (130) assembly often lists incorrectly in cross-reference tables. Remove the PTO shield to confirm: –AC units integrate the ring gear; –AD separates it. Tap gears with a brass hammer–dull resonance indicates hidden cracks, mandating replacement. Do not reuse bolts longer than 25mm–stretch limits void thread integrity.
Air intake components appear under 200-series but critical filtration depends on serial number suffix. –MA engines require the pre-cleaner (201) for dusty conditions; omitting it reduces airflow by 18%. The –MB filter housing (202) uses a 3-stage foam liner–replace this every 100 hours in dry climates, not 200 hours as stated in maintenance manuals. Check gasket (203) for radial cracks; circumferential splits allow unfiltered debris entry.
- Download the –EN variant of the catalog for English metric conversions–torque specs differ between imperial and ISO bolts.
- Cross-reference part prefixes with the serial number plate: G denotes garden model, V indicates vertical shaft variations.
- Use magnetic thread locker on all M8 fasteners in the motor assembly; vibration loosens these within three seasons.
