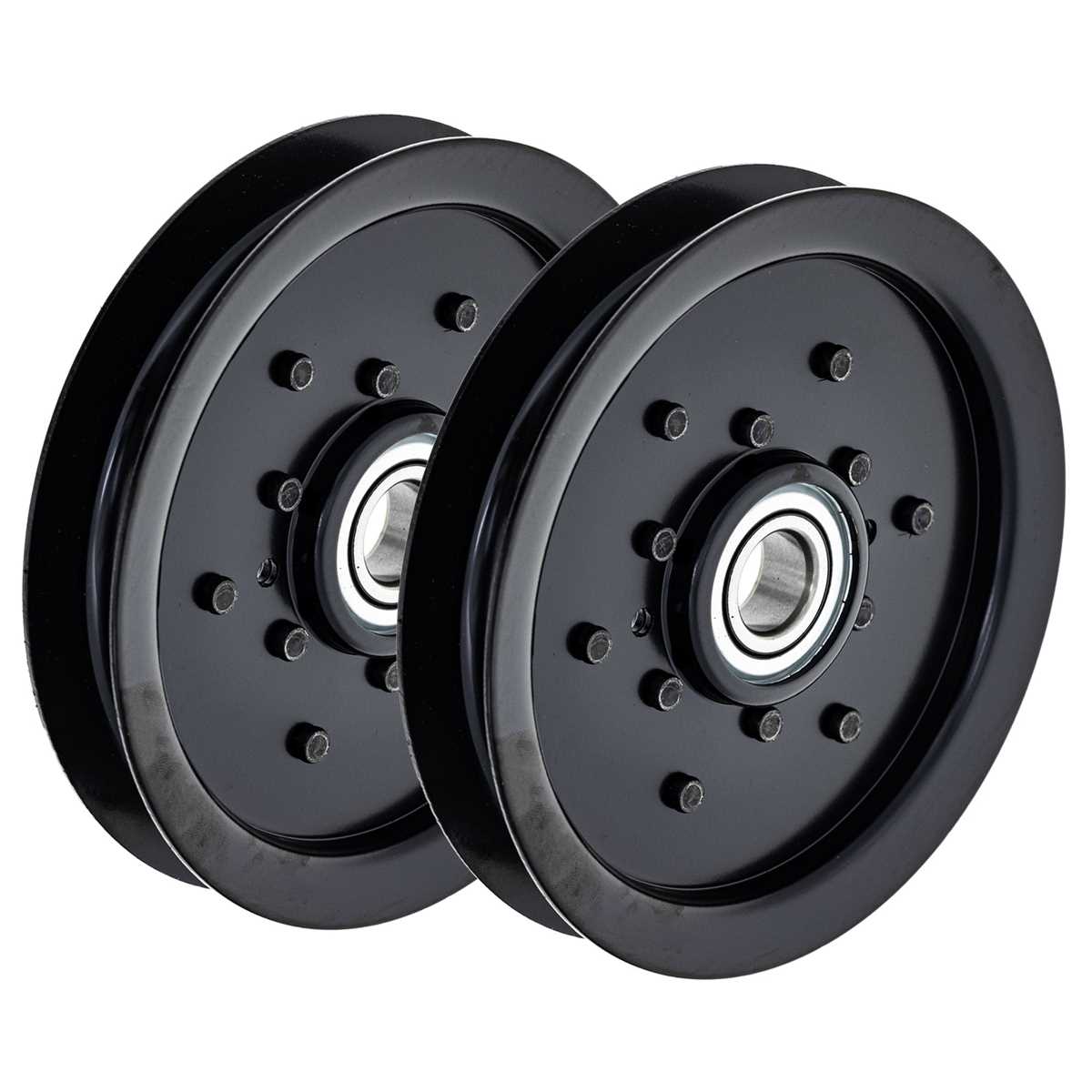

Start with the official manufacturer’s breakdown–model-specific schematics are available directly from the brand’s support portal. Enter your serial number to pull up exact matches; generic images often mislead. The left-side deck pulley (part #M117693) is a common failure point–inspect it every 50 hours of use if operating in dusty or wet conditions. Replace it if grooves exceed 0.5mm depth.
For engine maintenance, the air filter housing (part #M106338) should be cleaned or replaced every 100 hours. Use compressed air at 40-60 PSI; never tap the filter against a hard surface–this creates micro-tears. The fuel filter (part #M124998) clogs frequently; swap it at the first sign of rough idling. Keep a spare fuel shut-off valve (part #M105187) on hand–corrosion here causes hard starts after long storage.
Hydrostatic transmission issues often stem from low fluid. Check levels with the dipstick on the rear axle–wipe, reinsert, then remove to read accurately. Use only the recommended fluid (part #TY6351); substitutes overheat. If the tractor creeps when stationary, adjust the linkage (part #M105820) by turning the jam nuts clockwise in 1/8-turn increments until movement stops.
Blade sharpening depends on usage: 25 hours for coarse debris, 50 hours for lawns. The outer blades (part #M119956) wear faster–flip or replace them first. Always torque bolts to 45-55 ft-lbs; over-tightening warps the deck. For wiring fixes, reference the color-coded harness: red (12V), black (ground), yellow (solenoid), blue (safety switches). Label each connection before disconnecting to avoid reverse polarity.
Order genuine components throughverified dealers–they guarantee correct fit and include updated seals. Aftermarket parts save 30-40% but void warranties on related assemblies if they fail. Keep a printed schematic in your maintenance log; mobile apps lose connectivity when needed most.
LT150 Component Schematics: Exact Steps for Repairs
Locate the engine housing fasteners first–six hexagonal bolts, size 10mm, arranged in a staggered pattern beneath the air intake grille. Remove them counterclockwise using a deep-socket wrench; standard sockets will strip the heads.
Identify the carburetor linkage by tracing the throttle cable from the control lever. The wire harness connections here use quick-disconnect terminals–press the tabs inward while pulling straight out. Forcing them risks damaging the plastic casing.
- Fuel filter: Positioned inline between the tank and carburetor. Replace annually; clogged filters reduce RPMs by 15-20%.
- Spark plug: NGK BPR5ES or equivalent, gapped at 0.030 inches. Fouling indicates improper fuel mix.
- Deck belt tensioner: Adjust using the slotted bracket near the pulley; proper tension prevents slippage during mowing.
Inspect the transmission dipstick after every 50 operating hours–fluid should reach the upper mark when warm. Overfill causes foaming; underfill leads to gear wear within 12-18 months.
The rear axle bearings require repacking with marine-grade grease (NLGI #2) every 200 hours. Failure to do this results in detectable humming at speeds above 3 mph. Use a bearing puller tool (catalog #M13516) for removal.
Electrical schematics show the ignition module under the flywheel cover–its resistance should measure 0.3-0.5 ohms. Deviations indicate internal shorting, often causing intermittent starting failures.
For blade sharpness checks, run a fingernail along the cutting edge; a 0.015-inch radius dulls the blade enough to require regrinding. Balance blades using a static balancer–unbalanced blades create vibration measurable at 0.125 inches at the handle grips.
- Disconnect the battery negative terminal before servicing the starter solenoid to prevent accidental engagement.
- Label all wiring harness connectors with masking tape–their locations are critical for reassembly.
- Check the PTO clutch air gap (0.010-0.020 inches) if engagement is slow or slips during operation.
- Replace the seat switch if the engine fails to crank–this safety feature often fails without warning.
Locating Authentic Schematics for Your 2003–2008 Lawn Tractor Variant
For immediate access to manufacturer-approved breakdowns, visit the official service portal using your machine’s serial number–found on the rear frame near the right wheel. Filter by year (2003–2008) and select “illustrated guides” to download PDFs with exploded views, part numbers, and torque specifications. Retailers like Example Parts Direct mirror these schematics but cross-verify with the OEM source to avoid discrepancies in revised editions.
Local authorized service centers maintain physical copies of these visual inventories–request a printed folio during routine maintenance, as most dealers archive outdated revisions for legacy models.
Locating and Procuring Components Using Your Riding Mower’s Schematic
Download the official technical blueprint from the manufacturer’s support portal–search for model “LT155” if the exact unit isn’t listed, as schematics often share component labels. Pinpoint the component number stamped directly on metal or plastic housings; these alphanumeric codes (e.g., M115419, LV45100) match entries in the exploded view. Cross-reference the code against the parts list index to confirm compatibility, especially for blades, belts, or filters prone to model variants.
Use a magnifying lens to inspect worn components for tiny engravings; debris or paint often obscures critical identifiers. For electrical elements like solenoids or switches, trace wiring harness paths in the exploded view to verify terminal connectors–colors and pin configurations differ even between minor production runs. Snap high-resolution photos of disassembled sections before ordering; overlays of the schematic against your images reveal discrepancies faster than text descriptions.
Check the last three digits of component codes to detect supersessions; numbers ending in “A” or “B” indicate revised versions (e.g., M115419A replaces M115419). Contact authorized dealers with these revised codes–third-party sellers frequently list outdated inventory, leading to incompatibilities. For overseas procurement, verify voltage ratings on motors and pumps; 110V components destined for 220V markets fail catastrophically.
Critical Ordering Steps
Submit the exploded view’s item number, not just the component name, when requesting quotes. Dealers default to “best-fit” replacements if codes are omitted, introducing trial-and-error delays. Specify whether sealing washers, cotter pins, or adhesion compounds accompany the primary component; OEM diagrams nest these small items under parent nodes, while aftermarket catalogs separate them.
Compare lead times for identical items across suppliers–dealer networks ship within 48 hours but charge 30% premiums, while direct importers take 10–14 days but offer 15% discounts on bulk orders (minimum three pieces). Avoid mixing supplier orders for hydraulic filters or belts; inconsistent tolerances cause premature wear. Confirm return policies before payment–core charges for remanufactured elements (e.g., transmissions) often exceed the refund window.
Print the specified page from the exploded view and attach it to component packaging upon delivery for rapid verification during reinstallation. Stow the document in a sealed bag beneath the mower’s seat for field reference; humidity degrades paper over time, but mylar-coated schematics withstand seasonal storage.
Verification Prior to Installation
Align new components against the exploded view’s orientation markers–blade adapters, for example, mount clockwise on some sub-models, counterclockwise on others. Test-fit pulleys before final tightening; grooves must align with belt ridges to prevent slippage. For hydrostatic drive components, note port sizes in the exploded view–metric threads (M12x1.5) are incompatible with standard 1/2” NPT fittings, risking fluid leaks.
Critical Powertrain Elements in Rider Mower Schematics
Locate the hydrostatic transmission fluid reservoir under the operator’s seat deck–it requires 48-ounce capacity of 10W-30 engine oil, not automatic transmission fluid, to prevent internal corrosion and seal degradation. The charge pump, typically mounted forward of the transmission housing, must maintain 150-175 psi output during operation; replace the pressure relief valve if readings drop below 120 psi to avoid slippage and erratic speed response. Inspect the drive belt tension every 50 hours: deflection should measure 3/8-inch under 10 pounds of force, with visible wear grooves warranting immediate replacement of the 3L670 belt ( Gates #381131).
Crankcase and Cooling System Indicators
Drain engine oil through the magnetic drain plug–expect metallic debris under 2mm diameter; larger fragments point to failing rod bearings or camshaft lobes. The cooling fins surrounding the cylinder head demand compressed air cleaning at intervals matching spark plug changes (NGK BPMR6A, gap 0.030 inches); restricted airflow drops RPM by 8-12% and accelerates piston ring wear. Replace the paper element air filter (Kohler #25 050 02-S) when restriction gauge needle enters the red zone, not on a calendered schedule–dust ingestion reduces compression readings by 15-20 psi within 10 operating hours.
Step-by-Step Guide to Interpreting the Mower Deck and Cutter Unit Schematic
Locate the mower housing illustration on the right side of the schematic–this is typically the largest component in the visual. Identify the numbered callouts around its perimeter first, as these correspond to fasteners, pulleys, and mounting brackets listed in the adjacent legend. Note that parts sharing the same callout number but positioned at different angles often indicate symmetrical pieces, such as left- and right-side idler arms or blade spindles. Cross-reference these numbers with the parts list immediately to avoid misidentifying mirrored components.
Examine the belt routing path before handling any hardware. The schematic shows a dotted or dashed line tracing the belt’s course through pulleys–follow this path clockwise, starting at the engine-side tensioner pulley (usually labeled “P1”). Record each pulley designation (“P2,” “P3,” etc.) and its position relative to the housing edge; this sequence directly impacts blade synchronization and belt tension. Use a short ruler to measure distances between pulleys on the printed schematic–the actual deck matches these proportions within 2mm, aiding physical alignment during reassembly.
| Pulley Label | Function | Torque Spec (Nm) | Visual Cue on Schematic |
|---|---|---|---|
| P1 | Tensioner (spring-loaded) | 8.1–9.5 | Arrow indicating rotation direction |
| P2 | Mandrel (left blade) | 28.6–35.3 | Bold border, central axis marker |
| P3 | Idler (flat) | 6.8–8.1 | Dashed outline near deck edge |
| P4 | Mandrel (right blade) | 28.6–35.3 | Double-width line connecting to P2 |
Inspect the blade attachment points–the schematic depicts each blade as a thick horizontal line with a circular center bore. Confirm the bore diameter matches the mandrel shaft size (12.7mm for standard blades) and verify the presence of a recessed “anti-spin” notch on the schematic; this tiny feature engages with the mandrel’s keyway and prevents slippage. If the housing shows wear around blade paths, replace washers (#42 in legend) even if not expressly indicated–these degrade faster than the schematic suggests.
Trace electrical connections last if present–wire harnesses to safety switches or PTO solenoids appear as thin, branching lines. Follow each branch to its terminal, noting whether the schematic uses solid (grounded) or dashed (signal) lines. Test continuity with a multimeter before detaching any connector, as corrosion here is common yet invisible on the schematic. Label each connector with its legend number directly on the plastic housing to prevent cross-wiring during reinstallation.
